4-30 — STEERING WHEEL AND COWL (#19232) — 11 parça

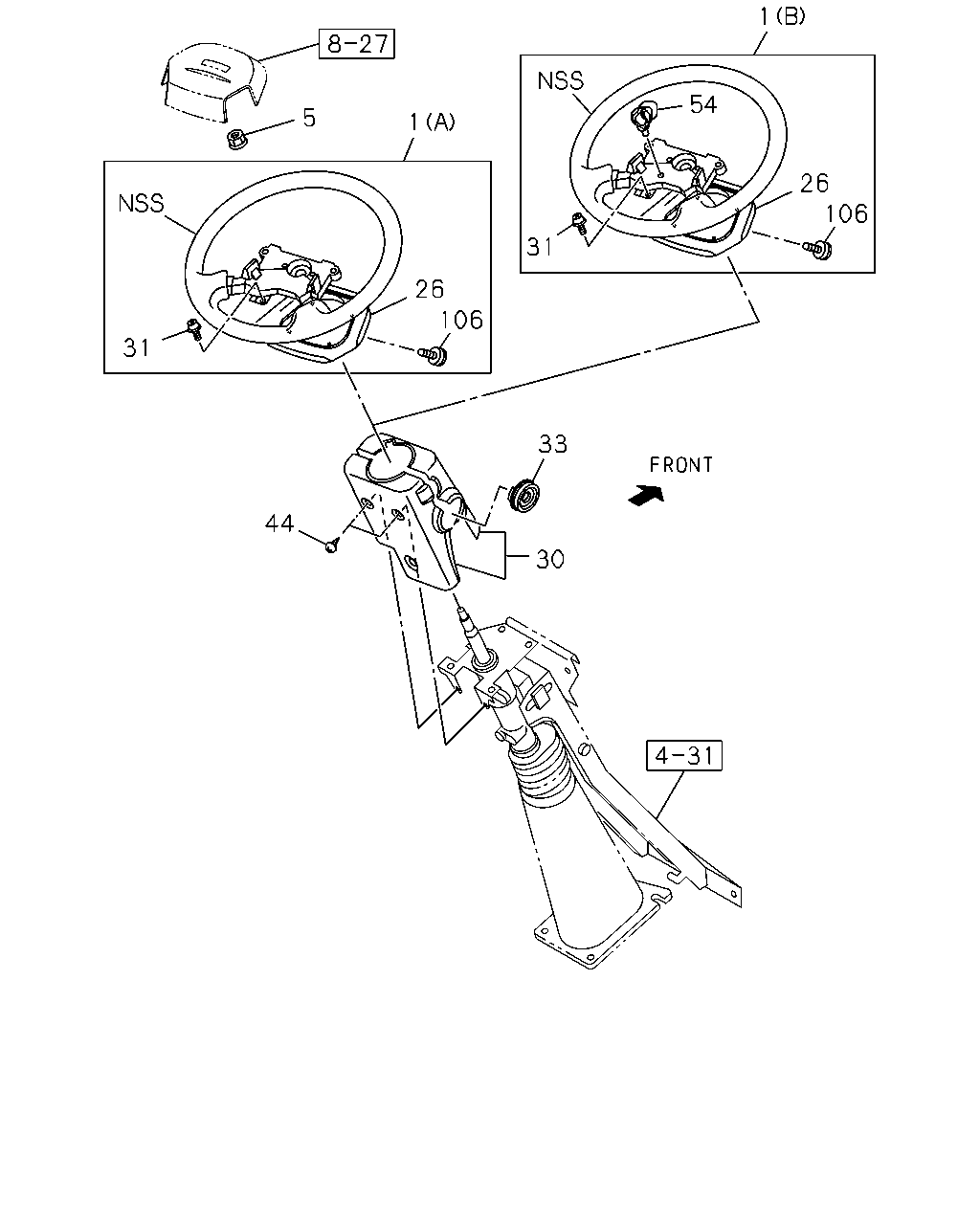

çizim 129173
30 33 44 31 26 106 1 5 31 54 26 1 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
(A) DARK GRAY 		8-97407-720-0 01 1 1004-1210 ● ●
1 WHEEL; STRG
(B) DARK GRAY 		8-97423-998-0 01 1 1211- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 SOU 		0-91111-514-0 01 1 1004- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97405-841-0 01 1 1004-1210 ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97421-978-0 01 1 1211- ● ●
30 COWL; STEERING
DARK GRAY 		8-97415-543-0 01 1 1004- ● ●
31 SCREW; BOSS TO COVER
M4X12 		8-97167-588-0 04 1 1004- ● ●
33 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 1004- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1004- ● ●
54 CLIP; HARNESS 8-98165-703-0 01 1 1211- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1004- ● ●
