4-25B — REAR FINAL DRIVE (#19231) — 144 parça

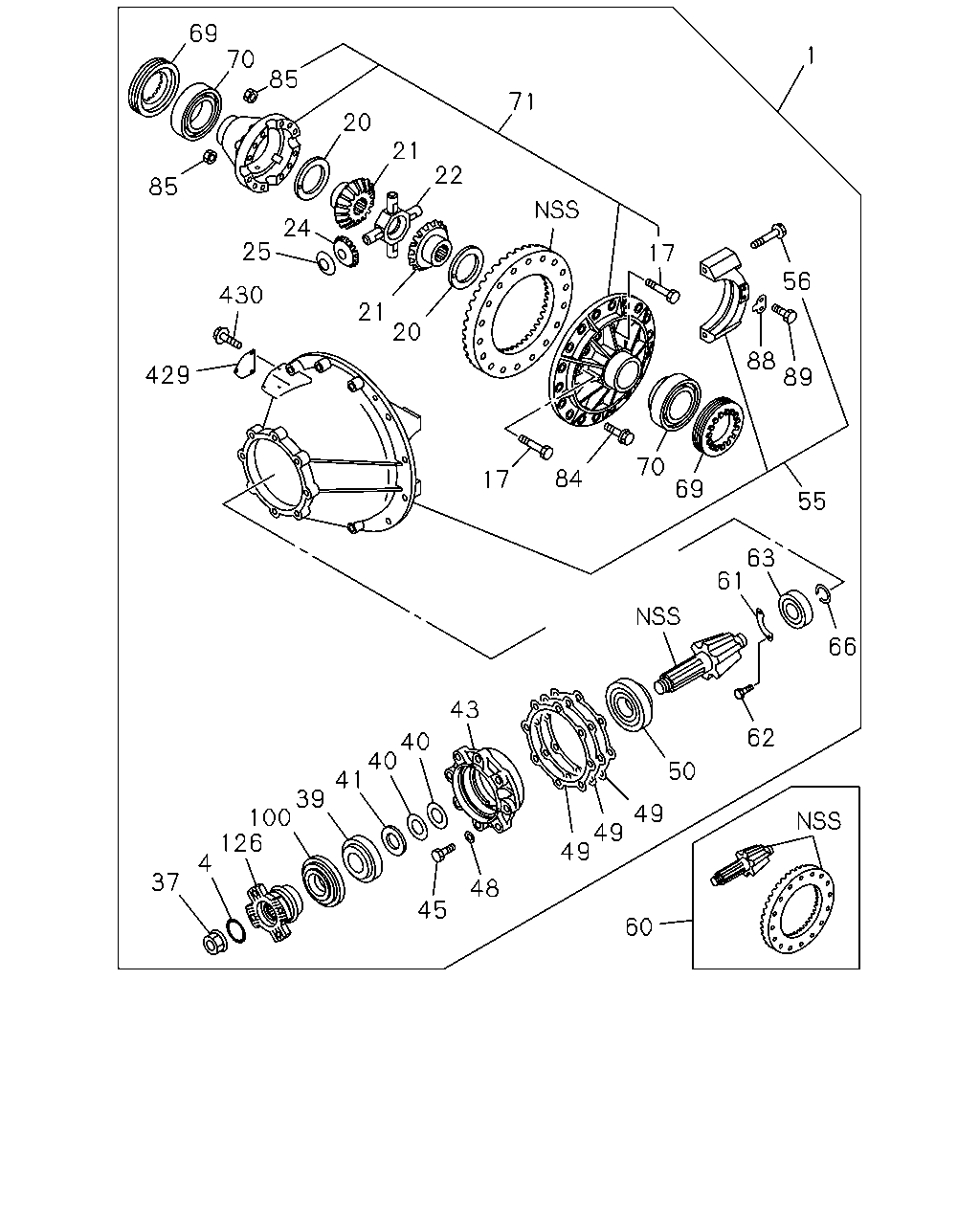

çizim 129177
69 70 1 85 71 20 21 22 85 24 25 17 56 430 21 20 88 89 429 70 84 17 69 55 63 61 66 43 62 40 40 41 50 39 100 126 4 49 49 49 37 48 45 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> 39/8 		1-41003-516-0 01 1 1105- ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41003-515-0 01 1 1105- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> 41/9 		1-41003-317-0 01 1 1105- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR 18.5 INCH<C1C> 39/8 		1-41002-395-0 01 1 1004- ●
1 DRIVE ASM; FINAL,RR
38/7 		1-41002-393-0 01 1 1004- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR 18.5 INCH<C1C> 41/9 		1-41002-396-0 01 1 1004- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1004-1104 ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1105- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X141 FLANGE 		1-09070-013-0 08 1 1004-1104 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X141 FLANGE 		1-09070-013-0 08 1 1105- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X105 FLANGE 		1-09070-014-0 04 1 1004-1104 ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X105 FLANGE 		1-09070-014-0 04 1 1105- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 1004-1104 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 1105- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 1004-1104 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 1105- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 1004-1104 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 1105- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 1004-1104 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 1105- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 1004-1104 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 1105- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 1004-1104 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 1105- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 1004-1104 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 1105- ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-167-0 02 1 1004-1104 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-167-0 02 1 1105- ● ● ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 1004-1104 ● ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 1105- ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-054-0 04 1 1004-1104 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-054-0 04 1 1105- ● ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 1004-1104 ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 1105- ● ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 1004-1104 ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 1105- ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 1004-1104 ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 1105- ● ● ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 1004-1104 ● ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1105- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1004-1104 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1105- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1004-1104 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1105- ● ● ● ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 1004-1104 ● ● ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 1105- ● ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 1004-1104 ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 1105- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 SOU 		0-91510-516-0 08 1 1004-1104 ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 SOU 		0-91510-516-0 08 1 1105- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 1004-1104 ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 1105- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 1004-1104 ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 1105- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 1004-1104 ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 1105- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 1004-1104 ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 1105- ● ● ● ●
50 BEARING; FINAL PINION
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> NSK 		1-09812-250-0 01 1 1105- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-250-0 01 1 1105- ●
50 BEARING; FINAL PINION
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> JTEKT 		1-09812-251-0 01 1 1105- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-251-0 01 1 1105- ●
50 BEARING; FINAL PINION
FINAL GEAR 18.5 INCH<C1C> NSK 		1-09812-073-1 01 1 1004- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 1004- ●
50 BEARING; FINAL PINION
FINAL GEAR 18.5 INCH<C1C> JTEKT 		1-09812-074-3 01 1 1004- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-3 01 1 1004- ●
55 CARRIER; DIFF 1-41110-117-0 01 1 1004-1104 ● ● ●
55 CARRIER; DIFF 1-41110-117-1 01 1 1105- ● ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 1004-1104 ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 1105- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> 39/8 		1-41210-744-0 01 1 1105- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-743-0 01 1 1105- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> 41/9 		1-41210-719-0 01 1 1105- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR 18.5 INCH<C1C> 39/8 		1-41210-618-0 01 1 1004- ●
60 GEAR SET; FINAL DRIVE,RR
38/7 		1-41210-616-0 01 1 1004- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR 18.5 INCH<C1C> 41/9 		1-41210-619-0 01 1 1004- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 01 1 1004-1104 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 01 1 1105- ● ● ● ●
62 BOLT; RET
M8X16 		0-20850-816-0 02 1 1004-1104 ● ● ●
62 BOLT; RET
M8X16 		0-20850-816-0 02 1 1105- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 1004-1104 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 1105- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 1004-1104 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 1105- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 1004-1104 ● ● ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 1105- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 1004-1104 ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 1105- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 1004-1104 ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 1105- ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 1004-1104 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 1105- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 1004-1104 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 1105- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 1004-1104 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 1105- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 SOU 		0-91110-516-0 12 1 1004-1104 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 SOU 		0-91110-516-0 12 1 1105- ● ● ● ●
88 PLATE; LK,ADJ NUT
T=3.2 		1-41124-026-0 02 1 1004-1104 ● ● ●
88 PLATE; LK,ADJ NUT
T=3.2 		1-41124-026-0 02 1 1105- ● ● ● ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 1004-1104 ● ● ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 1105- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1004-1104 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1105- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 1004-1104 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 1105- ● ● ● ●
429 PLATE; DUMMY 1-41279-014-0 01 1 1004-1104 ● ● ●
429 PLATE; DUMMY 1-41279-014-0 01 1 1105- ● ● ● ●
430 BOLT; PLATE,DUMMY
M8X20 FLANGE 		0-28650-820-0 03 1 1004-1104 ● ● ●
430 BOLT; PLATE,DUMMY
M8X20 FLANGE 		0-28650-820-0 03 1 1105- ● ● ● ●
