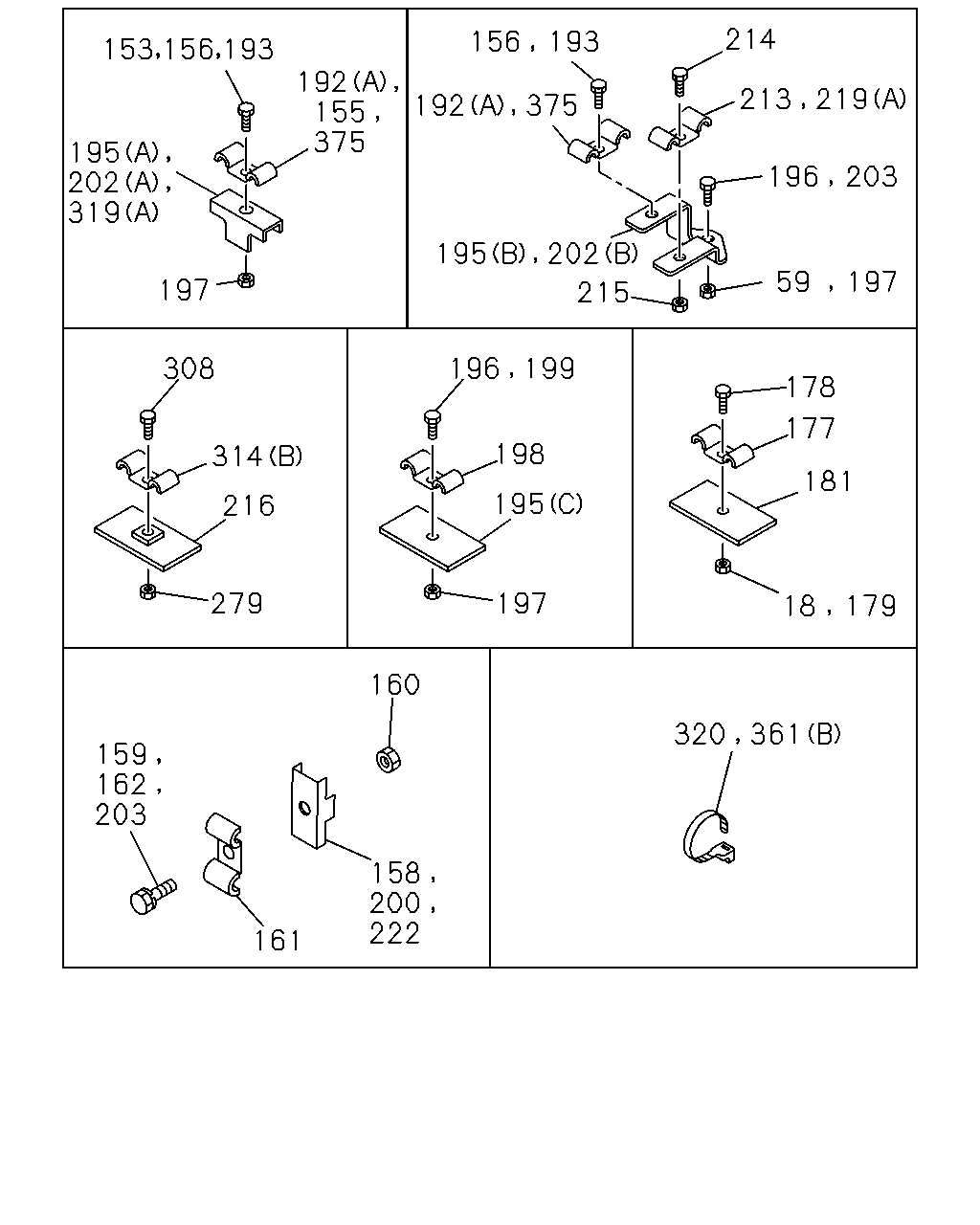

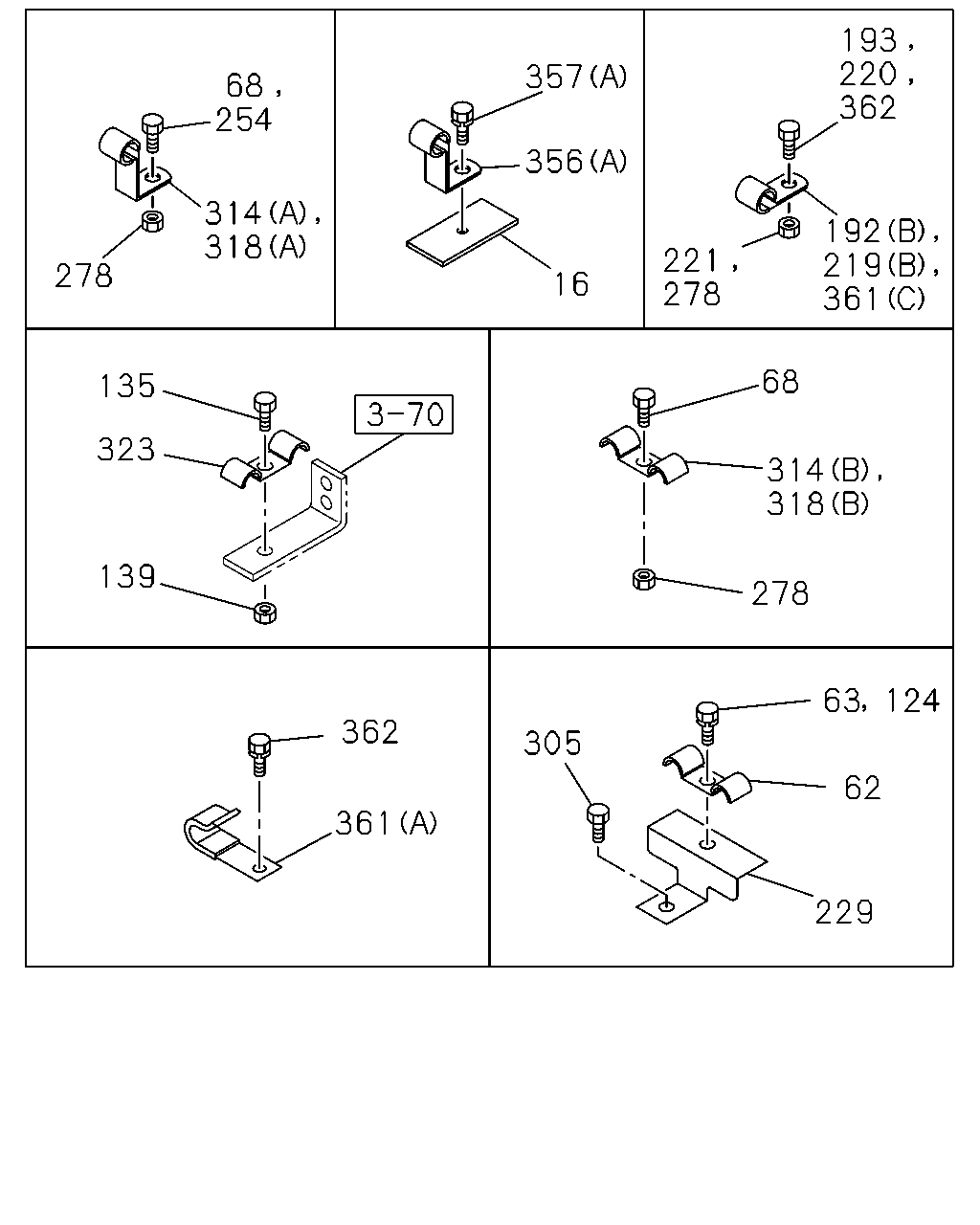

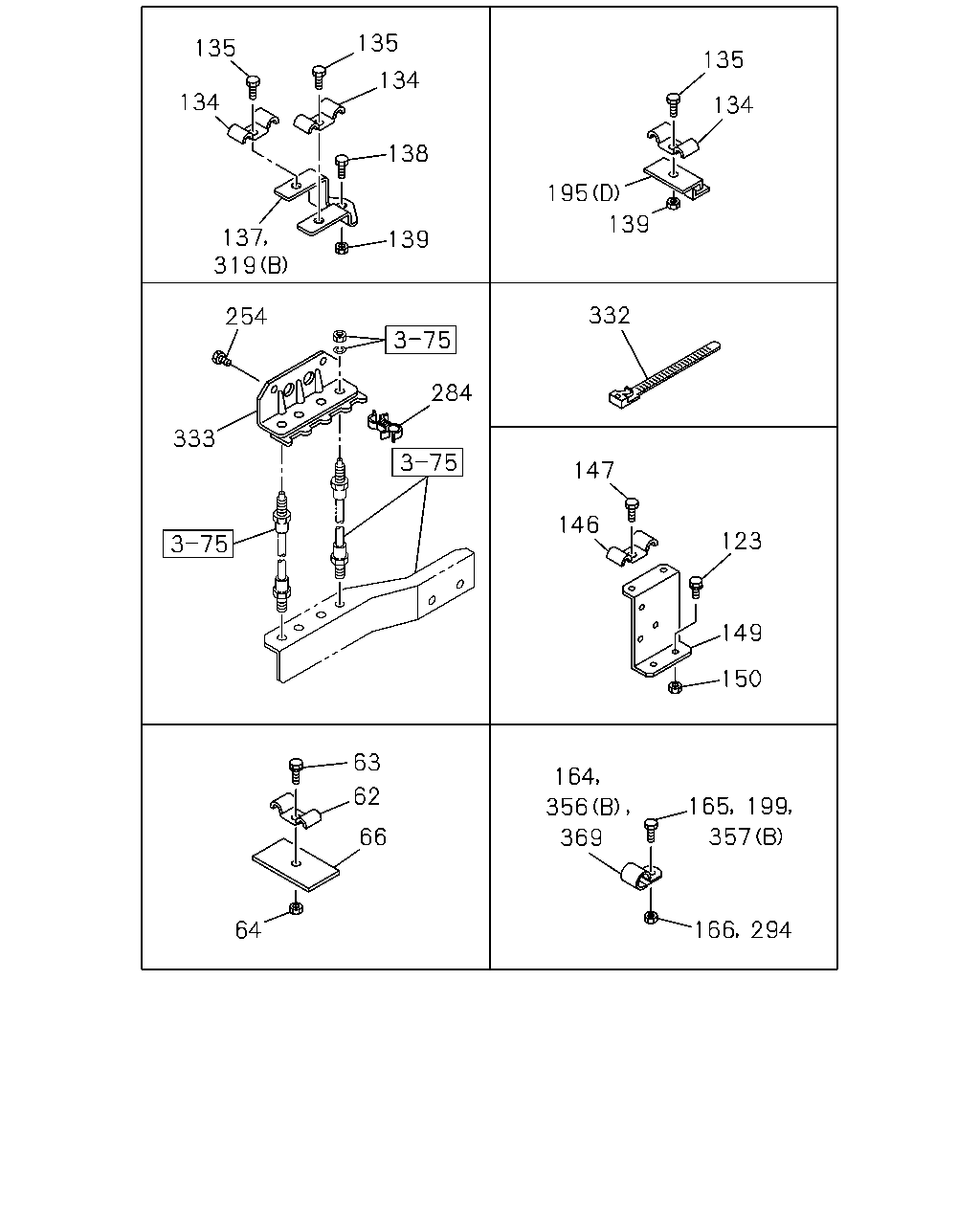

3-78 — FIXING PARTS; AIR PIPING (#1923) — 159 parça

214 16 193 192 155 375 192 375 195 202 319 59 197 197 215 308 178 177 198 314 181 195 216 279 197 18 179 160 159 162 203 158 200 222 161 153 156 193 213 219 196 203 202 195 196 199 320 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	BRACKET; PIPE CLIP	1-47466-005-0	01	1	9207-	●	●
16	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>	1-47466-005-0	01	1	9207-			●	●
18	NUT; CLIP M8	9-09110-408-0	01	1	9207-			●	●
59	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9207-	●	●	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9207-			●	●
155	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9207-	●	●	●	●
156	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9207-	●	●	●	●
158	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9207-	●	●	●	●
159	BOLT; CLIP BRKT M8X40 FLANGE	0-28080-840-0	01	1	9207-	●	●	●	●
160	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9207-	●	●	●	●
161	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-	●	●
161	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	9207-			●	●
162	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9207-	●	●
162	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9207-			●	●
177	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-	●	●
177	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9207-			●	●
178	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9207-	●	●	●	●
179	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9207-	●	●
181	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9207-	●	●	●	●
192	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9207-	●	●
192	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9207-			●	●
192	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-	●	●	●	●
192	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9207-			●	●
192	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-			●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	04	1	9207-	●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9207-			●	●
193	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-			●	●
193	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	02	1	9207-			●	●
195	BRACKET; PIPE CLIP (C) L=50	1-47475-299-2	01	1	9207-	●	●
195	BRACKET; PIPE CLIP (D) 45X55	1-47475-460-1	01	1	9207-	●	●
195	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	02	1	9207-	●	●	●	●
195	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9207-			●	●
196	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	03	1	9207-	●	●
196	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9207-			●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9207-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9207-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	05	1	9207-			●	●
198	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-	●	●
199	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	02	1	9207-	●	●
200	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9207-	●	●
202	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9207-	●	●	●	●
202	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	02	1	9207-	●	●	●	●
203	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9207-	●	●	●	●
203	BOLT; CLIP BRKT M8X40 FLANGE	0-28080-840-0	02	1	9207-	●	●	●	●
213	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-	●	●
213	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-			●	●
213	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9207-			●	●
214	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9207-	●	●	●	●
214	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	9207-			●	●
215	NUT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	01	1	9207-			●	●
216	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> L=50	1-47475-299-2	01	1	9207-			●	●
219	CLIP; AIR PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-	●	●
219	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9207-			●	●
219	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9207-			●	●
222	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9207-			●	●
279	NUT; BRKT M8	9-09110-408-0	01	1	9207-			●	●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9207-9207			●	●
308	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9208-			●	●
314	CLIP; AIR PIPE EXC. PTO CONTROL<SV6> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9207-	●	●	●	●
314	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9207-			●	●
319	BRACKET; CLIP (A)	1-47475-427-1	01	1	9210-			●	●
319	BRACKET; CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9207-				●
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	9207-	●	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) ID=14	1-09987-154-0	01	1	9207-			●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (B) L=250	5-09707-030-1	01	1	9207-			●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (C) ID=16 L=20	9-09525-532-0	01	1	9207-			●	●
375	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-	●	●
375	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-	●	●	●	●
375	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9207-			●	●

193 220 362 357 68 254 356 314 318 192 219 361 221 278 278 16 68 135 323 314 318 139 278 63 124 362 305 62 361 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	BRACKET; PIPE CLIP	1-47466-005-0	01	1	9207-	●	●
16	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>	1-47466-005-0	01	1	9207-			●	●
62	CLIP; AIR PIPE ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9207-	●	●
62	CLIP; AIR PIPE ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9207-	●	●	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9207-	●	●
68	BOLT; CLIP,AIR PIPE EXC. PTO CONTROL<SV6> M8X25 FLANGE	0-28080-825-0	01	1	9207-	●	●	●	●
124	BOLT; PIPE CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9207-	●	●	●	●
135	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9207-	●	●	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9207-	●	●	●	●
192	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9207-	●	●
192	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9207-			●	●
192	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-	●	●	●	●
192	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9207-			●	●
192	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-			●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	04	1	9207-	●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9207-			●	●
193	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-			●	●
193	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	02	1	9207-			●	●
219	CLIP; AIR PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-	●	●
219	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9207-			●	●
219	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9207-			●	●
220	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9207-	●	●	●	●
220	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-			●	●
220	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9207-			●	●
221	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9207-			●	●
229	BRACKET; PIPE CLIP	1-47465-169-1	01	1	9207-	●	●	●	●
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-	●	●	●	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9207-	●	●
278	NUT; CLIP,AIR PIPE EXC. PTO CONTROL<SV6> M8	9-09110-408-0	01	1	9207-			●	●
305	BOLT; CLIP BRKT M6X16 W/LK&PL WASHER	1-09980-586-0	01	1	9207-	●	●	●	●
314	CLIP; AIR PIPE EXC. PTO CONTROL<SV6> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9207-	●	●	●	●
314	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9207-			●	●
318	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9207-9209			●	●
318	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9207-9209				●
318	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9210-				●
323	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-			●	●
356	CLIP; AIR PIPE (A) ID=5 & 8	5-09700-165-0	01	1	9207-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A) ID=5 & 8	5-09700-165-0	01	1	9207-			●	●
356	CLIP; AIR PIPE (B) ID=6	9-09524-565-0	01	1	9207-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B) ID=6	9-09524-565-0	01	1	9207-			●	●
357	BOLT; CLIP FIX (A) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9207-	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> (A) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9207-			●	●
357	BOLT; CLIP FIX (B) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9207-	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> (B) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9207-			●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) ID=14	1-09987-154-0	01	1	9207-			●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (B) L=250	5-09707-030-1	01	1	9207-			●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (C) ID=16 L=20	9-09525-532-0	01	1	9207-			●	●
362	BOLT; FLEX HOSE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9207-	●	●	●	●

135 135 135 134 134 134 138 195 139 137 319 139 332 254 284 147 146 123 149 150 63 164 62 165 199 356 357 66 369 166 294 64 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
62	CLIP; AIR PIPE ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9207-	●	●
62	CLIP; AIR PIPE ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9207-	●	●	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9207-	●	●
64	NUT; CLIP M8	9-09110-408-0	01	1	9207-	●	●
66	BRACKET; CLIP,AIR PIPE L=50	1-47475-299-2	01	1	9207-	●	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9207-	●	●	●	●
134	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-	●	●
134	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9207-	●	●
134	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	9207-			●	●
135	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9207-	●	●	●	●
137	BRACKET; PIPE CLIP M8 W/NUT	1-47475-439-2	03	1	9207-	●	●	●	●
138	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	03	1	9207-	●	●	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9207-	●	●	●	●
146	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-	●	●	●	●
147	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9207-	●	●	●	●
149	BRACKET; PIPE CLIP	1-47475-728-1	01	1	9207-	●	●	●	●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9207-	●	●	●	●
164	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	01	1	9207-			●	●
165	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-			●	●
166	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9207-			●	●
195	BRACKET; PIPE CLIP (C) L=50	1-47475-299-2	01	1	9207-	●	●
195	BRACKET; PIPE CLIP (D) 45X55	1-47475-460-1	01	1	9207-	●	●
195	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	02	1	9207-	●	●	●	●
195	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9207-			●	●
199	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	02	1	9207-	●	●
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-	●	●	●	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	9207-	●	●	●	●
294	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9207-			●	●
319	BRACKET; CLIP (A)	1-47475-427-1	01	1	9210-			●	●
319	BRACKET; CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9207-				●
332	CLIP; BAND L=140	5-09707-031-1	01	1	9207-	●	●	●	●
333	BRACKET; BRK AIR PIPE	1-79738-175-1	01	1	9207-	●	●	●	●
356	CLIP; AIR PIPE (A) ID=5 & 8	5-09700-165-0	01	1	9207-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A) ID=5 & 8	5-09700-165-0	01	1	9207-			●	●
356	CLIP; AIR PIPE (B) ID=6	9-09524-565-0	01	1	9207-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B) ID=6	9-09524-565-0	01	1	9207-			●	●
357	BOLT; CLIP FIX (A) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9207-	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> (A) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9207-			●	●
357	BOLT; CLIP FIX (B) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9207-	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> (B) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9207-			●	●
369	CLIP; AIR PIPE ID=9 L=20	9-09524-835-0	01	1	9207-9208			●	●
369	CLIP; AIR PIPE ID=7 L=20	9-09524-635-0	01	1	9209-			●	●
