4-01 — PROPELLER SHAFT (#19226) — 135 parça
çizim 129155
95 56 9 8 1 128 225 104 9 8 106 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1395 		1-37125-383-0 01 1 1004- ●
1 SHAFT; PROP
(A) L=1490 		8-98030-822-0 01 1 1004- ●
1 SHAFT; PROP
(B) L=1227 		8-98086-976-0 01 1 1004- ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 1004- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1004- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1004- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1004- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 02 1 1004- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 01 1 1004- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 01 1 1004- ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1004- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1004- ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1004- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1004- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1004- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1004- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1004- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1004- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1004- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1004- ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1004- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1004- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT SOU 		0-90301-410-0 02 1 1004- ● ●
128 SEAL; SLEEVE 1-37247-020-0 01 1 1004- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1004- ● ●

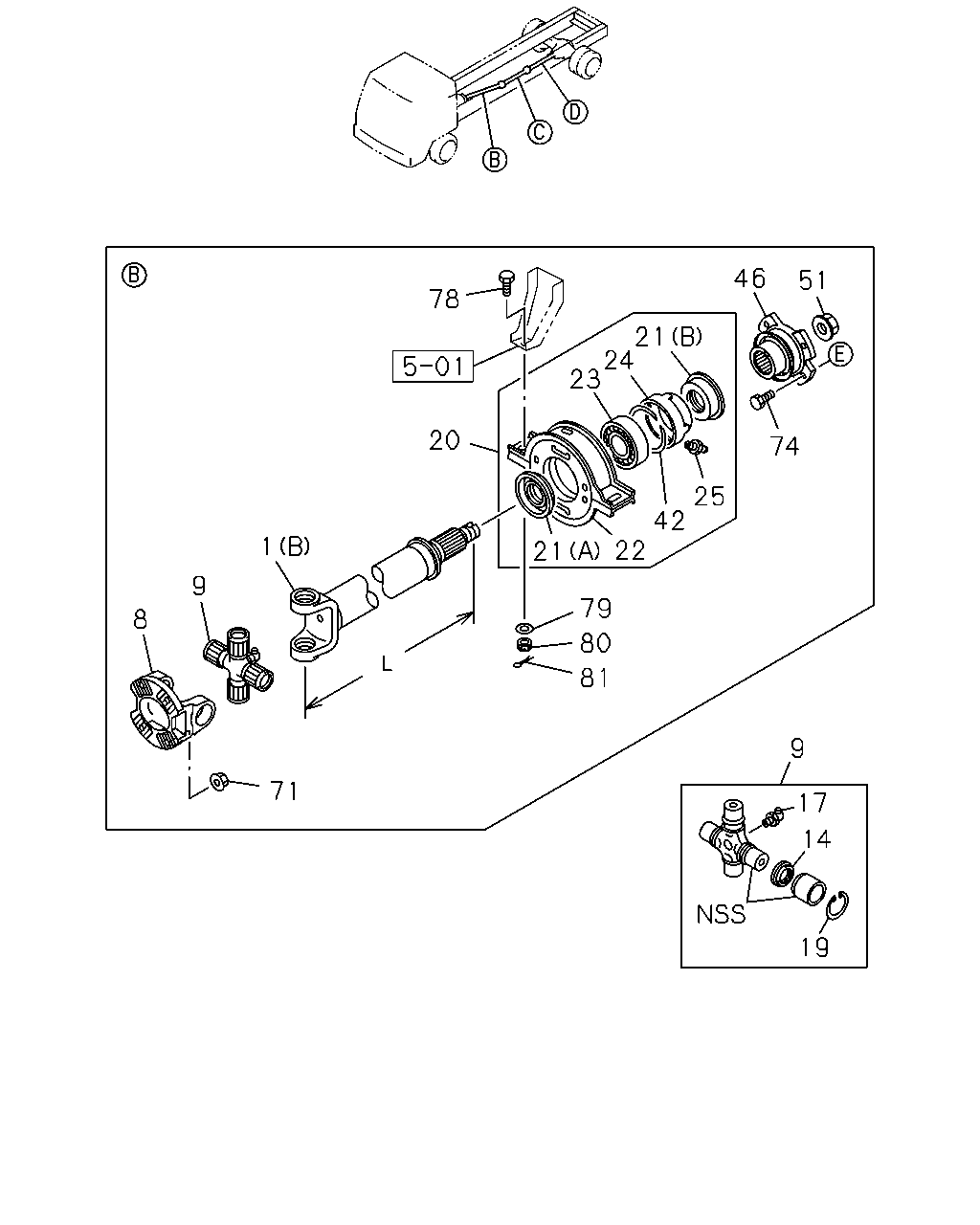

çizim 129169
46 51 78 21 24 23 20 74 25 42 22 1 21 9 79 8 80 81 9 71 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1395 		1-37125-383-0 01 1 1004- ●
1 SHAFT; PROP
(A) L=1490 		8-98030-822-0 01 1 1004- ●
1 SHAFT; PROP
(B) L=1227 		8-98086-976-0 01 1 1004- ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 1004- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1004- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1004- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1004- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 02 1 1004- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 01 1 1004- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 01 1 1004- ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1004- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1004- ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1004- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1004- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1004- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1004- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1004- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1004- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1004- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1004- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1004- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1004- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1004- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1004- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1004- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1004- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1004- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1004- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1004- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1004- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1004- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1004- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1004- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1004- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1004- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1004- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1004- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1004-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1004- ●

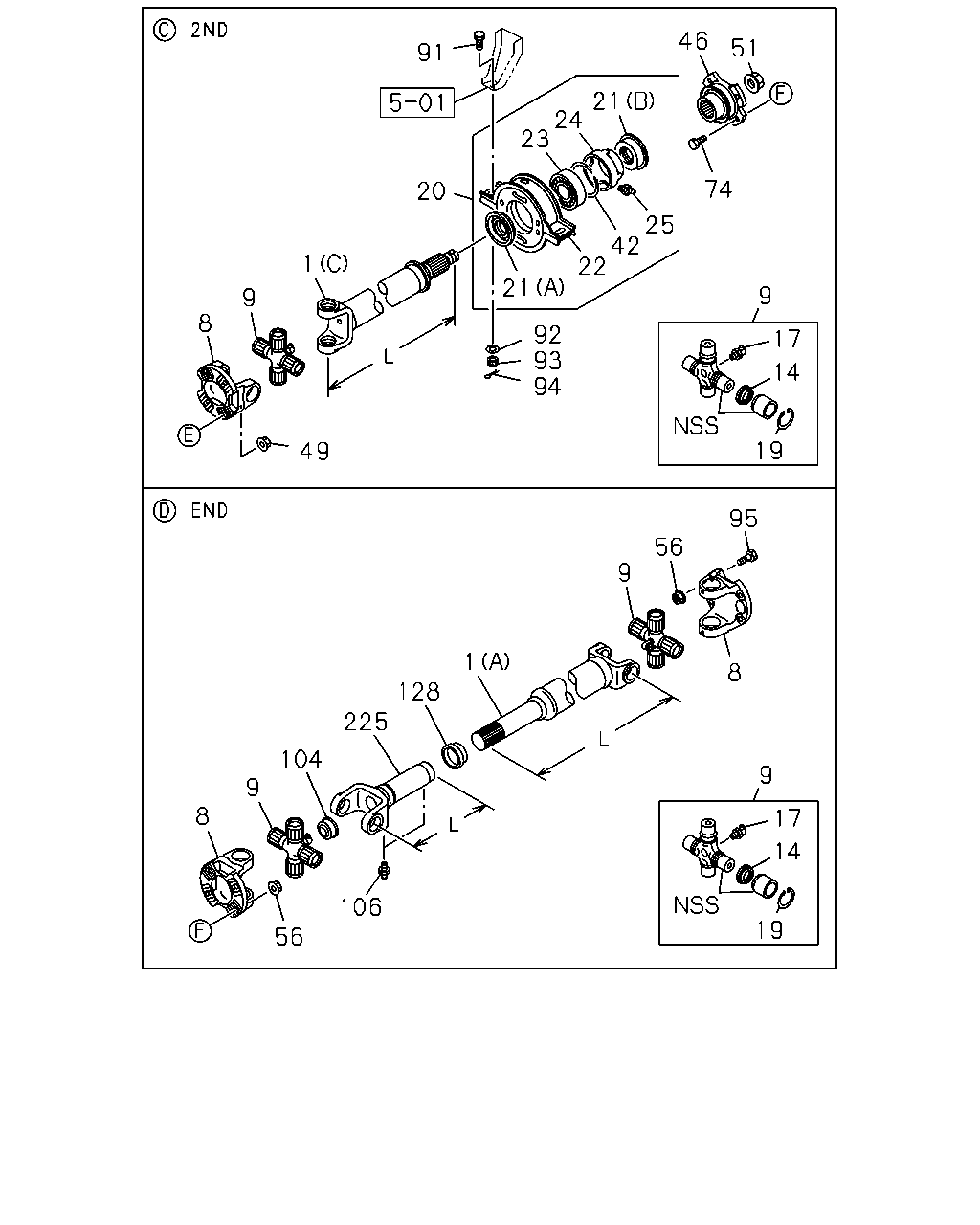

çizim 129171
46 51 91 21 24 23 74 20 25 42 22 1 21 9 9 8 92 93 94 17 14 19 49 95 56 9 1 8 128 225 104 9 9 8 17 14 106 19 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1395 		1-37125-383-0 01 1 1004- ●
1 SHAFT; PROP
(A) L=1490 		8-98030-822-0 01 1 1004- ●
1 SHAFT; PROP
(B) L=1227 		8-98086-976-0 01 1 1004- ●
1 SHAFT; PROP
(C) L=742 		8-98086-977-0 01 1 1004- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1004- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1004- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1004- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 02 1 1004- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 01 1 1004- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 01 1 1004- ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1004- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1004- ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1004- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1004- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1004- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1004- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1004- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1004- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1004- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1004- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1004- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1004- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1004- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1004- ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1004- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1004- ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1004- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1004- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1004- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1004- ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1004- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1004- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1004- ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1004- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1004- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1004- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1004- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1004- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1004- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1004- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1004- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1004-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1004- ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1004- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1004- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT SOU 		0-90301-410-0 02 1 1004- ● ●
128 SEAL; SLEEVE 1-37247-020-0 01 1 1004- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1004- ● ●
