3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶

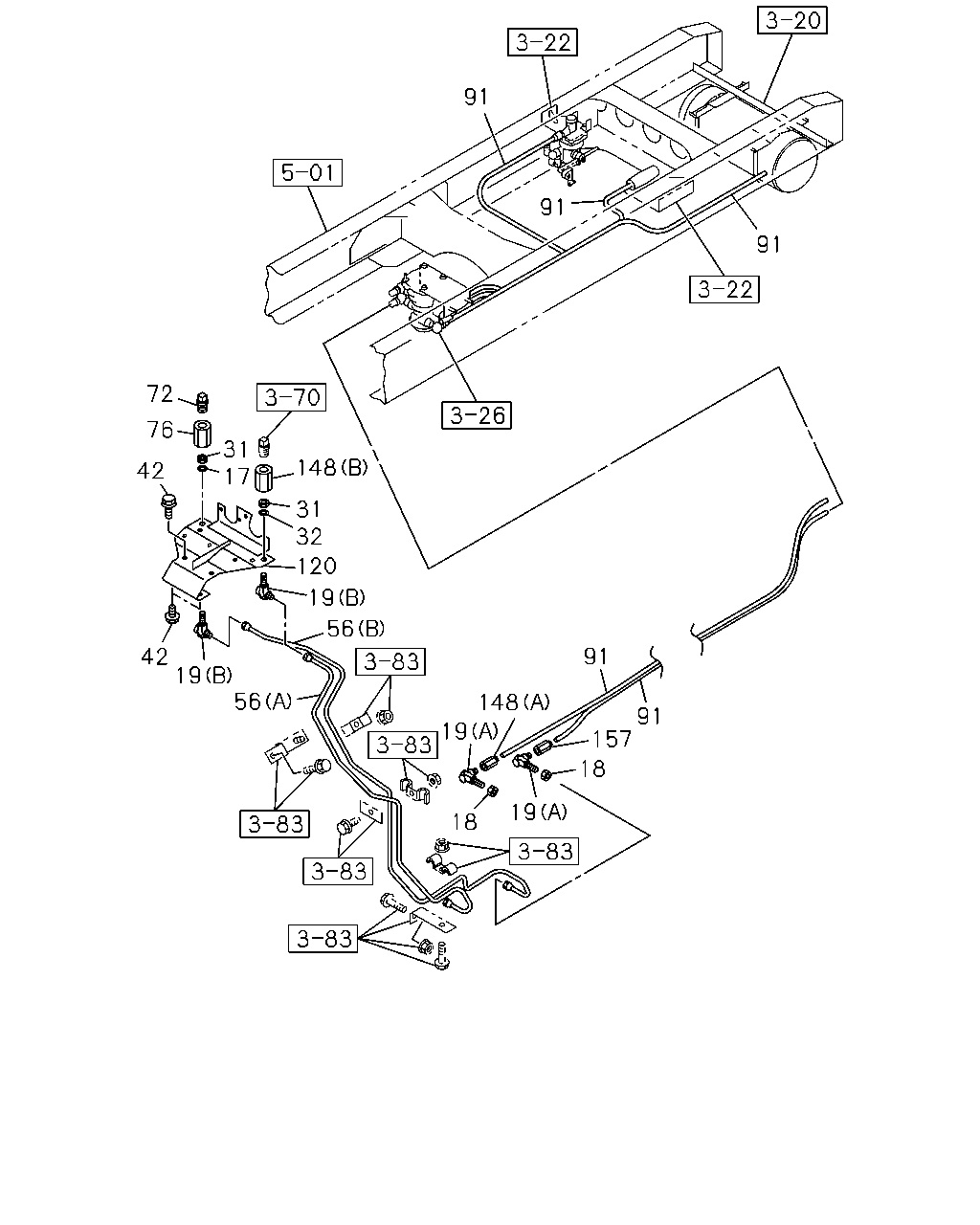

3-80 — BRAKE PIPING; TRAILER
(#19224) — 22 parça
Tümü
A - GGR5MX
B - FGR5MX
91
91
91
72
76
31
17
148
42
31
32
120
19
56
91
42
19
56
148
91
157
19
18
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
WASHER; LK,UNION
ID=16.2 SOU
0-91510-516-0
01
1
1004-
●
18
NUT; UNION
M16 SOU
0-91111-516-0
02
1
1004-
●
19
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
02
1
1004-
●
19
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-110-1
02
1
1004-
●
31
NUT; UNION
M16 SOU
0-91111-516-0
02
1
1004-
●
32
WASHER; LK,UNION
ID=16.2 SOU
0-91510-516-0
01
1
1004-
●
42
BOLT; BRKT
M10X25 FLANGE SOU
0-28651-025-0
04
1
1004-
●
56
PIPE; AIR,UNION TO COCK
VIN MODEL YEAR 2011<VZB> (A) L=1573 SERVICED BY L=1700
1-47428-880-0
01
1
1109-
●
56
PIPE; AIR,UNION TO COCK
VIN MODEL YEAR 2011<VZB> (B) L=1886 SERVICED BY L=1783
1-47428-881-0
01
1
1109-
●
56
PIPE; AIR,UNION TO COCK
(A) L=1309
8-98100-125-0
01
1
1004-1108
●
56
PIPE; AIR,UNION TO COCK
EXC. VIN MODEL YEAR 2011<VZB> (A) L=1309
8-98100-125-0
01
1
1109-
●
56
PIPE; AIR,UNION TO COCK
(B) L=1893
8-98100-126-0
01
1
1004-1108
●
56
PIPE; AIR,UNION TO COCK
EXC. VIN MODEL YEAR 2011<VZB> (B) L=1893
8-98100-126-0
01
1
1109-
●
72
PLUG
PT3/8
9-09204-517-0
01
1
1004-
●
76
NIPPLE; AIR PIPE
M16 & RC3/8 STRAIGHT SOU
1-09660-882-0
01
1
1004-
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1004-
●
●
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1004-
●
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1004-
●
●
120
BRACKET; COCK
8-98118-861-0
01
1
1004-
●
148
ADAPTER; NYLON TUBE
(A) DIN12 & M16 STRAIGHT SOU
1-09660-876-0
01
1
1004-
●
148
ADAPTER; NYLON TUBE
(B) M16 & RC3/8 STRAIGHT SOU
1-09660-882-0
01
1
1004-
●
157
ADAPTER
DIN12 & M16 STRAIGHT SOU
1-09660-876-0
01
1
1004-
●
