◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#19223) — 82 parça

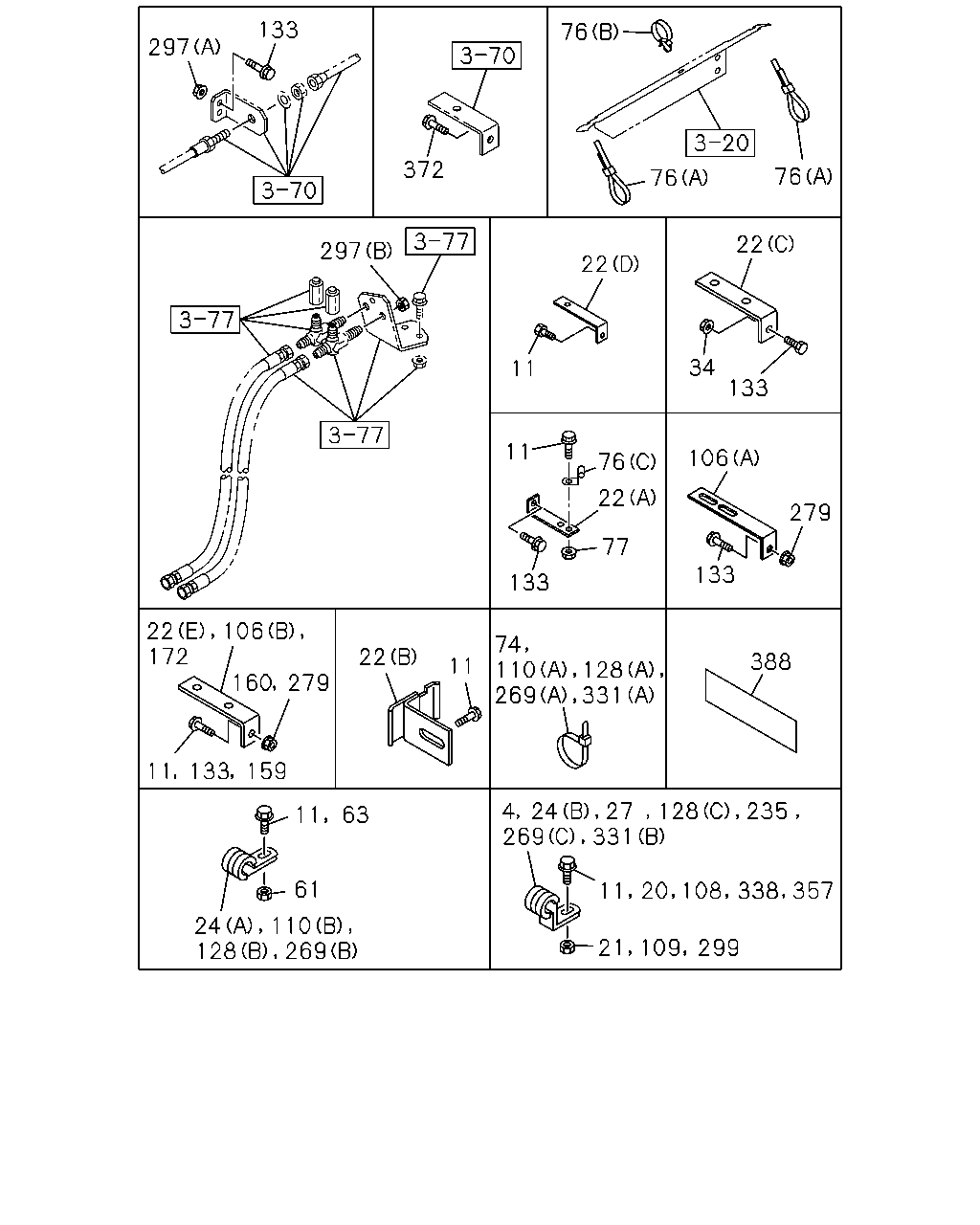

çizim 129186
133 76 297 372 76 76 22 297 22 34 11 133 11 106 76 22 279 77 133 133 22 172 106 74 110 269 22 388 11 128 331 160 279 133 159 11 63 11 61 24 110 21 109 299 128 269 4 24 27 128 235 269 331 11 20 108 338 357
BalonParca AdiParca NoAdetTipApplied Date A B
4 CLIP; AIR PIPE
VIN MODEL YEAR 2011<VZB> ID=13 H=18 L=20 		1-09700-813-0 02 1 1109- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1101 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1101 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1101 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1101 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1102- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1102- ●
11 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1102- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1102- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1004- ●
20 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ● ●
21 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1004- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1004- ●
22 BRACKET; CLIP
(D) L=145 		1-47475-655-0 01 1 1004- ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 1004-1101 ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1201- ● ●
22 BRACKET; CLIP
(A) L=95 		1-82698-557-0 01 1 1004- ● ●
22 BRACKET; CLIP
(E) L=90 		1-47477-755-1 01 1 1004- ●
24 CLIP; PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1004- ● ●
24 CLIP; PIPE
(A) ID=25 L=50 		1-09701-019-0 03 1 1004- ● ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1004- ● ●
34 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
61 NUT; CLIP FIX
M8 FLANGE SOU 		0-91180-108-0 03 1 1004- ● ●
63 BOLT; CLIP
VIN MODEL YEAR 2011<VZB> M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1004- ● ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 06 1 1004- ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 1004- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1004- ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1004- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1004- ● ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1004- ●
77 NUT; CLIP BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN DOUBLE-H<EDZ> (A) L=100 H=30 		1-47477-645-2 03 1 1004- ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 1004- ● ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1004- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 04 1 1004- ●
108 BOLT; TUBE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1004-1108 ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1109- ● ●
109 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ● ●
109 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ● ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1004- ● ●
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 10 1 1004- ● ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 1004- ●
128 CLIP; NYLON TUBE
(B) ID=13 L=28 		0-95235-255-0 01 1 1004- ●
128 CLIP; NYLON TUBE
(B) ID=13 L=50 		1-09700-027-1 01 1 1004- ●
128 CLIP; NYLON TUBE
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1004- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1004- ●
133 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
133 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1004- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1004- ● ●
133 BOLT; BRKT
M8X35 FLANGE SOU 		0-28650-835-0 04 1 1004- ● ●
133 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1004- ●
159 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ●
160 NUT; CLIP BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
172 BRACKET; TUBE CLIP 1-47479-693-0 01 1 1004- ●
235 CLIP; AIR PIPE
VIN MODEL YEAR 2011<VZB> ID=13 H=18 L=20 		1-09700-813-0 02 1 1109- ●
269 CLIP; BAND,NYLON TUBE
EXC. VIN MODEL YEAR 2011<VZB> (A) L=350 		1-09707-183-0 19 1 1109- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 1004- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1004- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 1004- ● ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1004- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 19 1 1004-1108 ●
269 CLIP; BAND,NYLON TUBE
VIN MODEL YEAR 2011<VZB> (A) L=350 		1-09707-183-0 17 1 1109- ●
279 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 05 1 1004- ●
279 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
279 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 07 1 1004- ●
297 NUT; BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
297 NUT; BRKT
(B) M12 SOU 		0-91110-512-0 02 1 1004- ●
299 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
331 CLIP; NYLON TUBE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1004- ● ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1004- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 01 1 1004- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
388 SEAL
100X40 SOU 		1-72498-022-1 03 1 1004- ●
388 SEAL
100X40 SOU 		1-72498-022-1 04 1 1004- ●
