3-77 — BRAKE PIPING; AIR,REAR (#19222) — 334 parça

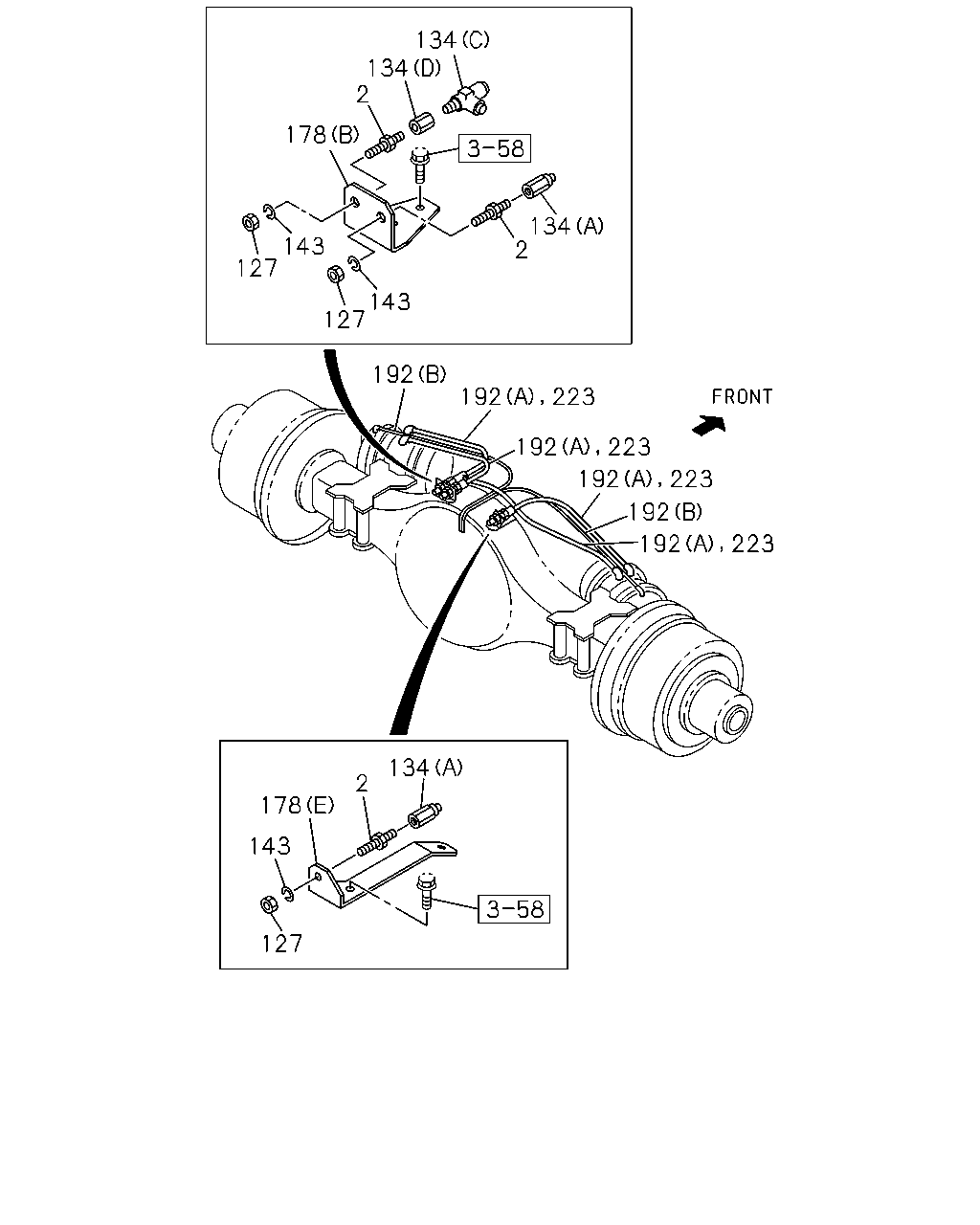

çizim 128975
134 134 2 178 134 2 143 127 143 127 192 192 223 192 223 192 223 192 192 223 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 03 1 1004- ● ●
127 NUT; UNION
M16 SOU 		0-91111-516-0 03 1 1004- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1307- ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1307- ●
134 CONNECTOR
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1004- ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1004- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(F) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
143 WASHER; LK,UNION
ID=16.2 SOU 		0-91510-816-0 03 1 1004- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1004- ●
178 BRACKET; UNION
(C) 		8-98057-823-0 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 17.5"<B5D> (C) 		8-98057-823-0 01 1 1307- ●
178 BRACKET; UNION
(B) 		8-98031-034-1 01 1 1004- ● ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 1004- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(D) 		8-98114-771-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98094-048-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98119-996-0 01 1 1004- ●
192 TUBE; NYLON
(B) L=930 OD=8 		1-49218-617-1 02 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(E) 		8-98114-349-0 01 1 1004- ●
192 TUBE; NYLON
(F) 		8-98114-354-0 01 1 1004- ●
192 TUBE; NYLON
(G) 		8-98115-506-0 01 1 1004-1108 ●
192 TUBE; NYLON
EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98115-506-0 01 1 1109- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1307- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●

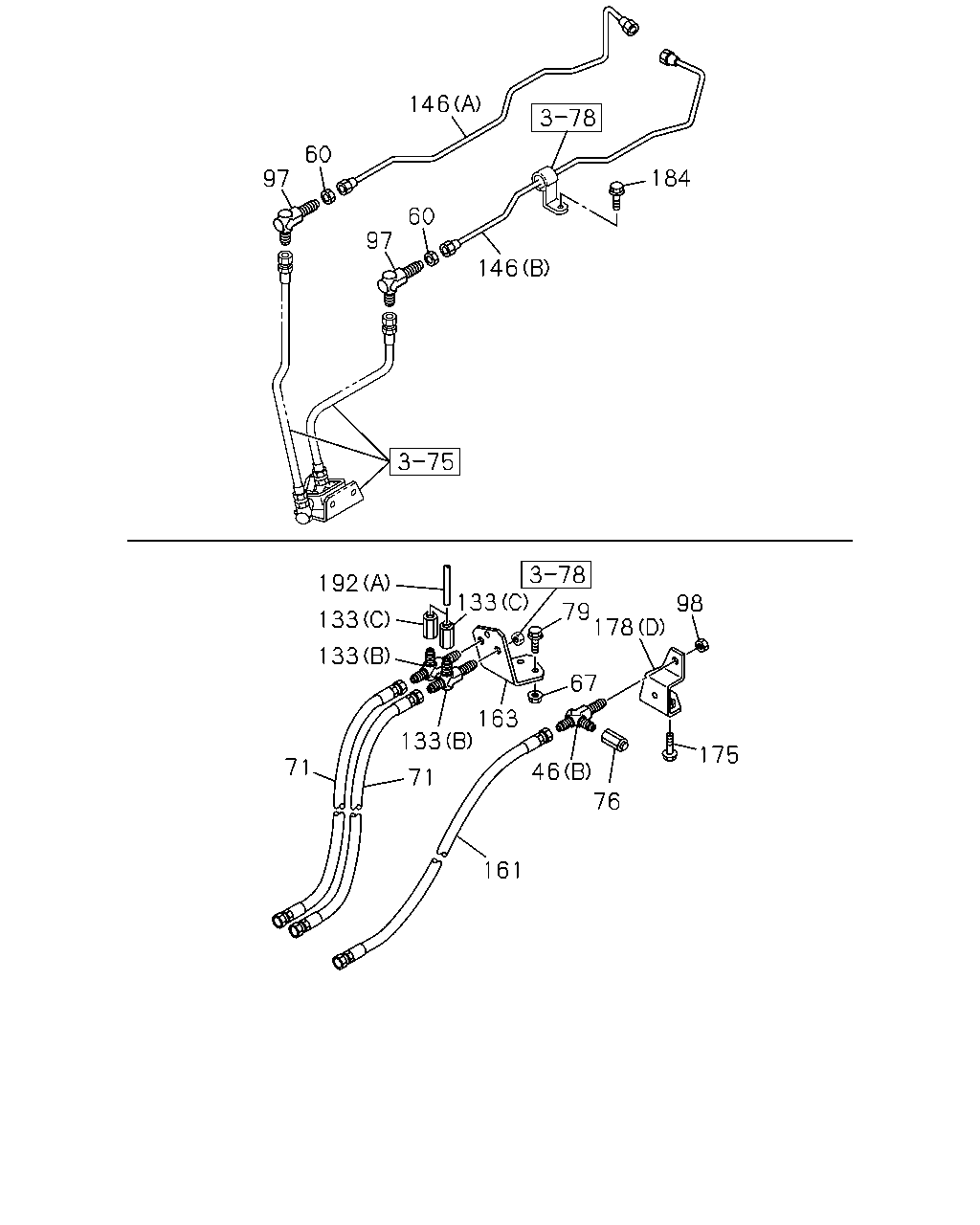

çizim 129158
146 60 184 97 60 97 146 133 192 98 79 178 133 133 67 163 133 175 71 46 71 76 161
BalonParca AdiParca NoAdetTipApplied Date A B
46 NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 03 1 1004- ●
46 NIPPLE; AIR PIPE
(B) M16 2WAY 		1-09650-182-1 01 1 1004- ●
60 NUT; NIPPLE,AIR PIPE
VIN MODEL YEAR 2011<VZB> M20 SOU 		0-91111-520-0 02 1 1109- ●
67 NUT; HOSE BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
71 HOSE; FLEX,RWD RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> 		8-98031-452-0 01 1 1107- ●
71 HOSE; FLEX,RWD RR
L=660 		1-09363-814-0 02 1 1004-1104 ●
71 HOSE; FLEX,RWD RR
FINAL GEAR 17.5"<B5D> L=660 		1-09363-814-0 02 1 1105- ●
71 HOSE; FLEX,RWD RR
L=600 		1-09363-746-0 01 1 1004-1106 ●
71 HOSE; FLEX,RWD RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> L=600 		1-09363-746-0 01 1 1107- ●
71 HOSE; FLEX,RWD RR
L=600 		1-09363-746-0 01 1 1107- ●
71 HOSE; FLEX,RWD RR
L=580 		1-09363-772-0 01 1 1004- ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1004- ●
79 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1004- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
97 UNION; AIR PIPE
VIN MODEL YEAR 2011<VZB> M20 		0-92135-212-0 02 1 1109- ●
98 NUT; PIPE UNION
M12 SOU 		0-91110-512-0 01 1 1004- ●
133 UNION; NIPPLE
(B) M16 2WAY 		1-09650-182-1 02 1 1004- ●
133 UNION; NIPPLE
(C) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1004- ●
133 UNION; NIPPLE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1004-1108 ●
133 UNION; NIPPLE
EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1109- ●
146 PIPE; AIR,UNION TO FLEX HOSE
VIN MODEL YEAR 2011<VZB> (A) L=1121 SERVICED BY L=1200 		1-49115-487-0 01 1 1109- ●
146 PIPE; AIR,UNION TO FLEX HOSE
VIN MODEL YEAR 2011<VZB> (B) L=984 SERVICED BY L=1000 		1-49115-485-0 01 1 1109- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=660 		1-09363-814-0 01 1 1004- ●
163 BRACKET; FLEX HOSE 8-98114-702-0 01 1 1004- ●
175 BOLT; HOSE BRKT
M10X25 FLANGE SOU 		0-28651-025-0 02 1 1004- ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1004- ●
178 BRACKET; UNION
(C) 		8-98057-823-0 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 17.5"<B5D> (C) 		8-98057-823-0 01 1 1307- ●
178 BRACKET; UNION
(B) 		8-98031-034-1 01 1 1004- ● ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 1004- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(D) 		8-98114-771-0 01 1 1004- ●
184 BOLT; TUBE CLIP
VIN MODEL YEAR 2011<VZB> M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
184 BOLT; TUBE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ● ●
184 BOLT; TUBE CLIP
M8X35 FLANGE SOU 		0-28650-835-0 02 1 1004- ● ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98094-048-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98119-996-0 01 1 1004- ●
192 TUBE; NYLON
(B) L=930 OD=8 		1-49218-617-1 02 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(E) 		8-98114-349-0 01 1 1004- ●
192 TUBE; NYLON
(F) 		8-98114-354-0 01 1 1004- ●
192 TUBE; NYLON
(G) 		8-98115-506-0 01 1 1004-1108 ●
192 TUBE; NYLON
EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98115-506-0 01 1 1109- ●

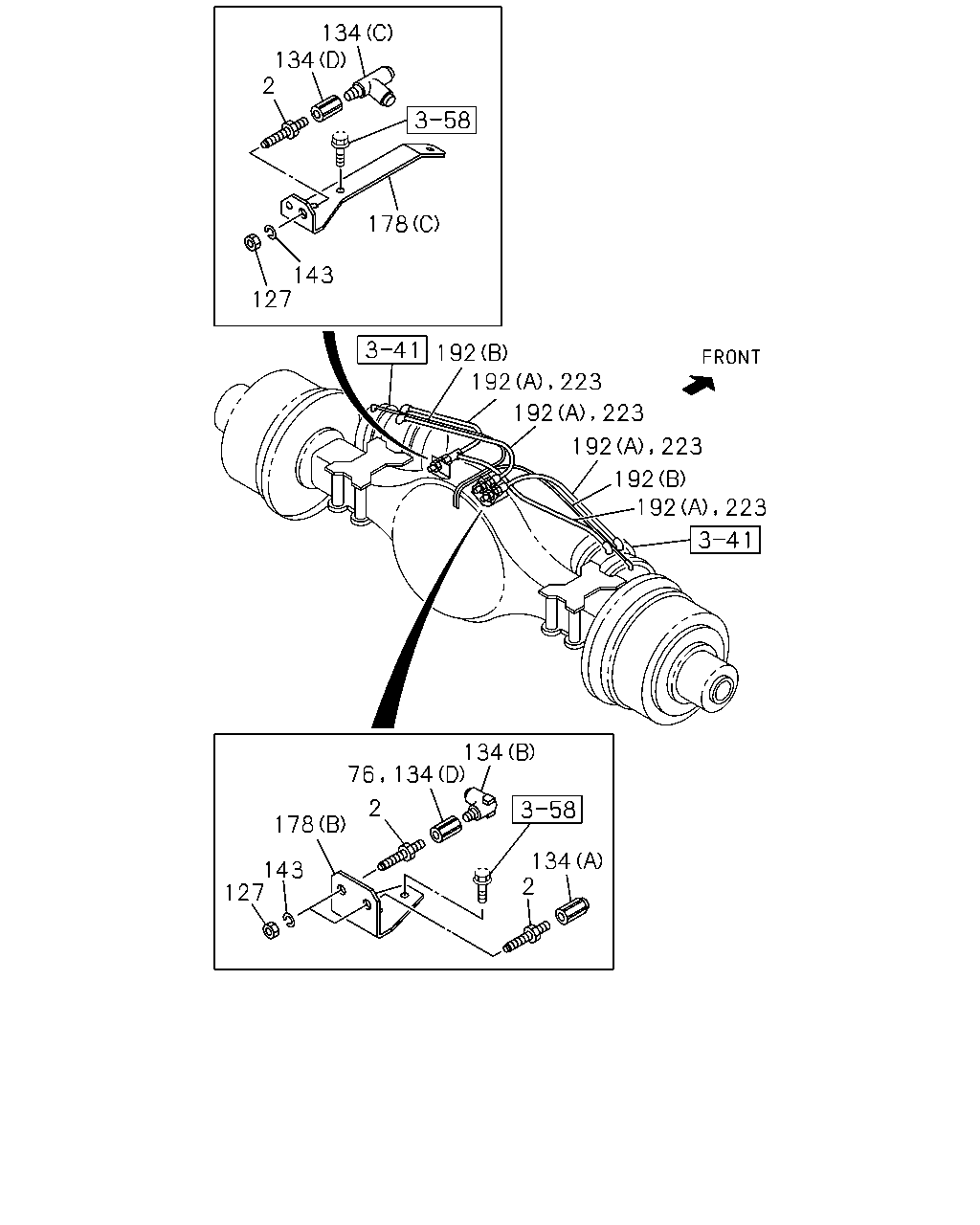

çizim 129161
134 134 2 178 143 127 192 192 223 192 223 192 223 192 192 223 134 134 76 2 178 134 2 143 127
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 03 1 1004- ● ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1004- ●
127 NUT; UNION
M16 SOU 		0-91111-516-0 03 1 1004- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1307- ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1307- ●
134 CONNECTOR
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1004- ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1004- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(F) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
143 WASHER; LK,UNION
ID=16.2 SOU 		0-91510-816-0 03 1 1004- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1004- ●
178 BRACKET; UNION
(C) 		8-98057-823-0 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 17.5"<B5D> (C) 		8-98057-823-0 01 1 1307- ●
178 BRACKET; UNION
(B) 		8-98031-034-1 01 1 1004- ● ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 1004- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(D) 		8-98114-771-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98094-048-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98119-996-0 01 1 1004- ●
192 TUBE; NYLON
(B) L=930 OD=8 		1-49218-617-1 02 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(E) 		8-98114-349-0 01 1 1004- ●
192 TUBE; NYLON
(F) 		8-98114-354-0 01 1 1004- ●
192 TUBE; NYLON
(G) 		8-98115-506-0 01 1 1004-1108 ●
192 TUBE; NYLON
EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98115-506-0 01 1 1109- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1307- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●

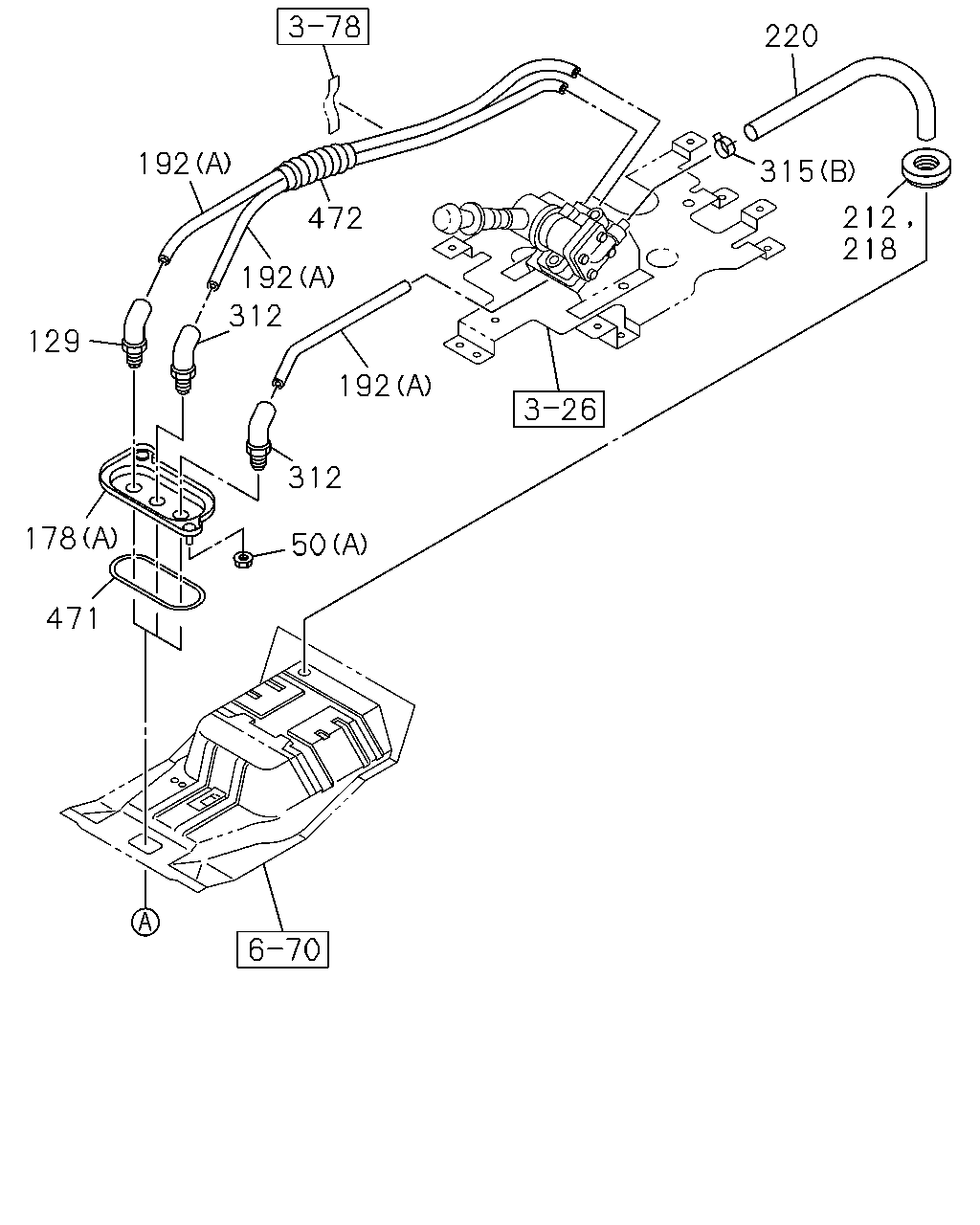

çizim 129164
220 192 315 212 218 472 192 312 129 192 312 178 50 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1004- ●
50 NUT; UNION BRKT
(C) M16 SOU 		0-91111-516-0 01 1 1004- ●
50 NUT; UNION BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1102-1205 ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1004-1101 ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1102- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1004- ●
178 BRACKET; UNION
(C) 		8-98057-823-0 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 17.5"<B5D> (C) 		8-98057-823-0 01 1 1307- ●
178 BRACKET; UNION
(B) 		8-98031-034-1 01 1 1004- ● ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 1004- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1004-1306 ●
178 BRACKET; UNION
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(E) 		8-98031-033-1 01 1 1307- ●
178 BRACKET; UNION
(D) 		8-98114-771-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98094-048-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98119-996-0 01 1 1004- ●
192 TUBE; NYLON
(B) L=930 OD=8 		1-49218-617-1 02 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(E) 		8-98114-349-0 01 1 1004- ●
192 TUBE; NYLON
(F) 		8-98114-354-0 01 1 1004- ●
192 TUBE; NYLON
(G) 		8-98115-506-0 01 1 1004-1108 ●
192 TUBE; NYLON
EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98115-506-0 01 1 1109- ●
212 GROMMET; AIR PIPE
OD=24 SOU 		9-61166-007-0 01 1 1102-1102 ● ●
218 GROMMET; VINYL HOSE
OD=24 SOU 		9-61166-007-0 01 1 1103- ● ●
218 GROMMET; VINYL HOSE
OD=24 SOU 		9-61166-007-0 01 1 1004-1101 ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 SOU 		9-09914-701-0 01 1 1004- ● ●
312 CONNECTOR; SUPPLY
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1206- ●
312 CONNECTOR; SUPPLY
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1004-1101 ●
312 CONNECTOR; SUPPLY
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1004-1101 ●
315 CLIP
(B) ID=14 SOU 		8-94238-572-0 01 1 1004- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1004- ●
471 SEAL; BRKT
SOU 		1-79738-832-0 01 1 1004- ● ●
472 TUBE; SPUTTER 8-98108-051-0 01 1 1004- ●
472 TUBE; SPUTTER 8-98108-051-0 02 1 1004- ●

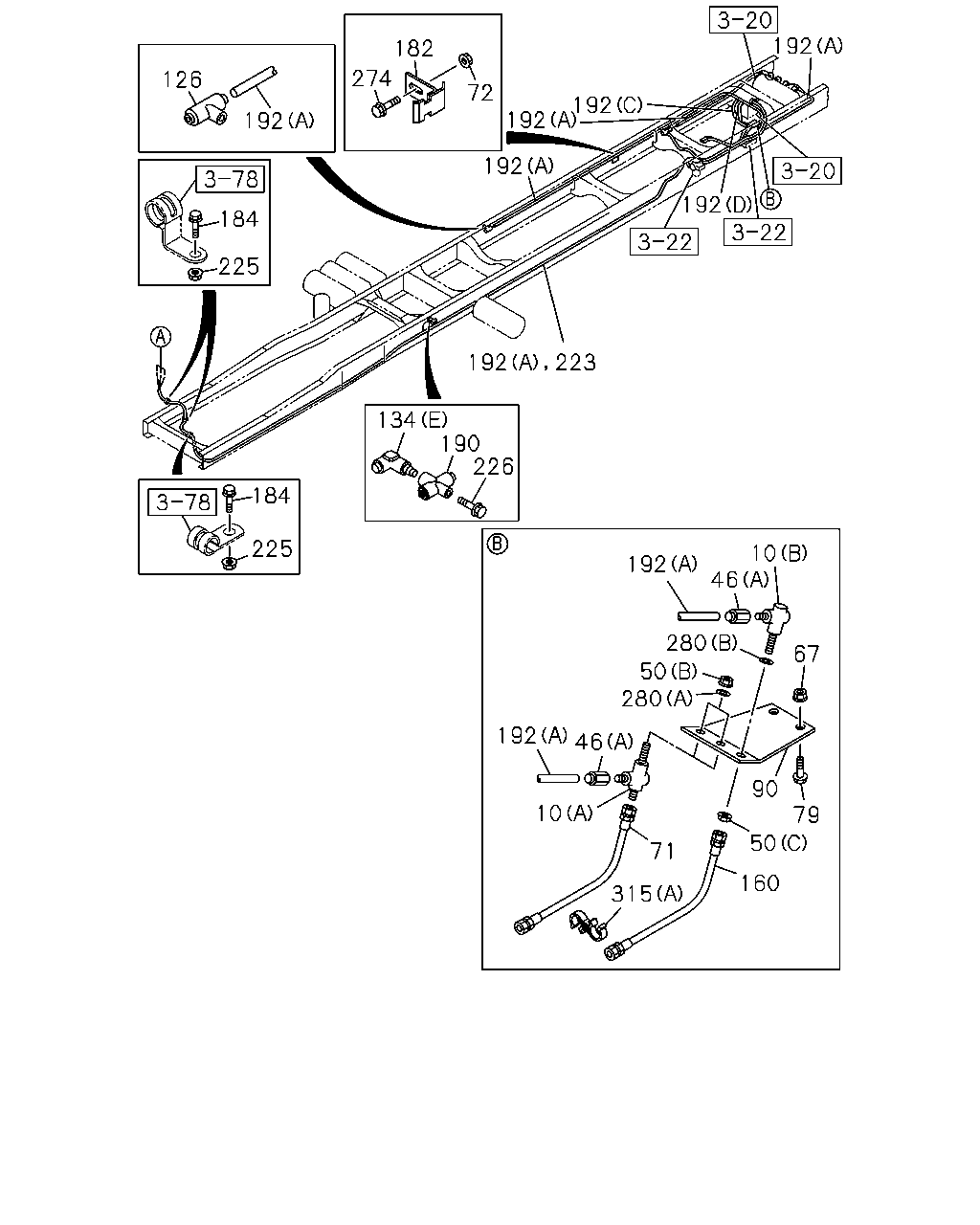

çizim 129174
192 182 274 126 72 192 192 192 192 192 184 225 192 223 134 190 226 184 225 10 46 192 280 67 50 280 192 46 90 10 79 50 71 160 315
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 1004- ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 1004- ●
10 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1108 ●
10 CONNECTOR; FLEX HOSE
EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
46 NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 03 1 1004- ●
46 NIPPLE; AIR PIPE
(B) M16 2WAY 		1-09650-182-1 01 1 1004- ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1004- ●
50 NUT; UNION BRKT
(C) M16 SOU 		0-91111-516-0 01 1 1004- ●
50 NUT; UNION BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
67 NUT; HOSE BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
71 HOSE; FLEX,RWD RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> 		8-98031-452-0 01 1 1107- ●
71 HOSE; FLEX,RWD RR
L=660 		1-09363-814-0 02 1 1004-1104 ●
71 HOSE; FLEX,RWD RR
FINAL GEAR 17.5"<B5D> L=660 		1-09363-814-0 02 1 1105- ●
71 HOSE; FLEX,RWD RR
L=600 		1-09363-746-0 01 1 1004-1106 ●
71 HOSE; FLEX,RWD RR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> L=600 		1-09363-746-0 01 1 1107- ●
71 HOSE; FLEX,RWD RR
L=600 		1-09363-746-0 01 1 1107- ●
71 HOSE; FLEX,RWD RR
L=580 		1-09363-772-0 01 1 1004- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1101 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1101 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1101 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1004- ●
79 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1004- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 1004- ●
126 UNION; NYLON TUBE
DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1004- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1307- ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1307- ●
134 CONNECTOR
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1004- ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1004- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(F) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
160 HOSE; FLEX,SPR CHAMBER
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> L=600 		1-09363-746-0 01 1 1107- ●
160 HOSE; FLEX,SPR CHAMBER
L=580 		1-09363-772-0 01 1 1004-1104 ●
160 HOSE; FLEX,SPR CHAMBER
FINAL GEAR 17.5"<B5D> L=580 		1-09363-772-0 01 1 1105- ●
182 BRACKET; TUBE CLIP 1-47479-693-0 01 1 1004- ●
184 BOLT; TUBE CLIP
VIN MODEL YEAR 2011<VZB> M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
184 BOLT; TUBE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ● ●
184 BOLT; TUBE CLIP
M8X35 FLANGE SOU 		0-28650-835-0 02 1 1004- ● ●
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004- ● ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98094-048-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98119-996-0 01 1 1004- ●
192 TUBE; NYLON
(B) L=930 OD=8 		1-49218-617-1 02 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(E) 		8-98114-349-0 01 1 1004- ●
192 TUBE; NYLON
(F) 		8-98114-354-0 01 1 1004- ●
192 TUBE; NYLON
(G) 		8-98115-506-0 01 1 1004-1108 ●
192 TUBE; NYLON
EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98115-506-0 01 1 1109- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1307- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ● ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ● ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
226 BOLT; UNION
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
274 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ●
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 1004- ●
280 WASHER; LK
(B) ID=16.2 SOU 		0-91510-816-0 01 1 1004- ●
315 CLIP
(B) ID=14 SOU 		8-94238-572-0 01 1 1004- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1004- ●

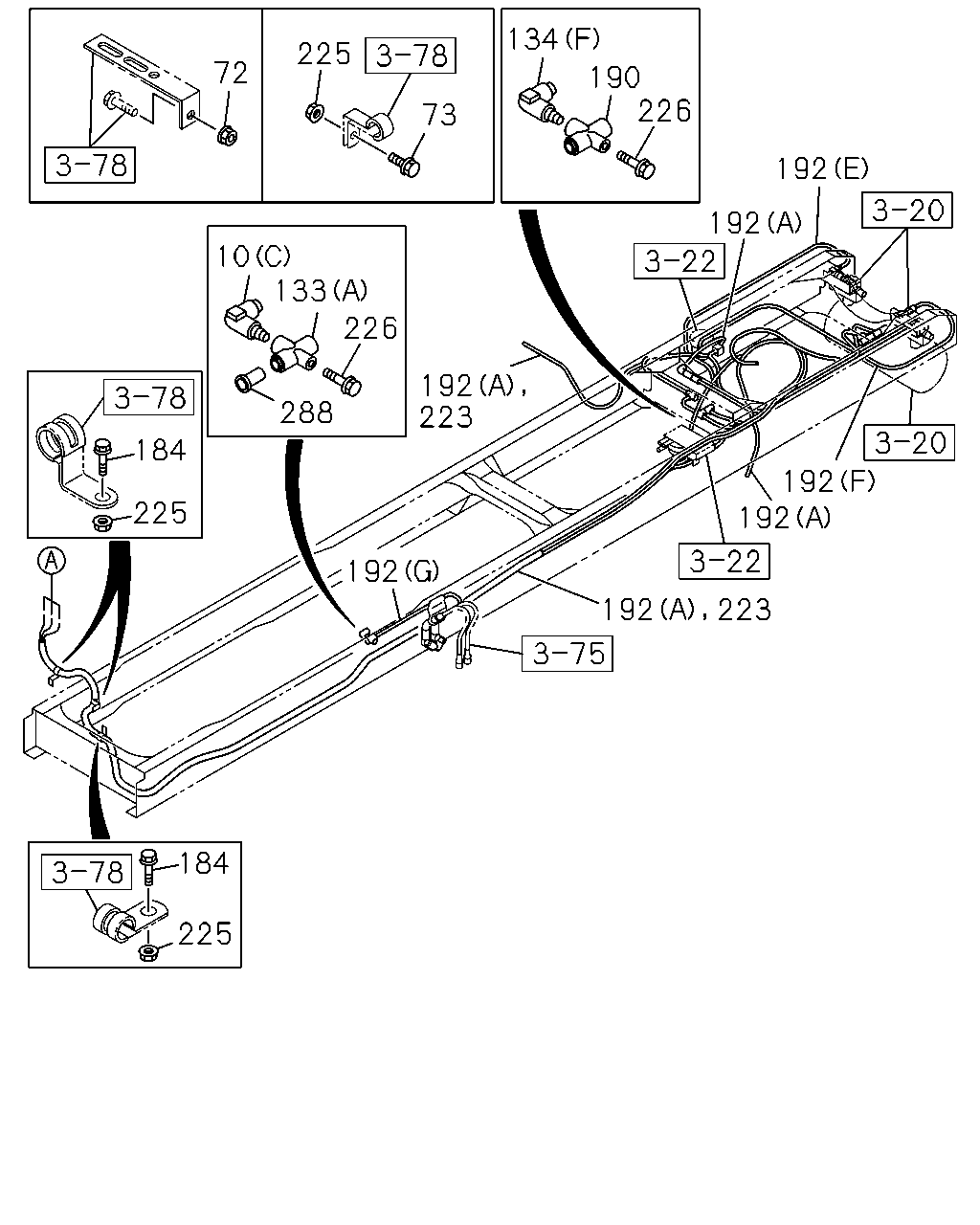

çizim 129183
134 225 72 190 226 73 192 192 10 133 226 192 223 288 184 225 192 192 192 192 223 184 225
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 1004- ●
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 1004- ●
10 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1108 ●
10 CONNECTOR; FLEX HOSE
EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1101 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1101 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1101 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1004- ●
73 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
133 UNION; NIPPLE
(B) M16 2WAY 		1-09650-182-1 02 1 1004- ●
133 UNION; NIPPLE
(C) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1004- ●
133 UNION; NIPPLE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1004-1108 ●
133 UNION; NIPPLE
EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1109- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 02 1 1307- ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1307- ●
134 CONNECTOR
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1004- ●
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1004- ● ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 02 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1004-1306 ●
134 CONNECTOR
FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(D) M16 & RC3/8 STRAIGHT SOU 		1-09660-882-0 01 1 1307- ●
134 CONNECTOR
(F) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
184 BOLT; TUBE CLIP
VIN MODEL YEAR 2011<VZB> M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
184 BOLT; TUBE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ● ●
184 BOLT; TUBE CLIP
M8X35 FLANGE SOU 		0-28650-835-0 02 1 1004- ● ●
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004- ● ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98094-048-0 01 1 1004- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98119-996-0 01 1 1004- ●
192 TUBE; NYLON
(B) L=930 OD=8 		1-49218-617-1 02 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(E) 		8-98114-349-0 01 1 1004- ●
192 TUBE; NYLON
(F) 		8-98114-354-0 01 1 1004- ●
192 TUBE; NYLON
(G) 		8-98115-506-0 01 1 1004-1108 ●
192 TUBE; NYLON
EXC. VIN MODEL YEAR 2011<VZB> (G) 		8-98115-506-0 01 1 1109- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1307- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ● ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ● ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
226 BOLT; UNION
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
288 PLUG
OD=12 		1-09661-617-0 01 1 1004-1108 ●
288 PLUG
EXC. VIN MODEL YEAR 2011<VZB> OD=12 		1-09661-617-0 01 1 1109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
