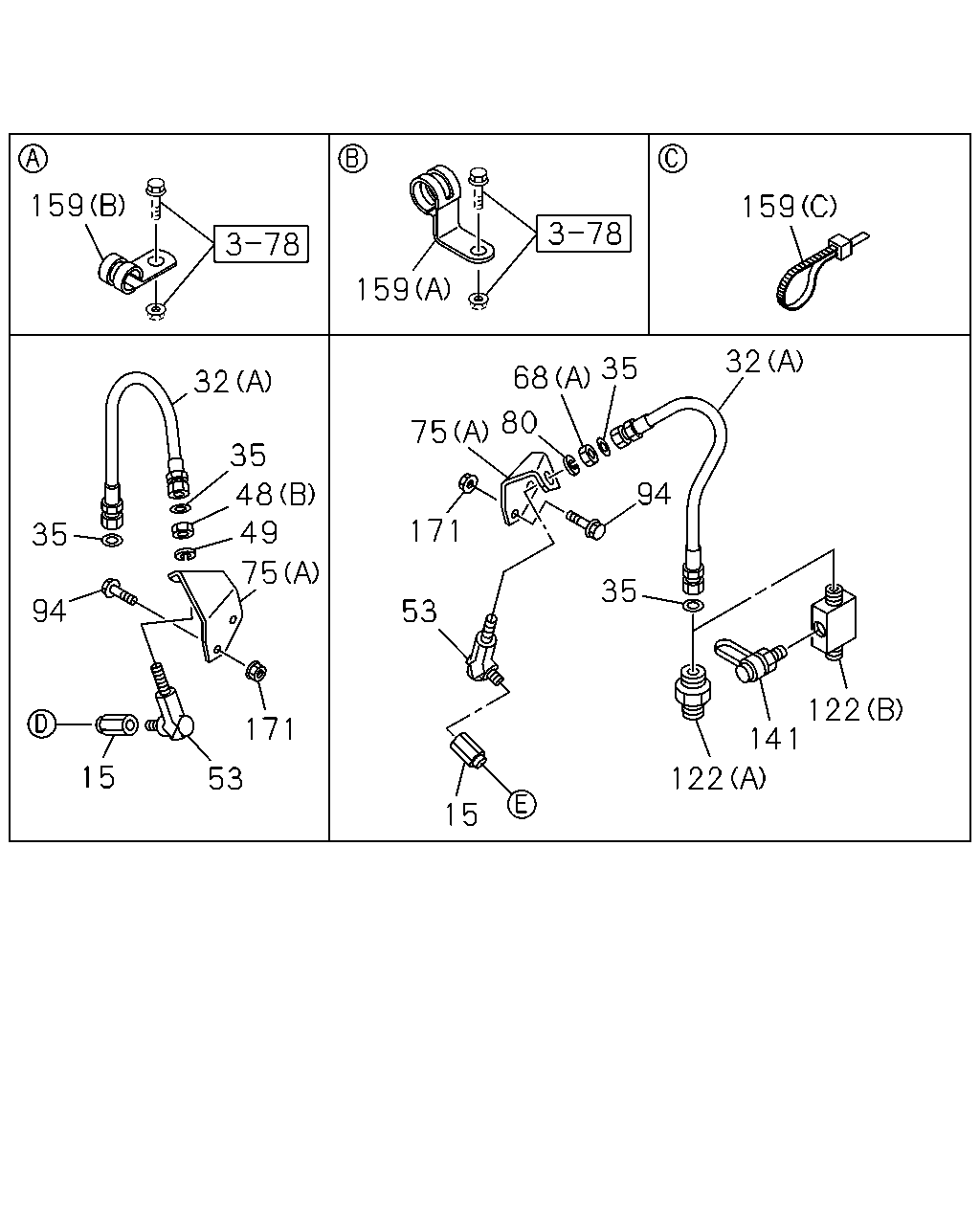

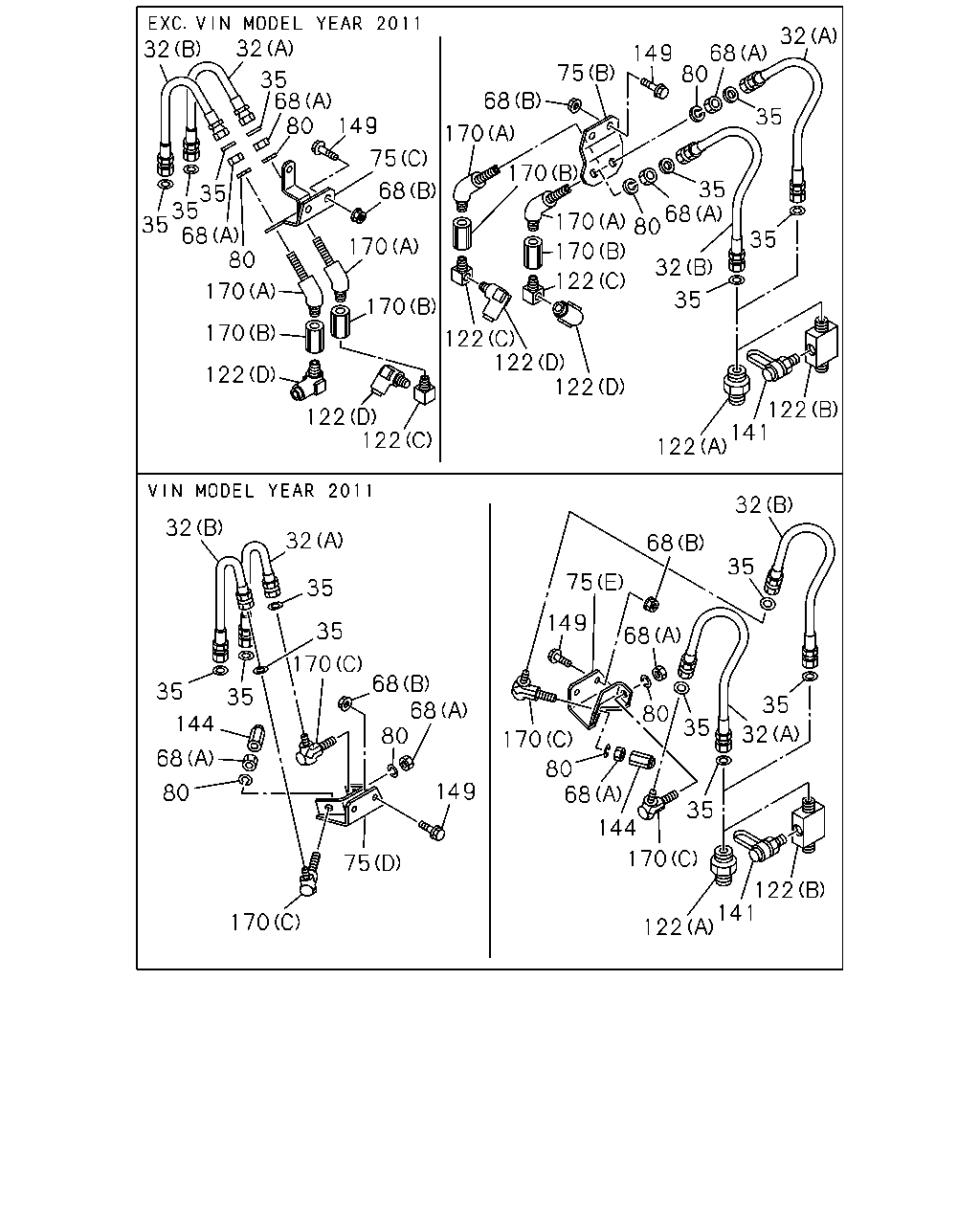

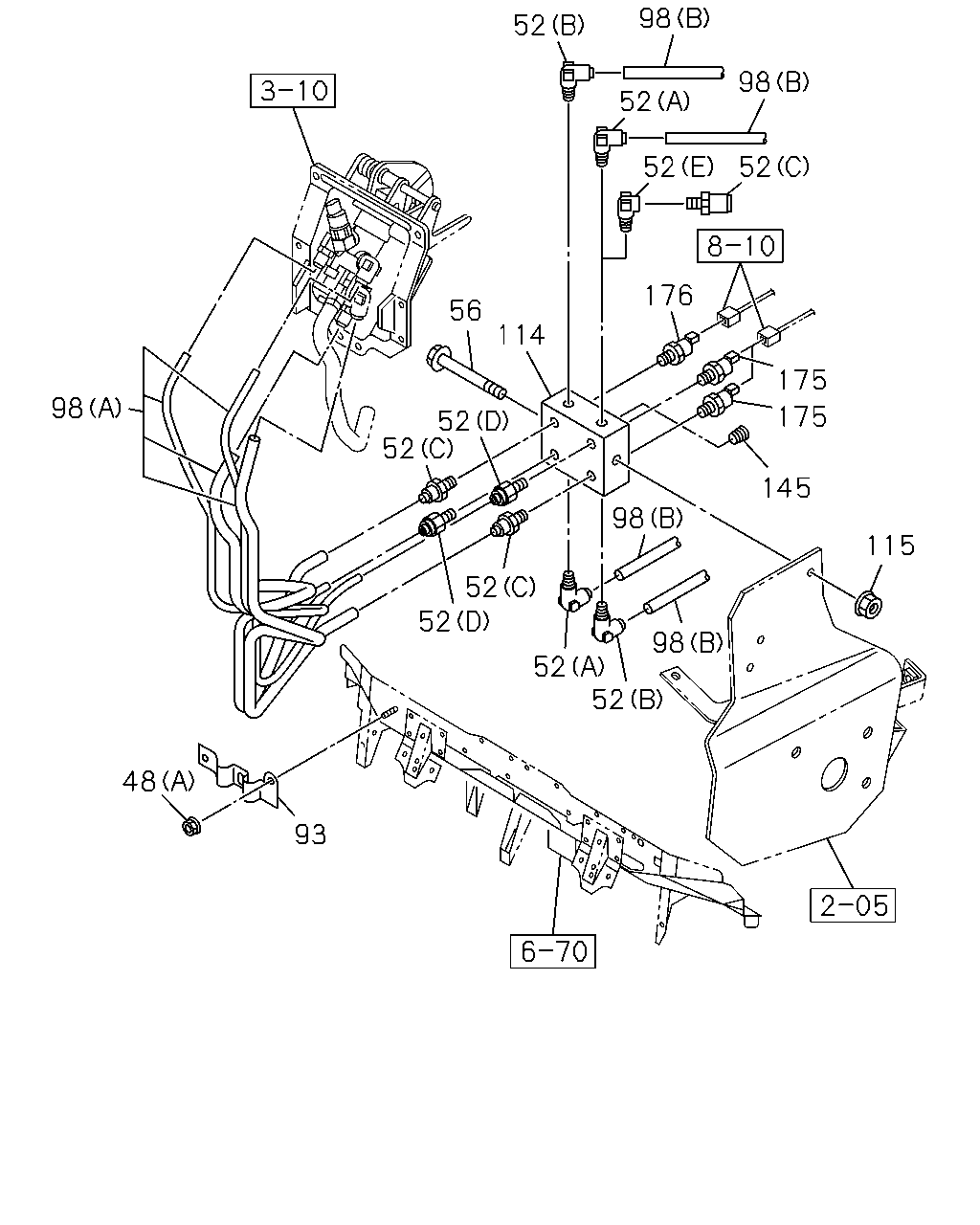

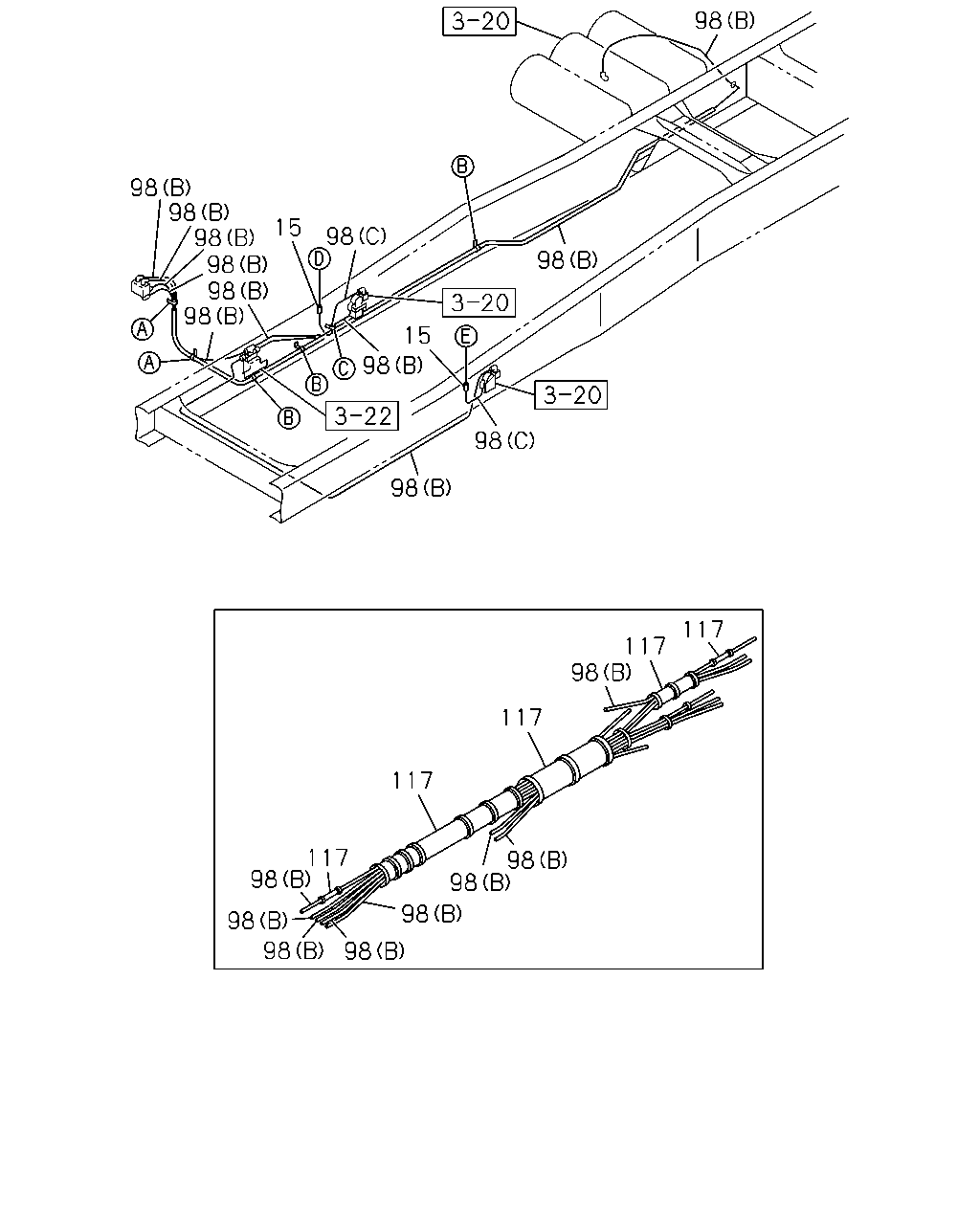

3-75 — BRAKE PIPING; AIR,FRONT (#19221) — 150 parça

32 32 32 149 68 80 75 35 68 80 68 149 35 170 75 170 35 68 80 170 68 35 35 35 68 170 80 35 170 32 122 170 35 170 170 122 122 122 122 122 122 122 141 122 32 32 32 68 35 75 35 149 35 68 170 68 68 80 35 35 35 80 144 35 32 170 68 80 68 149 80 35 144 170 75 122 141 170 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT VIN MODEL YEAR 2011<VZB> (A)	0-87847-500-1	02	1	1109-	●
32	HOSE; FLEX,FRT VIN MODEL YEAR 2011<VZB> (B)	0-87847-530-1	02	1	1109-	●
32	HOSE; FLEX,FRT (A)	0-87847-430-1	02	1	1004-1108	●	●
32	HOSE; FLEX,FRT (A)	0-87847-430-1	02	1	1109-		●
32	HOSE; FLEX,FRT EXC. VIN MODEL YEAR 2011<VZB> (A)	0-87847-430-1	02	1	1109-	●
32	HOSE; FLEX,FRT (B)	0-87847-470-1	02	1	1004-1108	●
32	HOSE; FLEX,FRT EXC. VIN MODEL YEAR 2011<VZB> (B)	0-87847-470-1	02	1	1109-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1004-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1004-	●
68	NUT; UNION (A) M20 SOU	0-91111-520-0	01	1	1004-		●
68	NUT; UNION (A) M20 SOU	0-91111-520-0	04	1	1004-	●
68	NUT; UNION (B) M8 FLANGE SOU	0-91180-108-0	04	1	1004-	●
75	BRACKET; UNION VIN MODEL YEAR 2011<VZB> (D)	8-98186-844-0	01	1	1109-	●
75	BRACKET; UNION VIN MODEL YEAR 2011<VZB> (E)	8-98186-888-0	01	1	1109-	●
75	BRACKET; UNION (A)	8-98094-075-0	01	1	1004-		●
75	BRACKET; UNION (A)	8-98094-074-0	01	1	1004-		●
75	BRACKET; UNION (B)	8-98115-890-0	01	1	1004-1108	●
75	BRACKET; UNION EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98115-890-0	01	1	1109-	●
75	BRACKET; UNION (C)	8-98115-891-0	01	1	1004-1108	●
75	BRACKET; UNION EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98115-891-0	01	1	1109-	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1004-		●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	04	1	1004-	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	01	1	1004-	●	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	01	1	1004-	●
122	CONNECTOR; FLEX HOSE (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1004-	●	●
122	CONNECTOR; FLEX HOSE (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1004-	●
122	CONNECTOR; FLEX HOSE (C) PT3/8 ELBOW SOU	1-09660-696-0	03	1	1004-1108	●
122	CONNECTOR; FLEX HOSE EXC. VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW SOU	1-09660-696-0	03	1	1109-	●
122	CONNECTOR; FLEX HOSE (D) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1004-1108	●
122	CONNECTOR; FLEX HOSE EXC. VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1109-	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1004-		●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1004-	●
144	ADAPTER VIN MODEL YEAR 2011<VZB> DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1109-	●
144	ADAPTER VIN MODEL YEAR 2011<VZB> DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1109-	●
149	BOLT; UNION M8X30 FLANGE	0-28650-830-0	04	1	1004-	●
170	UNION; FLARE VIN MODEL YEAR 2011<VZB> (C) M20 & M20 ELBOW	1-09654-397-1	04	1	1109-	●
170	UNION; FLARE (A) M20	1-09654-199-2	04	1	1004-1108	●
170	UNION; FLARE EXC. VIN MODEL YEAR 2011<VZB> (A) M20	1-09654-199-2	04	1	1109-	●
170	UNION; FLARE (B) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	04	1	1004-1108	●
170	UNION; FLARE EXC. VIN MODEL YEAR 2011<VZB> (B) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	04	1	1109-	●

98 98 98 98 98 98 98 15 98 98 15 98 98 98 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1004-1201		●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-		●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-		●
98	TUBE; NYLON VIN MODEL YEAR 2011<VZB> (C)	8-98169-619-0	01	1	1109-	●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1504		●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1504		●
98	TUBE; NYLON (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1004-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1004-	●	●

98 52 98 52 52 52 176 56 114 175 98 175 52 52 145 98 115 52 52 98 52 52 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT (B) M20 SOU	0-91111-520-0	01	1	1004-		●
48	NUT; UNION BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1004-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	02	1	1004-		●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1004-		●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1004-	●	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	02	1	1004-	●	●
52	CONNECTOR; NYLON TUBE (E) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1004-	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1004-	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	03	1	1004-	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	1004-	●	●
93	BRACKET; UNION,TUBE	8-98044-013-0	01	1	1004-1108	●	●
93	BRACKET; UNION,TUBE	8-98044-013-0	01	1	1109-1201	●	●
93	BRACKET; UNION,TUBE	8-98186-924-0	01	1	1202-	●	●
98	TUBE; NYLON VIN MODEL YEAR 2011<VZB> (C)	8-98169-619-0	01	1	1109-	●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1504		●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1504		●
98	TUBE; NYLON (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1004-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1004-	●	●
114	UNION; NYLON TUBE SOU	8-98057-394-1	01	1	1004-	●	●
115	NUT; TUBE UNION M8 FLANGE SOU	0-91180-108-0	01	1	1004-	●	●
145	PLUG PT1/4	9-99204-513-0	01	1	1004-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1004-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1004-	●	●

159 159 159 32 35 68 32 80 75 35 94 48 49 171 35 75 35 94 53 122 141 171 15 122 53 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1004-1201		●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-		●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-		●
32	HOSE; FLEX,FRT VIN MODEL YEAR 2011<VZB> (A)	0-87847-500-1	02	1	1109-	●
32	HOSE; FLEX,FRT VIN MODEL YEAR 2011<VZB> (B)	0-87847-530-1	02	1	1109-	●
32	HOSE; FLEX,FRT (A)	0-87847-430-1	02	1	1004-1108	●	●
32	HOSE; FLEX,FRT (A)	0-87847-430-1	02	1	1109-		●
32	HOSE; FLEX,FRT EXC. VIN MODEL YEAR 2011<VZB> (A)	0-87847-430-1	02	1	1109-	●
32	HOSE; FLEX,FRT (B)	0-87847-470-1	02	1	1004-1108	●
32	HOSE; FLEX,FRT EXC. VIN MODEL YEAR 2011<VZB> (B)	0-87847-470-1	02	1	1109-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1004-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1004-	●
48	NUT; UNION BRKT (B) M20 SOU	0-91111-520-0	01	1	1004-		●
48	NUT; UNION BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1004-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1004-		●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	1004-		●
68	NUT; UNION (A) M20 SOU	0-91111-520-0	01	1	1004-		●
68	NUT; UNION (A) M20 SOU	0-91111-520-0	04	1	1004-	●
68	NUT; UNION (B) M8 FLANGE SOU	0-91180-108-0	04	1	1004-	●
75	BRACKET; UNION VIN MODEL YEAR 2011<VZB> (D)	8-98186-844-0	01	1	1109-	●
75	BRACKET; UNION VIN MODEL YEAR 2011<VZB> (E)	8-98186-888-0	01	1	1109-	●
75	BRACKET; UNION (A)	8-98094-075-0	01	1	1004-		●
75	BRACKET; UNION (A)	8-98094-074-0	01	1	1004-		●
75	BRACKET; UNION (B)	8-98115-890-0	01	1	1004-1108	●
75	BRACKET; UNION EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98115-890-0	01	1	1109-	●
75	BRACKET; UNION (C)	8-98115-891-0	01	1	1004-1108	●
75	BRACKET; UNION EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98115-891-0	01	1	1109-	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1004-		●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	04	1	1004-	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1004-		●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	01	1	1004-	●	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	01	1	1004-	●
122	CONNECTOR; FLEX HOSE (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1004-	●	●
122	CONNECTOR; FLEX HOSE (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1004-	●
122	CONNECTOR; FLEX HOSE (C) PT3/8 ELBOW SOU	1-09660-696-0	03	1	1004-1108	●
122	CONNECTOR; FLEX HOSE EXC. VIN MODEL YEAR 2011<VZB> (C) PT3/8 ELBOW SOU	1-09660-696-0	03	1	1109-	●
122	CONNECTOR; FLEX HOSE (D) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1004-1108	●
122	CONNECTOR; FLEX HOSE EXC. VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1109-	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1004-		●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1004-	●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	02	1	1109-	●
159	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	16	1	1004-		●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1004-1108		●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1109-		●
159	CLIP; NYLON TUBE VIN MODEL YEAR 2011<VZB> (B) ID=39 L=33	8-98009-359-0	01	1	1109-	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	02	1	1004-	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	1004-1108	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	1109-1109	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	1109-		●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	1004-1108	●	●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	1109-1109	●	●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	1109-		●
159	CLIP; NYLON TUBE (B) ID=32 L=35	1-09701-244-0	01	1	1004-1108	●
159	CLIP; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (B) ID=32 L=35	1-09701-244-0	01	1	1109-	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	19	1	1004-	●
171	NUT; BRACKET VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU	0-91180-108-0	04	1	1109-		●
