◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#19220) — 81 parça

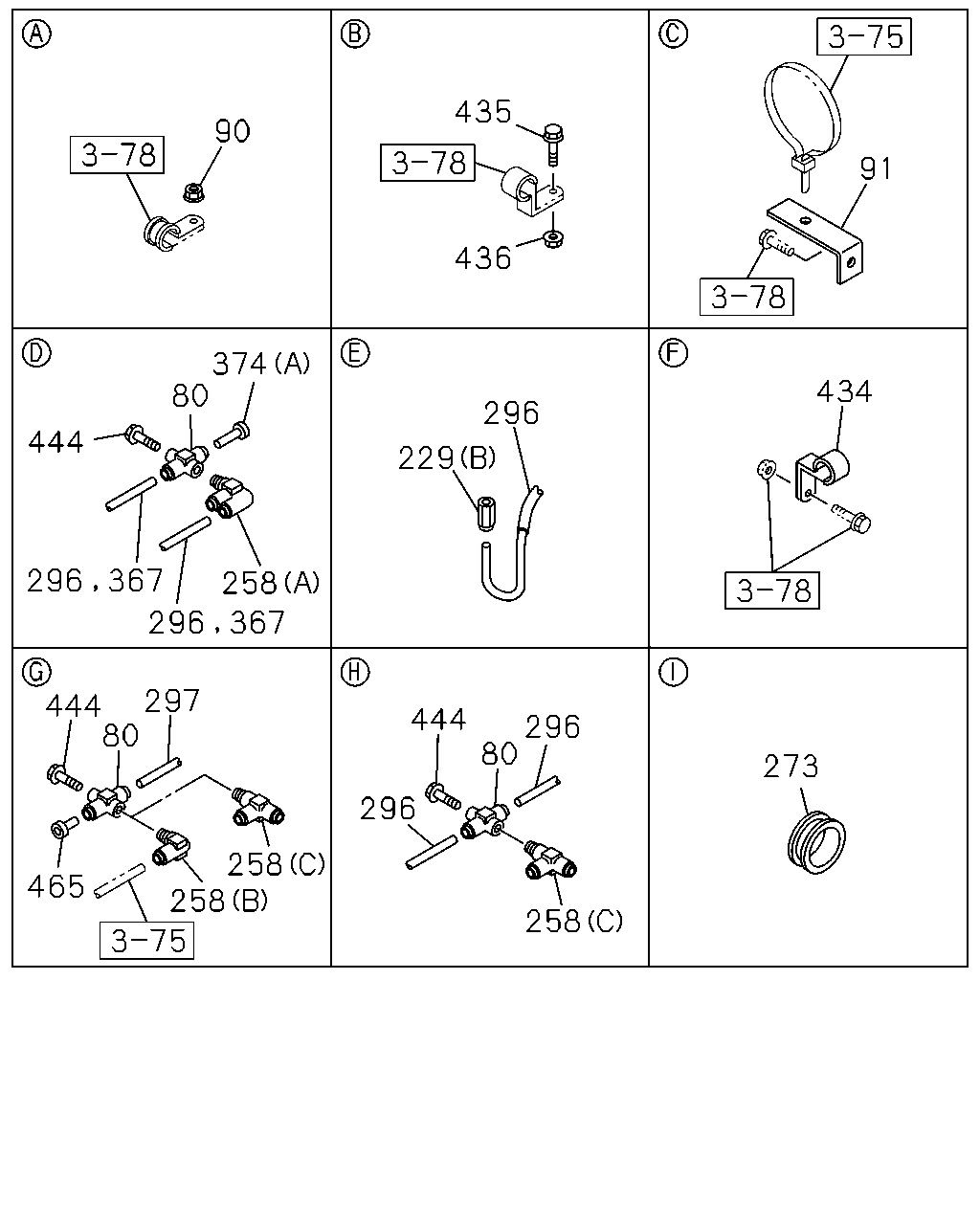

çizim 129163
435 90 91 436 374 80 434 296 444 229 296 258 296 444 297 80 444 296 80 273 296 258 258 465 258 367 367
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004-1108 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004-1108 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004-1108 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ● ●
80 UNION; 3 WAY
SHIFT PATTERN DOUBLE-H<EDZ> EXC. VIN MODEL YEAR 2011<VZB> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ● ●
90 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
91 BRACKET; TUBE CLIP
L=60 H=30 		1-47477-716-1 02 1 1004- ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1004- ● ●
258 CONNECTOR; NYLON TUBE
VIN MODEL YEAR 2011<VZB> (C) 		1-09660-969-0 01 1 1109- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-026-0 01 1 1004- ●
258 CONNECTOR; NYLON TUBE
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1004-1108 ● ●
258 CONNECTOR; NYLON TUBE
EXC. VIN MODEL YEAR 2011<VZB> (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1109- ● ●
258 CONNECTOR; NYLON TUBE
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-09660-969-0 01 1 1004-1006 ● ●
258 CONNECTOR; NYLON TUBE
SHIFT PATTERN DOUBLE-H<EDZ> (C) DIN8X2 & R3/8 3WAY SOU 		1-09660-997-0 01 1 1007-1108 ● ●
258 CONNECTOR; NYLON TUBE
SHIFT PATTERN DOUBLE-H<EDZ> EXC. VIN MODEL YEAR 2011<VZB> (C) DIN8X2 & R3/8 3WAY SOU 		1-09660-997-0 01 1 1109- ● ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●
374 CONNECTOR
(A) OD=8 PLASTIC 		1-09661-616-0 01 1 1004- ●
374 CONNECTOR
(B) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 1004- ● ●
435 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004- ● ●
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
444 BOLT; UNION
VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ● ●
444 BOLT; UNION
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●
465 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 1004-1108 ● ●
465 PLUG
EXC. VIN MODEL YEAR 2011<VZB> OD=8 PLASTIC 		1-09661-616-0 01 1 1109- ● ●

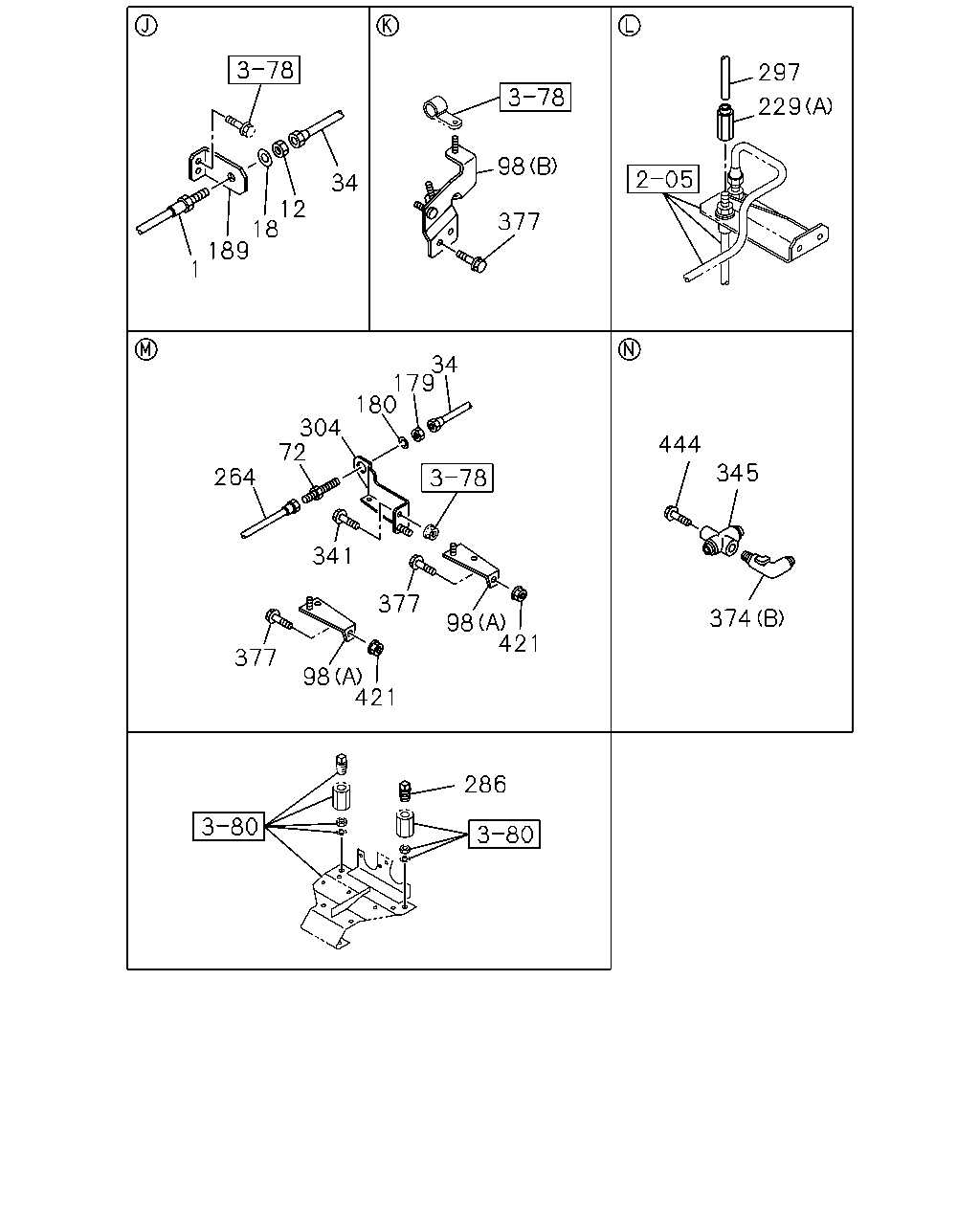

çizim 129166
297 229 98 34 12 18 189 377 1 34 179 180 304 72 444 345 264 341 377 374 98 421 377 98 421 286
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 1004- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1004- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1004- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1004- ● ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1004- ● ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1004- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1004- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1004- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1004- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1004- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1004- ● ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1004- ● ●
286 PLUG; AIR PIPE
PT3/8 		9-09204-517-0 01 1 1004- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
304 BRACKET; UNION 8-97610-362-1 01 1 1004- ● ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1004- ● ●
345 UNION; AIR PIPE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1004- ●
374 CONNECTOR
(A) OD=8 PLASTIC 		1-09661-616-0 01 1 1004- ●
374 CONNECTOR
(B) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
377 BOLT; BRKT FIX
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ● ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1004- ● ●
421 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
444 BOLT; UNION
VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ● ●
444 BOLT; UNION
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●

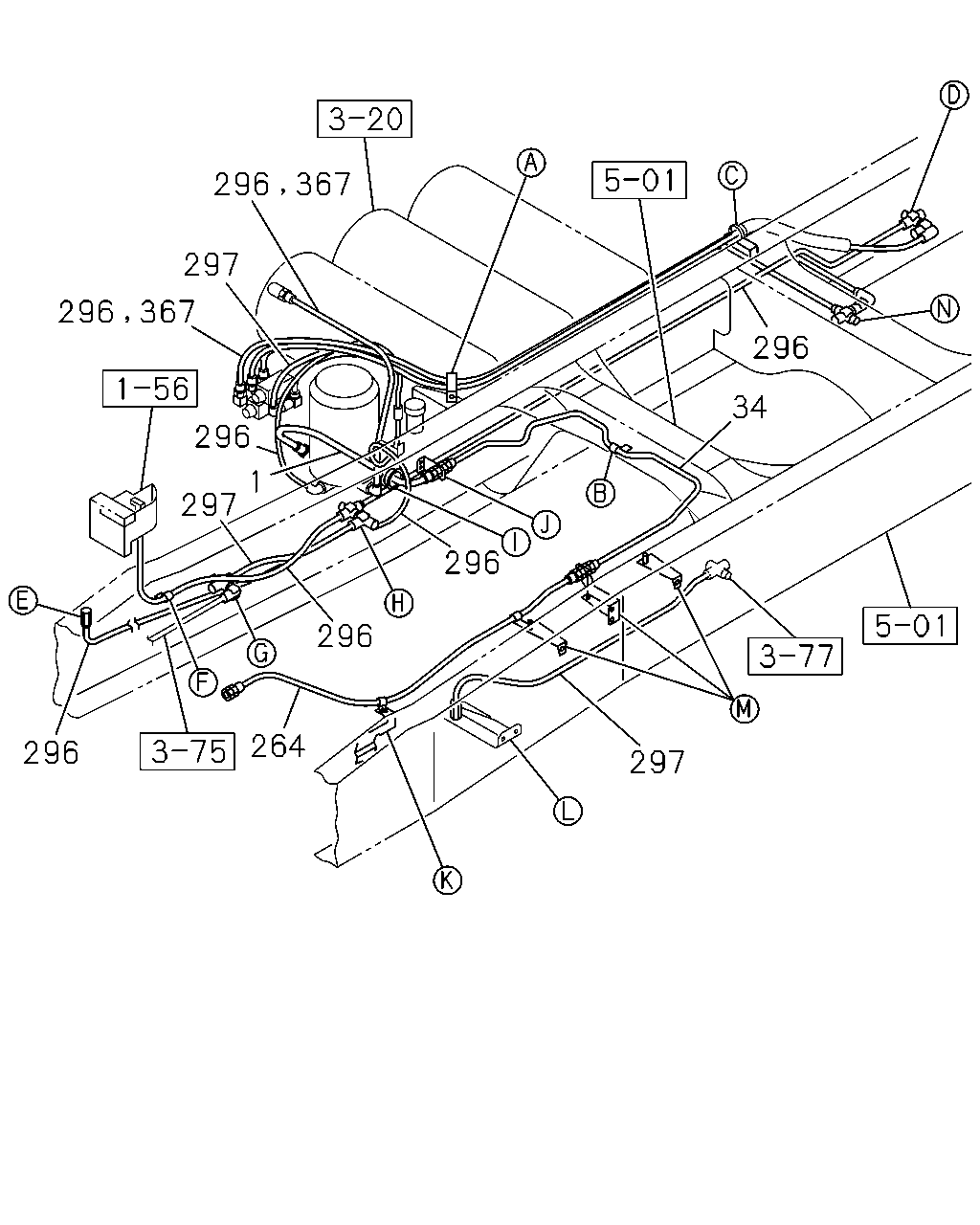

çizim 129178
296 297 296 296 34 296 1 297 296 296 264 296 297 367 367
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 1004- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1004- ● ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●
