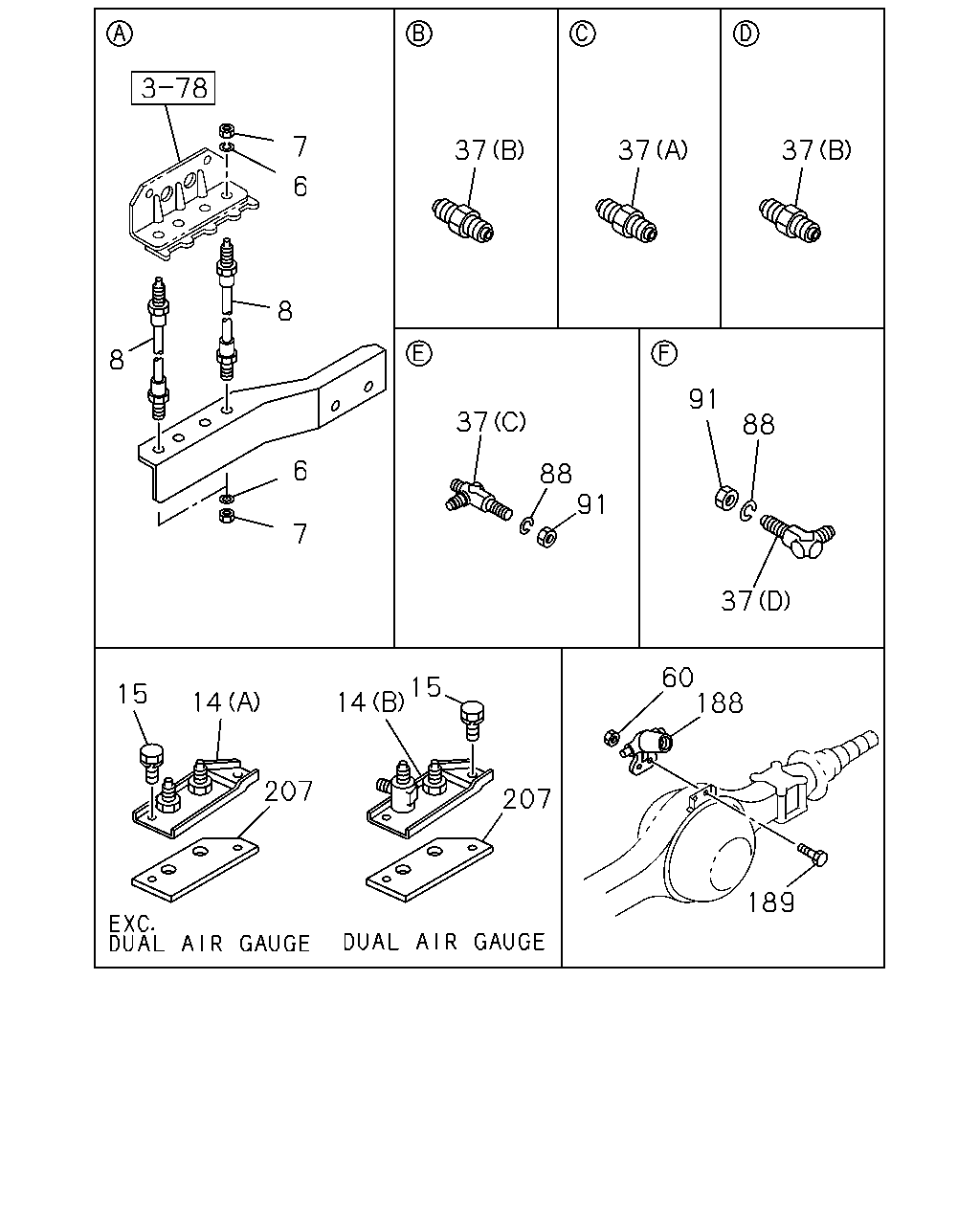

3-77 — BRAKE PIPING; AIR,REAR (#1922) — 101 parça

87 118 104 103 101 93 201 4 8 59 8 13 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	PIPE; AIR,UNION TO BRK VLV L=318 SERVICED BY L=350	1-47426-403-0	01	1	9207-9212	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=350	1-47426-403-0	01	1	9207-9212			●	●
4	PIPE; AIR,UNION TO BRK VLV L=318 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=550	1-47426-407-0	01	1	9301-			●	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=300	1-47426-402-0	01	1	9207-9212			●	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=550	1-47426-407-0	01	1	9301-			●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	02	1	9207-	●	●	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=300	1-47426-402-0	01	1	9207-9212	●	●	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1000	1-47434-476-0	01	1	9207-9212	●	●	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2770 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2770 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2795 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2795 SERVICED BY L=2900	1-47426-425-0	01	1	9301-			●	●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47434-476-0	01	1	9207-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47437-965-0	01	1	9207-9212			●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47426-411-0	01	1	9301-			●	●
93	PIPE; AIR,UNION TO UNION L=2332 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
93	PIPE; AIR,UNION TO UNION L=2466 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION L=2650 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
93	PIPE; AIR,UNION TO UNION L=2629 SERVICED BY L=2900	1-47426-425-0	01	1	9301-			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2905 SERVICED BY L=3700	1-47434-480-0	01	1	9207-9212	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2905 SERVICED BY L=3700	1-47426-427-0	01	1	9301-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2912 SERVICED BY L=3700	1-47434-480-0	01	1	9207-9212			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2912 SERVICED BY L=3700	1-47426-427-0	01	1	9301-			●	●
103	PIPE; AIR,UNION TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
103	PIPE; AIR,UNION TO UNION L=2309 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION L=1503 SERVICED BY L=1550	1-47437-970-0	01	1	9207-9212			●	●
103	PIPE; AIR,UNION TO UNION L=1504 SERVICED BY L=1550	1-47426-419-0	01	1	9301-9309			●	●
103	PIPE; AIR,UNION TO UNION L=1506 SERVICED BY L=1550	1-47426-419-0	01	1	9310-9406			●	●
103	PIPE; AIR,UNION TO UNION L=1509 SERVICED BY L=1550	1-47426-419-0	01	1	9407-			●	●
104	PIPE; AIR,UNION TO UNION L=1741 SERVICED BY L=2100	1-47437-972-0	01	1	9207-9212			●	●
104	PIPE; AIR,UNION TO UNION L=1708 SERVICED BY L=1900	1-47426-421-0	01	1	9301-			●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47434-475-0	01	1	9207-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47426-412-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=414 SERVICED BY L=450	1-47437-962-0	01	1	9207-9212			●	●
118	PIPE; AIR,UNION TO AIR MASTER L=424 SERVICED BY L=450	1-47426-405-0	01	1	9301-			●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805 SERVICED BY L=900	1-47426-413-0	01	1	9207-9212	●	●	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805	1-47497-058-0	01	1	9301-	●	●	●	●

7 37 37 37 6 8 8 91 37 88 6 88 91 7 37 60 188 15 14 15 14 207 207 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9207-	●	●	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9207-	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	02	1	9207-	●	●	●	●
14	UNION; AIR PIPE (A)	1-47470-196-1	01	1	9207-	●	●
14	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-47470-196-1	01	1	9207-			●	●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-219-1	01	1	9207-			●	●
15	BOLT; PIPE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9207-	●	●	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9207-	●	●	●	●
37	UNION; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9207-	●	●	●	●
37	UNION; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9207-	●	●
37	UNION; AIR PIPE (C) M16 2WAY	1-09650-182-1	01	1	9207-			●	●
37	UNION; AIR PIPE (D) M16 ELBOW	9-09235-110-1	01	1	9207-9212			●	●
37	UNION; AIR PIPE (D) M16 ELBOW	9-09235-210-1	01	1	9301-			●	●
60	NUT; NIPPLE,AIR PIPE M10	9-09110-410-0	02	1	9207-	●	●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	02	1	9207-9312	●	●	●	●
88	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9207-9312			●	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9207-	●	●	●	●
91	NUT; PIPE UNION M12	9-99111-412-0	01	1	9207-			●	●
188	NIPPLE; 3 WAY,AIR PIPE	9-09903-667-2	01	1	9207-	●	●
189	BOLT; NIPPLE M10X25 W/LK WASHER	0-50041-025-0	02	1	9207-	●	●
207	SEAL; PLATE,UNION	1-79998-233-0	01	1	9207-	●	●	●	●

118 87 101 103 201 4 8 59 93 8 13 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	PIPE; AIR,UNION TO BRK VLV L=318 SERVICED BY L=350	1-47426-403-0	01	1	9207-9212	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=350	1-47426-403-0	01	1	9207-9212			●	●
4	PIPE; AIR,UNION TO BRK VLV L=318 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=550	1-47426-407-0	01	1	9301-			●	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=300	1-47426-402-0	01	1	9207-9212			●	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=550	1-47426-407-0	01	1	9301-			●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	02	1	9207-	●	●	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=300	1-47426-402-0	01	1	9207-9212	●	●	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1000	1-47434-476-0	01	1	9207-9212	●	●	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2770 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2770 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2795 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2795 SERVICED BY L=2900	1-47426-425-0	01	1	9301-			●	●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47434-476-0	01	1	9207-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47437-965-0	01	1	9207-9212			●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47426-411-0	01	1	9301-			●	●
93	PIPE; AIR,UNION TO UNION L=2332 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
93	PIPE; AIR,UNION TO UNION L=2466 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION L=2650 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
93	PIPE; AIR,UNION TO UNION L=2629 SERVICED BY L=2900	1-47426-425-0	01	1	9301-			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2905 SERVICED BY L=3700	1-47434-480-0	01	1	9207-9212	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2905 SERVICED BY L=3700	1-47426-427-0	01	1	9301-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2912 SERVICED BY L=3700	1-47434-480-0	01	1	9207-9212			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2912 SERVICED BY L=3700	1-47426-427-0	01	1	9301-			●	●
103	PIPE; AIR,UNION TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
103	PIPE; AIR,UNION TO UNION L=2309 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION L=1503 SERVICED BY L=1550	1-47437-970-0	01	1	9207-9212			●	●
103	PIPE; AIR,UNION TO UNION L=1504 SERVICED BY L=1550	1-47426-419-0	01	1	9301-9309			●	●
103	PIPE; AIR,UNION TO UNION L=1506 SERVICED BY L=1550	1-47426-419-0	01	1	9310-9406			●	●
103	PIPE; AIR,UNION TO UNION L=1509 SERVICED BY L=1550	1-47426-419-0	01	1	9407-			●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47434-475-0	01	1	9207-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47426-412-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=414 SERVICED BY L=450	1-47437-962-0	01	1	9207-9212			●	●
118	PIPE; AIR,UNION TO AIR MASTER L=424 SERVICED BY L=450	1-47426-405-0	01	1	9301-			●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805 SERVICED BY L=900	1-47426-413-0	01	1	9207-9212	●	●	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805	1-47497-058-0	01	1	9301-	●	●	●	●
