Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#19217) — 29 parça
Tümü
A - FGR5MX
B - GGR5MX
◀
[346A] REPAIR KIT (1 parça)
[346A] FIXING (7 parça)
[346A] PISTON KIT AND THERMOSTAT KIT (5 parça)
[346A] COMPONENT (16 parça)
▶

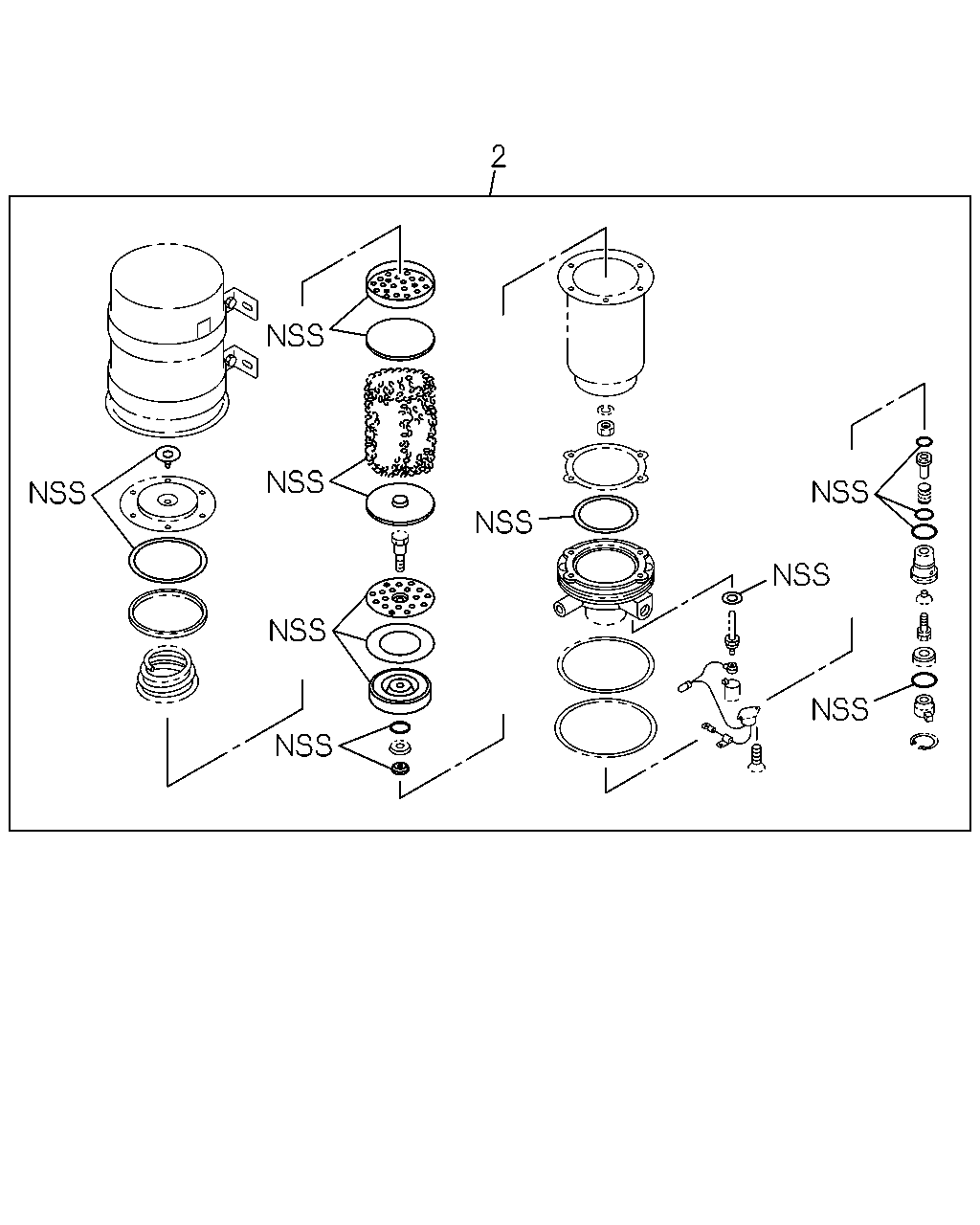

2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
SOU
1-85576-226-0
01
1
1004-
●
●
1
8
13
13
9
8

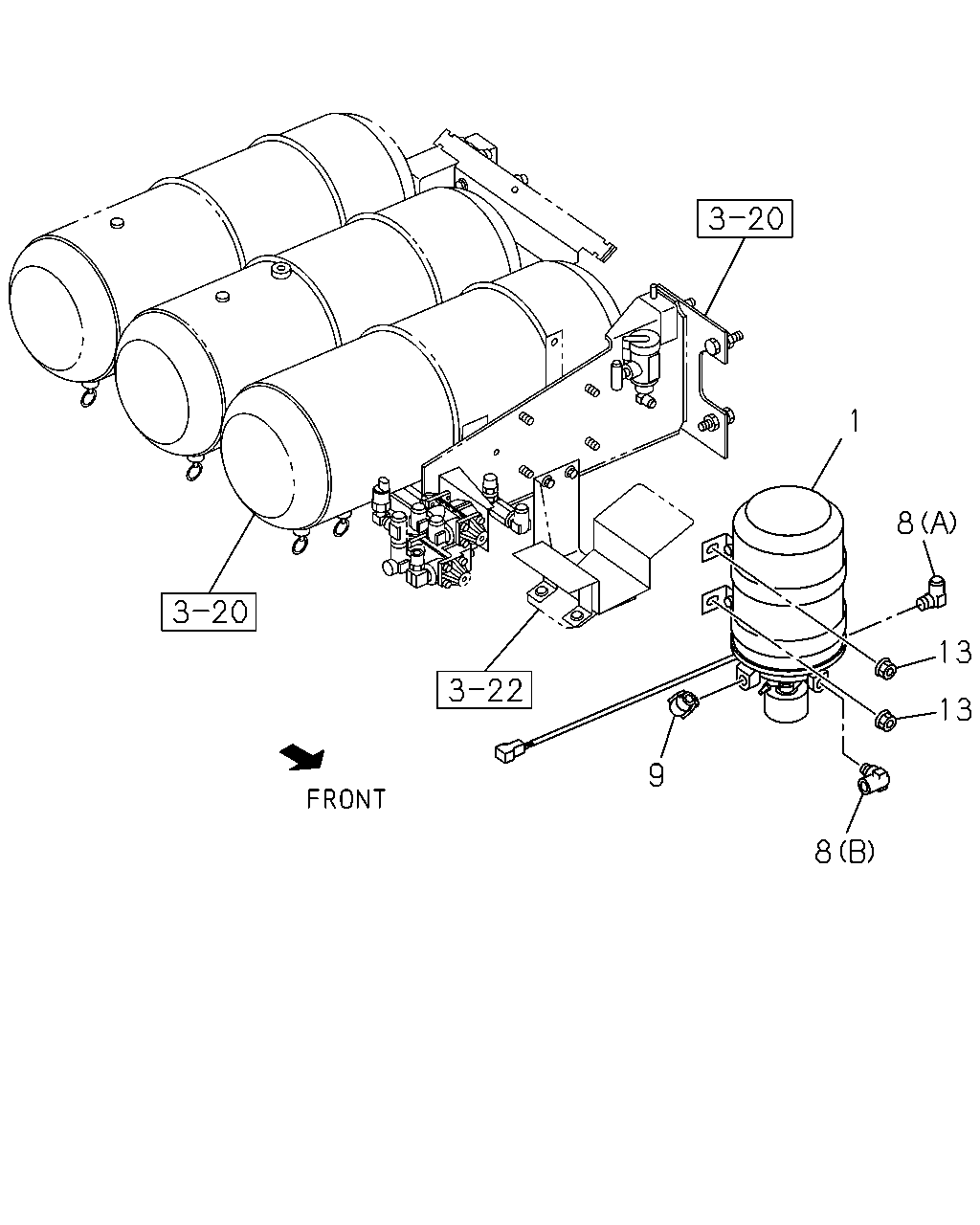

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-277-1
01
1
1004-
●
●
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1004-
●
●
8
CONNECTOR; OUT,AIR DRYER
(B) DIN6 & R1/4 ELBOW SOU
1-09661-067-0
01
1
1004-
●
●
9
CONNECTOR; PIPE,AIR DRYER
VIN MODEL YEAR 2011<VZB> M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1109-
●
●
9
CONNECTOR; PIPE,AIR DRYER
M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1004-1108
●
●
9
CONNECTOR; PIPE,AIR DRYER
EXC. VIN MODEL YEAR 2011<VZB> M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1109-
●
●
13
NUT; AIR DRYER
M10 FLANGE SOU
0-91180-210-0
04
1
1004-
●
●
3
68
70
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
PISTON KIT; AIR DRYER
SOU
1-85576-057-1
01
1
1004-
●
●
4
THERMOSTAT KIT; AIR DRYER
SOU
1-85576-254-0
01
1
1004-
●
●
65
BOLT; PURGE VLV
SOU
1-48199-393-0
01
1
1004-
●
●
68
BODY; VALVE
SOU
1-48199-216-0
01
1
1004-
●
●
70
VALVE; AIR DRYER
SOU
1-48199-105-0
01
1
1004-
●
●
1
1
86
80
80
79
71
79
86
68
70
65
75
6
88
7
81
88
5
81
84

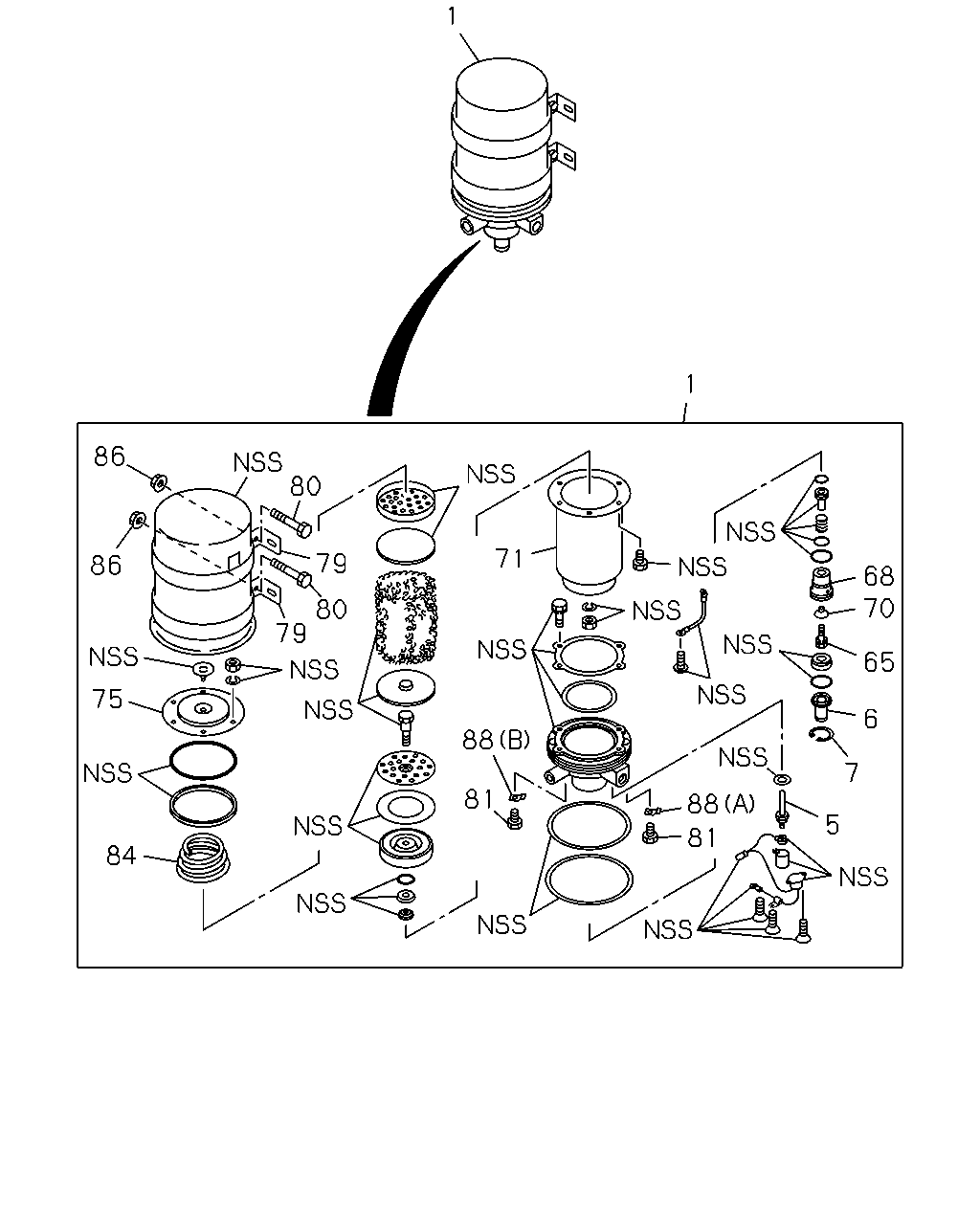

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-277-1
01
1
1004-
●
●
5
HEATER ASM; AIR DRYER
SOU
1-48199-085-0
02
1
1004-
●
●
6
COVER; EXH,AIR DRYER
SOU
1-48199-101-0
01
1
1004-
●
●
7
RING; SNAP,AIR DRYER
SOU
1-48199-154-0
01
1
1004-
●
●
65
BOLT; PURGE VLV
SOU
1-48199-393-0
01
1
1004-
●
●
68
BODY; VALVE
SOU
1-48199-216-0
01
1
1004-
●
●
70
VALVE; AIR DRYER
SOU
1-48199-105-0
01
1
1004-
●
●
71
CASE; INNER,AIR DRYER
SOU
1-48199-156-1
01
1
1004-
●
●
75
COVER; CASE,AIR DRYER
SOU
1-48199-167-0
01
1
1004-
●
●
79
BRACKET; AIR DRYER
SOU
1-48199-189-0
02
1
1004-
●
●
80
BOLT; BRKT
SOU
1-48199-190-0
02
1
1004-
●
●
81
BOLT; CASE,AIR DRYER
SOU
1-48199-177-0
02
1
1004-
●
●
84
SPRING; AIR DRYER
SOU
1-48199-166-0
01
1
1004-
●
●
86
NUT; BRKT
SOU
1-48199-320-0
02
1
1004-
●
●
88
PLATE; STOPPER
(A) SOU
1-48199-178-0
01
1
1004-
●
●
88
PLATE; STOPPER
(B) SOU
1-48199-179-0
01
1
1004-
●
●
