3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#19215) — 40 parça
Tümü
A - FGR5MX
B - GGR5MX
◀

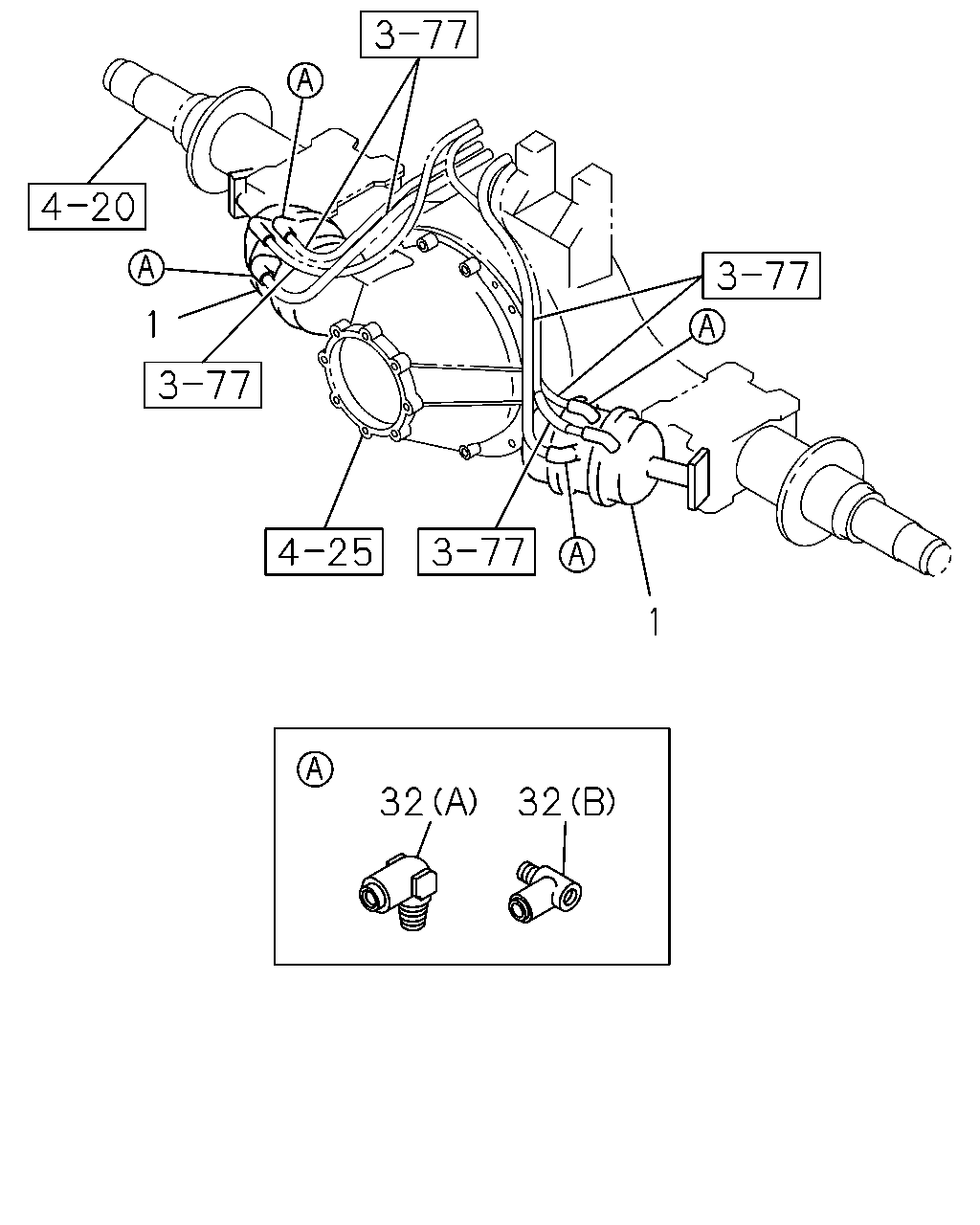

[341A] CONNECTOR;NYLON TUBE (8 parça)
[341A] COMPONENT AND REPAIR KIT -'10/5 (16 parça)
[341A] COMPONENT AND REPAIR KIT '10/6- (16 parça)
▶
1
1
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
8-98145-698-0
01
1
1004-1005
●
●
1
CHAMBER ASM; SPRING
1-87412-097-0
01
1
1006-
●
●
1
CHAMBER ASM; SPRING
8-98145-699-0
01
1
1004-1005
●
●
1
CHAMBER ASM; SPRING
1-87412-098-0
01
1
1006-
●
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW SOU
1-09660-959-0
02
1
1004-
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
02
1
1004-
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW SOU
1-09660-959-0
03
1
1004-
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
01
1
1004-
●

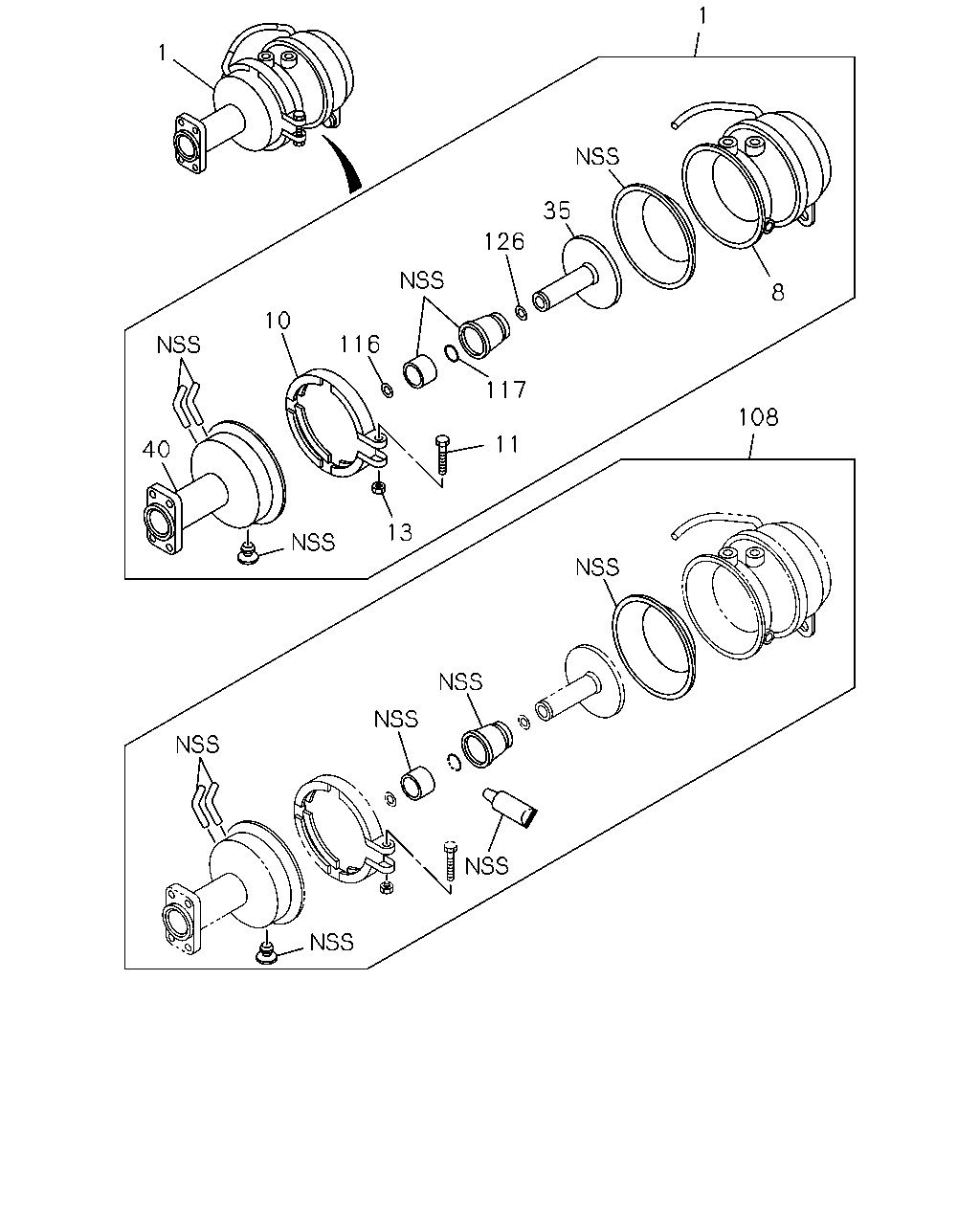

1
1
35
126
8
10
116
117
108
11
40
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
8-98145-698-0
01
1
1004-1005
●
●
1
CHAMBER ASM; SPRING
1-87412-097-0
01
1
1006-
●
●
1
CHAMBER ASM; SPRING
8-98145-699-0
01
1
1004-1005
●
●
1
CHAMBER ASM; SPRING
1-87412-098-0
01
1
1006-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-095-2
01
1
1004-1005
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-097-2
01
1
1004-1005
●
●
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1004-
●
●
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1004-
●
●
13
NUT; CLAMP RING
1-48269-147-0
02
1
1004-
●
●
35
PLATE; ROD END,SPR CHAMBER
8-98146-974-0
02
1
1004-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-140-1
01
1
1004-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-141-1
01
1
1004-
●
●
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
02
1
1004-
●
●
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1004-
●
●
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1004-
●
●
126
SHIM
8-98146-965-0
AR
1
1004-
●
●

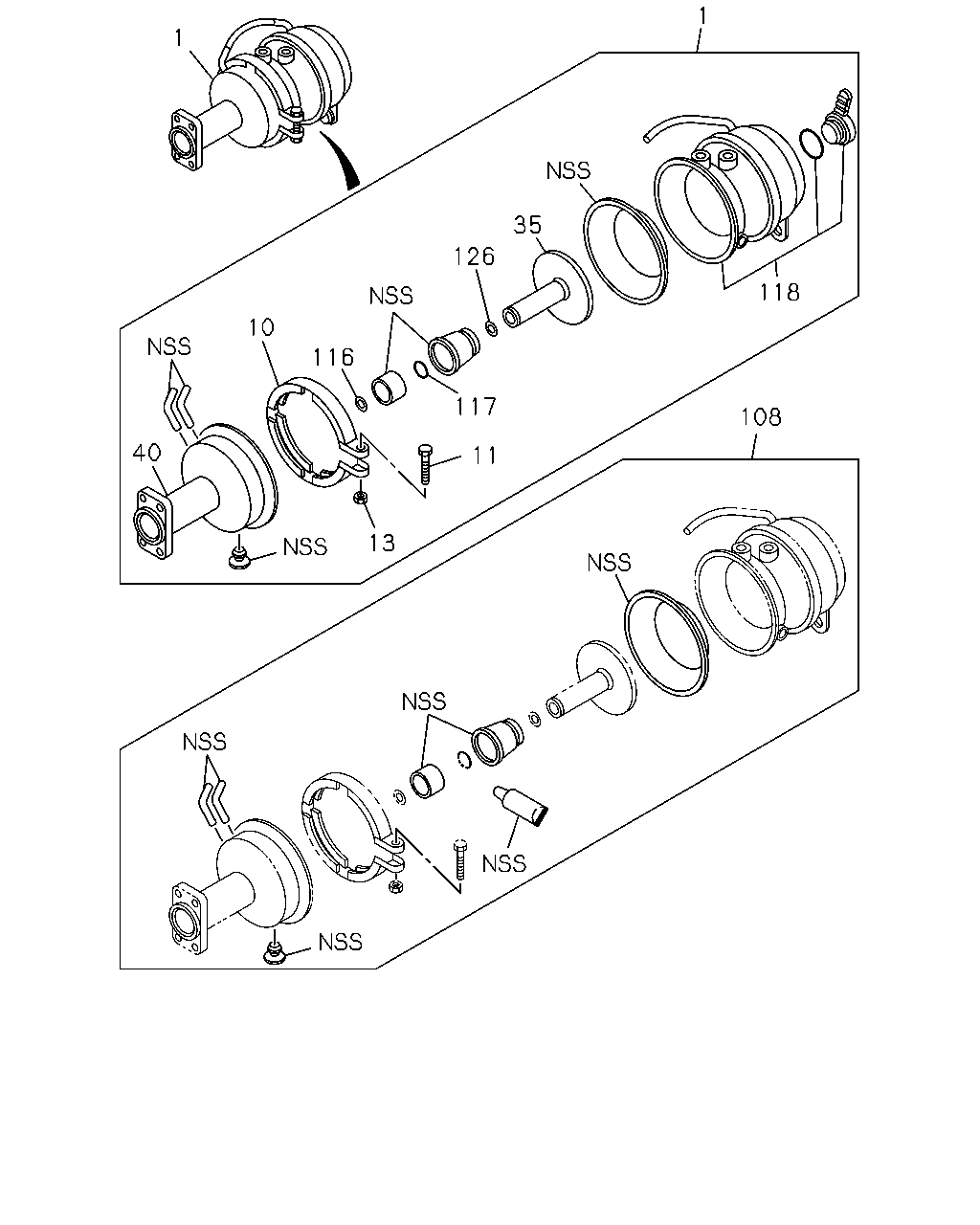

1
1
35
126
118
10
116
117
108
40
11
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
8-98145-698-0
01
1
1004-1005
●
●
1
CHAMBER ASM; SPRING
1-87412-097-0
01
1
1006-
●
●
1
CHAMBER ASM; SPRING
8-98145-699-0
01
1
1004-1005
●
●
1
CHAMBER ASM; SPRING
1-87412-098-0
01
1
1006-
●
●
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1004-
●
●
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1004-
●
●
13
NUT; CLAMP RING
1-48269-147-0
02
1
1004-
●
●
35
PLATE; ROD END,SPR CHAMBER
8-98146-974-0
02
1
1004-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-140-1
01
1
1004-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48251-141-1
01
1
1004-
●
●
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
02
1
1004-
●
●
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1004-
●
●
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1004-
●
●
118
CHAMBER; PIGGY BACK
1-87412-113-0
01
1
1006-
●
●
118
CHAMBER; PIGGY BACK
1-87412-114-0
01
1
1006-
●
●
126
SHIM
8-98146-965-0
AR
1
1004-
●
●
