◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#19214) — 66 parça

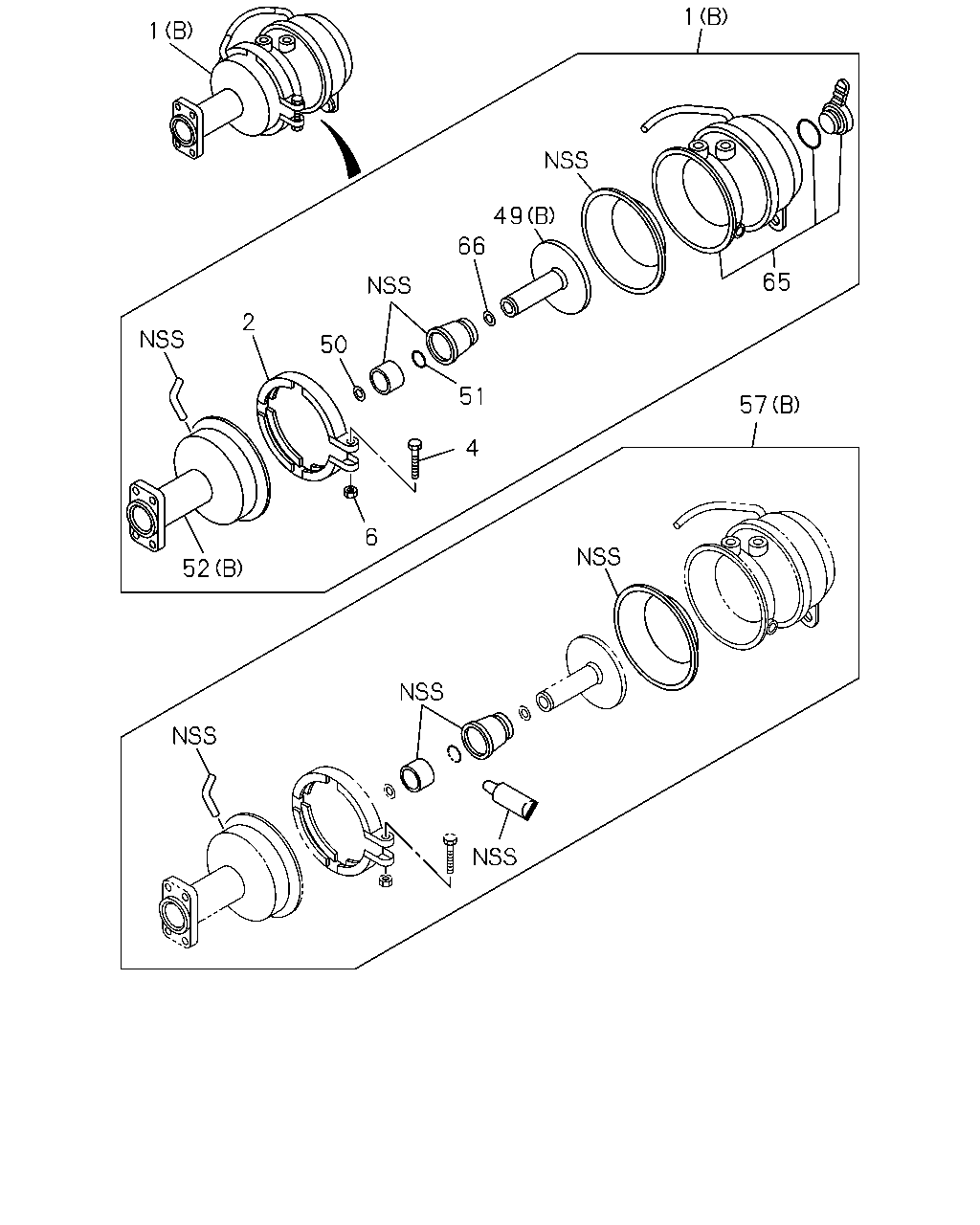

çizim 128968
1 1 49 66 65 2 50 51 57 4 6 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		8-98145-680-1 02 1 1004- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-684-0 01 1 1004-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-685-0 01 1 1004-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-87412-088-0 01 1 1006- ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1004- ● ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1004- ● ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 1004- ● ●
49 ROD; PUSH,SPR CHAMBER
(A) 		8-98146-969-1 02 1 1004- ●
49 ROD; PUSH,SPR CHAMBER
(B) 		8-98146-972-0 02 1 1004- ●
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1004- ● ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1004- ● ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-195-1 02 1 1004-1403 ●
52 HOUSING; SPR CHAMBER
(A) 		8-98248-793-0 02 1 1404- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 1004- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 1004- ●
57 REPAIR KIT; SPR CHAMBER
(A) 		8-98146-978-0 02 1 1004- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		8-98146-980-0 02 1 1004- ●
65 CHAMBER; PIGGY BACK 1-48251-183-1 01 1 1004-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-111-0 01 1 1006- ●
65 CHAMBER; PIGGY BACK 1-48251-184-1 01 1 1004-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-112-0 01 1 1006- ●
66 SHIM 8-98146-965-0 AR 1 1004- ● ●

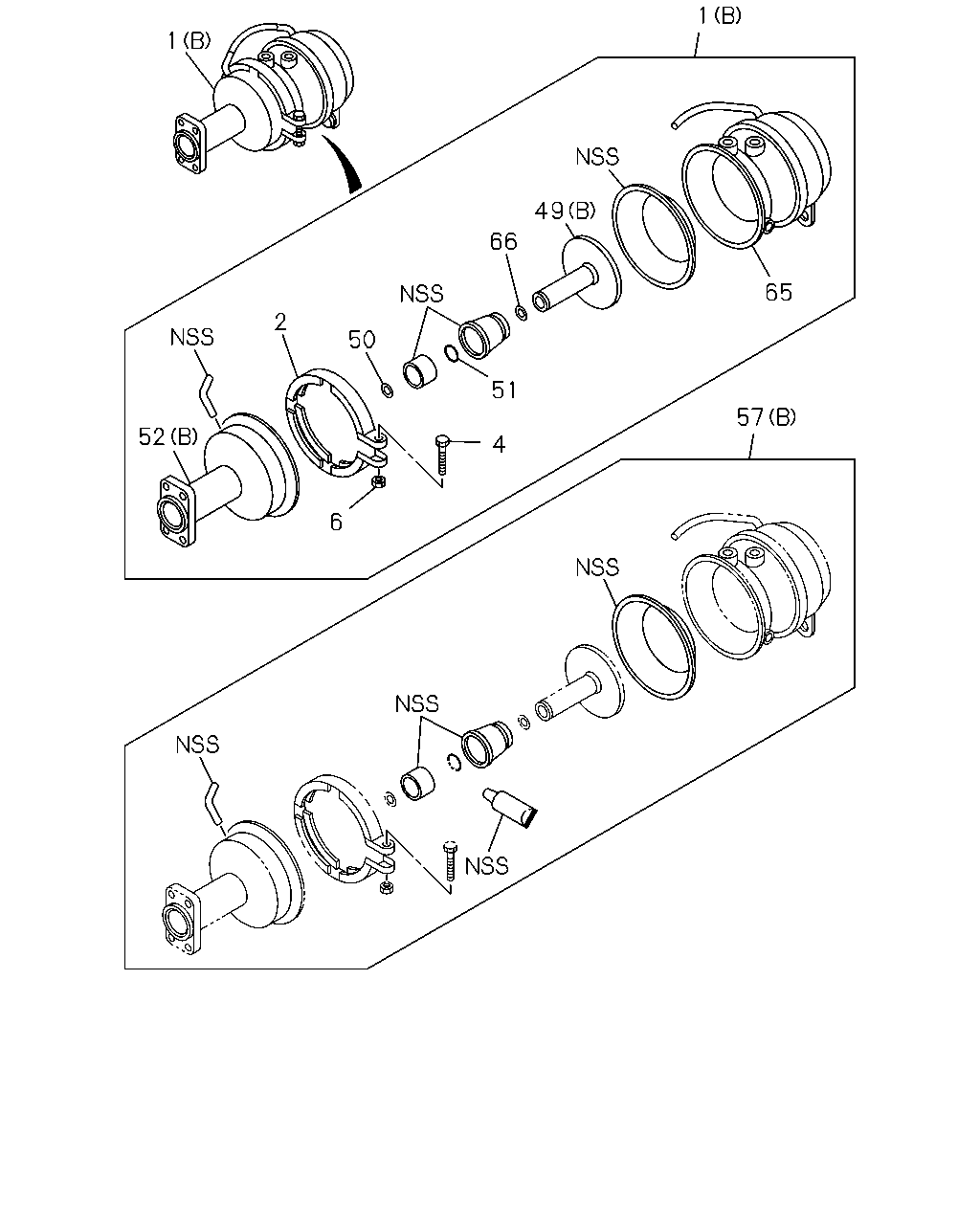

çizim 129139
1 1 49 66 65 2 50 51 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		8-98145-680-1 02 1 1004- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-684-0 01 1 1004-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-685-0 01 1 1004-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-87412-088-0 01 1 1006- ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1004- ● ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1004- ● ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 1004- ● ●
49 ROD; PUSH,SPR CHAMBER
(A) 		8-98146-969-1 02 1 1004- ●
49 ROD; PUSH,SPR CHAMBER
(B) 		8-98146-972-0 02 1 1004- ●
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1004- ● ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1004- ● ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-195-1 02 1 1004-1403 ●
52 HOUSING; SPR CHAMBER
(A) 		8-98248-793-0 02 1 1404- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 1004- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 1004- ●
57 REPAIR KIT; SPR CHAMBER
(A) 		8-98146-978-0 02 1 1004- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		8-98146-980-0 02 1 1004- ●
65 CHAMBER; PIGGY BACK 1-48251-183-1 01 1 1004-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-111-0 01 1 1006- ●
65 CHAMBER; PIGGY BACK 1-48251-184-1 01 1 1004-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-112-0 01 1 1006- ●
66 SHIM 8-98146-965-0 AR 1 1004- ● ●

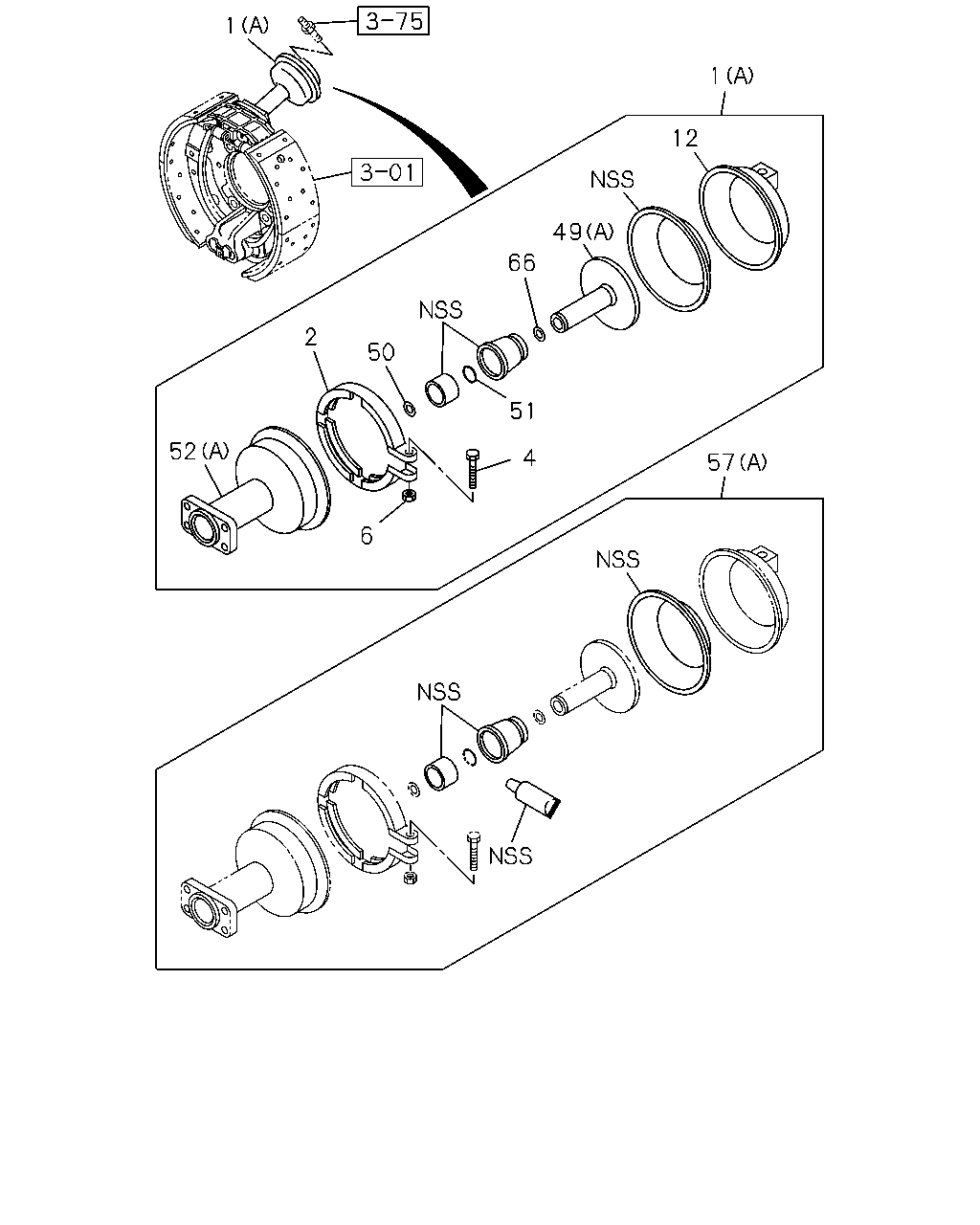

çizim 129142
1 1 12 49 66 2 50 51 52 4 57 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
(A) 		8-98145-680-1 02 1 1004- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-684-0 01 1 1004-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		8-98145-685-0 01 1 1004-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-87412-088-0 01 1 1006- ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1004- ● ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1004- ● ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 1004- ● ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 1004- ●
49 ROD; PUSH,SPR CHAMBER
(A) 		8-98146-969-1 02 1 1004- ●
49 ROD; PUSH,SPR CHAMBER
(B) 		8-98146-972-0 02 1 1004- ●
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1004- ● ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1004- ● ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-195-1 02 1 1004-1403 ●
52 HOUSING; SPR CHAMBER
(A) 		8-98248-793-0 02 1 1404- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 1004- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 1004- ●
57 REPAIR KIT; SPR CHAMBER
(A) 		8-98146-978-0 02 1 1004- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		8-98146-980-0 02 1 1004- ●
66 SHIM 8-98146-965-0 AR 1 1004- ● ●
