3-22 — AIR CONTROL PARTS (#19211) — 170 parça

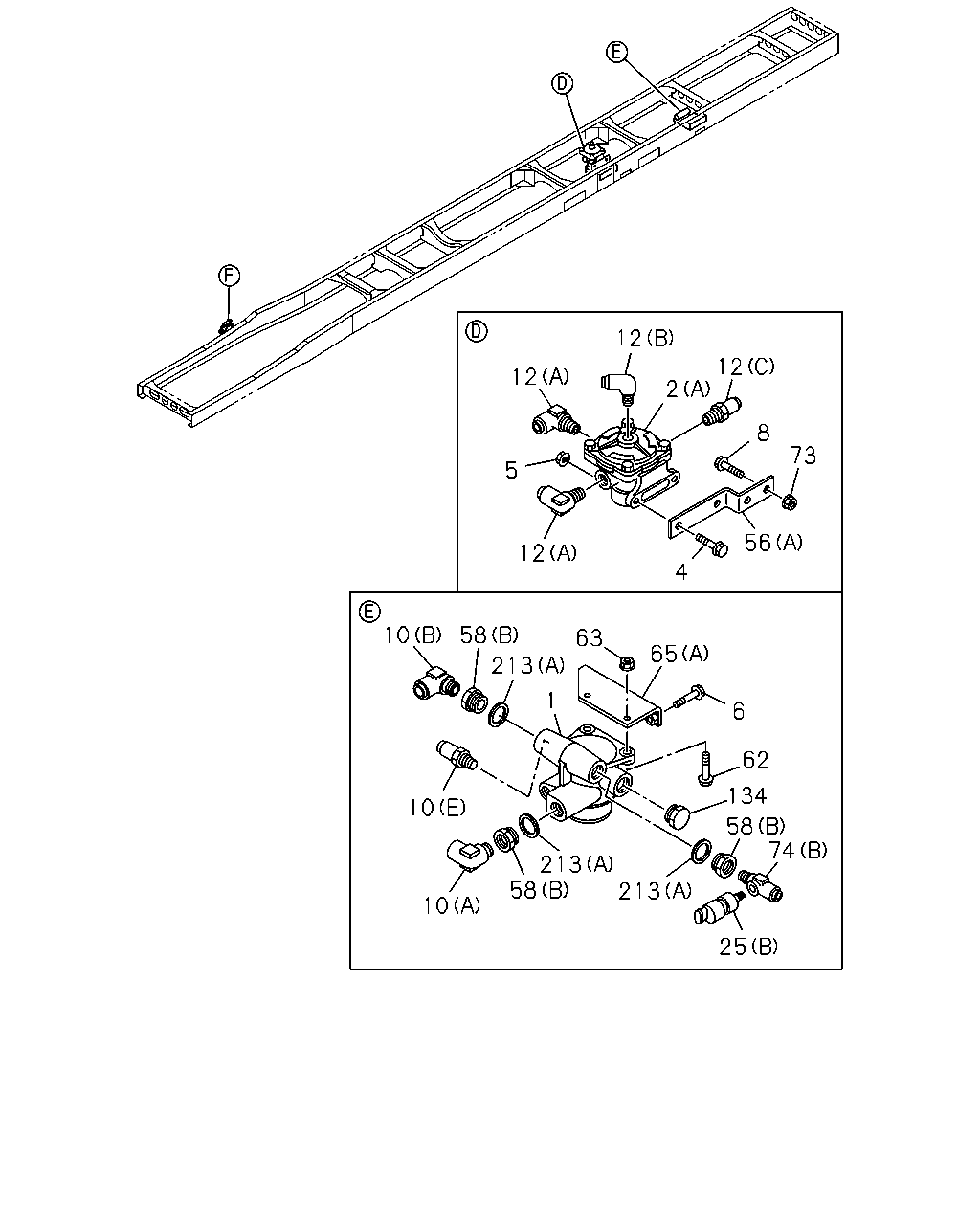

12 12 12 2 8 73 5 56 12 4 10 58 63 65 213 1 6 62 134 10 58 74 213 58 213 10 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1004-	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-875-0	01	1	1004-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-153-0	01	1	1004-		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE SOU	0-28651-030-0	02	1	1004-	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE SOU	0-91180-210-0	02	1	1004-	●
6	BOLT; VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE SOU	0-28651-035-0	02	1	1004-	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X35 FLANGE SOU	0-28650-835-0	02	1	1004-		●
10	CONNECTOR (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1004-	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1004-	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT SOU	1-09661-050-0	01	1	1004-	●	●
10	CONNECTOR (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1004-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1004-		●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1004-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1004-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1004-	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1004-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5 SOU	8-97609-249-0	01	1	1004-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1004-	●	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98031-257-0	01	1	1004-	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98114-681-0	01	1	1004-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	03	1	1004-	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1004-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1004-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M16 & PT3/8 STRAIGHT SOU	1-09661-044-0	01	1	1004-		●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
63	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	02	1	1004-	●	●
65	BRACKET; RELAY VLV RR (A)	1-47471-032-0	01	1	1004-	●
65	BRACKET; RELAY VLV RR (B)	8-98114-386-0	01	1	1004-		●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE SOU	0-91180-210-0	02	1	1004-	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1004-	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1004-	●	●
74	CONNECTOR; 3WAY (C) PT3/8 3WAY SOU	1-09661-300-0	01	1	1004-		●
74	CONNECTOR; 3WAY (D) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1004-		●
134	PLUG; RELAY VALVE M22 SOU	1-09661-502-0	01	1	1004-	●
213	GASKET (A) ID=22.5 SOU	9-09571-422-0	03	1	1004-	●	●
213	GASKET (A) ID=22.5 SOU	9-09571-422-0	04	1	1004-		●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) (B) ID=16.2 OD=24	9-09571-416-0	01	1	1004-		●

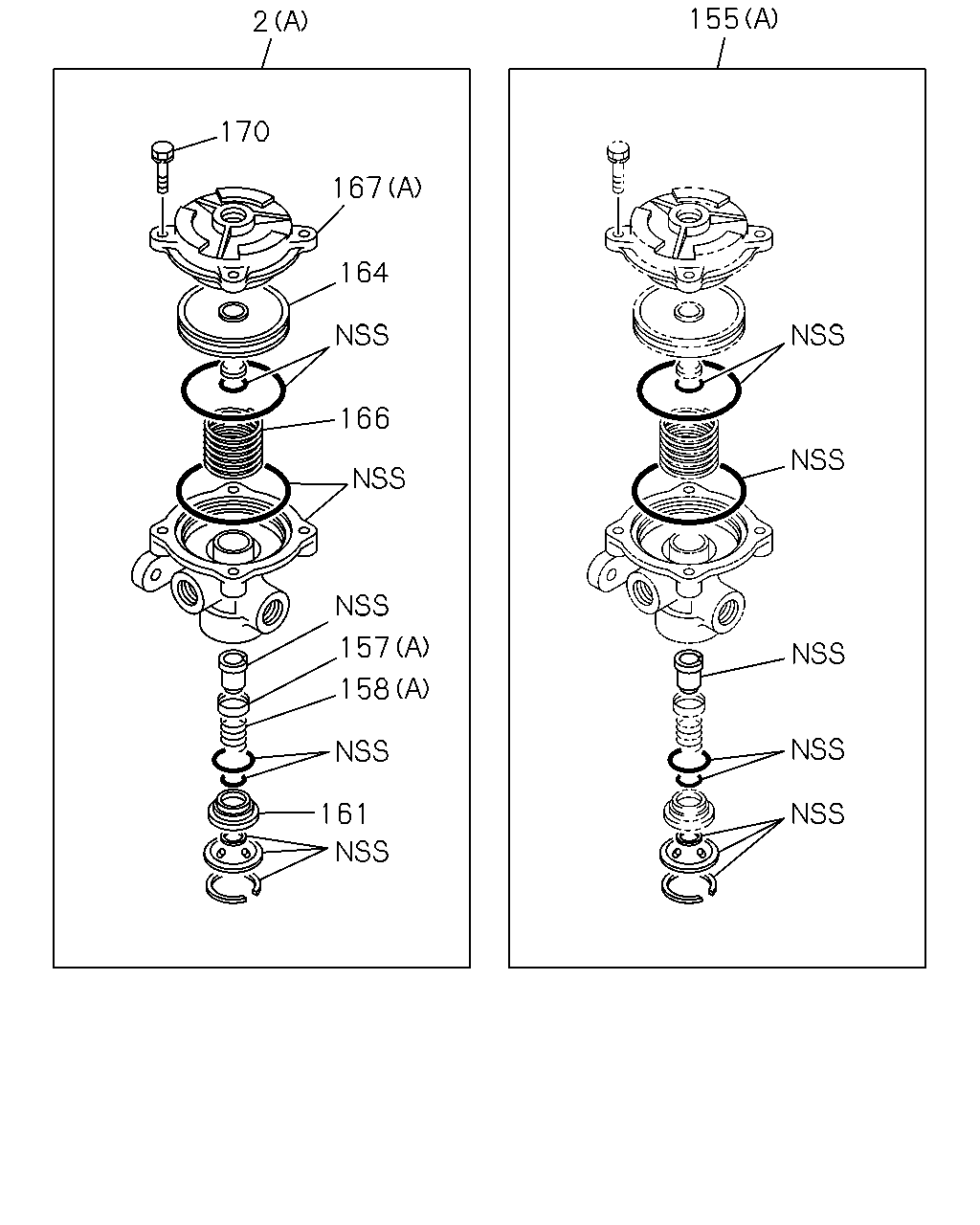

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-875-0	01	1	1004-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-153-0	01	1	1004-		●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-033-0	01	1	1004-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1004-	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-393-0	01	1	1004-		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1004-	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1004-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1004-	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1004-	●	●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	1004-	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-071-0	01	1	1004-	●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	01	1	1004-	●
167	COVER; VALVE (C) SOU	1-48119-625-0	04	1	1004-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	1004-	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47729-001-0	01	1	1004-		●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA) SOU	1-48219-039-0	04	1	1004-	●

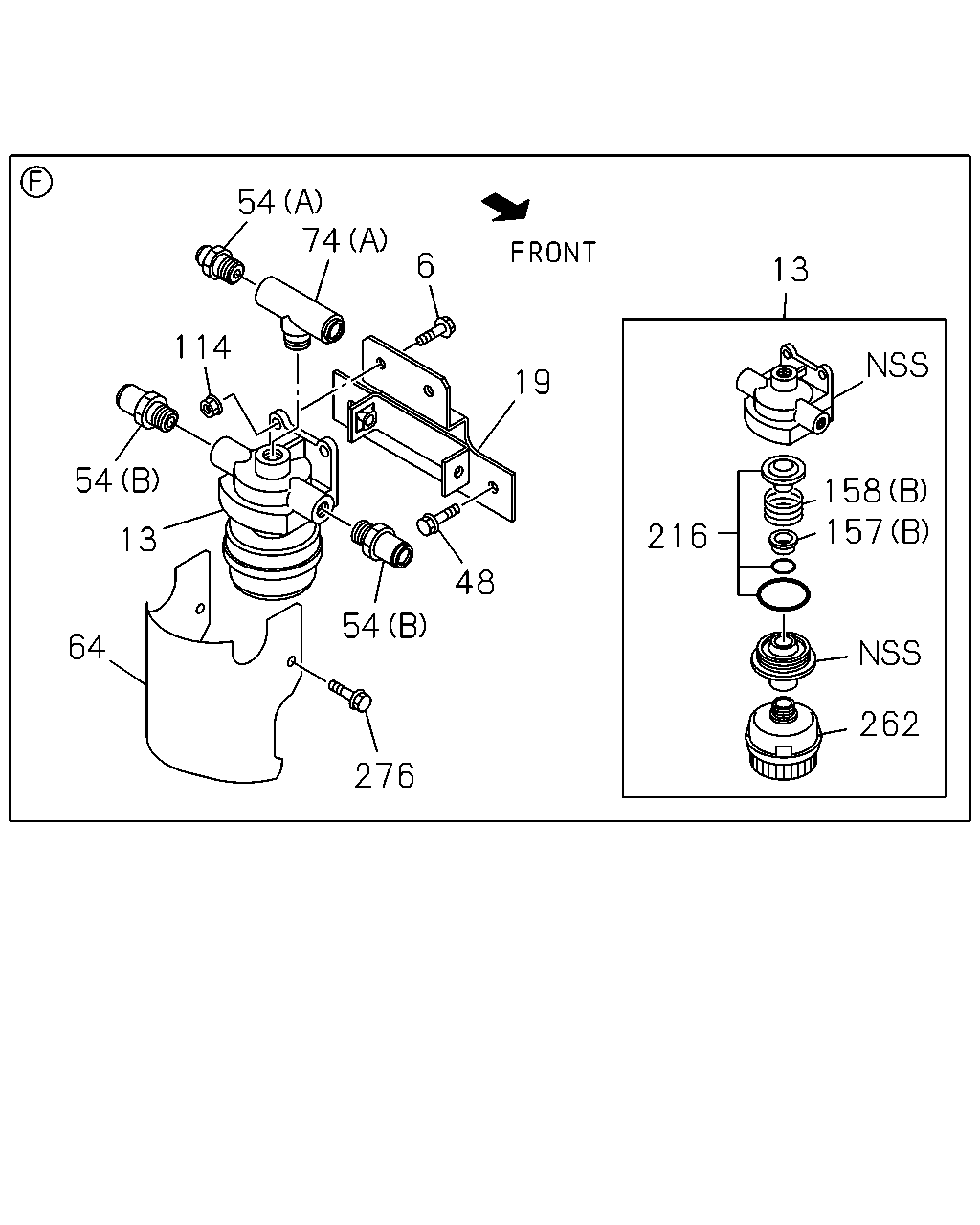

54 74 6 13 114 19 54 158 157 216 13 48 54 64 262 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1004-	●	●
19	BRACKET; QUICK RELEASE VLV	1-47471-014-0	01	1	1004-	●	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	01	1	1004-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1004-	●	●
64	PROTECTOR; QUICK RELEASE VALVE SOU	8-98043-421-0	01	1	1004-	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1004-	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1004-	●	●
74	CONNECTOR; 3WAY (C) PT3/8 3WAY SOU	1-09661-300-0	01	1	1004-		●
74	CONNECTOR; 3WAY (D) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1004-		●
114	NUT; VLV M8 FLANGE SOU	0-91180-108-0	02	1	1004-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1004-	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1004-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1004-	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1004-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1004-1109	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1004-	●	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●

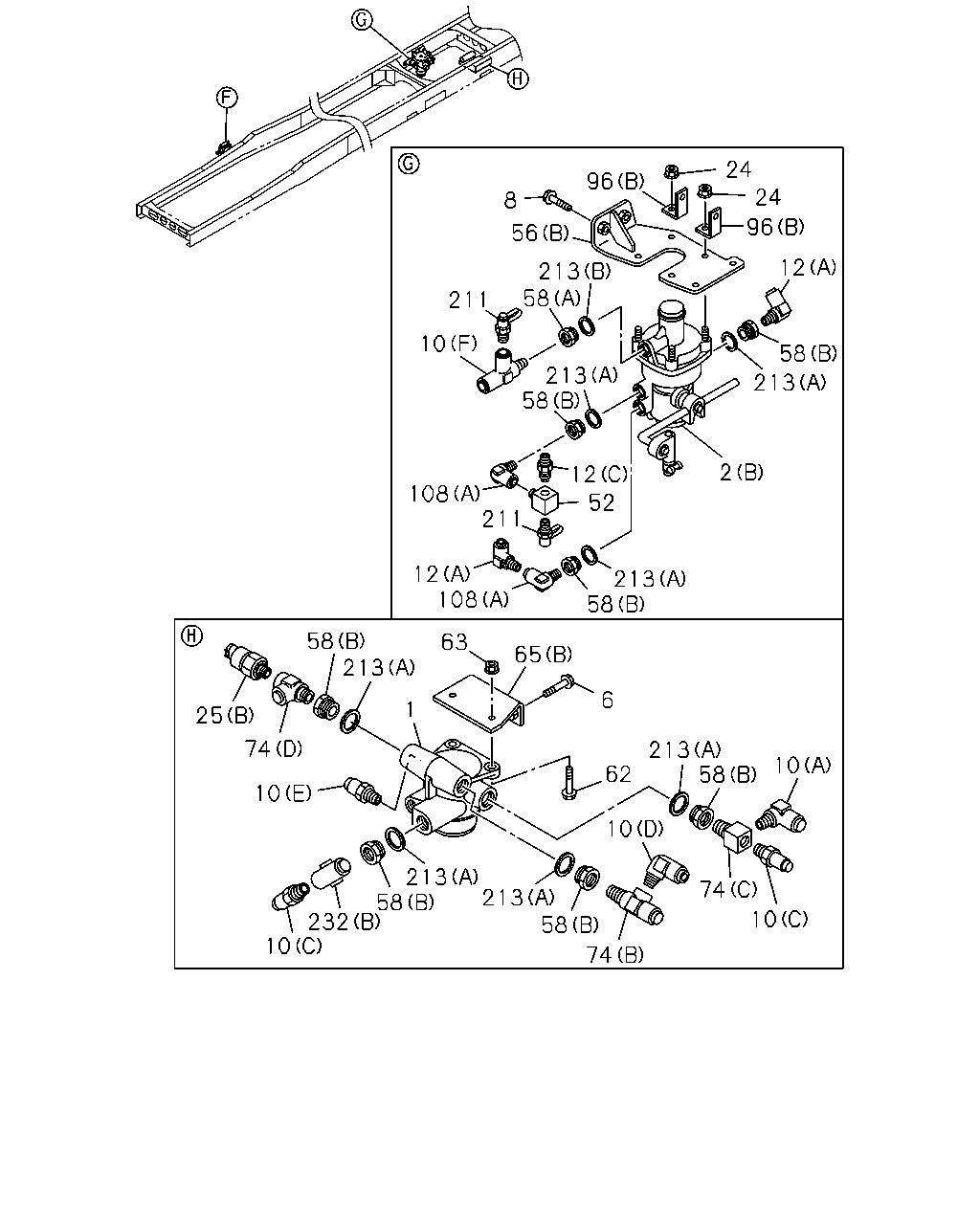

24 24 96 8 96 56 12 213 58 211 10 58 213 58 213 2 12 52 108 211 12 108 213 58 58 213 63 65 6 1 25 74 213 58 10 62 10 10 213 58 232 10 213 58 74 10 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1004-	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-875-0	01	1	1004-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-153-0	01	1	1004-		●
6	BOLT; VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE SOU	0-28651-035-0	02	1	1004-	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X35 FLANGE SOU	0-28650-835-0	02	1	1004-		●
10	CONNECTOR (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1004-	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1004-	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT SOU	1-09661-050-0	01	1	1004-	●	●
10	CONNECTOR (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1004-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1004-		●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1004-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1004-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1004-	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1004-	●	●
24	NUT M8 FLANGE SOU	0-91180-108-0	06	1	1004-	●	●
24	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU	0-91180-108-0	04	1	1004-		●
25	SWITCH; PRESSURE (A) STAMP 5.5 SOU	8-97609-249-0	01	1	1004-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1004-	●	●
52	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1004-		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98031-257-0	01	1	1004-	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98114-681-0	01	1	1004-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	03	1	1004-	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1004-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1004-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M16 & PT3/8 STRAIGHT SOU	1-09661-044-0	01	1	1004-		●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
63	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	02	1	1004-	●	●
65	BRACKET; RELAY VLV RR (A)	1-47471-032-0	01	1	1004-	●
65	BRACKET; RELAY VLV RR (B)	8-98114-386-0	01	1	1004-		●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1004-	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1004-	●	●
74	CONNECTOR; 3WAY (C) PT3/8 3WAY SOU	1-09661-300-0	01	1	1004-		●
74	CONNECTOR; 3WAY (D) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1004-		●
96	BRACKET (A)	8-98093-436-0	01	1	1004-	●	●
96	BRACKET ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47477-694-0	02	1	1004-		●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1004-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1004-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1004-	●	●
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU	1-09660-696-0	02	1	1004-		●
211	CONNECTOR; TEST ANTILOCK BRAKE SYSTEM(BFA) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1004-		●
213	GASKET (A) ID=22.5 SOU	9-09571-422-0	03	1	1004-	●	●
213	GASKET (A) ID=22.5 SOU	9-09571-422-0	04	1	1004-		●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) (B) ID=16.2 OD=24	9-09571-416-0	01	1	1004-		●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1004-	●	●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1004-		●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1004-	●	●

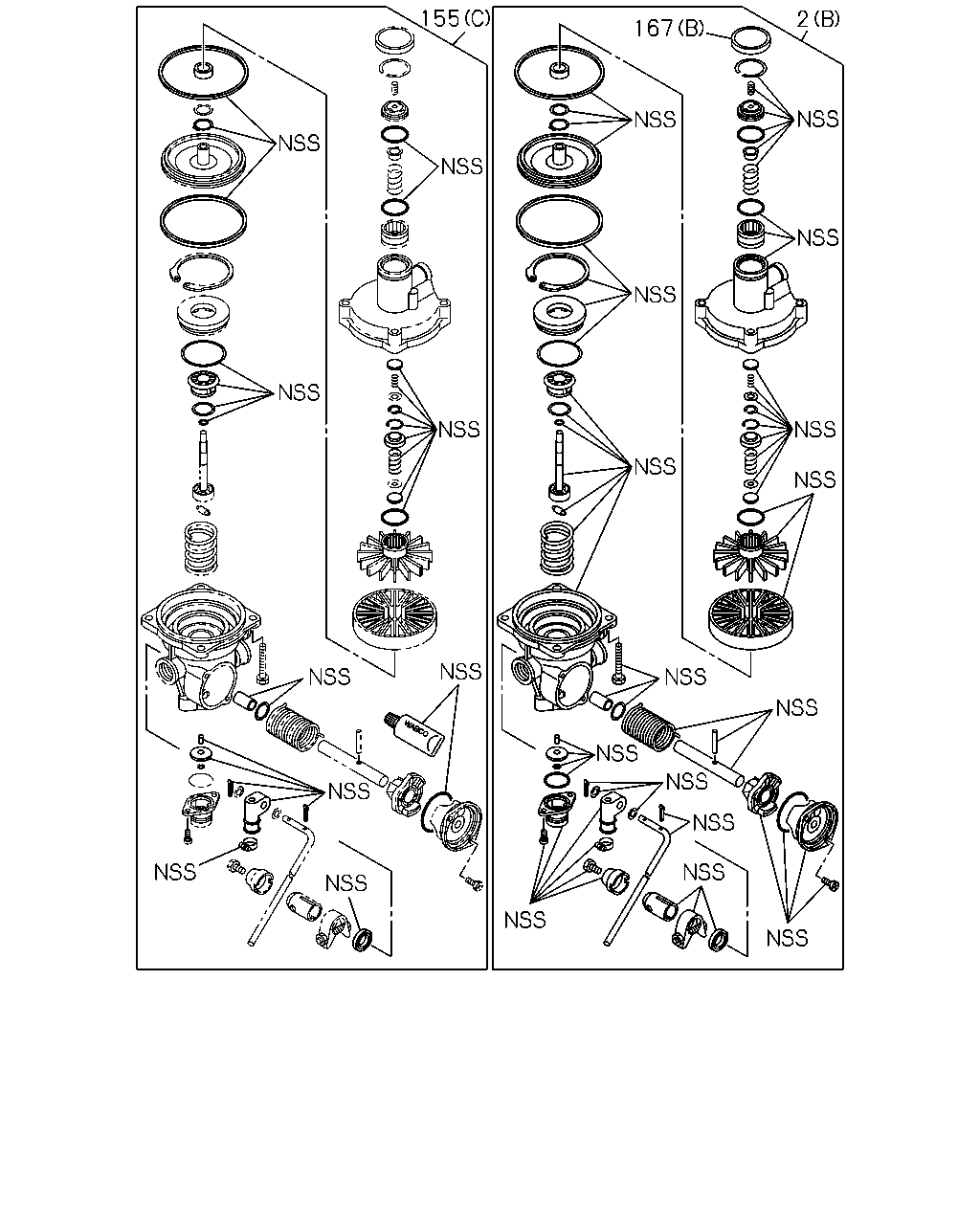

155 2 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-875-0	01	1	1004-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-153-0	01	1	1004-		●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-033-0	01	1	1004-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1004-	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-393-0	01	1	1004-		●
167	COVER; VALVE (C) SOU	1-48119-625-0	04	1	1004-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	1004-	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47729-001-0	01	1	1004-		●

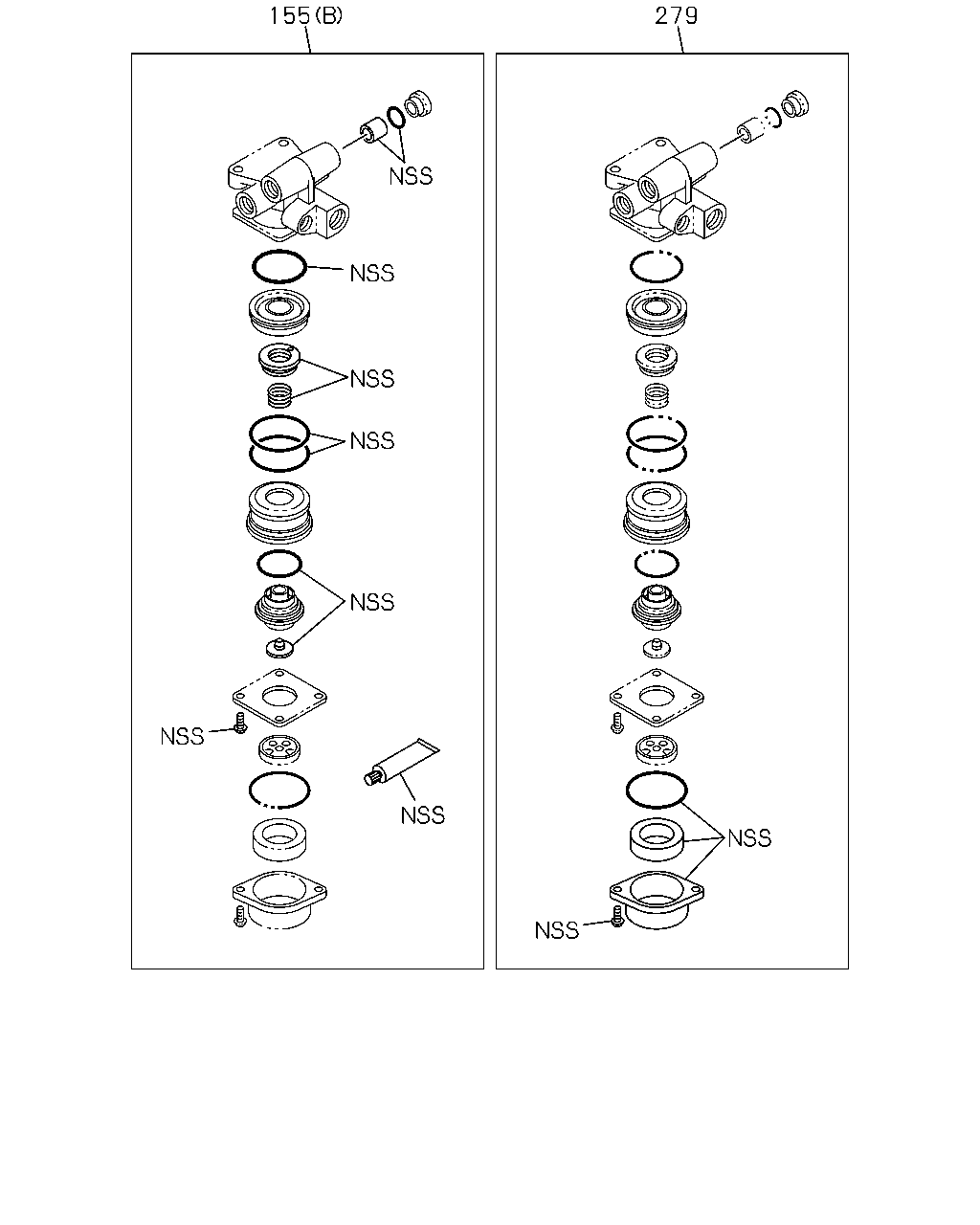

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-033-0	01	1	1004-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1004-	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-393-0	01	1	1004-		●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1004-	●	●

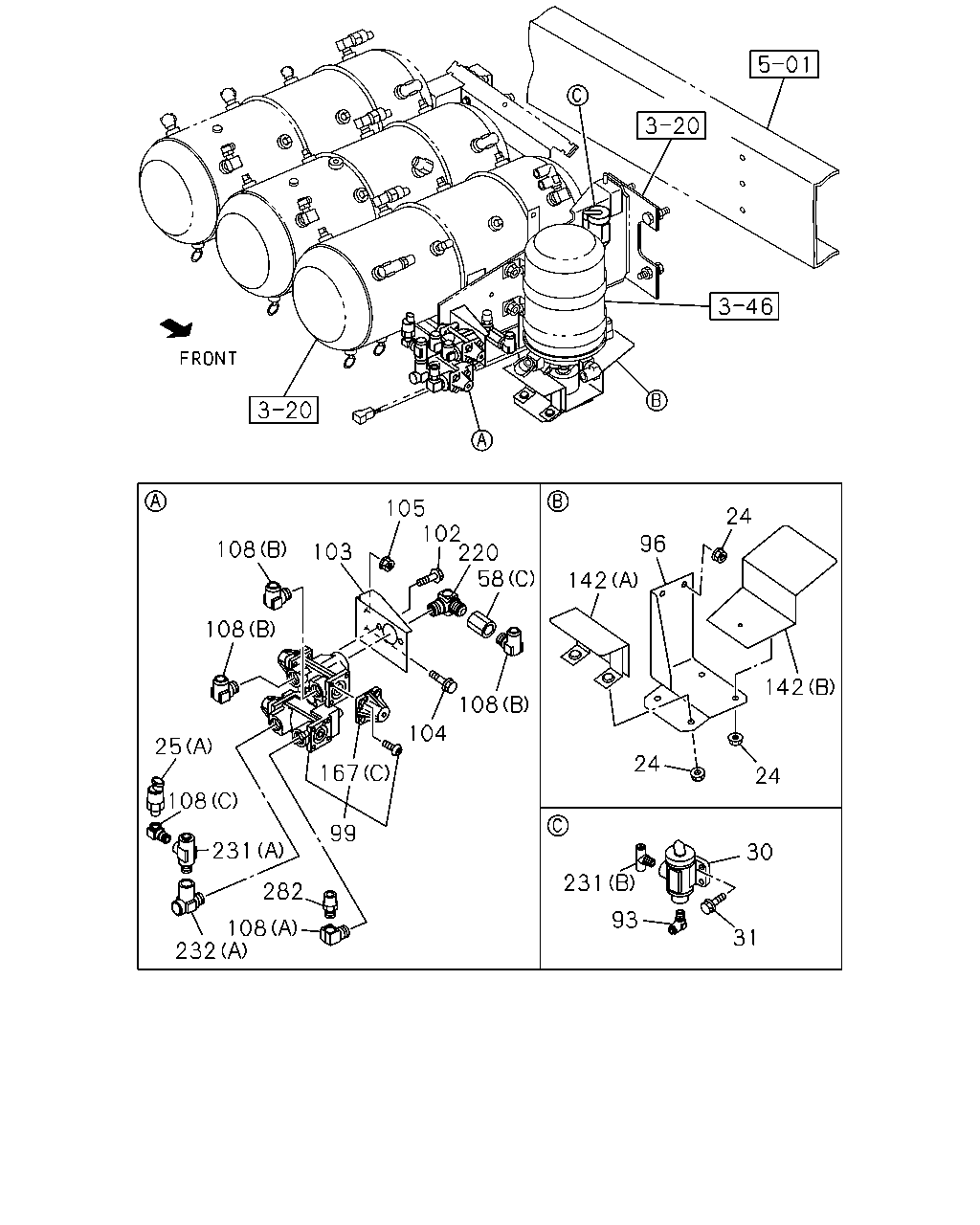

103 167 108 104 99 58 220 102 105 108 108 25 108 231 282 108 232 231 93 31 30 24 24 142 24 96 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT M8 FLANGE SOU	0-91180-108-0	06	1	1004-	●	●
24	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU	0-91180-108-0	04	1	1004-		●
25	SWITCH; PRESSURE (A) STAMP 5.5 SOU	8-97609-249-0	01	1	1004-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1004-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1004-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	03	1	1004-	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1004-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1004-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) M16 & PT3/8 STRAIGHT SOU	1-09661-044-0	01	1	1004-		●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1004-	●	●
96	BRACKET (A)	8-98093-436-0	01	1	1004-	●	●
96	BRACKET ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47477-694-0	02	1	1004-		●
99	VALVE; PROTECTION SOU	1-48110-290-3	01	1	1004-	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-	●	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1004-	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1004-	●	●
105	NUT; BRKT,VALVE M10 FLANGE SOU	0-91180-210-0	01	1	1004-	●	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1004-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1004-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1004-	●	●
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU	1-09660-696-0	02	1	1004-		●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1004-	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1004-	●	●
167	COVER; VALVE (C) SOU	1-48119-625-0	04	1	1004-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	1004-	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47729-001-0	01	1	1004-		●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1004-	●	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1004-	●	●
231	CONNECTOR; NYLON TUBE (B) SOU	1-09661-073-0	01	1	1004-	●	●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1004-	●	●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1004-		●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1004-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	REPAIR KIT; PROTECTION VALVE SOU	1-85576-451-2	01	1	1004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
