◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#19210) — 370 parça

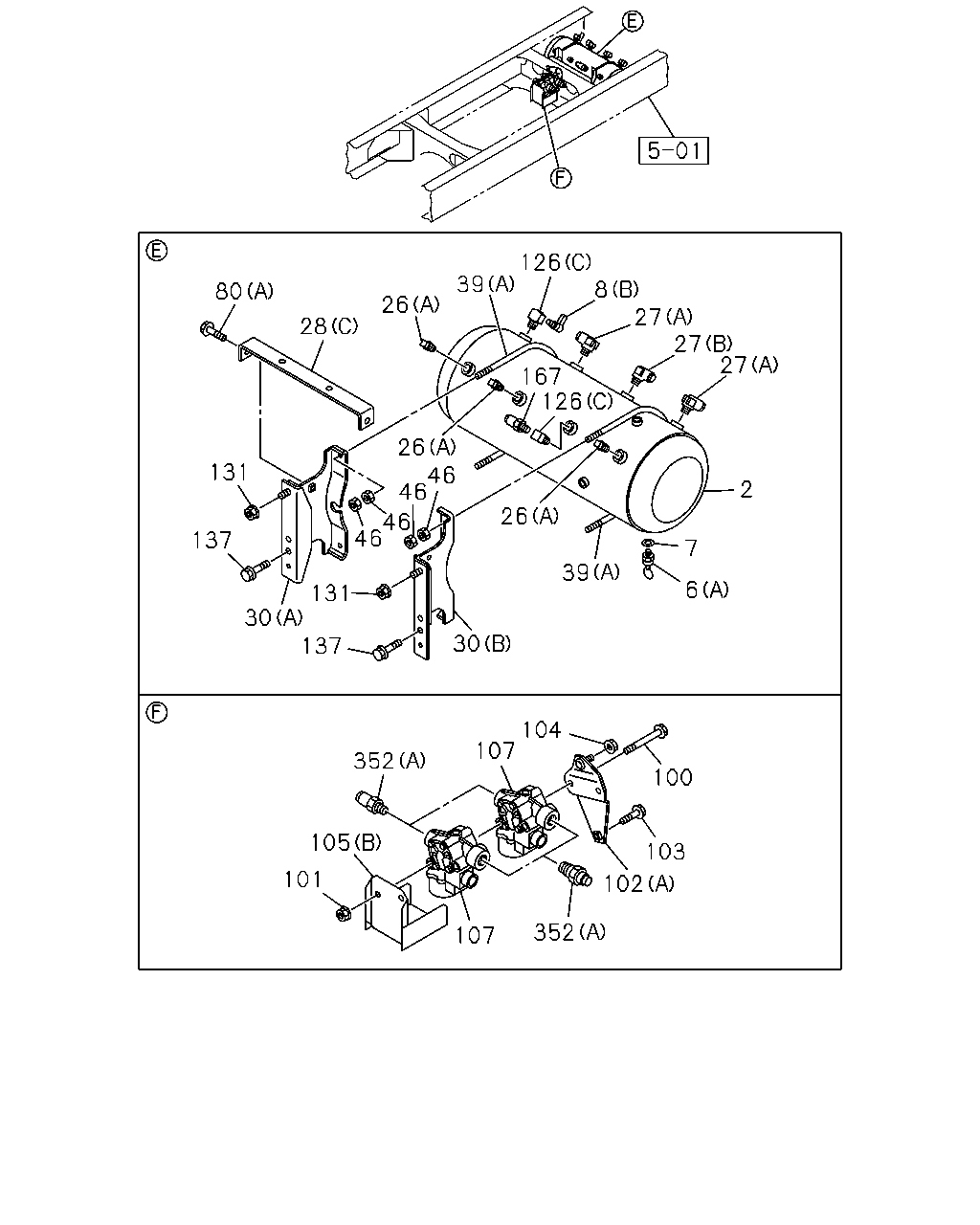

çizim 129119
126 8 27 27 27 39 80 26 28 167 126 26 46 46 131 2 26 46 46 137 7 39 6 131 30 137 30 104 107 352 100 105 103 101 102 352 107
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR 8-97617-855-1 01 1 1004-1106 ● ●
2 TANK; AIR 8-98187-713-0 01 1 1107- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1004- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ●
8 CONNECTOR; AIR TANK
(C) PT3/8 3WAY SOU 		1-09661-300-0 01 1 1004- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1004- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004- ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004- ●
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1004- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004- ● ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 1004- ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 1004- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1004- ● ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 1004- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1004- ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1004- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004- ● ●
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004- ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ● ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 SOU 		1-09044-074-0 04 1 1505- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 1004- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1504 ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1504 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1505- ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 04 1 1004- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98059-827-0 01 1 1004-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98300-524-0 01 1 1505- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47478-304-0 02 1 1004-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-209-0 02 1 1505- ●
103 BOLT; BRKT
M10X30 FLANGE SOU 		0-28651-030-0 01 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ●
103 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1004- ● ●
103 BOLT; BRKT
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1004- ●
104 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ●
104 NUT; BRKT
M10 SOU 		0-91110-510-0 04 1 1004- ● ●
104 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
104 NUT; BRKT
M12 FLANGE SOU 		0-91180-212-0 04 1 1004- ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 04 1 1004- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47479-792-0 01 1 1004-1504 ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98272-749-0 01 1 1505- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 1004-1504 ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-152-0 01 1 1505- ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 1004-1504 ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98300-153-0 01 1 1505- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1004-1504 ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004- ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 02 1 1004- ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 03 1 1004- ●
137 BOLT; BRKT
M12X30 FLANGE SOU 		0-28651-230-0 02 1 1004- ●
137 BOLT; BRKT
M12X30 FLANGE SOU 		0-28651-230-0 04 1 1004- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004- ● ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 04 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004- ●

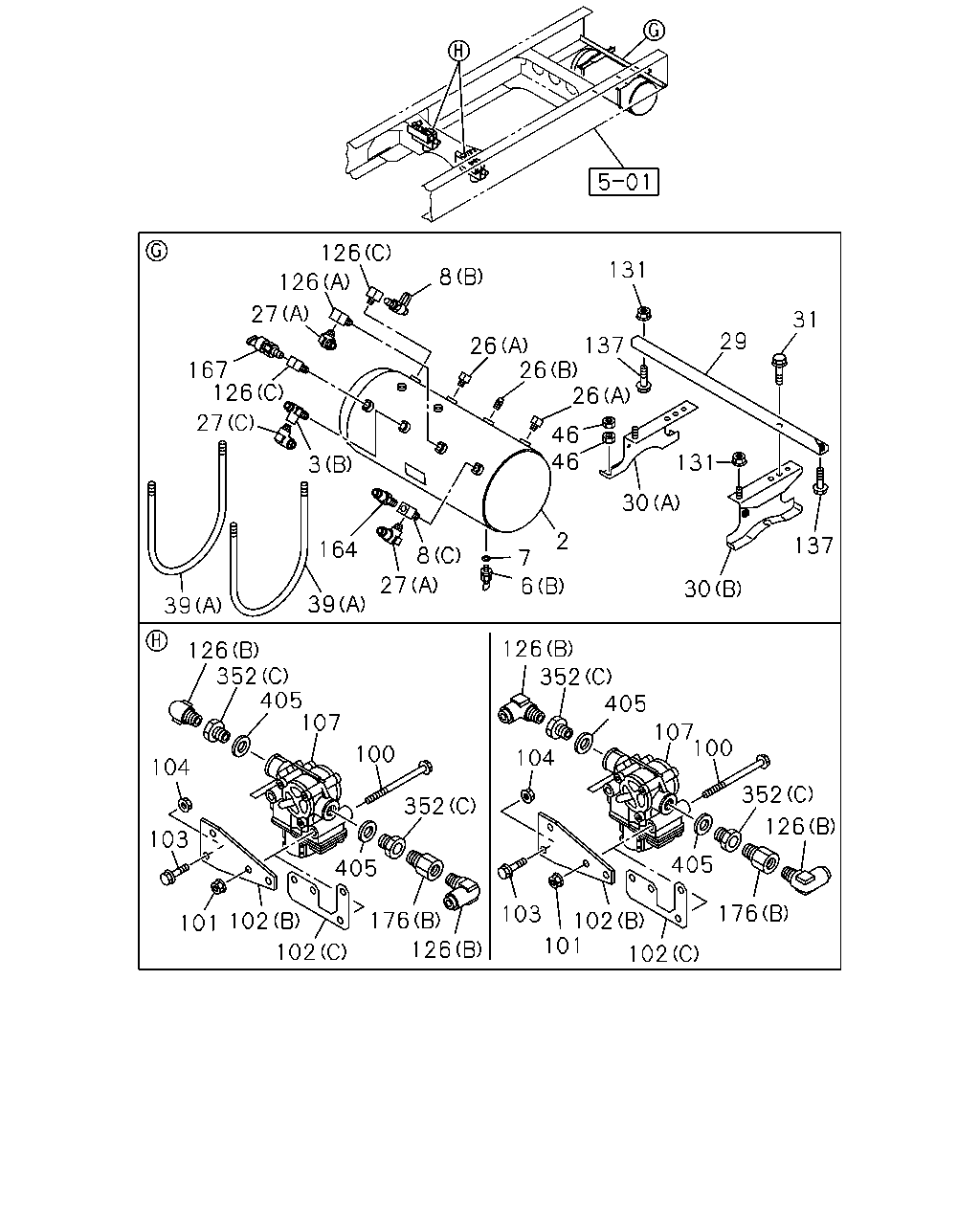

çizim 129120
126 126 27 167 27 126 3 164 39 39 27 8 7 6 126 2 46 46 26 26 26 8 131 137 30 30 131 29 31 137 352 405 107 100 352 126 176 405 102 102 101 103 126 176 405 352 100 107 405 352 126 104 103 101 102 102 104
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR 8-97617-855-1 01 1 1004-1106 ● ●
2 TANK; AIR 8-98187-713-0 01 1 1107- ● ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1004- ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY SOU 		8-98032-527-0 01 1 1004- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1004- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ●
8 CONNECTOR; AIR TANK
(C) PT3/8 3WAY SOU 		1-09661-300-0 01 1 1004- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1004- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004- ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004- ●
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1004- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004- ● ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
29 BRACKET; AIR TANK 8-97620-998-0 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1004- ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1004- ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 SOU 		1-09044-074-0 04 1 1505- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 1004- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1504 ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1504 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1505- ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 04 1 1004- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98059-827-0 01 1 1004-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98300-524-0 01 1 1505- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47478-304-0 02 1 1004-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-209-0 02 1 1505- ●
103 BOLT; BRKT
M10X30 FLANGE SOU 		0-28651-030-0 01 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ●
103 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1004- ● ●
103 BOLT; BRKT
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1004- ●
104 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ●
104 NUT; BRKT
M10 SOU 		0-91110-510-0 04 1 1004- ● ●
104 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
104 NUT; BRKT
M12 FLANGE SOU 		0-91180-212-0 04 1 1004- ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 04 1 1004- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1004-1504 ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004- ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 02 1 1004- ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 03 1 1004- ●
137 BOLT; BRKT
M12X30 FLANGE SOU 		0-28651-230-0 02 1 1004- ●
137 BOLT; BRKT
M12X30 FLANGE SOU 		0-28651-230-0 04 1 1004- ●
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1004- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1004- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 04 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004- ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 04 1 1004- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 04 1 1004- ●

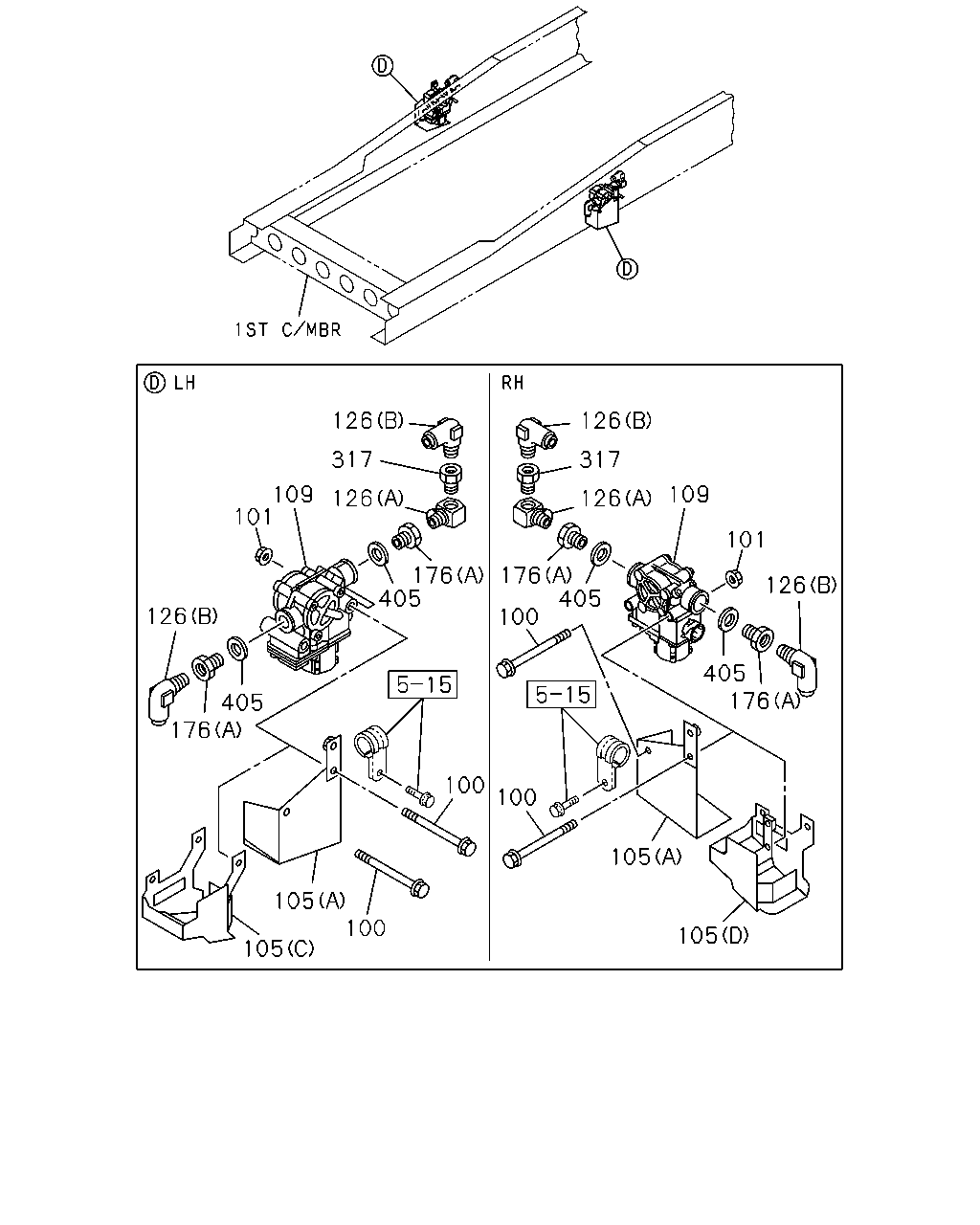

çizim 129121
126 109 101 126 317 176 405 126 405 176 105 100 105 100 100 105 105 100 176 405 126 317 126 109 101 126 405 176
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 SOU 		1-09044-074-0 04 1 1505- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 1004- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1504 ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1504 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1505- ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 04 1 1004- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47479-792-0 01 1 1004-1504 ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98272-749-0 01 1 1505- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 1004-1504 ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-152-0 01 1 1505- ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 1004-1504 ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98300-153-0 01 1 1505- ● ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1004-1504 ● ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) SOU 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 1004- ●
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 1004- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 04 1 1004- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 04 1 1004- ●

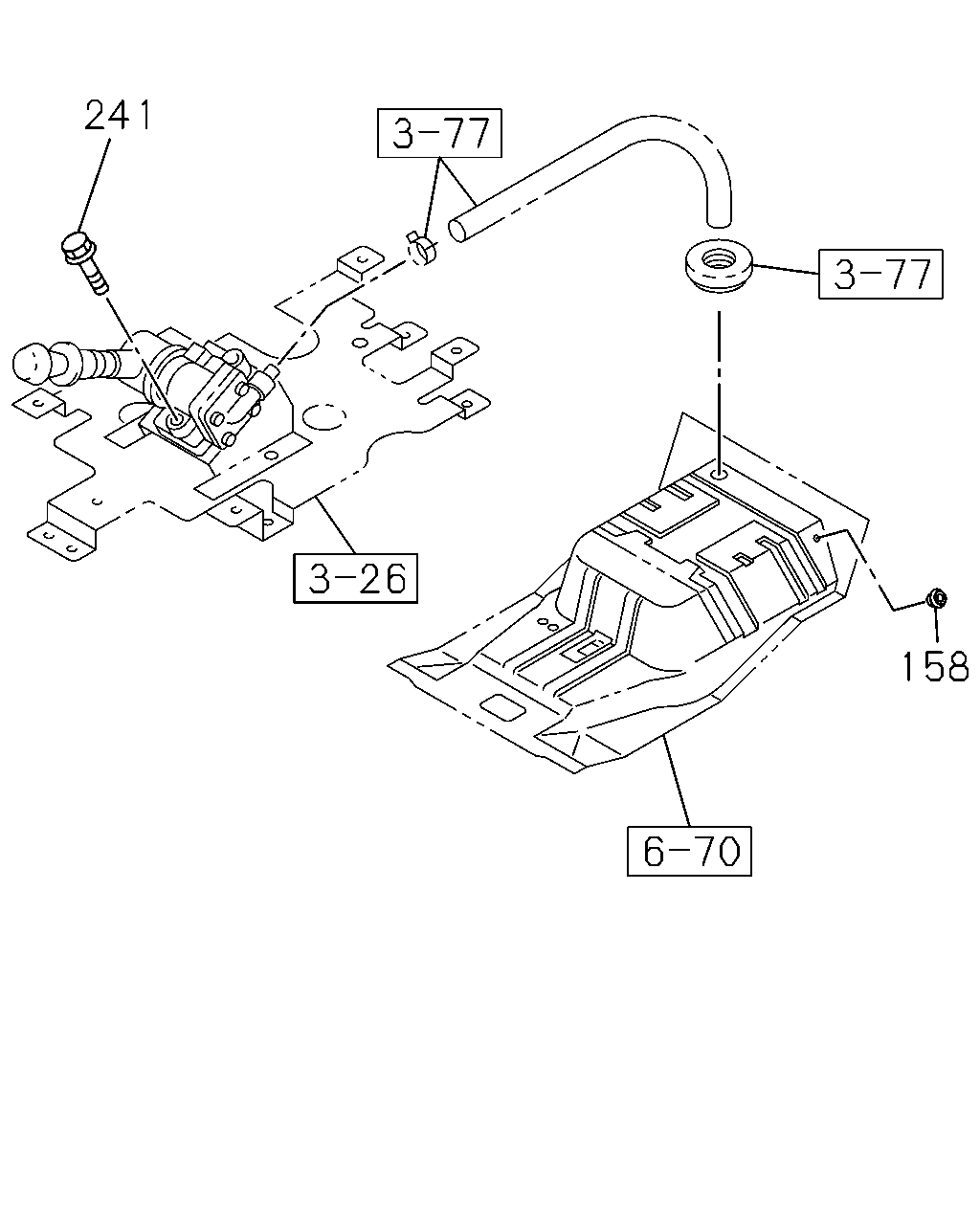

çizim 129122
241 158
BalonParca AdiParca NoAdetTipApplied Date A B
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1004- ● ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE SOU 		0-28050-870-0 02 1 1004- ●
241 BOLT; SET,CONT VLV
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 1004- ●

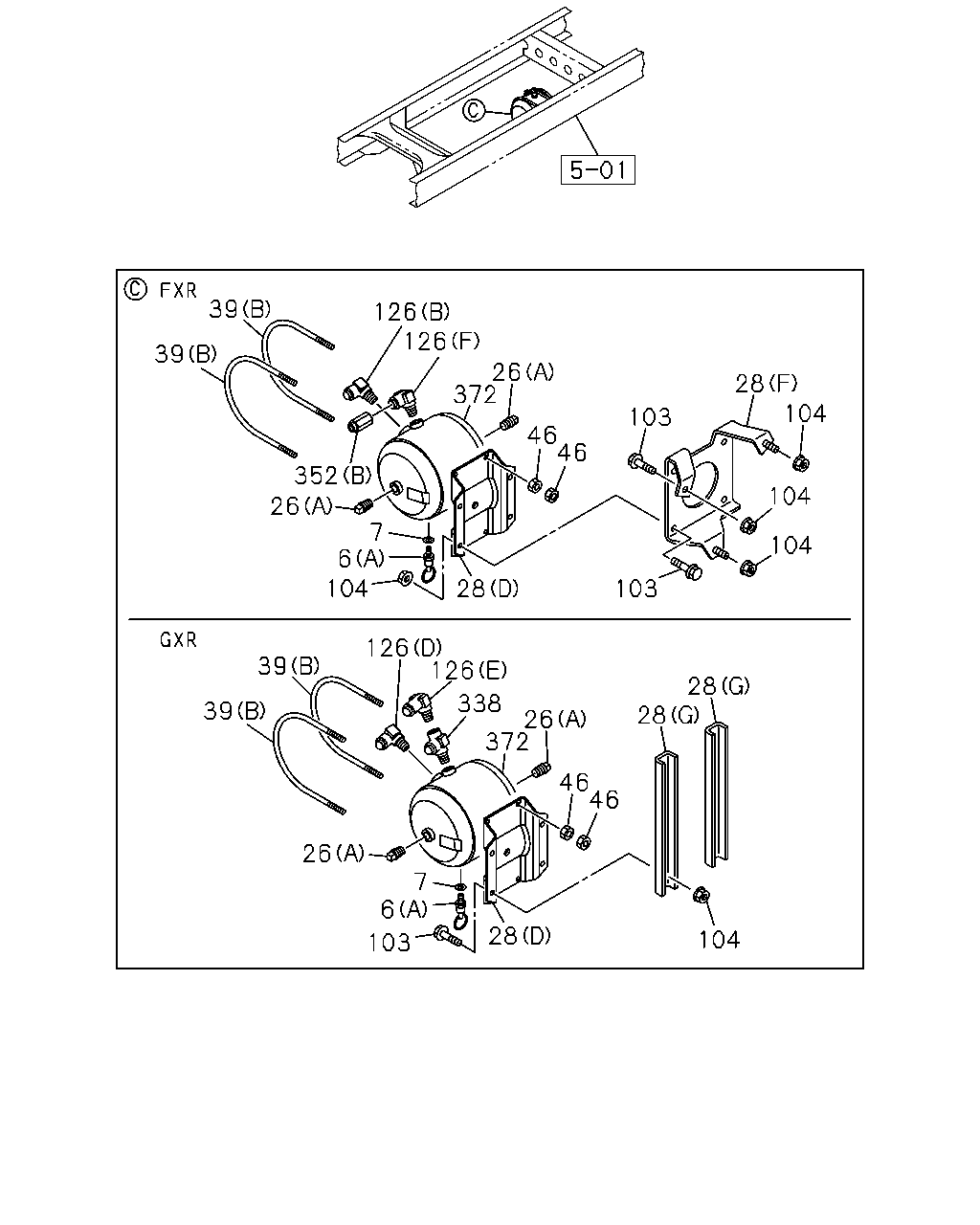

çizim 129126
39 126 126 39 26 372 28 104 103 46 46 352 104 26 7 6 104 104 28 103 126 126 39 28 28 338 39 26 372 46 46 26 7 6 28 104 103
BalonParca AdiParca NoAdetTipApplied Date A B
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004- ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004- ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 1004- ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 1004- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1004- ● ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 1004- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004- ● ●
103 BOLT; BRKT
M10X30 FLANGE SOU 		0-28651-030-0 01 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ●
103 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1004- ● ●
103 BOLT; BRKT
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1004- ●
104 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ●
104 NUT; BRKT
M10 SOU 		0-91110-510-0 04 1 1004- ● ●
104 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
104 NUT; BRKT
M12 FLANGE SOU 		0-91180-212-0 04 1 1004- ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004- ●
338 CONNECTOR; 3WAY VLV
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1004- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 04 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004- ●
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1004- ● ●

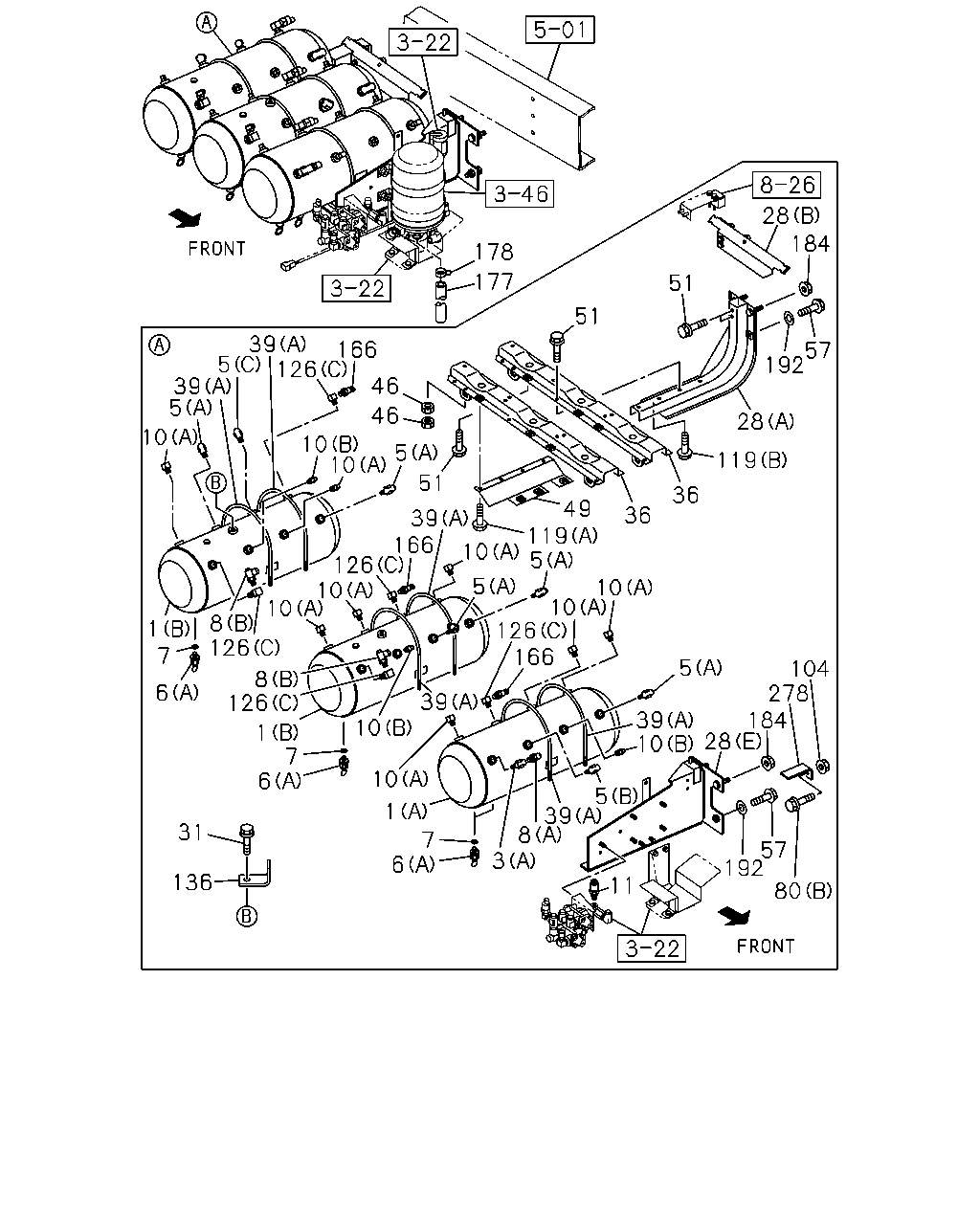

çizim 129136
28 184 178 177 51 51 39 166 5 126 39 5 57 192 46 46 28 10 10 10 5 119 51 36 49 11 5 36 39 166 126 10 10 5 10 10 126 166 10 8 126 1 7 5 104 278 184 28 8 126 6 39 10 39 10 1 7 6 10 5 1 39 8 3 31 7 6 57 192 136 11 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1004-1106 ● ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107- ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107- ● ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1004- ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY SOU 		8-98032-527-0 01 1 1004- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1004- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004- ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1004- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004- ●
8 CONNECTOR; AIR TANK
(C) PT3/8 3WAY SOU 		1-09661-300-0 01 1 1004- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1004- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004- ● ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1004- ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 1004- ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 1004- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1004- ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1004- ● ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 1004- ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
36 STAY; MAIN TANK 8-97618-091-1 02 1 1004- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004- ● ●
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1004- ● ●
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1004- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1004- ● ●
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004- ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ● ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
104 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ●
104 NUT; BRKT
M10 SOU 		0-91110-510-0 04 1 1004- ● ●
104 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
104 NUT; BRKT
M12 FLANGE SOU 		0-91180-212-0 04 1 1004- ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 04 1 1004- ●
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1004- ● ●
119 BOLT; STAY
(B) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1004- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 04 1 1004- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004- ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1004- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004- ● ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 SOU 		0-03566-300-0 01 1 1004- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1004- ● ●
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1004- ● ●
192 WASHER; LK,BRKT
ID=14.2 SOU 		0-91510-514-0 08 1 1004- ● ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1004-1108 ● ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
