3-75 — BRAKE PIPING; AIR,FRONT (#1921) — 90 parça
çizim 94197
5 1 87 76 104 102 62 70 97 121
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; AIR,AIR TANK TO UNION
L=482 SERVICED BY L=500 		1-47434-472-0 01 1 9207-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=482 SERVICED BY L=500 		1-47426-406-0 01 1 9301- ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=626 SERVICED BY L=660 		1-47437-964-0 01 1 9207-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=620 SERVICED BY L=660 		1-47426-409-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
L=1755 SERVICED BY L=1900 		1-47437-971-0 01 1 9207-9212 ● ●
5 PIPE; AIR,UNION TO UNION
L=1755 SERVICED BY L=1900 		1-47426-421-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
L=1900 SERVICED BY L=2100 		1-47437-972-0 01 1 9207-9212 ● ●
5 PIPE; AIR,UNION TO UNION
L=1886 SERVICED BY L=2100 		1-47426-422-0 01 1 9301-9309 ● ●
5 PIPE; AIR,UNION TO UNION
L=1874 SERVICED BY L=1900 		1-47426-421-0 01 1 9310-9310 ● ●
5 PIPE; AIR,UNION TO UNION
L=1893 SERVICED BY L=1900 		1-47426-421-0 01 1 9311- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1316 SERVICED BY L=1400 		1-47437-969-0 01 1 9207-9212 ● ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1316 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ● ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1336 SERVICED BY L=1400 		1-47437-969-0 01 1 9207-9212 ● ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1336 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ● ● ● ●
76 PIPE; AIR,UNION TO UNION
L=2250 SERVICED BY L=2600 		1-47437-973-0 01 1 9207-9212 ● ●
76 PIPE; AIR,UNION TO UNION
L=2217 SERVICED BY L=2600 		1-47426-424-0 01 1 9301- ● ●
76 PIPE; AIR,UNION TO UNION
L=2343 SERVICED BY L=2600 		1-47437-973-0 01 1 9207-9212 ● ●
76 PIPE; AIR,UNION TO UNION
L=2343 SERVICED BY L=2600 		1-47426-424-0 01 1 9301-9310 ● ●
76 PIPE; AIR,UNION TO UNION
L=2378 SERVICED BY L=2500 		1-47426-423-0 01 1 9311- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=403 SERVICED BY L=450 		1-47437-962-0 01 1 9207-9212 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=403 SERVICED BY L=450 		1-47426-405-0 01 1 9301- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=715 SERVICED BY L=800 		1-47434-475-0 01 1 9207-9212 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=716 SERVICED BY L=800 		1-47426-412-0 01 1 9301- ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=454 		1-47482-292-0 01 1 9207-9212 ● ● ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=455 		1-47497-060-0 01 1 9301- ● ● ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=495 SERVICED BY L=500 		1-47426-406-0 01 1 9207-9212 ● ● ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=495 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ● ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=492 SERVICED BY L=500 		1-47434-472-0 01 1 9207-9212 ● ● ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=492 SERVICED BY L=500 		1-47426-406-0 01 1 9301- ● ● ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=489 		1-47482-997-0 01 1 9207-9212 ● ● ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=489 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ● ● ●

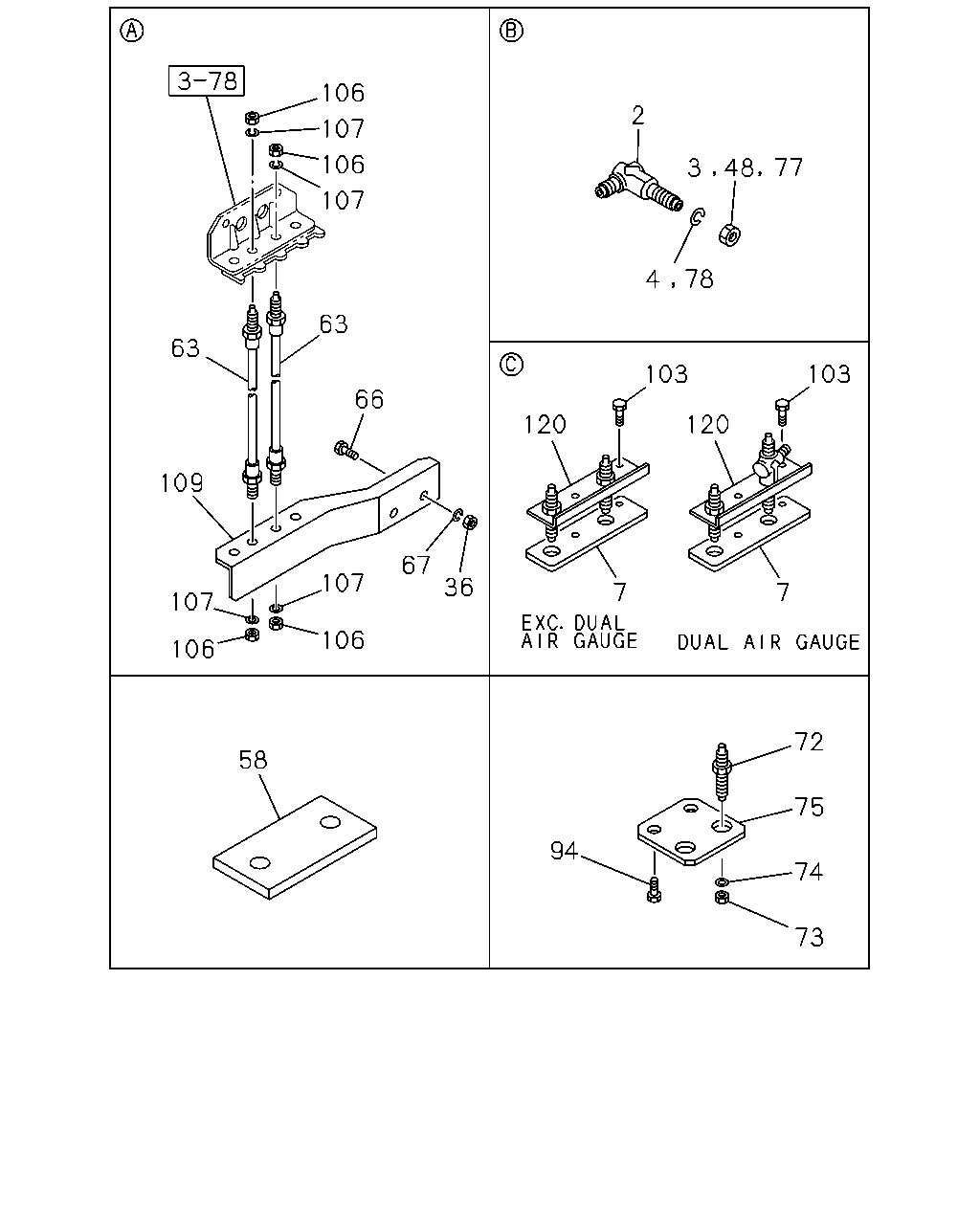

çizim 94748
106 2 107 106 3 48 77 107 78 4 63 63 103 103 66 120 120 109 67 107 36 7 7 107 106 106 72 58 75 94 74 73
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 01 1 9207- ● ●
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-110-1 01 1 9207- ● ● ● ●
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-110-1 01 1 9207- ● ● ● ●
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-110-1 01 1 9207- ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9207- ● ● ● ●
4 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 02 1 9207-9312 ● ● ● ●
7 SEAL; PLATE UNION 1-79998-232-0 01 1 9207- ● ● ● ●
36 NUT; HOSE BRKT
M10 		9-09110-510-0 02 1 9207- ● ● ● ●
48 NUT; UNION BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
58 SPACER; BRKT,UNION 1-22151-204-1 01 1 9207- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=630 		0-07424-630-0 02 1 9207- ● ● ● ●
66 BOLT; HOSE BRKT
M10X25 L=40 		9-04411-025-0 02 1 9207- ● ● ● ●
67 WASHER; LK,HOSE BRKT
ID=10.2 		9-09150-510-0 02 1 9207- ● ● ● ●
72 UNION; AIR PIPE
M16 L=70 STRAIGHT 		9-09233-210-1 01 1 9207- ● ● ● ●
73 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9207- ● ● ● ●
74 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9207-9312 ● ● ● ●
75 BRACKET; UNION 1-47476-292-0 01 1 9207- ● ● ● ●
77 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9207- ● ● ● ●
78 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9207-9312 ● ● ● ●
94 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ●
94 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ●
103 BOLT; PIPE UNION
M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9207- ● ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 04 1 9207- ● ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 04 1 9207- ● ● ● ●
109 BRACKET; FLEX HOSE 1-47475-686-2 01 1 9207- ● ● ● ●
120 UNION; AIR PIPE 1-47470-218-1 01 1 9207- ● ●
120 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-218-1 01 1 9207- ● ●
120 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-47470-220-1 01 1 9207- ● ●
çizim 95775
87 1 5 76 104 102 62 70 97 121
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; AIR,AIR TANK TO UNION
L=482 SERVICED BY L=500 		1-47434-472-0 01 1 9207-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=482 SERVICED BY L=500 		1-47426-406-0 01 1 9301- ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=626 SERVICED BY L=660 		1-47437-964-0 01 1 9207-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=620 SERVICED BY L=660 		1-47426-409-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
L=1755 SERVICED BY L=1900 		1-47437-971-0 01 1 9207-9212 ● ●
5 PIPE; AIR,UNION TO UNION
L=1755 SERVICED BY L=1900 		1-47426-421-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
L=1900 SERVICED BY L=2100 		1-47437-972-0 01 1 9207-9212 ● ●
5 PIPE; AIR,UNION TO UNION
L=1886 SERVICED BY L=2100 		1-47426-422-0 01 1 9301-9309 ● ●
5 PIPE; AIR,UNION TO UNION
L=1874 SERVICED BY L=1900 		1-47426-421-0 01 1 9310-9310 ● ●
5 PIPE; AIR,UNION TO UNION
L=1893 SERVICED BY L=1900 		1-47426-421-0 01 1 9311- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1316 SERVICED BY L=1400 		1-47437-969-0 01 1 9207-9212 ● ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1316 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ● ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1336 SERVICED BY L=1400 		1-47437-969-0 01 1 9207-9212 ● ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1336 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ● ● ● ●
76 PIPE; AIR,UNION TO UNION
L=2250 SERVICED BY L=2600 		1-47437-973-0 01 1 9207-9212 ● ●
76 PIPE; AIR,UNION TO UNION
L=2217 SERVICED BY L=2600 		1-47426-424-0 01 1 9301- ● ●
76 PIPE; AIR,UNION TO UNION
L=2343 SERVICED BY L=2600 		1-47437-973-0 01 1 9207-9212 ● ●
76 PIPE; AIR,UNION TO UNION
L=2343 SERVICED BY L=2600 		1-47426-424-0 01 1 9301-9310 ● ●
76 PIPE; AIR,UNION TO UNION
L=2378 SERVICED BY L=2500 		1-47426-423-0 01 1 9311- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=403 SERVICED BY L=450 		1-47437-962-0 01 1 9207-9212 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=403 SERVICED BY L=450 		1-47426-405-0 01 1 9301- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=715 SERVICED BY L=800 		1-47434-475-0 01 1 9207-9212 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=716 SERVICED BY L=800 		1-47426-412-0 01 1 9301- ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=454 		1-47482-292-0 01 1 9207-9212 ● ● ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=455 		1-47497-060-0 01 1 9301- ● ● ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=495 SERVICED BY L=500 		1-47426-406-0 01 1 9207-9212 ● ● ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=495 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ● ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=492 SERVICED BY L=500 		1-47434-472-0 01 1 9207-9212 ● ● ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=492 SERVICED BY L=500 		1-47426-406-0 01 1 9301- ● ● ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=489 		1-47482-997-0 01 1 9207-9212 ● ● ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=489 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ● ● ●
