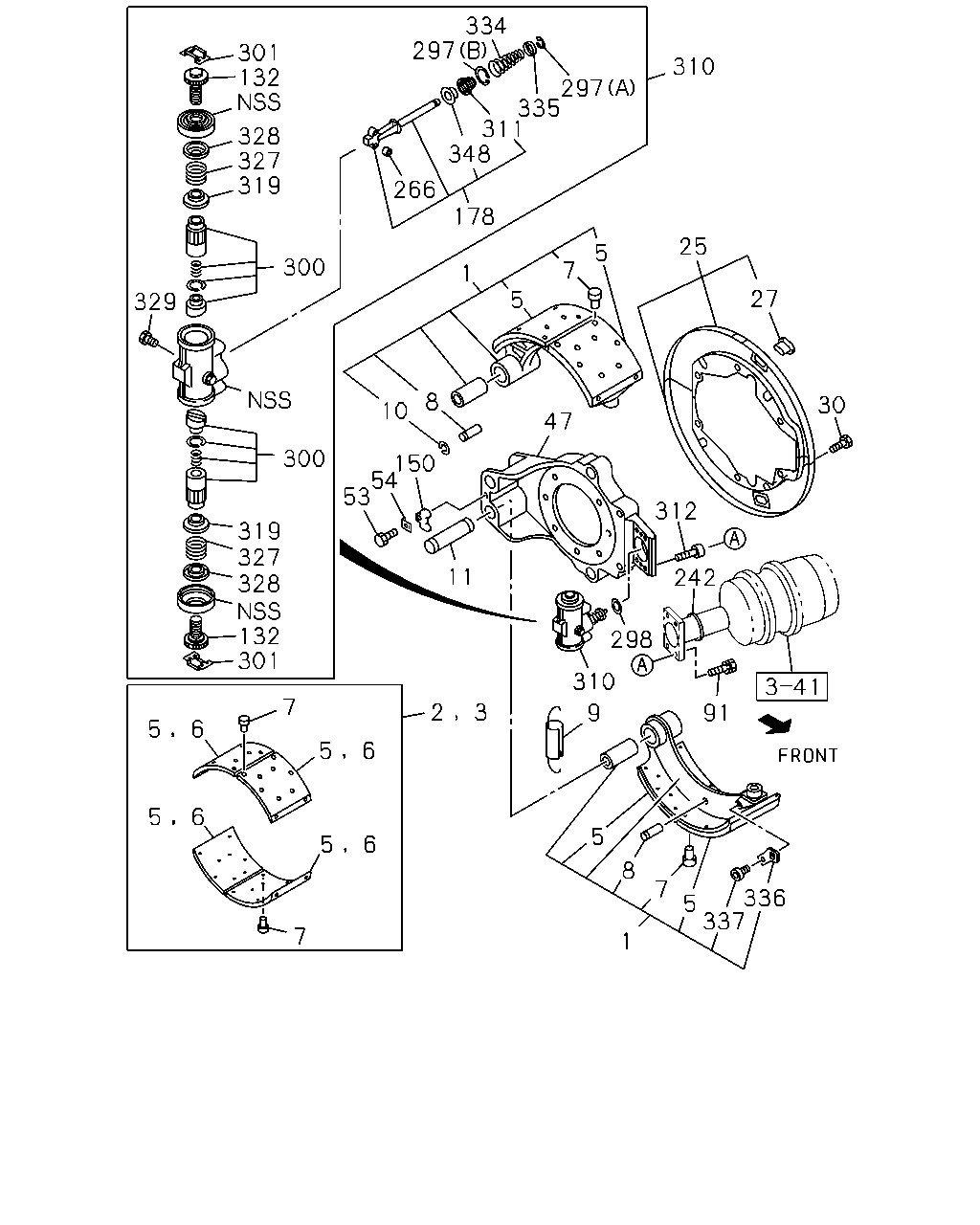

3-05 — REAR WHEEL BRAKE (#19208) — 62 parça

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
297	RING; SNAP (A)	1-47649-031-0	02	1	1004-	●	●
297	RING; SNAP (B)	1-47649-034-1	02	1	1004-	●	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	1004-	●	●
311	BOOT; WEDGE	1-47649-042-0	02	1	1004-	●	●
319	RING; DRIVE	1-47629-200-0	04	1	1004-	●	●
327	SPRING; ADJ	1-47629-196-0	04	1	1004-	●	●
328	CAGE; SPRING	1-47629-192-0	04	1	1004-	●	●
329	SCREW; LOCATING	1-47619-149-1	04	1	1004-	●	●
334	SPRING; ROD	1-47649-041-0	02	1	1004-	●	●
335	RETAINER; SPRING	1-47649-020-0	02	1	1004-	●	●
346	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	1004-	●	●
347	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	1004-	●	●
348	CAP; EXPANDER	1-47649-044-0	02	1	1004-	●	●

334 297 301 132 310 297 335 311 348 328 327 319 266 178 25 5 300 7 1 27 5 329 8 30 10 47 300 150 54 53 312 319 327 328 132 11 242 298 310 7 2 3 9 91 5 6 5 6 5 6 5 5 6 8 336 5 337 7 7 1 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47170-326-0	01	1	1004-	●	●
1	SHOE; BRK,RR TRAILING	1-47170-327-0	01	1	1004-	●	●
1	SHOE; BRK,RR LEADING	1-47170-324-0	01	1	1004-	●	●
1	SHOE; BRK,RR TRAILING	1-47170-325-0	01	1	1004-	●	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	1004-	●	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	1004-	●	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	1004-	●	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	1004-	●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-094-0	08	1	1004-	●	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	1004-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE TRAILING	1-47119-136-0	02	1	1004-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE LEADING	1-47119-172-0	02	1	1004-	●	●
9	SPRING; RETURN,BRK SHOE	1-09583-365-1	02	1	1004-	●	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	1004-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	1004-	●	●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	1004-1309	●	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	1004-1309	●	●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1004-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1004-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-549-0	01	1	1004-1306	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	8-98091-254-1	01	1	1307-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-550-0	01	1	1004-1306	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	8-98091-255-1	01	1	1307-	●	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1004-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1004-	●	●
91	BOLT; CHAMBER M10X53	1-47139-148-0	08	1	1004-	●	●
132	SCREW; ADJ,RR BRK	1-47623-035-2	04	1	1004-	●	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	1004-	●	●
178	WEDGE; RR WHEEL CYL	1-47640-012-0	02	1	1004-	●	●
242	SEAL	1-47159-186-0	04	1	1004-	●	●
266	ROLLER; WEDGE	1-47643-007-0	04	1	1004-	●	●
297	RING; SNAP (A)	1-47649-031-0	02	1	1004-	●	●
297	RING; SNAP (B)	1-47649-034-1	02	1	1004-	●	●
298	GASKET	1-48259-231-0	02	1	1004-	●	●
300	SLEEVE	1-47629-247-1	04	1	1004-	●	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	1004-	●	●
310	EXPANDER	1-47601-087-0	02	1	1004-	●	●
311	BOOT; WEDGE	1-47649-042-0	02	1	1004-	●	●
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1004-	●	●
319	RING; DRIVE	1-47629-200-0	04	1	1004-	●	●
327	SPRING; ADJ	1-47629-196-0	04	1	1004-	●	●
328	CAGE; SPRING	1-47629-192-0	04	1	1004-	●	●
329	SCREW; LOCATING	1-47619-149-1	04	1	1004-	●	●
334	SPRING; ROD	1-47649-041-0	02	1	1004-	●	●
335	RETAINER; SPRING	1-47649-020-0	02	1	1004-	●	●
336	PLATE; PIVOT	1-47119-152-0	04	1	1004-	●	●
337	BOLT; PLATE	1-47119-153-0	04	1	1004-	●	●
348	CAP; EXPANDER	1-47649-044-0	02	1	1004-	●	●
