◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#19203) — 22 parça

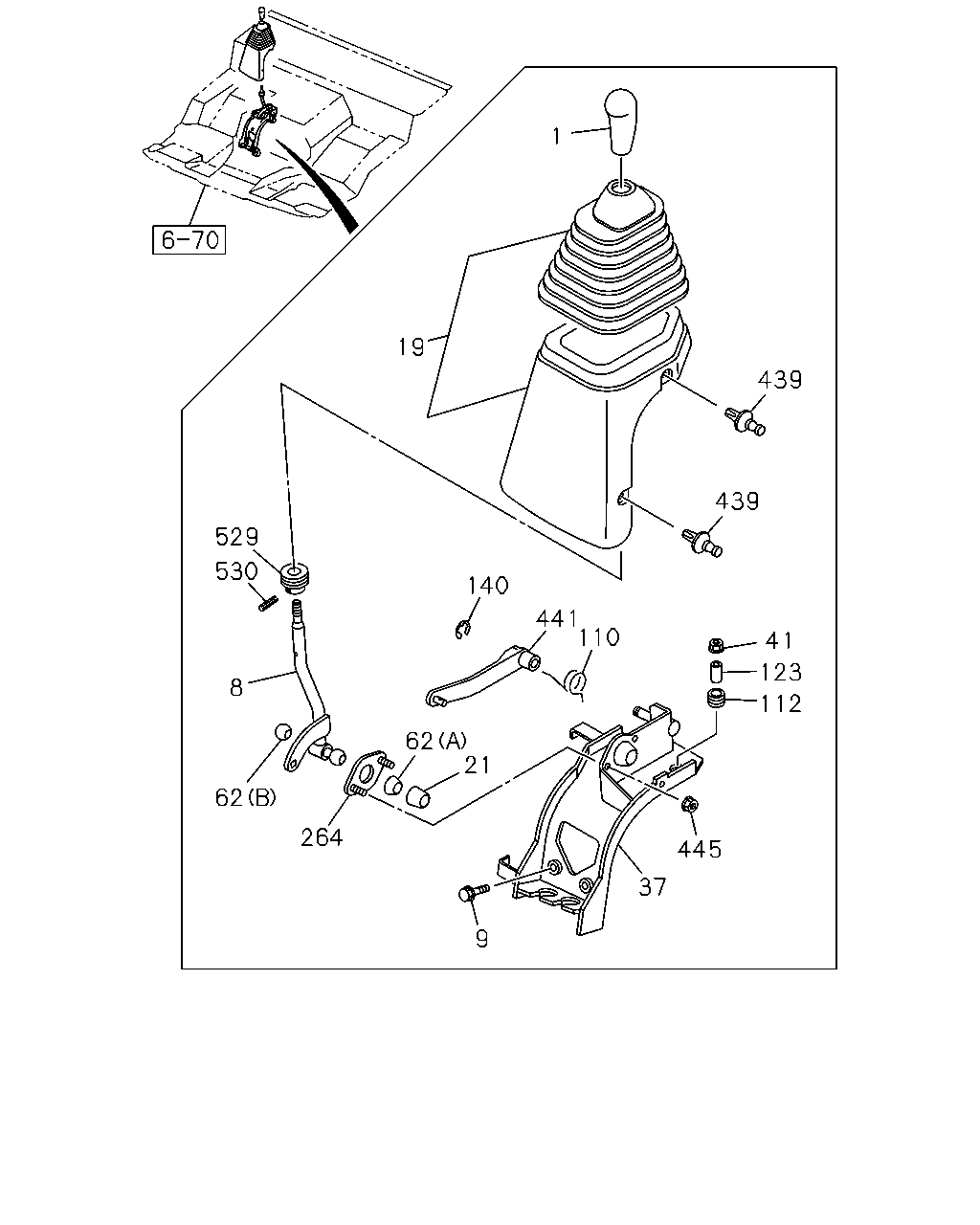

çizim 129124
1 19 439 439 529 530 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33611-099-1 01 1 1004- ● ●
8 LEVER; CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98079-299-0 01 1 1004-1502 ● ●
8 LEVER; CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98296-343-0 01 1 1503- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU 		8-94412-342-0 02 1 1004- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-2 01 1 1004- ● ●
21 SEAT; CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33619-429-0 01 1 1004- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98079-297-0 01 1 1004-1311 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98245-919-0 01 1 1312-1502 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98296-341-0 01 1 1503- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1004- ● ●
62 SEAT; BALL,CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) SOU 		1-33619-427-0 01 1 1004- ● ●
62 SEAT; BALL,CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) SOU 		8-97049-147-0 01 1 1004- ● ●
110 SPRING; RETURN,CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33619-435-0 01 1 1004- ● ●
112 RUBBER; CUSHION
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33619-442-0 04 1 1004- ● ●
123 COLLAR; DIST,CHANGE LEVER
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33619-443-0 04 1 1004- ● ●
140 RING; SNAP
SHIFT PATTERN DOUBLE-H<EDZ> ID=10 		0-91805-510-0 01 1 1004- ● ●
264 PLATE; COVER
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33619-430-0 01 1 1004- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1004- ● ●
441 LEVER; SELECT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98079-302-0 01 1 1004- ● ●
445 NUT; PLATE
SHIFT PATTERN DOUBLE-H<EDZ> M6 FLANGE SOU 		0-91180-106-0 02 1 1004- ● ●
529 RING; BOOT
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33619-504-0 01 1 1004- ● ●
530 PIN; SPRING
SHIFT PATTERN DOUBLE-H<EDZ> SOU 		1-33619-505-0 01 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
