2-30 — GEAR SHIFTER AND QUADRANT BOX (#19202) — 210 parça

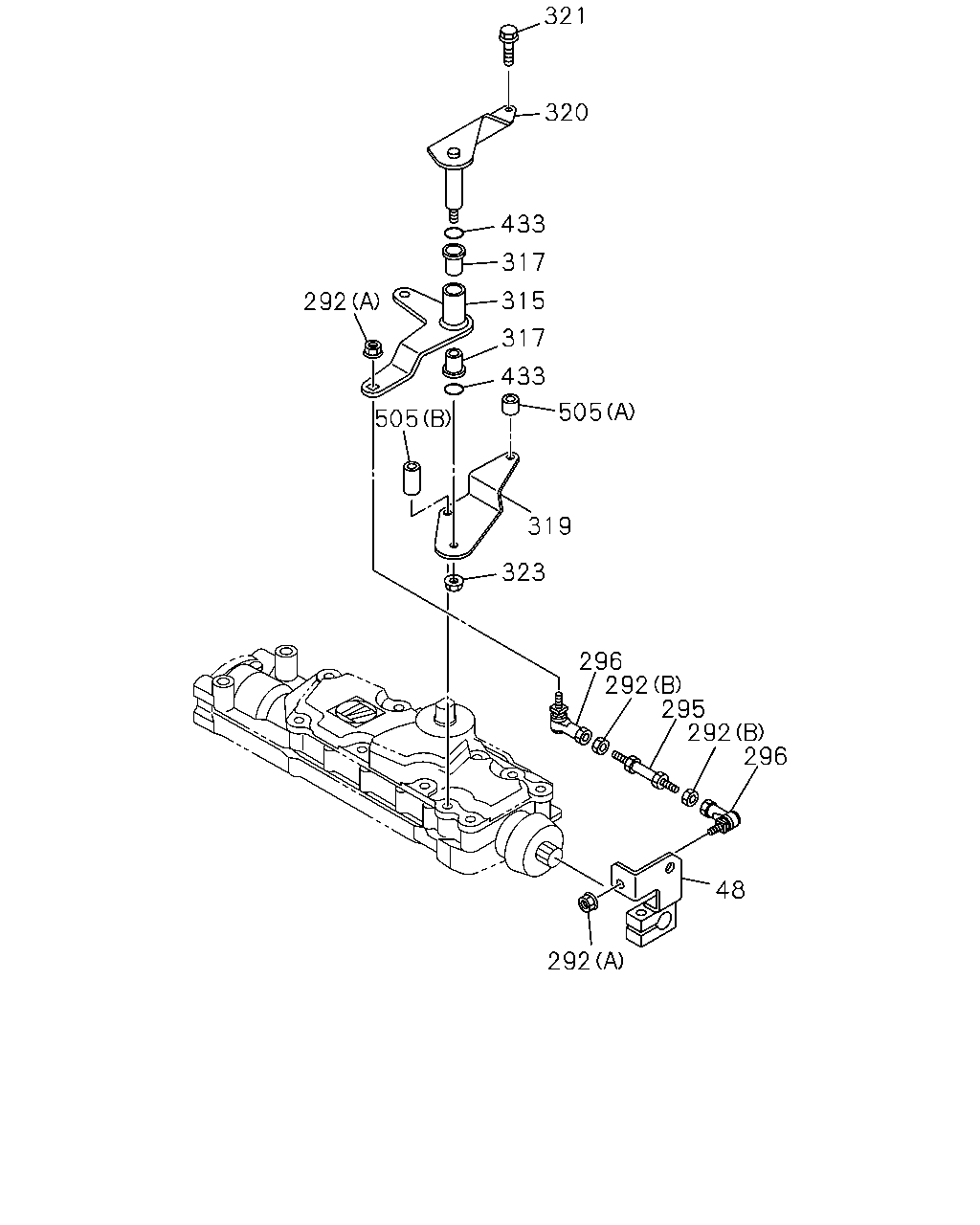

çizim 129099
321 320 433 317 315 292 317 433 505 505 319 323 296 292 295 292 296 48 292
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 1004-
292 NUT; LINK ROD
(B) M8 SOU 		0-91111-508-0 02 1 1004-
292 NUT; LINK ROD
(A) M8 FLANGE SOU 		1-09440-062-1 02 1 1004-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1004-
296 ROD END
L=45.5 		1-09760-118-1 02 1 1004-
315 LEVER; SELECT 8-98061-898-0 01 1 1004-
317 BUSHING; LEVER 1-09330-119-0 02 1 1004-
319 BRACKET; SELECT LEVER 8-98065-843-0 01 1 1004-
320 SHAFT; LEVER 8-98065-840-0 01 1 1004-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1004-
323 NUT; LK,SELECT LEVER
M10 FLANGE SOU 		0-91180-110-0 01 1 1004-
433 GASKET; BUSHING 1-09623-594-0 02 1 1004-
505 SPACER; BRKT
(B) ID=9 OD=18 T=5 SOU 		9-14149-173-0 01 1 1004-
505 SPACER; BRKT
(A) L=28 		9-83625-376-0 01 1 1004-

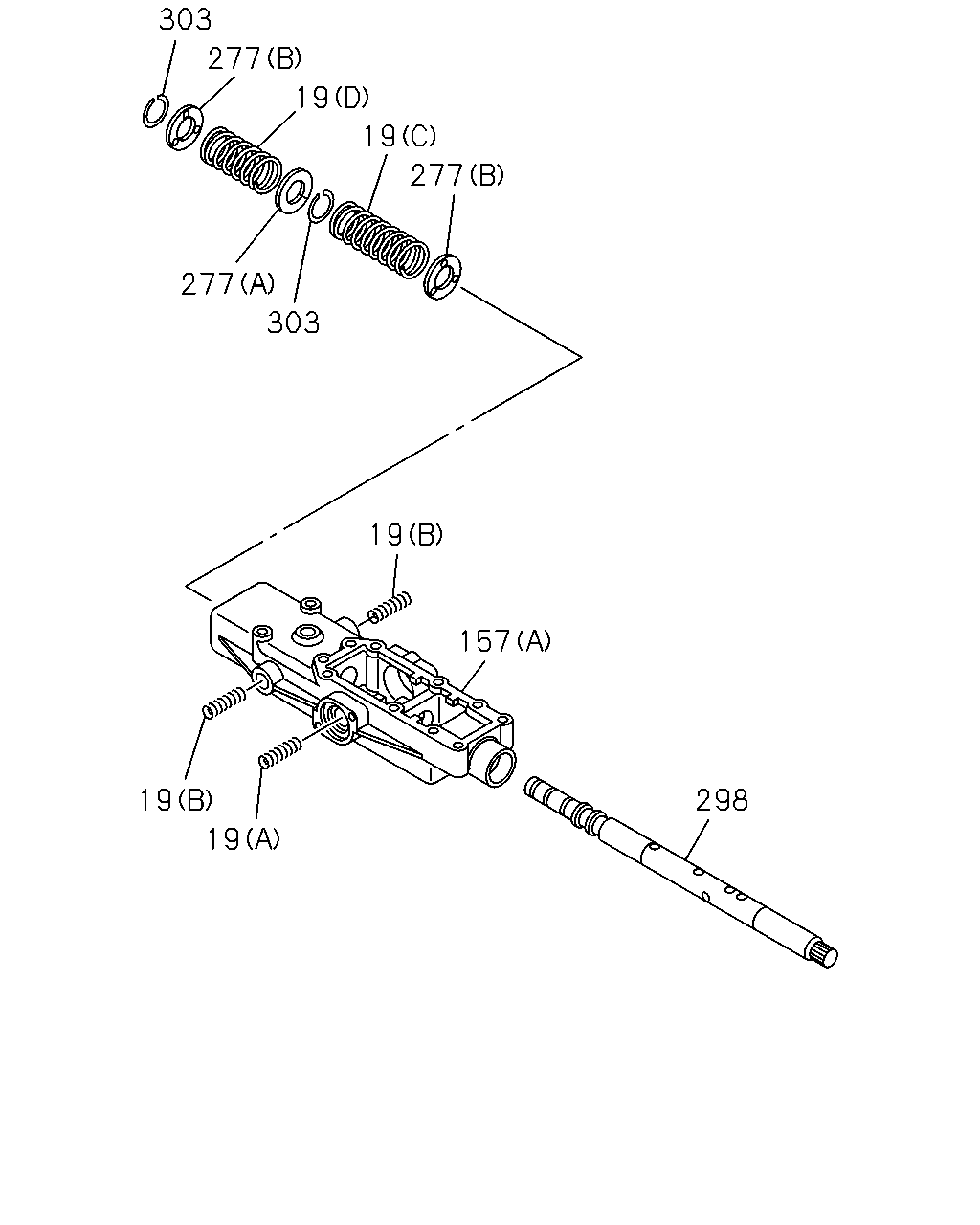

çizim 129102
303 277 19 19 277 277 303 19 157 298 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(D) 		1-33539-028-0 01 1 1004-
19 SPRING; COIL COMP
(B) 		1-33539-030-0 02 1 1004-
19 SPRING; COIL COMP
(C) 		1-33539-092-0 01 1 1004-
19 SPRING; COIL COMP
(A) 		1-33549-221-0 01 1 1004-
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1004-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1004-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306-
277 PLATE; SPRING SEAT
(B) 		1-33539-039-0 02 1 1004-1305
277 PLATE; SPRING SEAT
(B) 		1-33539-107-0 02 1 1306-
277 PLATE; SPRING SEAT
(A) 		1-33539-042-0 01 1 1004-1305
298 SHAFT; SHIFT LEVER 1-33522-211-0 01 1 1004-
303 RING; SNAP,SHAFT 1-33539-040-0 02 1 1004-

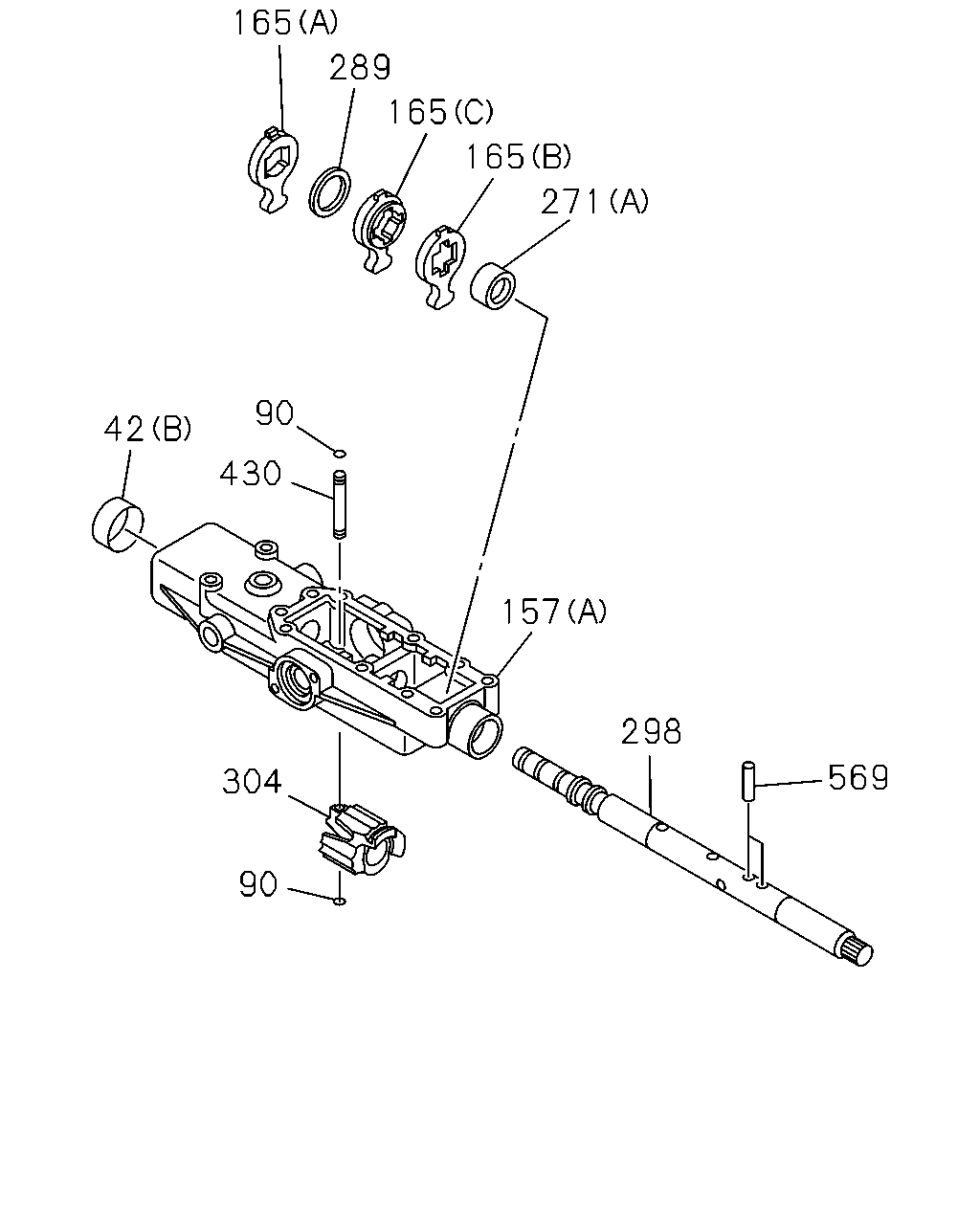

çizim 129103
165 289 165 165 271 90 42 430 157 298 569 304 90
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1004-1305
42 CAP; QUAD BOX
(B) 		1-33549-589-0 01 1 1306-
42 CAP; QUAD BOX
(A) 		1-33549-538-0 01 1 1004-
90 RING; SNAP,SHIFT ROD 1-33549-494-0 02 1 1004-
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1004-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1004-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306-
165 LEVER; SHIFT
(B) 		1-33549-488-0 01 1 1004-
165 LEVER; SHIFT
(C) 		1-33549-489-0 01 1 1004-
165 LEVER; SHIFT
(A) 		1-33549-490-0 01 1 1004-1305
165 LEVER; SHIFT
(A) 		1-33549-603-0 01 1 1306-
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 1004-
271 BUSHING; QUAD BOX
(B) 		1-33549-537-0 01 1 1004-
289 SEAL; OIL,CONT SHAFT,QUAD BOX 1-33549-491-0 01 1 1004-
298 SHAFT; SHIFT LEVER 1-33522-211-0 01 1 1004-
304 BLOCK; SHIFT SHAFT 1-33549-492-0 01 1 1004-
430 PIN; SPR,SHIFT ROD 1-33549-493-0 01 1 1004-
569 PIN; QUADRANT BOX 1-33529-128-0 02 1 1004-

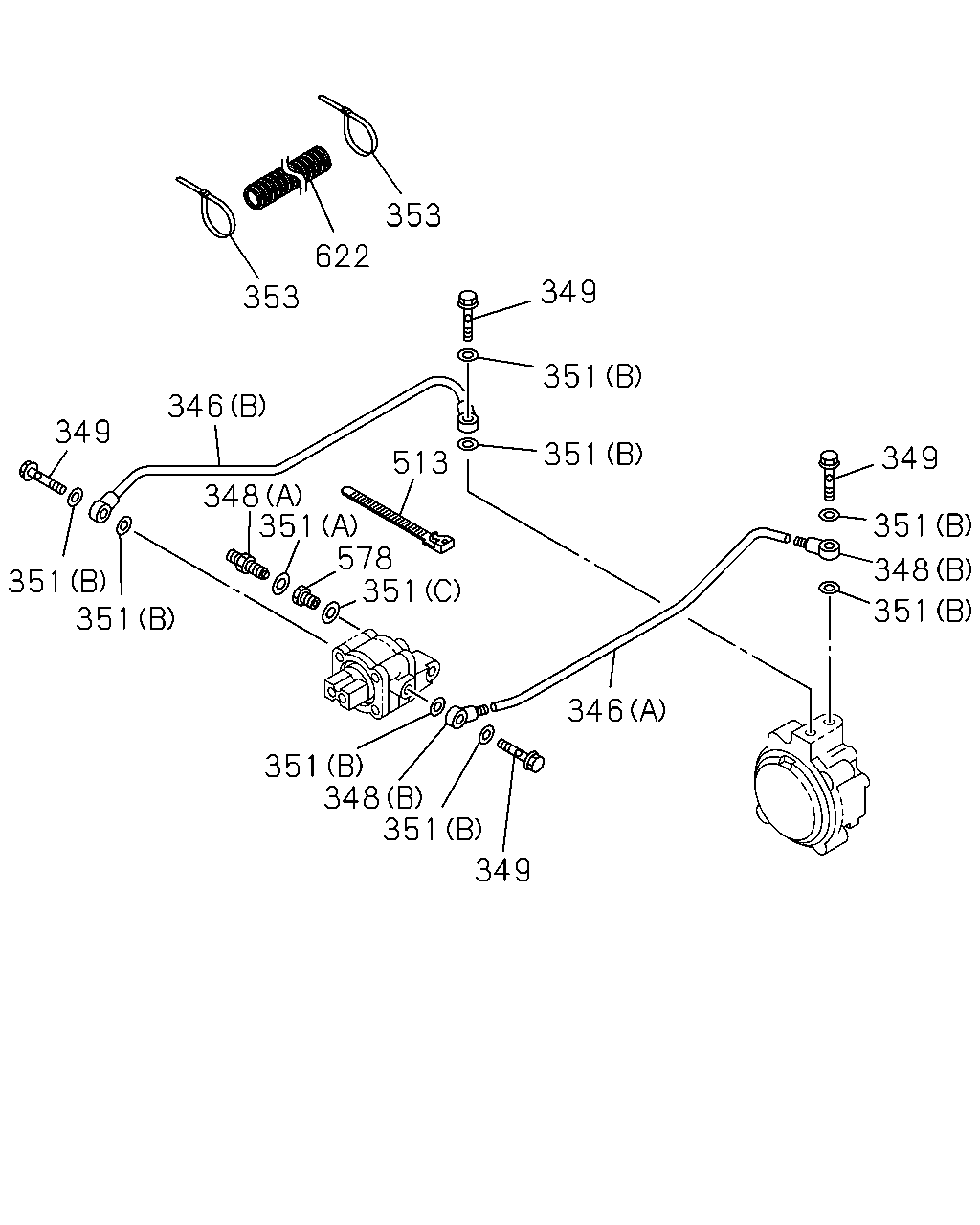

çizim 129105
353 622 349 353 351 346 349 513 351 349 348 351 578 351 351 348 351 351 351 346 351 348 351 349
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-400-0 01 1 1004-1305
346 HOSE; AIR
(A) 		1-33549-618-0 01 1 1306-
346 HOSE; AIR
(B) 		1-33549-443-0 01 1 1004-1305
346 HOSE; AIR
(B) 		1-33549-598-0 01 1 1306-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1004-
348 CONNECTOR; AIR HOSE
(B) 		1-33549-139-0 02 1 1004-1305
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 02 1 1306-
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1004-1305
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1306-
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 1004-1312
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(B) 		1-33549-444-0 08 1 1004-1010
351 GASKET; CONNECTOR
(B) 		1-33549-578-0 08 1 1011-
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1004-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1004-1010
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1011-
513 CLIP; BAND
L=250 SOU 		5-09707-030-1 05 1 1004-1104
513 CLIP; BAND
L=250 SOU 		5-09707-030-1 06 1 1105-
578 CONNECTOR 1-33549-553-0 01 1 1004-
622 TUBE; CORRUGATE 1-83129-021-0 01 1 1004-1004
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1005-

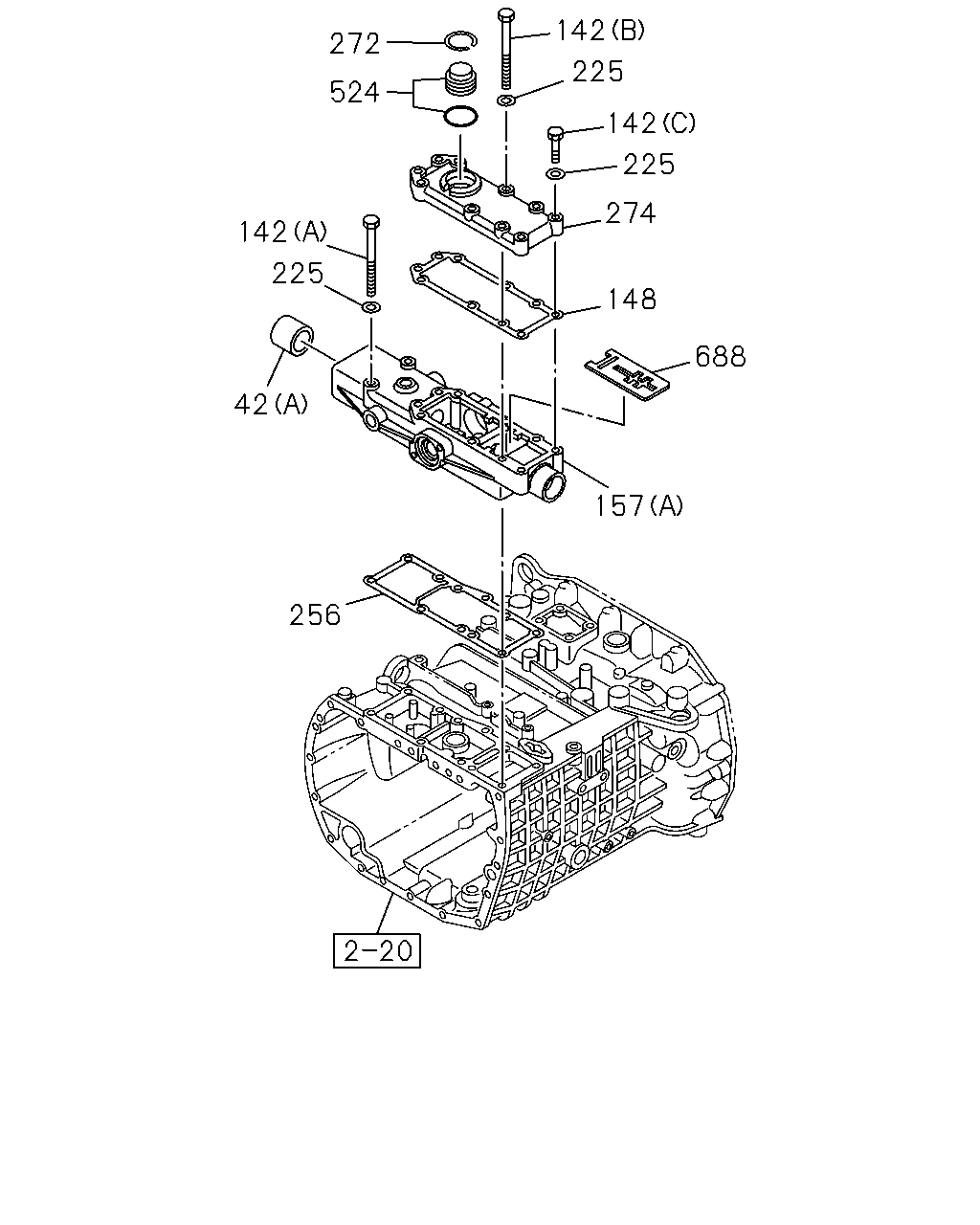

çizim 129106
142 272 225 524 142 225 274 142 225 148 688 42 157 256
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1004-1305
42 CAP; QUAD BOX
(B) 		1-33549-589-0 01 1 1306-
42 CAP; QUAD BOX
(A) 		1-33549-538-0 01 1 1004-
142 BOLT; QUAD BOX
(A) M8X75 		1-09089-015-0 02 1 1004-1305
142 BOLT; QUAD BOX
(A) M8X100 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
(B) 		1-33549-486-0 06 1 1004-1305
142 BOLT; QUAD BOX
(B) M8X75 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
(C) 		1-34129-116-0 04 1 1004-1305
142 BOLT; QUAD BOX
(C) M8X40 		1-33549-587-0 04 1 1306-
148 GASKET; QUAD BOX 1-33542-064-0 01 1 1004-
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1004-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1004-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1004-1305
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-065-0 01 1 1004-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 1004-
274 COVER; SHAFT,QUAD BOX 1-33549-571-0 01 1 1004-1010
274 COVER; SHAFT,QUAD BOX 1-33549-579-0 01 1 1011-
524 DETENT; QUAD BOX 1-33549-501-0 01 1 1004-
688 SHIFT; INTERLOCK 1-33549-572-0 01 1 1004-

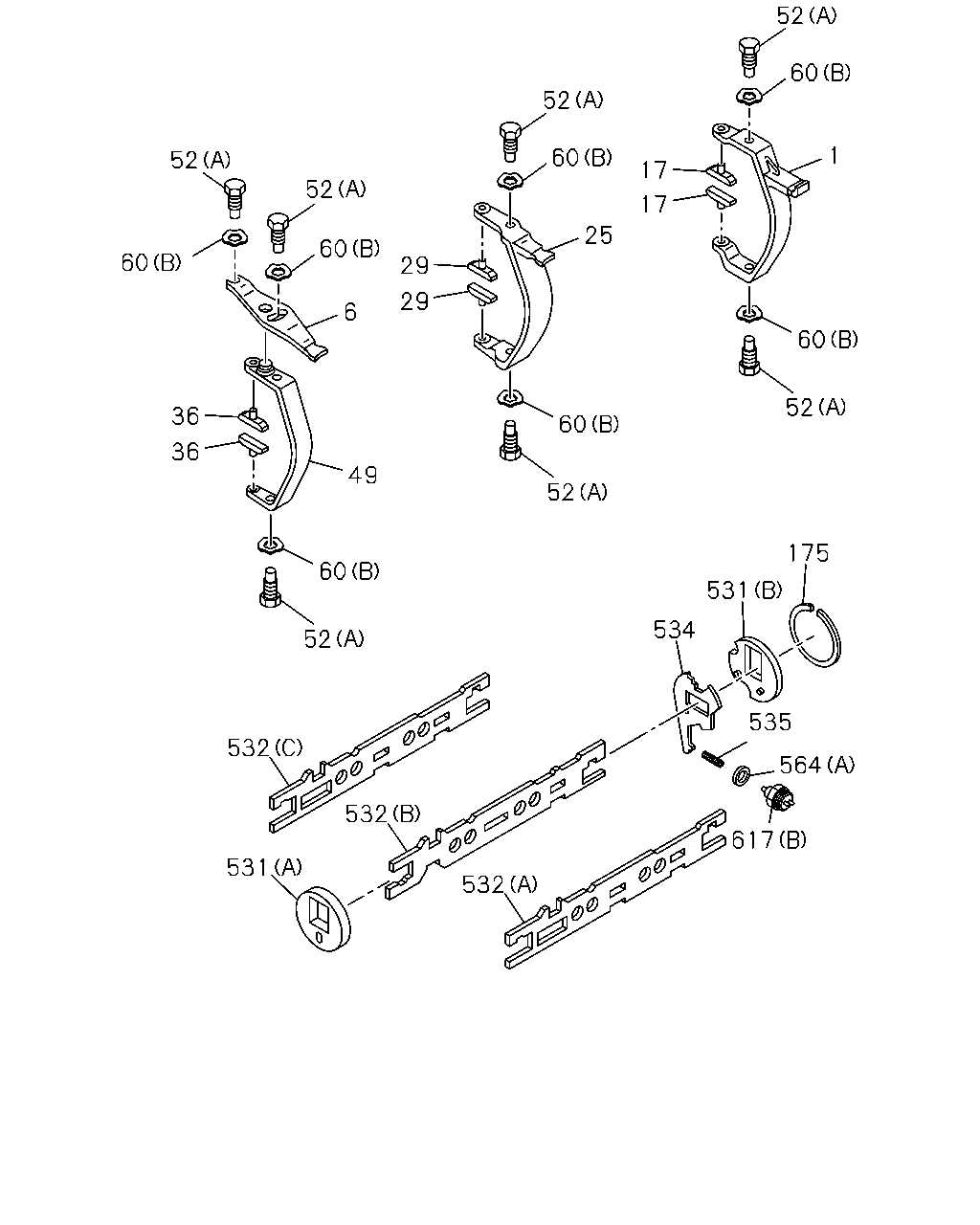

çizim 129110
52 60 52 1 60 52 17 52 17 25 60 60 29 29 6 60 52 36 60 36 49 52 175 60 531 534 52 535 532 564 532 617 531 532
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1004-
6 LEVER; RELAY 1-33511-658-0 01 1 1004-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1004-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1004-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1004-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1004-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1004-
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1004-1010
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1011-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1004-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1004-1010
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1004-1305
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1004-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1004-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1004-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1004-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1004-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1004-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1004-
535 SPRING; LEVER 1-33539-049-0 01 1 1004-
564 SEAL; RING
(B) 		1-33119-249-0 02 1 1004-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1004-1010
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1011-
617 PLUG
(A) 		1-33119-171-0 02 1 1004-1305
617 PLUG
(A) 		1-33119-619-0 02 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1004-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-

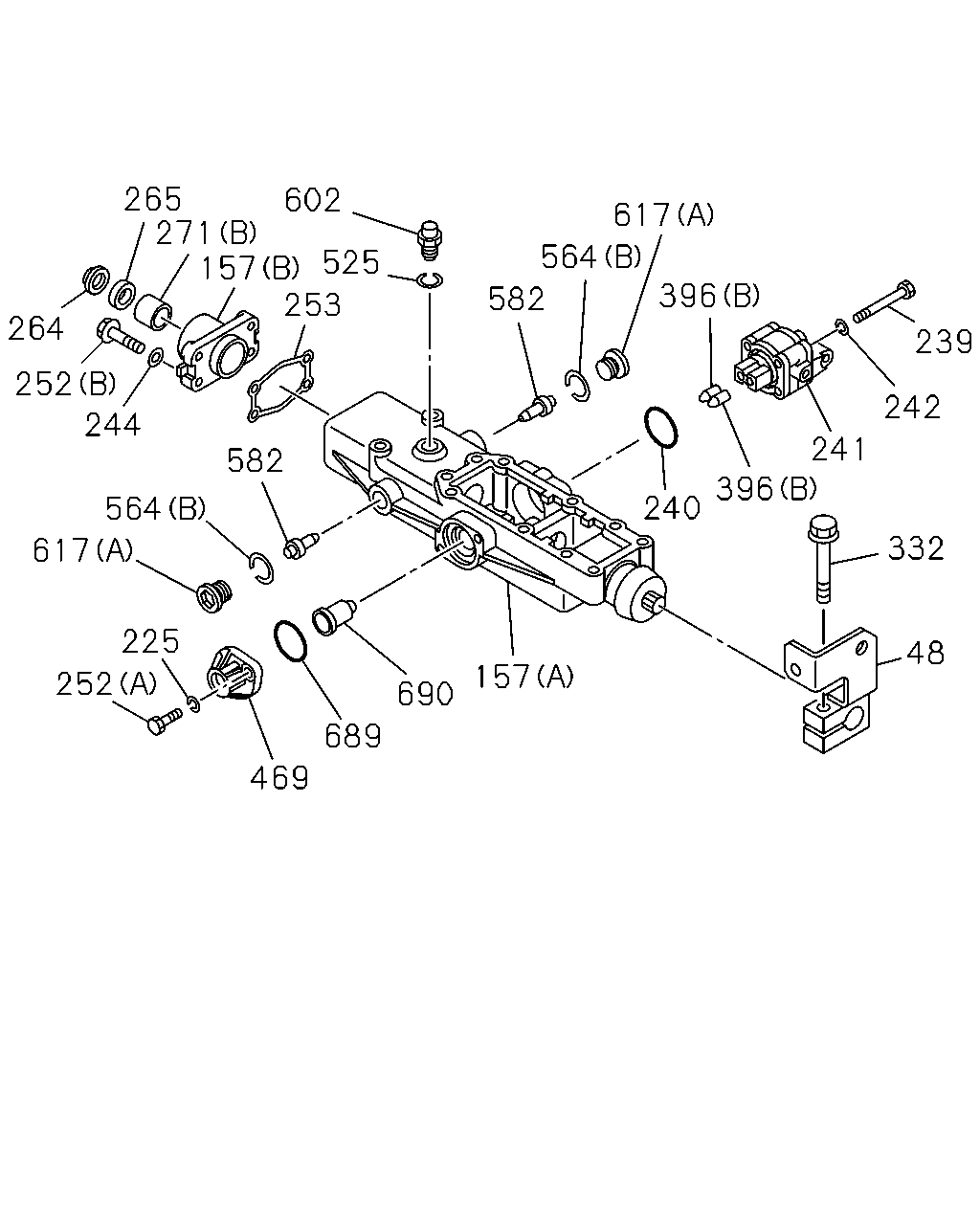

çizim 129111
265 271 157 253 602 617 564 525 396 582 264 239 252 242 244 241 396 582 240 564 332 617 225 48 157 252 690 689 469
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 1004-
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1004-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1004-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1004-1305
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1306-
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 1004-1305
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1306-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1004-
241 VALVE; CUT OFF 1-33549-495-0 01 1 1004-
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 1004-1305
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1306-
244 WASHER; LK,COVER 1-33549-159-0 04 1 1004-1305
244 WASHER; LK,COVER 1-33549-583-0 04 1 1306-
252 BOLT; SIDE COVER
(B) M8X35 		1-33119-271-0 04 1 1004-1305
252 BOLT; SIDE COVER
(B) M8X35 		1-33549-586-0 04 1 1306-
252 BOLT; SIDE COVER
(A) M8X30 		1-33549-172-0 02 1 1004-1305
252 BOLT; SIDE COVER
(A) M8X30 		1-33549-581-0 02 1 1306-
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1004-
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 1004-
265 SEAL; OIL,SHIFT 1-33549-328-0 01 1 1004-
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 1004-
271 BUSHING; QUAD BOX
(B) 		1-33549-537-0 01 1 1004-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE SOU 		0-28650-840-0 01 1 1004-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1004-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1004-
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1004-
525 RING; DETENT 1-33119-286-0 01 1 1004-
564 SEAL; RING
(B) 		1-33119-249-0 02 1 1004-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1004-1010
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1011-
582 BOLT; SPRING GUIDE 1-33549-487-0 02 1 1004-
602 PLUNGER; DETENT 1-33119-285-0 01 1 1004-1010
602 PLUNGER; DETENT 1-34539-113-0 01 1 1011-1305
602 PLUNGER; DETENT 1-33119-618-0 01 1 1306-
617 PLUG
(A) 		1-33119-171-0 02 1 1004-1305
617 PLUG
(A) 		1-33119-619-0 02 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1004-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-
689 GASKET; COVER 1-33542-063-0 01 1 1004-
690 PIN; STOP 1-33549-496-0 01 1 1004-

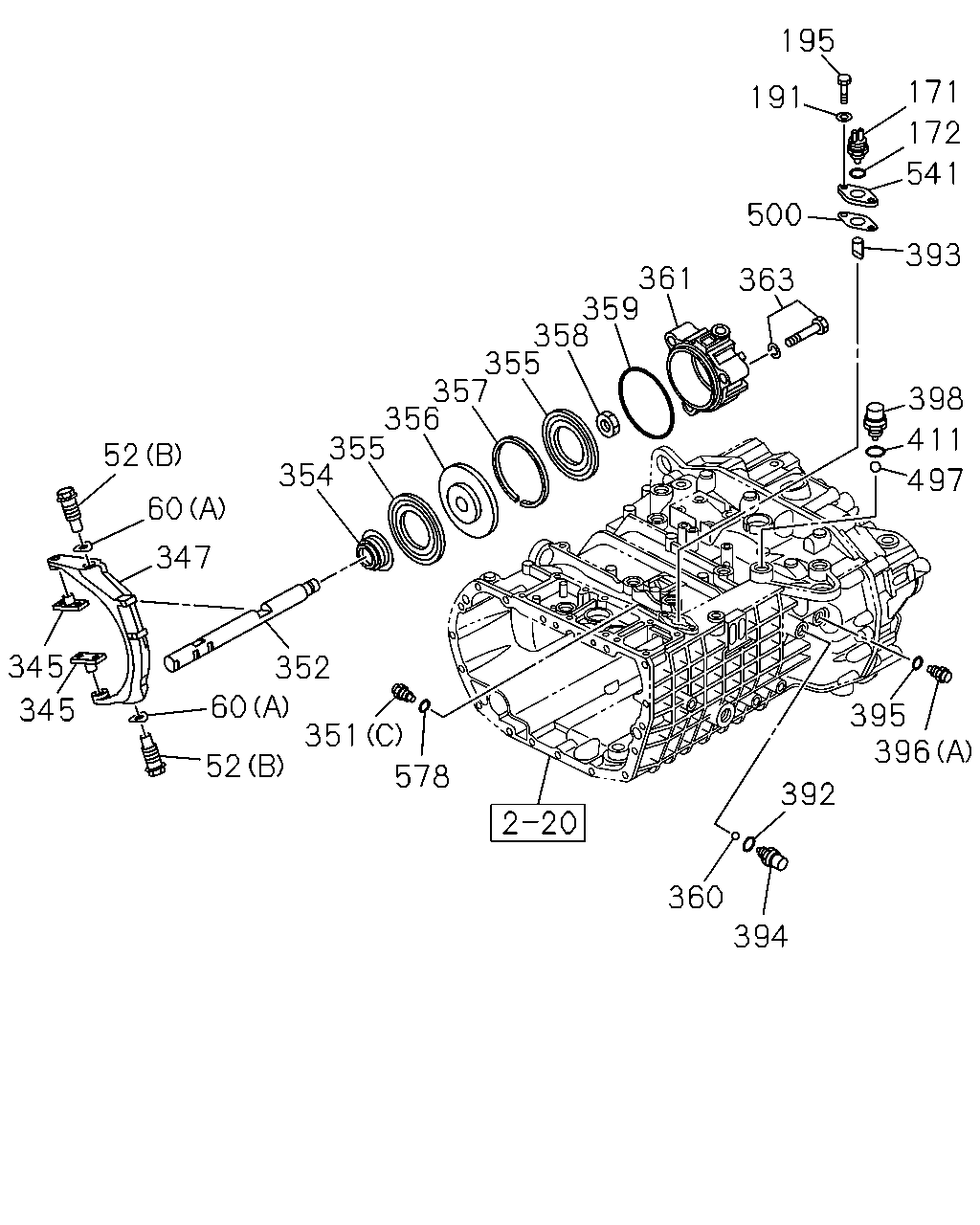

çizim 129117
195 171 191 172 541 500 393 361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 351 52 578 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1004-1010
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1011-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1004-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1004-1010
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1004-1305
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1004-1305
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1306-
172 GASKET; NEUTRAL SW 1-33119-249-0 01 1 1004-
191 WASHER; LK 1-36129-007-0 02 1 1004-1010
191 WASHER; LK 1-33549-577-0 02 1 1011-1305
191 WASHER; LK 1-33549-583-0 02 1 1306-
195 BOLT 1-33119-301-0 02 1 1004-1010
195 BOLT 1-33119-593-0 02 1 1011-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1004-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1004-
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 1004-1312
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(B) 		1-33549-444-0 08 1 1004-1010
351 GASKET; CONNECTOR
(B) 		1-33549-578-0 08 1 1011-
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1004-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1004-1305
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1004-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1004-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1004-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1004-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1004-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1004-
360 BALL; AIR CYL 1-33119-252-0 01 1 1004-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1004-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1004-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1004-
393 PIN; SW 1-33119-298-0 01 1 1004-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1004-1305
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1306-
395 GASKET; PLUNGER 1-33519-171-0 01 1 1004-1010
395 GASKET; PLUNGER 1-33549-497-0 01 1 1011-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1004-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1004-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1004-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1004-
497 BALL; SWITCH 1-33119-252-0 01 1 1004-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 1004-
541 PLATE; SWITCH 1-33119-300-0 01 1 1004-
578 CONNECTOR 1-33549-553-0 01 1 1004-

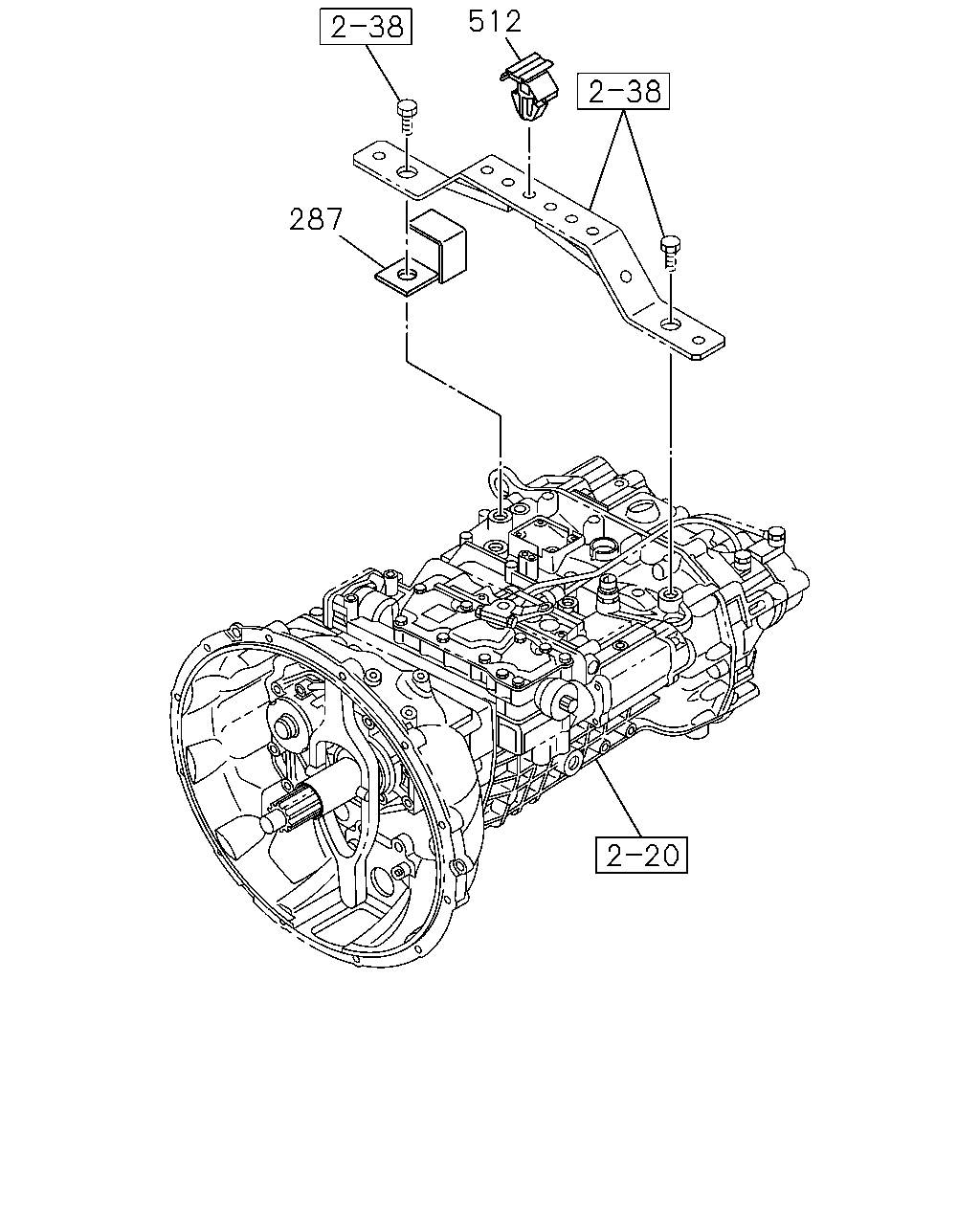

çizim 129118
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1004-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1004-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
