3-70 — BRAKE PIPING; AIR,AIR MASTER (#1920) — 176 parça

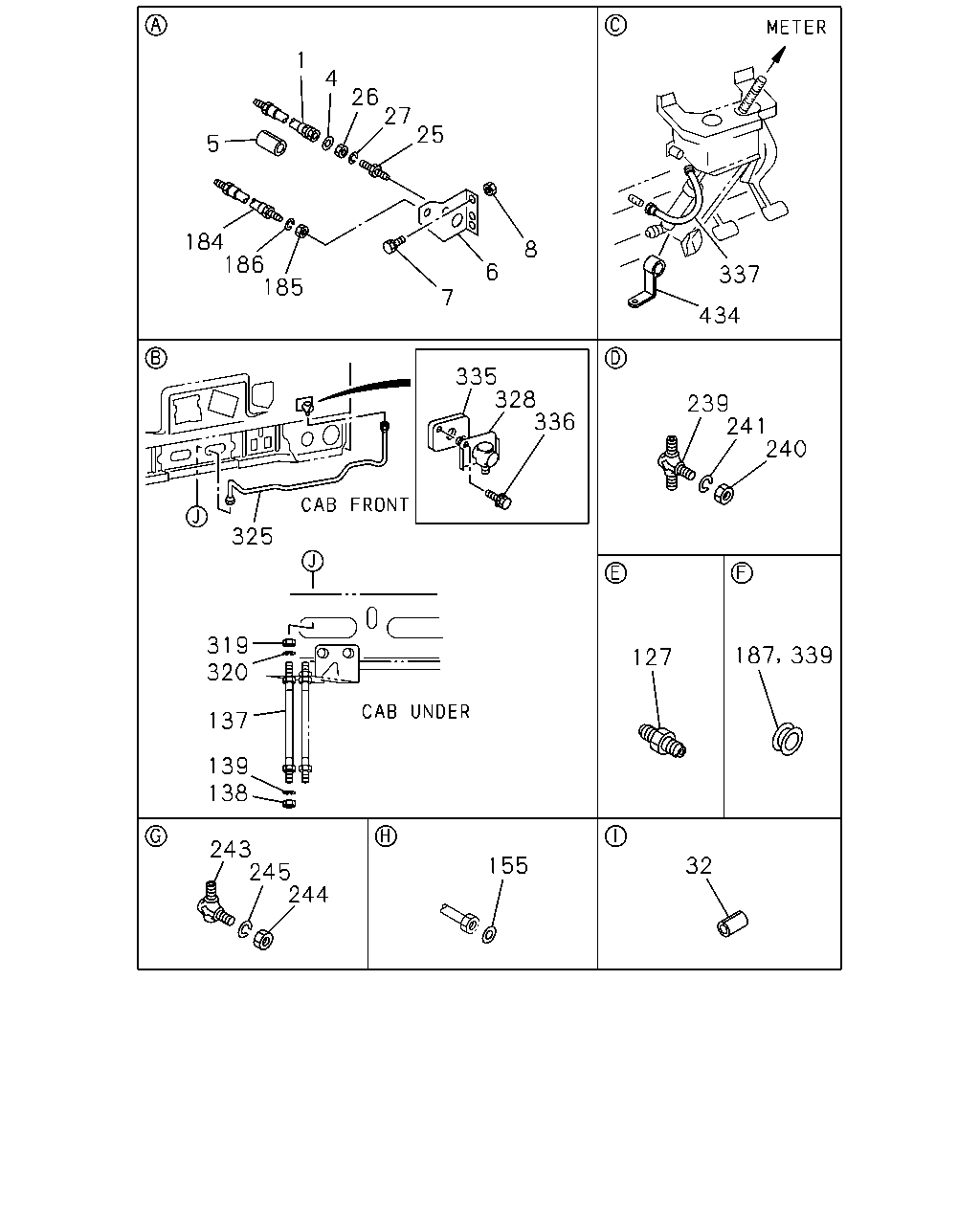

çizim 27895
1 4 26 27 25 5 184 186 185 8 6 337 7 434 335 328 336 239 241 240 325 319 320 127 137 139 138 243 245 244 155 32 187 339
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,AIR TANK
L=360 		0-07836-360-1 01 1 9207- ● ●
1 HOSE; FLEX,AIR TANK
L=390 		0-07836-390-1 01 1 9207- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9207- ● ● ● ●
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9207- ● ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47475-347-1 01 1 9207- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47475-861-0 01 1 9207- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
25 VALVE; CHECK 1-48410-138-1 01 1 9207- ● ● ● ●
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 9207- ● ● ● ●
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 9207- ● ● ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9207- ● ● ● ●
127 UNION; AIR PIPE
M12 L=40 		9-09223-006-1 01 1 9207- ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=410 		0-07020-410-0 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9207- ● ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9207- ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9207- ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9207- ● ● ● ●
184 HOSE; FLEX,AIR GOV
L=450 		0-07030-450-0 01 1 9207- ● ●
184 HOSE; FLEX,AIR GOV
L=410 		0-07030-410-0 01 1 9207- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9207- ● ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ●
187 GROMMET; FLEX HOSE,AIR GOV
ID=24 OD=30 T=17 		9-09956-092-1 01 1 9207- ● ●
239 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 9207- ● ●
240 NUT; UNION,AIR PIPE
EXC. PTO CONTROL<SV6> M12 		9-99111-412-0 01 1 9207- ● ●
241 WASHER; LK,UNION,AIR PIPE
EXC. PTO CONTROL<SV6> ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
243 UNION; AIR PIPE 1-09654-293-1 01 1 9207- ● ●
243 UNION; AIR PIPE 1-09656-116-1 01 1 9207- ● ●
244 NUT; UNION,AIR PIPE
M16 		9-99111-416-0 01 1 9207- ● ●
244 NUT; UNION,AIR PIPE
M14 		9-99111-414-0 01 1 9207- ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=16.2 		9-09150-516-0 01 1 9207-9312 ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=14.2 		9-09150-514-0 01 1 9207-9312 ● ●
319 NUT; FLEX HOSE,CAB SIDE
M10 H=8 		1-09400-029-0 01 1 9207- ● ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9207- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
ID=10.2 		9-09150-510-0 01 1 9207- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
328 UNION; AIR PIPE 1-47470-194-1 01 1 9207- ● ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-194-1 01 1 9207- ● ●
335 SEAL; UNION 1-79998-236-0 01 1 9207- ● ●
335 SEAL; UNION
EXC. DUAL AIR GAUGE<UG2> 		1-79998-236-0 01 1 9207- ● ●
336 BOLT; PIPE UNION
M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9207- ● ●
336 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=850 		0-07210-850-0 01 1 9207- ● ●
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ● ● ●
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ●
434 CLIP
ID=13 H=50 L=25 		1-09700-529-0 01 1 9207- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> ID=13 H=50 L=25 		1-09700-529-0 01 1 9207- ● ●

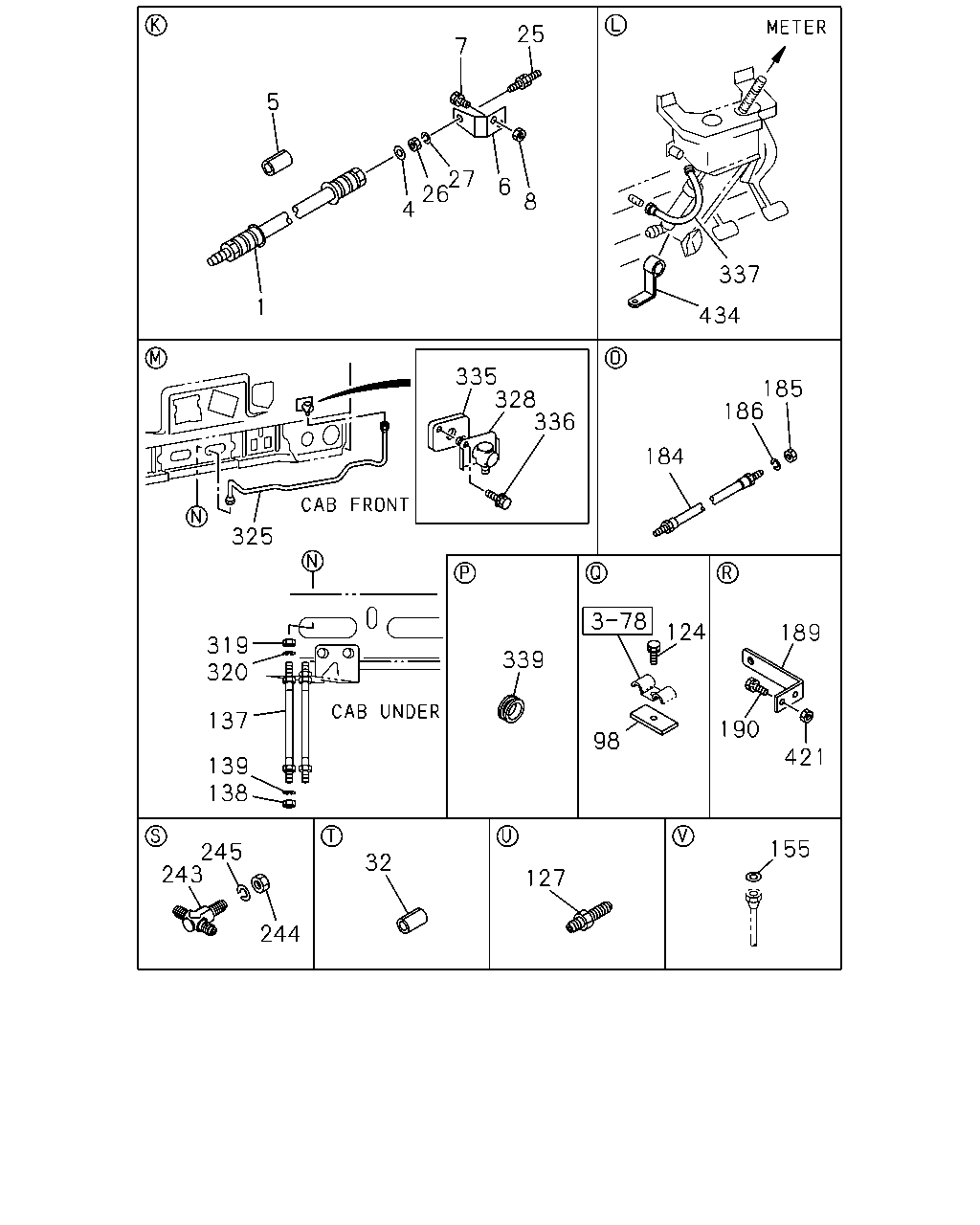

çizim 28055
25 7 5 27 26 4 6 8 337 1 434 335 328 336 185 186 184 325 124 189 319 320 339 137 190 98 421 139 138 155 245 243 32 127 244
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,AIR TANK
L=360 		0-07836-360-1 01 1 9207- ● ●
1 HOSE; FLEX,AIR TANK
L=390 		0-07836-390-1 01 1 9207- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9207- ● ● ● ●
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9207- ● ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47475-347-1 01 1 9207- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47475-861-0 01 1 9207- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
25 VALVE; CHECK 1-48410-138-1 01 1 9207- ● ● ● ●
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 9207- ● ● ● ●
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 9207- ● ● ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9207- ● ● ● ●
98 BRACKET; AIR PIPE
L=50 		1-47475-299-2 01 1 9207- ● ●
124 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ●
127 UNION; AIR PIPE
M12 L=40 		9-09223-006-1 01 1 9207- ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=410 		0-07020-410-0 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9207- ● ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9207- ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9207- ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9207- ● ● ● ●
184 HOSE; FLEX,AIR GOV
L=450 		0-07030-450-0 01 1 9207- ● ●
184 HOSE; FLEX,AIR GOV
L=410 		0-07030-410-0 01 1 9207- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9207- ● ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ●
189 BRACKET; FLEX HOSE 1-47475-531-0 01 1 9207- ● ●
190 BOLT; FLEX HOSE
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ●
243 UNION; AIR PIPE 1-09654-293-1 01 1 9207- ● ●
243 UNION; AIR PIPE 1-09656-116-1 01 1 9207- ● ●
244 NUT; UNION,AIR PIPE
M16 		9-99111-416-0 01 1 9207- ● ●
244 NUT; UNION,AIR PIPE
M14 		9-99111-414-0 01 1 9207- ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=16.2 		9-09150-516-0 01 1 9207-9312 ● ●
245 WASHER; LK,UNION,AIR PIPE
ID=14.2 		9-09150-514-0 01 1 9207-9312 ● ●
319 NUT; FLEX HOSE,CAB SIDE
M10 H=8 		1-09400-029-0 01 1 9207- ● ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9207- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
ID=10.2 		9-09150-510-0 01 1 9207- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
328 UNION; AIR PIPE 1-47470-194-1 01 1 9207- ● ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-194-1 01 1 9207- ● ●
335 SEAL; UNION 1-79998-236-0 01 1 9207- ● ●
335 SEAL; UNION
EXC. DUAL AIR GAUGE<UG2> 		1-79998-236-0 01 1 9207- ● ●
336 BOLT; PIPE UNION
M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9207- ● ●
336 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=850 		0-07210-850-0 01 1 9207- ● ●
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ● ● ●
339 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9207- ● ●
421 NUT; BRKT
M8 		9-09110-408-0 02 1 9207- ● ●
434 CLIP
ID=13 H=50 L=25 		1-09700-529-0 01 1 9207- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> ID=13 H=50 L=25 		1-09700-529-0 01 1 9207- ● ●

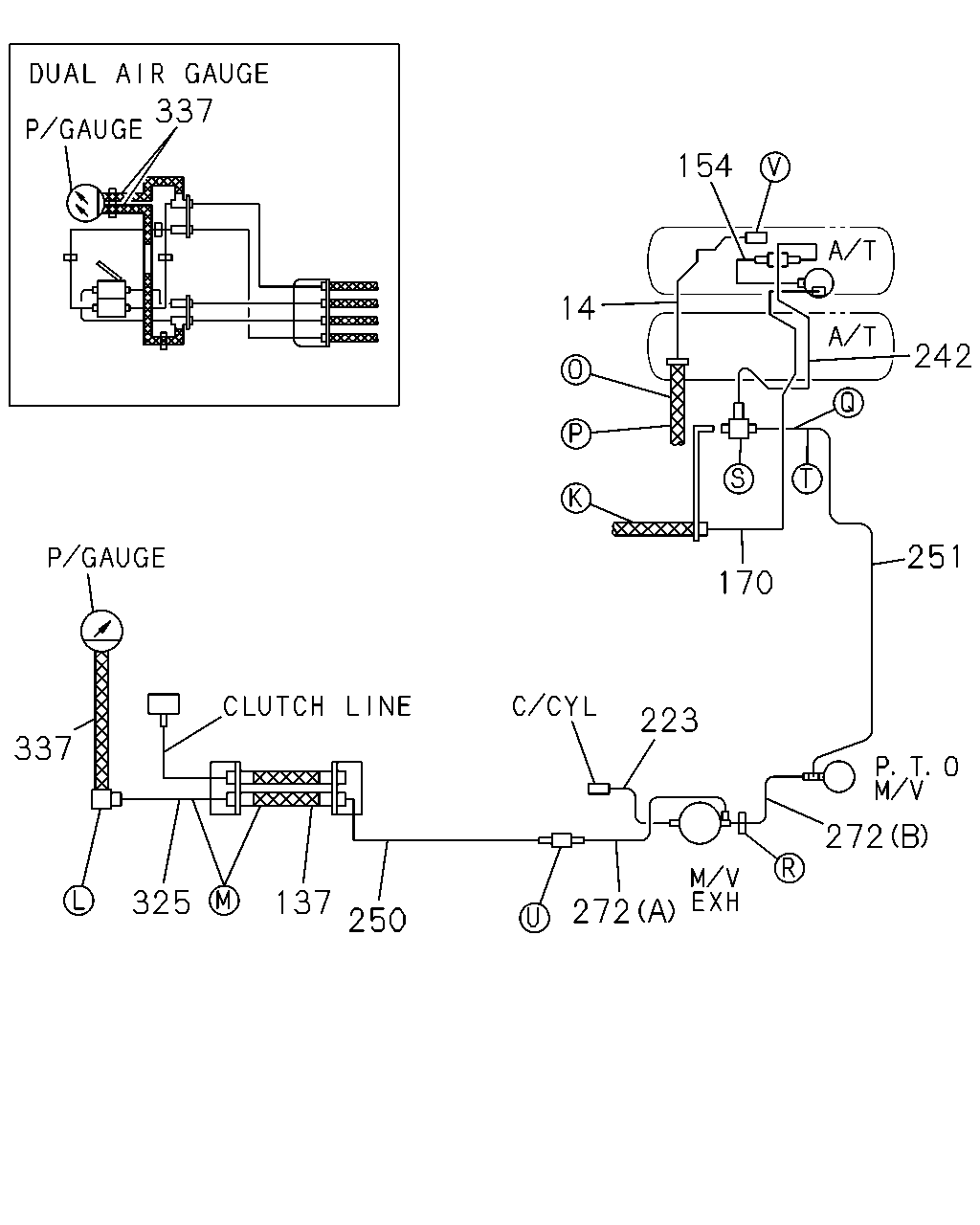

çizim 94773
337 154 14 242 251 170 223 337 272 325 137 272 250
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=476 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=528 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=410 		0-07020-410-0 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9207- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-990-0 01 1 9207- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-409-0 01 1 9207- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
L=916 		1-47486-989-0 01 1 9207- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
L=977 		1-47494-057-0 01 1 9207- ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=474 SERVICED BY L=500 		9-47415-350-0 01 1 9207- ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=633 SERVICED BY L=650 		9-47415-353-0 01 1 9207- ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=1033 SERVICED BY L=1400 		1-47434-411-0 01 1 9207-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=1245 SERVICED BY L=1400 		1-47426-389-0 01 1 9301- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=1473 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1382 SERVICED BY L=1500 		1-47434-391-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1083 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
DUAL AIR GAUGE<UG2> EXC. PTO CONTROL<SV6> L=1579 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1108 SERVICED BY L=1200 		1-47434-388-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> L=1559 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=764 		1-47483-264-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=332 		1-47494-951-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. DUAL AIR GAUGE<UG2> (A) L=1016 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> (B) L=380 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. DUAL AIR GAUGE<UG2> (B) L=360 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=850 		0-07210-850-0 01 1 9207- ● ●
çizim 95831
154 242 14 170 238 223 337 325 137 250 272 126 251 272 223 272 126
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=476 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=528 SERVICED BY L=1000 		1-47434-491-0 01 1 9207- ● ●
126 PIPE; AIR,UNION TO UNION
L=339 		1-47494-952-0 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=410 		0-07020-410-0 01 1 9207- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9207- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-990-0 01 1 9207- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-47486-409-0 01 1 9207- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
L=916 		1-47486-989-0 01 1 9207- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
L=977 		1-47494-057-0 01 1 9207- ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=474 SERVICED BY L=500 		9-47415-350-0 01 1 9207- ● ●
223 PIPE; AIR,MAG VLV TO CONT CYL
L=633 SERVICED BY L=650 		9-47415-353-0 01 1 9207- ● ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1258 SERVICED BY L=1370 		1-47434-390-0 01 1 9207-9211 ● ●
238 PIPE; AIR,UNION TO UNION
EXC. PTO CONTROL<SV6> L=1236 SERVICED BY L=1250 		1-47426-353-0 01 1 9212- ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47434-473-0 01 1 9207-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=582 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=1033 SERVICED BY L=1400 		1-47434-411-0 01 1 9207-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
L=1245 SERVICED BY L=1400 		1-47426-389-0 01 1 9301- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=1473 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1382 SERVICED BY L=1500 		1-47434-391-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1083 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
DUAL AIR GAUGE<UG2> EXC. PTO CONTROL<SV6> L=1579 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1108 SERVICED BY L=1200 		1-47434-388-0 01 1 9207- ● ●
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> L=1559 SERVICED BY L=1620 		1-47434-392-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=764 		1-47483-264-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=332 		1-47494-951-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. DUAL AIR GAUGE<UG2> (A) L=1016 SERVICED BY L=1100 		1-47434-387-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> (B) L=380 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. DUAL AIR GAUGE<UG2> (B) L=360 SERVICED BY L=460 		9-47415-349-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=810 SERVICED BY L=920 		5-47411-861-0 01 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9207- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=850 		0-07210-850-0 01 1 9207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
