2-05 — CLUTCH PIPING (#19197) — 86 parça
çizim 129090
235 101 210 16 42 206 30 207 206 207 42 16 210 106 51 107 27
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 01 1 1004-1108 ● ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 01 1 1109-1201 ● ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1202- ● ●
16 CLIP; FLEX HOSE
ID=18 L=28 H=30 		1-09701-110-0 01 1 1004-1108 ● ●
16 CLIP; FLEX HOSE
ID=18 L=28 H=30 		1-09701-110-0 01 1 1109-1201 ● ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1004- ● ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ● ●
30 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
30 BOLT; BRKT
VIN MODEL YEAR 2011<VZB> M8X30 FLANGE 		0-28650-830-0 01 1 1109- ●
30 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 02 1 1004- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1004- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1004-1402 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1004-1108 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1109-1201 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ●
51 WASHER; LK
ID=14.2 SOU 		0-91510-514-0 01 1 1004- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 1004-1108 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 1109-1201 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1202- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004- ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1004- ● ●
107 NUT; UNION,OIL PIPE
M14 SOU 		0-91111-514-0 01 1 1004- ● ●
206 CLIP; TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1004- ●
206 CLIP; TUBE
(A) L=350 		1-09707-183-0 01 1 1004- ●
207 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1004- ●
207 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ● ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1109-1201 ● ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1202- ● ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1004- ● ●

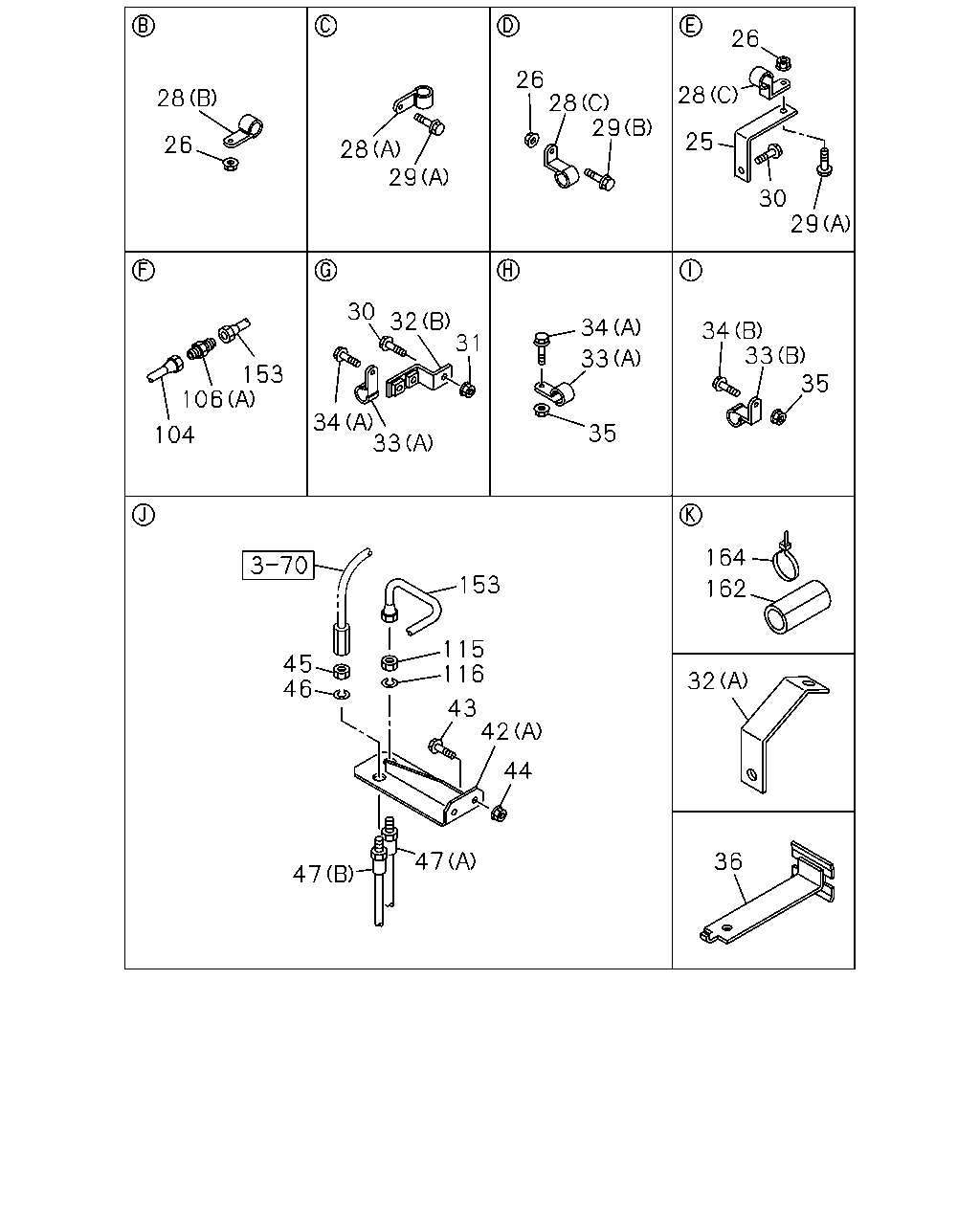

çizim 129092
26 26 28 29 28 28 25 26 28 29 30 29 30 32 31 34 34 33 35 33 153 106 34 33 35 104 164 153 162 115 116 45 46 32 43 42 44 47 36 47
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; OIL PIPE 8-98123-059-0 01 1 1004- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE SOU 		0-91180-108-0 03 1 1004- ● ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1004- ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 1004- ● ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1004- ● ●
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004- ● ●
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004- ● ●
30 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
30 BOLT; BRKT
VIN MODEL YEAR 2011<VZB> M8X30 FLANGE 		0-28650-830-0 01 1 1109- ●
30 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 02 1 1004- ● ●
31 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ● ●
31 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
31 NUT; BRKT
VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ●
31 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1004- ● ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1004- ● ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-059-0 01 1 1004- ● ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1004- ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1004- ● ●
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1004- ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1004- ● ●
35 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
35 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
36 BRACKET; CLIP
VIN MODEL YEAR 2011<VZB> 		8-98124-099-0 01 1 1109- ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1004- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1004-1402 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1004-1108 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1109-1201 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1004- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1004- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 SOU 		0-91510-512-0 01 1 1004- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1004- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1004- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 1004- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004- ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1004- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 SOU 		0-91111-514-0 01 1 1004- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 SOU 		0-91510-514-0 01 1 1004- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1004- ● ●
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1004- ● ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1004- ● ●

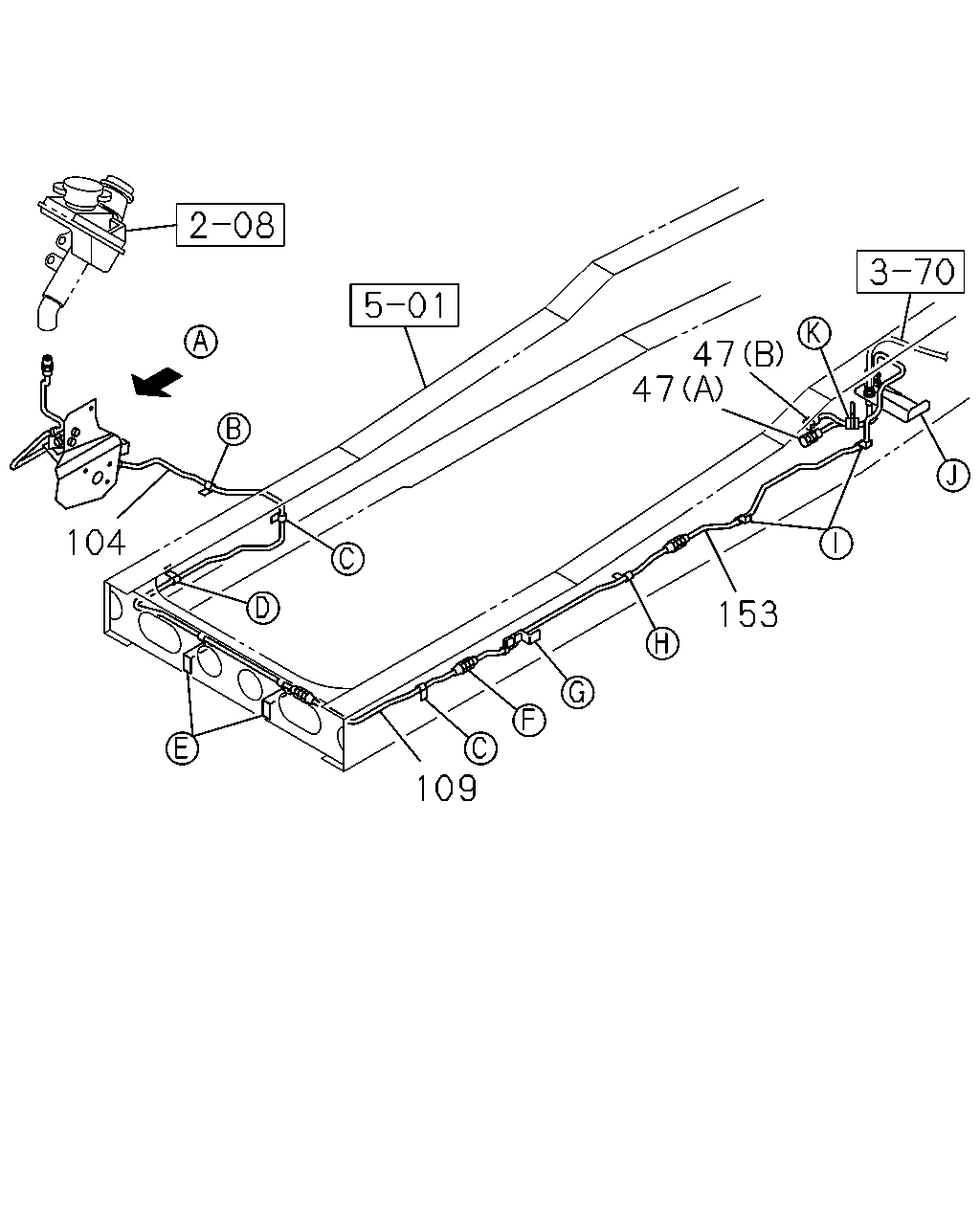

çizim 129094
47 47 104 153 109
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1004- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1004- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 1004- ● ●
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 1004- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1004- ● ●
