Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

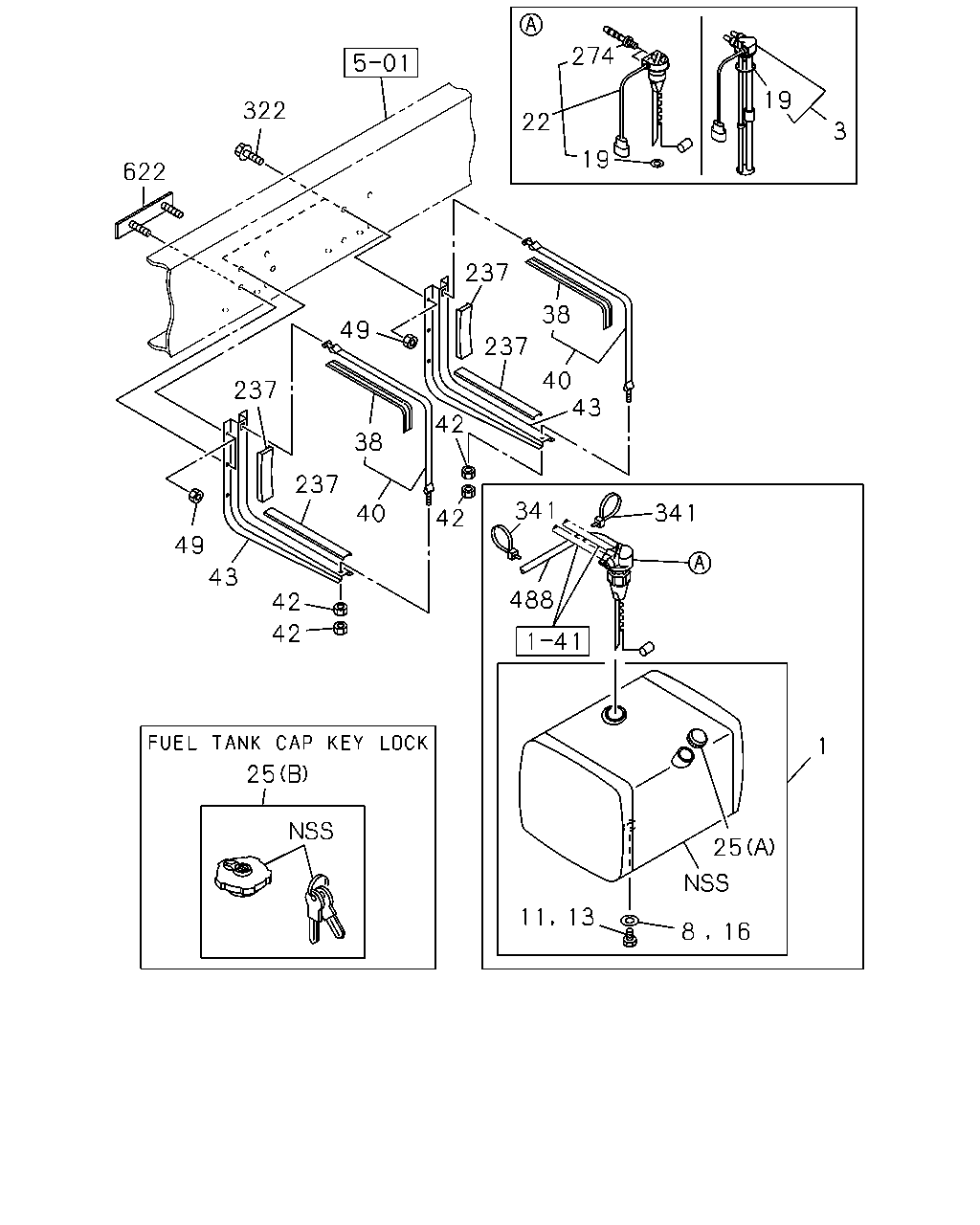

1-40 — FUEL TANK
(#19189) — 29 parça
Tümü
A - FGR5MX
B - GGR5MX
◀
[140A] JOINT;SEDIMENTER (3 parça)
[140A] FIXING (26 parça)
▶
467
329
329
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
329
JOINT ASM; EYE,FUEL PIPE
(A) NPTF3/8-18 OD=12
8-98122-952-0
01
1
1004-
●
●
329
JOINT ASM; EYE,FUEL PIPE
(B) NPTF3/8-18 OD=10
8-98122-953-0
01
1
1004-
●
●
467
BOLT
NPTF3/8-18
8-97329-623-0
02
1
1004-
●
●
19
3
19
274
22
322
622
49
237
237
38
40
341
43
42
341
488
1
16
8
13
11
25
42
43
49
237
42
40
38
237
42
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1050X680X625 400L
1-87411-699-1
01
1
1004-1109
●
●
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1110-
●
●
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1211-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1211-
●
●
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1211-
●
●
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
1004-1210
●
●
16
GASKET; PLUG
ID=18.2 T=1.6
8-98030-453-0
01
1
1004-1210
●
●
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
1004-1210
●
●
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1211-
●
●
22
UNIT; FUEL TANK
1-83141-132-0
01
1
1004-1210
●
●
25
CAP; FILLER,FUEL TANK
(A)
8-98115-780-0
01
1
1004-1109
●
●
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1110-
●
●
25
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (B)
8-98108-595-0
01
1
1004-
●
●
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1004-
●
●
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
1004-1110
●
●
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1111-
●
●
42
NUT; SUPPORT BELT
M10 SOU
0-91110-510-0
04
1
1004-
●
●
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1004-
●
●
49
NUT; BRKT
M12 SOU
0-91110-512-0
10
1
1004-1004
●
●
49
NUT; BRKT
M12 SOU
0-91110-512-0
08
1
1005-
●
●
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1004-
●
●
274
CONNECTOR; ELBOW,FUEL TANK PIPE
1-83149-006-0
02
1
1004-1210
●
●
322
BOLT; BRKT FIX
M12X40 FLANGE
0-28051-240-0
10
1
1004-
●
●
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1004-
●
●
488
HOSE; RUBBER
8-98134-936-0
01
1
1004-
●
●
622
STUD; BRACKET
1-53461-534-0
01
1
1004-
●
●
