◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#19182) — 22 parça

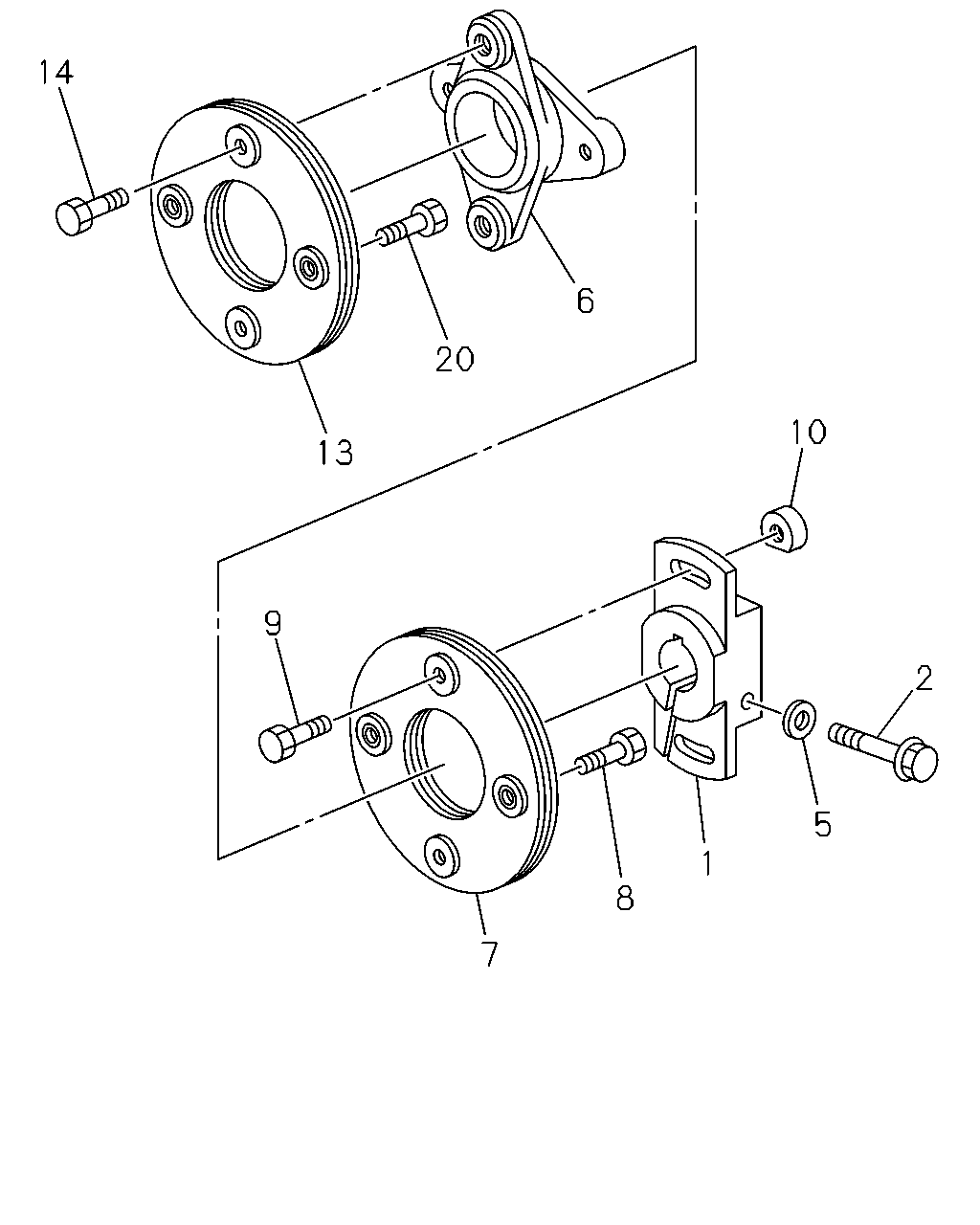

çizim 129062
14 6 20 10 13 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date
1 COUPLING; INJ PUMP DRIVE 1-15781-048-0 01 1 1004-1312
1 COUPLING; INJ PUMP DRIVE
EXC. VIN MODEL YEAR 2011<VZB> 		1-15781-048-0 01 1 1401-
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 1004-1312
2 BOLT; COUPLING FIX,INJ PUMP
EXC. VIN MODEL YEAR 2011<VZB> 		1-15789-162-0 01 1 1401-
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 1004-1312
5 WASHER; COUPLING FIX,INJ PUMP
EXC. VIN MODEL YEAR 2011<VZB> 		1-15789-021-0 01 1 1401-
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-221-0 01 1 1004-1312
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. VIN MODEL YEAR 2011<VZB> 		1-15789-221-0 01 1 1401-
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 1004-1312
7 PLATE; COUPLING,COUPLING SIDE
EXC. VIN MODEL YEAR 2011<VZB> 		1-15619-181-0 01 1 1401-
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 1004-1312
8 BOLT; PLATE TO CROSS COUPLING
EXC. VIN MODEL YEAR 2011<VZB> 		1-15619-183-0 02 1 1401-
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 1004-1312
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. VIN MODEL YEAR 2011<VZB> 		1-15789-159-0 02 1 1401-
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 1004-1312
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. VIN MODEL YEAR 2011<VZB> 		1-15789-165-0 02 1 1401-
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 1004-1312
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. VIN MODEL YEAR 2011<VZB> 		1-15619-181-0 01 1 1401-
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 1004-1312
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. VIN MODEL YEAR 2011<VZB> 		1-15619-183-0 02 1 1401-
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 1004-1312
20 BOLT; COUPLING TO INJ PUMP
EXC. VIN MODEL YEAR 2011<VZB> 		1-15619-183-0 02 1 1401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
