3-55 — BRAKE PIPING; OIL,REAR (#1918) — 66 parça

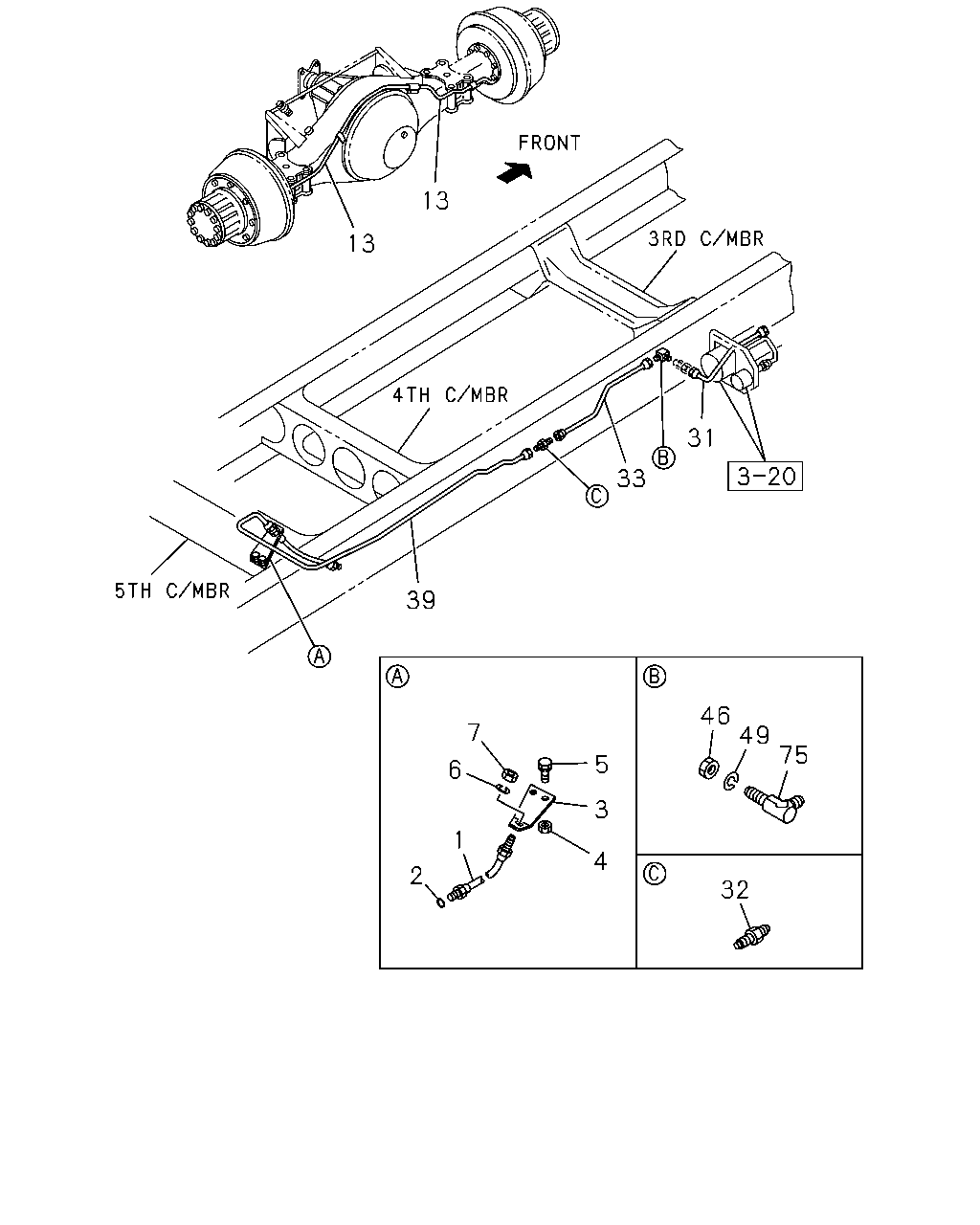

çizim 94506
13 13 31 33 39 46 49 75 7 5 6 3 1 4 2 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,RR BRK
L=625 		1-09364-199-0 01 1 9207- ● ●
1 HOSE; FLEX,RR BRK
L=825 		1-09364-603-0 01 1 9207- ● ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 9207- ● ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9207- ● ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28080-825-0 02 1 9207-9208 ● ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28080-820-0 02 1 9209- ● ● ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9207- ● ● ● ●
13 PIPE; BRK,RR AXLE
L=916 		1-47423-260-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
L=778 		1-47423-259-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
REAR SHOCK ABSORBER<GL6> L=967 		1-47421-639-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
REAR SHOCK ABSORBER<GL6> L=806 		1-47421-638-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR SHOCK ABSORBER<GL6> L=780 		1-47421-310-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR SHOCK ABSORBER<GL6> L=793 		1-47421-131-0 01 1 9207- ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=1122 SERVICED BY L=1200 		1-47434-388-0 01 1 9207- ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=613 SERVICED BY L=650 		9-47415-353-0 01 1 9207- ● ●
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9207- ● ● ● ●
33 PIPE; OIL,UNION TO UNION
L=492 SERVICED BY L=500 		9-47415-350-0 01 1 9207-9310 ● ●
33 PIPE; OIL,UNION TO UNION
L=497 SERVICED BY L=500 		9-47415-350-0 01 1 9311- ● ●
33 PIPE; OIL,UNION TO UNION
L=942 SERVICED BY L=1100 		1-47434-387-0 01 1 9207-9303 ●
33 PIPE; OIL,UNION TO UNION
L=734 SERVICED BY L=800 		1-47426-348-0 01 1 9304- ●
33 PIPE; OIL,UNION TO UNION
L=1534 SERVICED BY L=1700 		1-47434-393-0 01 1 9207-9303 ●
33 PIPE; OIL,UNION TO UNION
L=1343 SERVICED BY L=1370 		1-47426-354-0 01 1 9304- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2100 SERVICED BY L=2200 		1-47434-396-0 01 1 9207-9303 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2062 SERVICED BY L=2200 		1-47426-360-0 01 1 9304- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2550 SERVICED BY L=2650 		1-47434-399-0 01 1 9207-9303 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2512 SERVICED BY L=2650 		1-47426-363-0 01 1 9304- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1981 SERVICED BY L=2200 		1-47434-396-0 01 1 9207-9303 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2125 SERVICED BY L=2200 		1-47426-360-0 01 1 9304- ● ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9207- ● ● ● ●
49 WASHER; LK,UNION,OIL PIPE
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ●
75 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 01 1 9207- ● ● ● ●

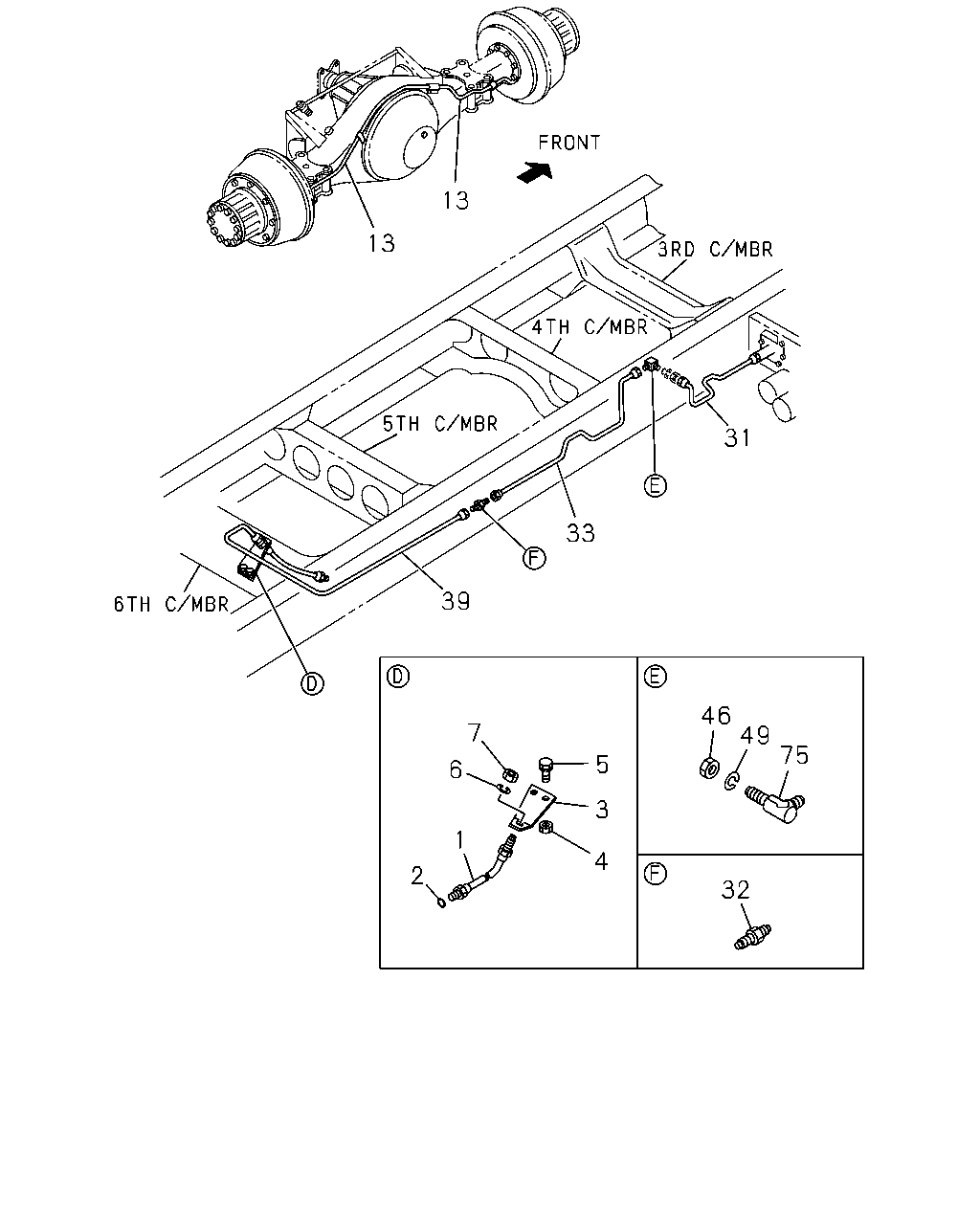

çizim 96450
13 13 31 33 39 46 49 75 7 5 6 3 1 4 2 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,RR BRK
L=625 		1-09364-199-0 01 1 9207- ● ●
1 HOSE; FLEX,RR BRK
L=825 		1-09364-603-0 01 1 9207- ● ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 9207- ● ● ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9207- ● ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28080-825-0 02 1 9207-9208 ● ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28080-820-0 02 1 9209- ● ● ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9207- ● ● ● ●
13 PIPE; BRK,RR AXLE
L=916 		1-47423-260-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
L=778 		1-47423-259-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
REAR SHOCK ABSORBER<GL6> L=967 		1-47421-639-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
REAR SHOCK ABSORBER<GL6> L=806 		1-47421-638-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR SHOCK ABSORBER<GL6> L=780 		1-47421-310-0 01 1 9207- ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR SHOCK ABSORBER<GL6> L=793 		1-47421-131-0 01 1 9207- ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=1122 SERVICED BY L=1200 		1-47434-388-0 01 1 9207- ● ●
31 PIPE; OIL,AIR MASTER TO UNION
L=613 SERVICED BY L=650 		9-47415-353-0 01 1 9207- ● ●
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9207- ● ● ● ●
33 PIPE; OIL,UNION TO UNION
L=492 SERVICED BY L=500 		9-47415-350-0 01 1 9207-9310 ● ●
33 PIPE; OIL,UNION TO UNION
L=497 SERVICED BY L=500 		9-47415-350-0 01 1 9311- ● ●
33 PIPE; OIL,UNION TO UNION
L=942 SERVICED BY L=1100 		1-47434-387-0 01 1 9207-9303 ●
33 PIPE; OIL,UNION TO UNION
L=734 SERVICED BY L=800 		1-47426-348-0 01 1 9304- ●
33 PIPE; OIL,UNION TO UNION
L=1534 SERVICED BY L=1700 		1-47434-393-0 01 1 9207-9303 ●
33 PIPE; OIL,UNION TO UNION
L=1343 SERVICED BY L=1370 		1-47426-354-0 01 1 9304- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2100 SERVICED BY L=2200 		1-47434-396-0 01 1 9207-9303 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2062 SERVICED BY L=2200 		1-47426-360-0 01 1 9304- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2550 SERVICED BY L=2650 		1-47434-399-0 01 1 9207-9303 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2512 SERVICED BY L=2650 		1-47426-363-0 01 1 9304- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1981 SERVICED BY L=2200 		1-47434-396-0 01 1 9207-9303 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2125 SERVICED BY L=2200 		1-47426-360-0 01 1 9304- ● ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9207- ● ● ● ●
49 WASHER; LK,UNION,OIL PIPE
ID=12.2 		9-09150-512-0 01 1 9207-9312 ● ● ● ●
75 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 01 1 9207- ● ● ● ●
