Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#19173) — 47 parça
◀

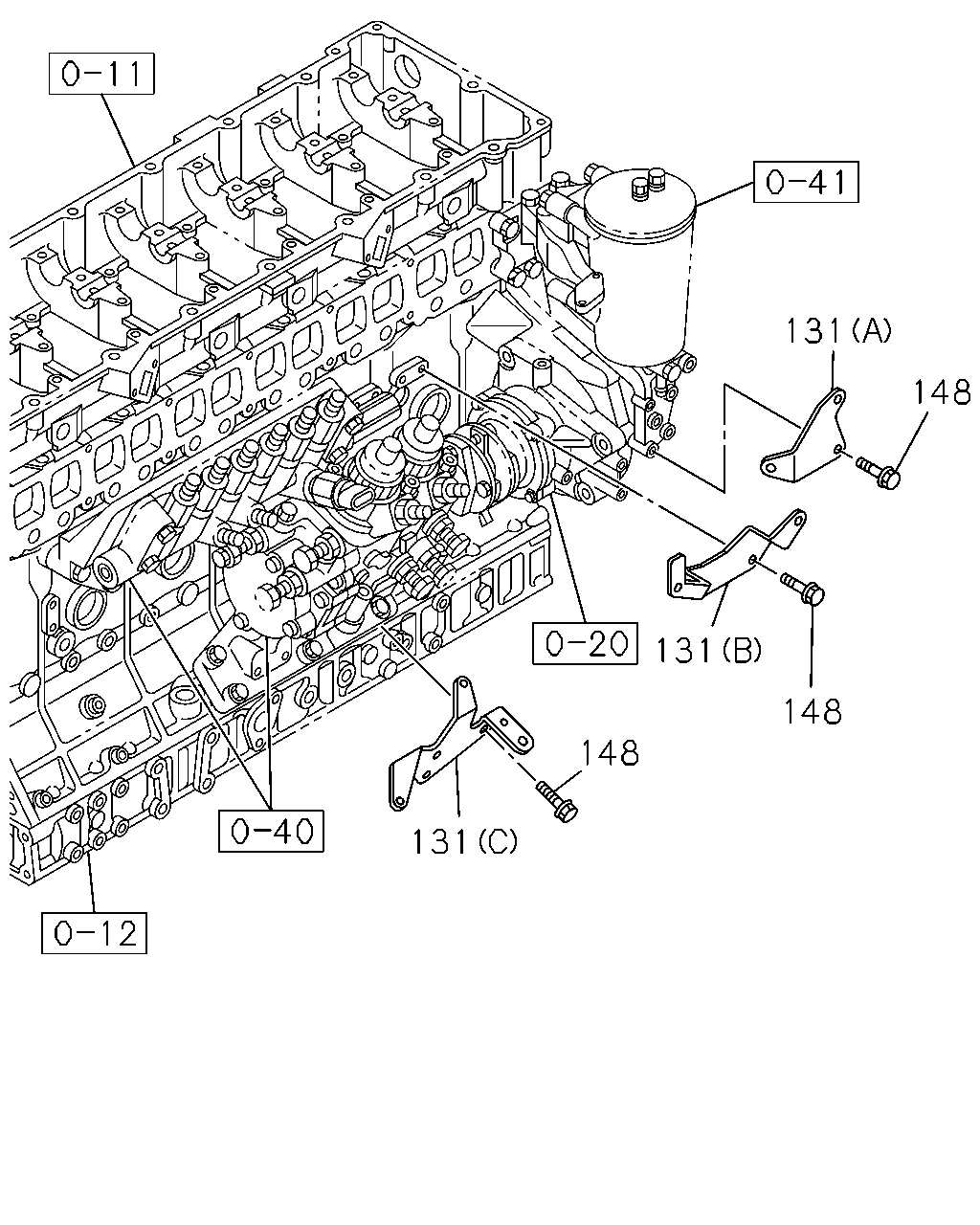

[042A] BRACKET (5 parça)

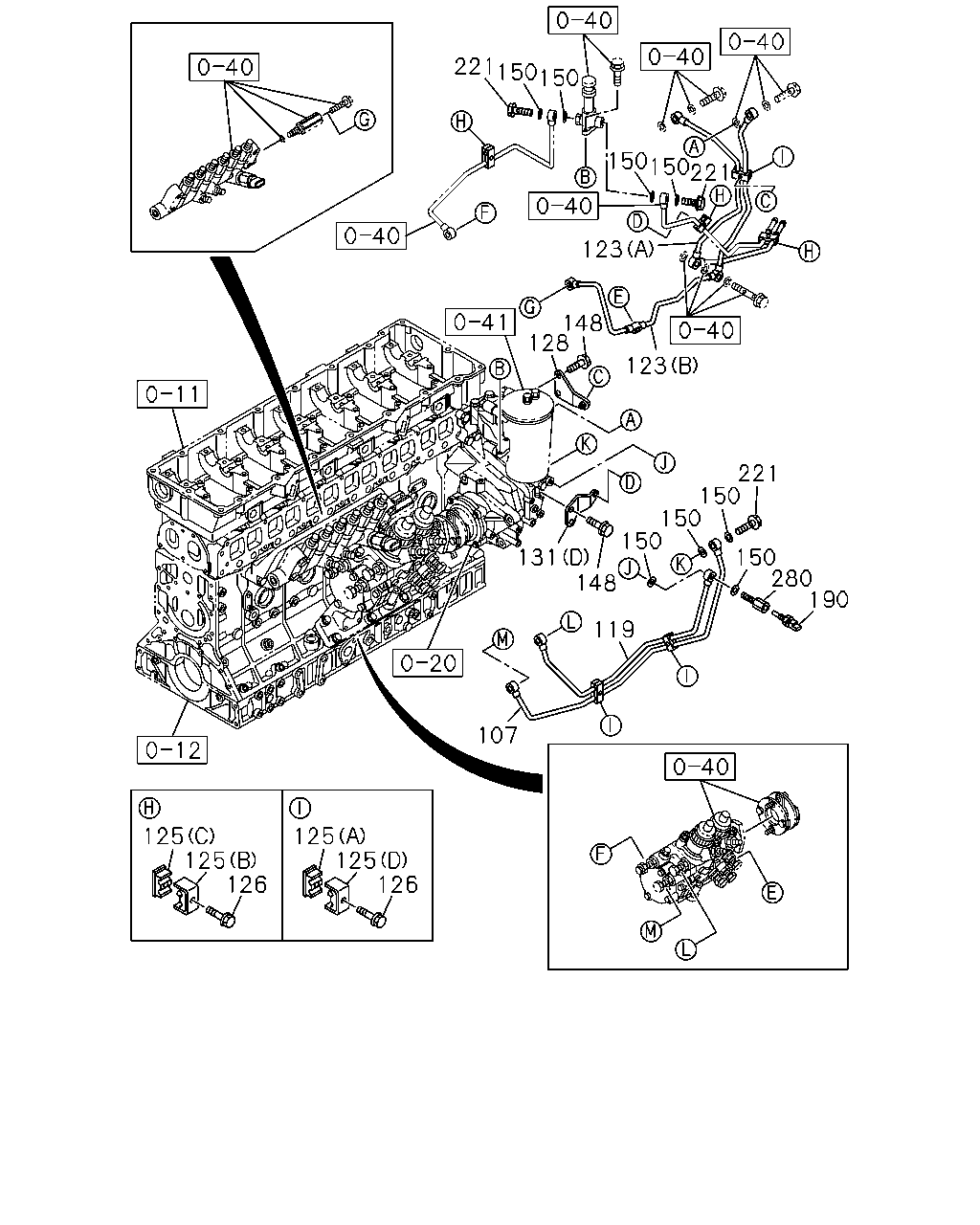

[042A] EXC.VIN 2011 MODEL YEAR;PIPING (21 parça)

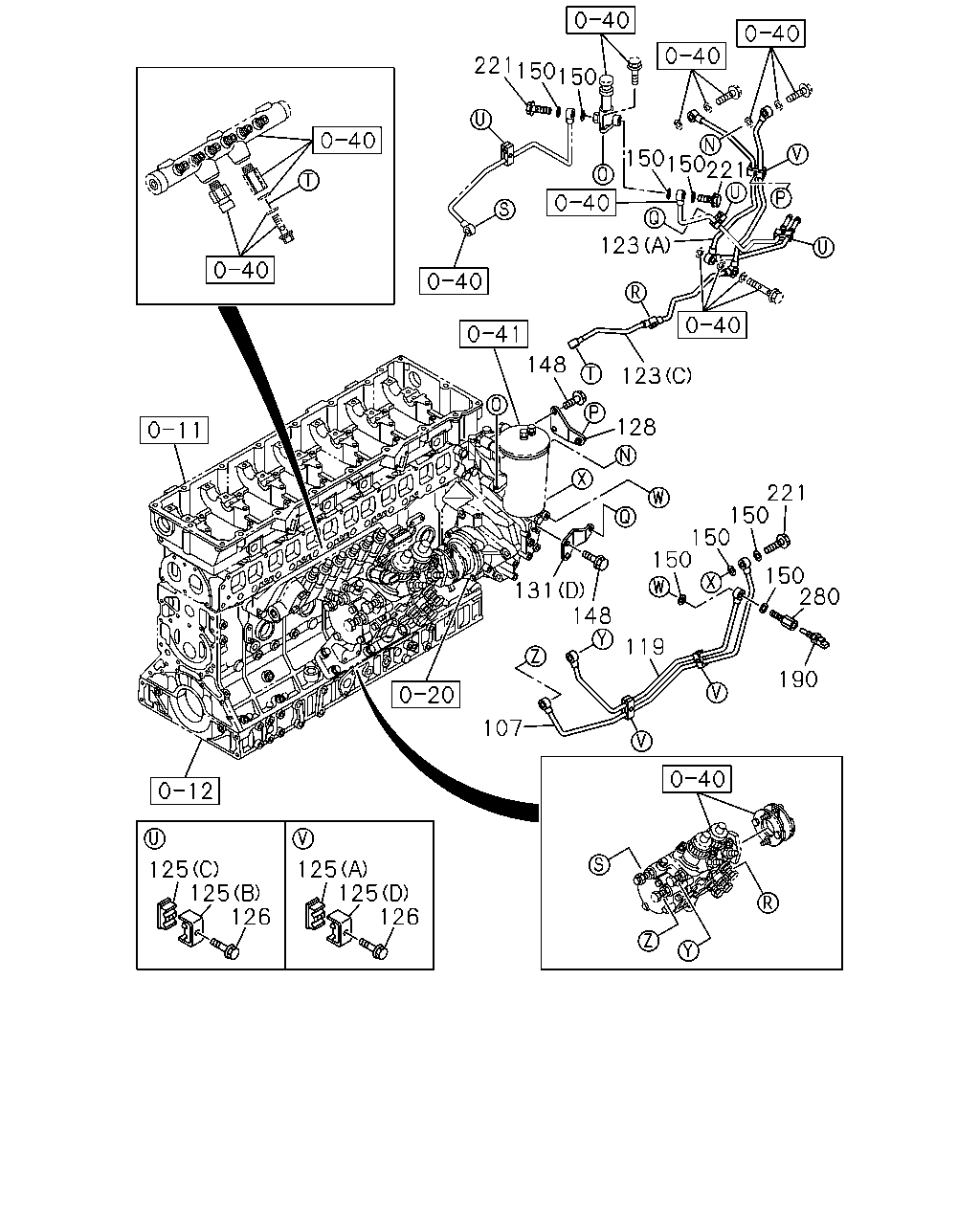

[042A] VIN 2011 MODEL YEAR;PIPING (21 parça)
▶
148
131
148
131
148
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
131
BRACKET; FUEL PIPE CLIP
(A)
8-97603-874-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97605-982-1
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(D)
8-97606-625-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(C)
8-97610-280-0
01
1
1004-
148
BOLT; BRKT
M8X16 FLANGE SOU
0-28050-816-0
11
1
1004-
125
125
126
125
125
126
107
119
131
150
150
148
221
150
150
280
190
123
148
128
123
150
150
221
150
150
221
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97606-621-1
01
1
1004-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97603-752-0
01
1
1004-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
VIN MODEL YEAR 2011<VZB> (C)
8-98170-939-0
01
1
1109-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97606-623-0
01
1
1004-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97606-624-0
01
1
1004-1108
123
PIPE; FUEL,FUEL FILTER LEAK OFF
EXC. VIN MODEL YEAR 2011<VZB> (B)
8-97606-624-0
01
1
1109-
125
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
03
1
1004-
125
CLIP; FUEL PIPE
(B) ID=9 & 11 L=28
1-09701-193-1
03
1
1004-
125
CLIP; FUEL PIPE
(C) ID=9 & 11 L=28
1-09701-194-1
03
1
1004-
125
CLIP; FUEL PIPE
(D) ID=9 & 9 L=25
8-94393-280-3
03
1
1004-
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
06
1
1004-
128
BRACKET; FUEL RETURN CLIP
8-97606-626-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(A)
8-97603-874-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97605-982-1
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(D)
8-97606-625-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(C)
8-97610-280-0
01
1
1004-
148
BOLT; BRKT
M8X16 FLANGE SOU
0-28050-816-0
11
1
1004-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
08
1
1004-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
1004-
221
BOLT; FUEL PIPE
M14X27 FLANGE
1-09675-086-0
03
1
1004-
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
1004-
221
221
150
150
150
150
123
148
123
128
221
150
150
150
131
148
119
107
190
280
150
125
125
126
126
125
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97606-621-1
01
1
1004-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97603-752-0
01
1
1004-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
VIN MODEL YEAR 2011<VZB> (C)
8-98170-939-0
01
1
1109-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97606-623-0
01
1
1004-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97606-624-0
01
1
1004-1108
123
PIPE; FUEL,FUEL FILTER LEAK OFF
EXC. VIN MODEL YEAR 2011<VZB> (B)
8-97606-624-0
01
1
1109-
125
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
03
1
1004-
125
CLIP; FUEL PIPE
(B) ID=9 & 11 L=28
1-09701-193-1
03
1
1004-
125
CLIP; FUEL PIPE
(C) ID=9 & 11 L=28
1-09701-194-1
03
1
1004-
125
CLIP; FUEL PIPE
(D) ID=9 & 9 L=25
8-94393-280-3
03
1
1004-
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
06
1
1004-
128
BRACKET; FUEL RETURN CLIP
8-97606-626-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(A)
8-97603-874-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97605-982-1
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(D)
8-97606-625-0
01
1
1004-
131
BRACKET; FUEL PIPE CLIP
(C)
8-97610-280-0
01
1
1004-
148
BOLT; BRKT
M8X16 FLANGE SOU
0-28050-816-0
11
1
1004-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
08
1
1004-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
1004-
221
BOLT; FUEL PIPE
M14X27 FLANGE
1-09675-086-0
03
1
1004-
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
1004-
