0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#19169) — 72 parça

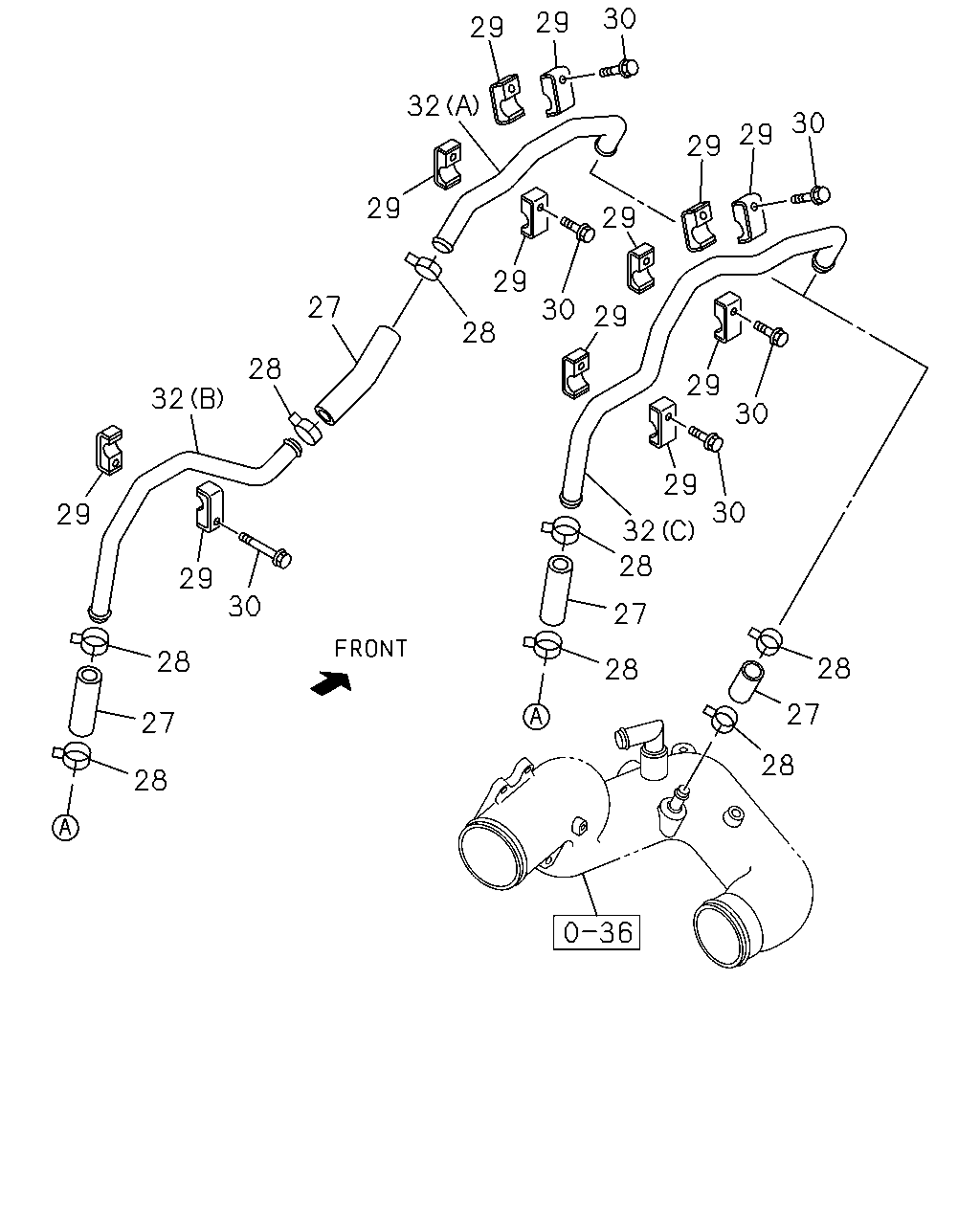

32 29 29 30 29 29 30 29 30 29 29 28 29 27 28 32 29 29 30 28 27 28 27 28 28 32 28 27 28 29 30 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; AIR CMPR,SUCTION	8-97613-266-0	03	1	1004-1409
27	HOSE; AIR CMPR,SUCTION	8-97613-266-0	02	1	1410-
28	CLIP; HOSE,AIR CMPR ID=31.2	8-97237-146-0	06	1	1004-1409
28	CLIP; HOSE,AIR CMPR ID=31.2	8-97237-146-0	04	1	1410-
29	CLIP; AIR PIPE ID=24.5 L=22	8-97603-362-1	06	1	1004-
30	BOLT; PIPE CLIP M8X50 FLANGE	0-28050-850-0	03	1	1004-
32	PIPE; AIR,AIR CMPR (A)	8-97613-954-0	01	1	1004-1409
32	PIPE; AIR,AIR CMPR (C)	8-98277-382-0	01	1	1410-
32	PIPE; AIR,AIR CMPR (B)	8-97613-955-0	01	1	1004-1409

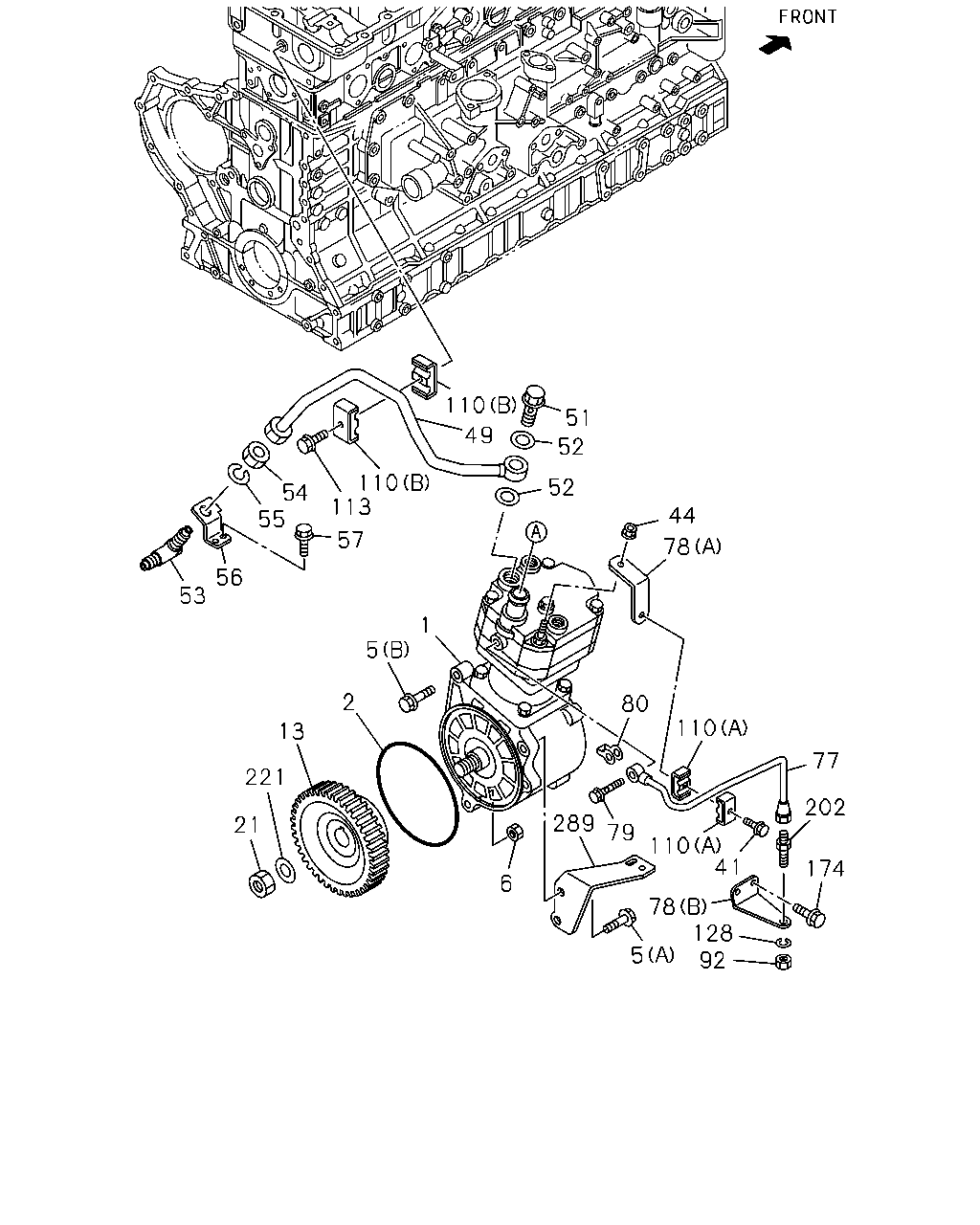

110 51 49 52 110 113 52 54 55 44 57 78 56 53 1 5 2 80 110 13 77 221 202 289 21 79 110 41 174 6 78 128 92 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98021-309-5	01	1	1004-1201
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98207-921-0	01	1	1202-1209
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98227-940-0	01	1	1210-1301
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98224-245-0	01	1	1302-1310
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98249-115-0	01	1	1311-1401
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98271-053-1	01	1	1402-1508
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98302-838-0	01	1	1509-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	1004-
5	BOLT; AIR CMPR FIX (A) M12X50 FLANGE	0-28151-250-0	02	1	1004-
5	BOLT; AIR CMPR FIX (B) M12X140 FLANGE	0-28156-214-0	01	1	1004-
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	01	1	1004-
13	GEAR; AIR CMPR DRIVE Z=46	8-97603-053-2	01	1	1004-
21	NUT; PUMP GEAR M24	0-91110-524-0	01	1	1004-
41	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1004-
44	NUT M10 FLANGE SOU	0-91180-110-0	01	1	1004-
49	PIPE; AIR,CHARGE	8-97611-175-3	01	1	1004-1205
49	PIPE; AIR,CHARGE	8-98216-696-0	01	1	1206-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1004-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1004-
53	UNION; CHARGE PIPE M22 & M26 ELBOW	8-98008-887-2	01	1	1004-
54	NUT; PIPE UNION M26	8-98049-390-0	01	1	1004-
55	WASHER; LK,PIPE UNION ID=27.5	0-91510-527-0	01	1	1004-
56	BRACKET; AIR PIPE FIX	8-97603-937-2	01	1	1004-
57	BOLT; BRKT,AIR PIPE M10X20 FLANGE	0-28151-020-0	01	1	1004-
77	PIPE; AIR,GOV	8-97611-179-0	01	1	1004-1011
77	PIPE; AIR,GOV	8-98145-567-0	01	1	1012-
78	BRACKET; PIPE,AIR GOV (B)	8-97605-218-1	01	1	1004-
78	BRACKET; PIPE,AIR GOV (A)	8-97613-275-1	01	1	1004-
79	BOLT; EYE,AIR PIPE TO CMPR M10X25	9-09906-173-1	01	1	1004-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6	8-97240-975-0	01	1	1004-1301
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6	8-98231-393-0	01	1	1302-
92	NUT; UNION M12	9-09840-280-0	04	1	1004-
110	CLIP; AIR PIPE (A)	1-09701-132-1	02	1	1004-1011
110	CLIP; AIR PIPE (A) ID=11 & 11 L=19	8-98039-293-0	02	1	1012-1405
110	CLIP; AIR PIPE (A) ID=11 & 11 L=19	8-98148-996-2	02	1	1406-
110	CLIP; AIR PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1004-
113	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28050-840-0	01	1	1004-
128	WASHER; LK,UNION ID=12.2 SOU	0-91510-512-0	04	1	1004-
174	BOLT; BRKT M8X16 FLANGE SOU	0-28050-816-0	04	1	1004-
202	UNION; AIR PIPE M12 L=62.5	0-92113-206-0	04	1	1004-
221	WASHER; PL,GEAR ID=24	9-09164-624-0	01	1	1004-
289	BRACKET; CABLE	8-98055-448-3	01	1	1004-

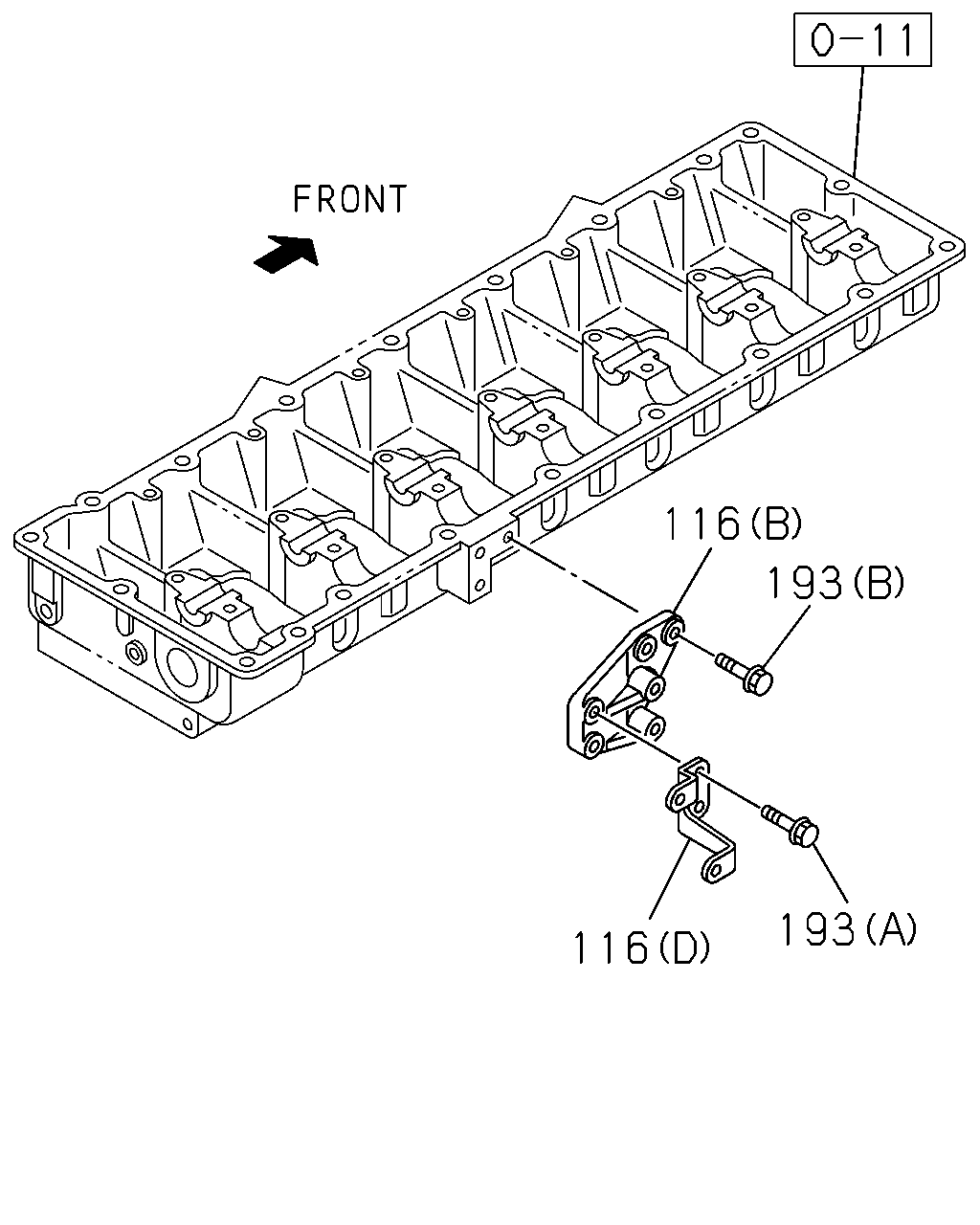

116 193 193 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	BRACKET; AIR PIPE (A)	8-97603-755-2	01	1	1004-
116	BRACKET; AIR PIPE (B)	8-97605-948-0	01	1	1004-
116	BRACKET; AIR PIPE (C)	8-97605-950-0	01	1	1004-
116	BRACKET; AIR PIPE (D)	8-98052-306-0	01	1	1004-
193	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1004-
193	BOLT; BRKT (B) M10X35 FLANGE SOU	0-28751-035-0	03	1	1004-

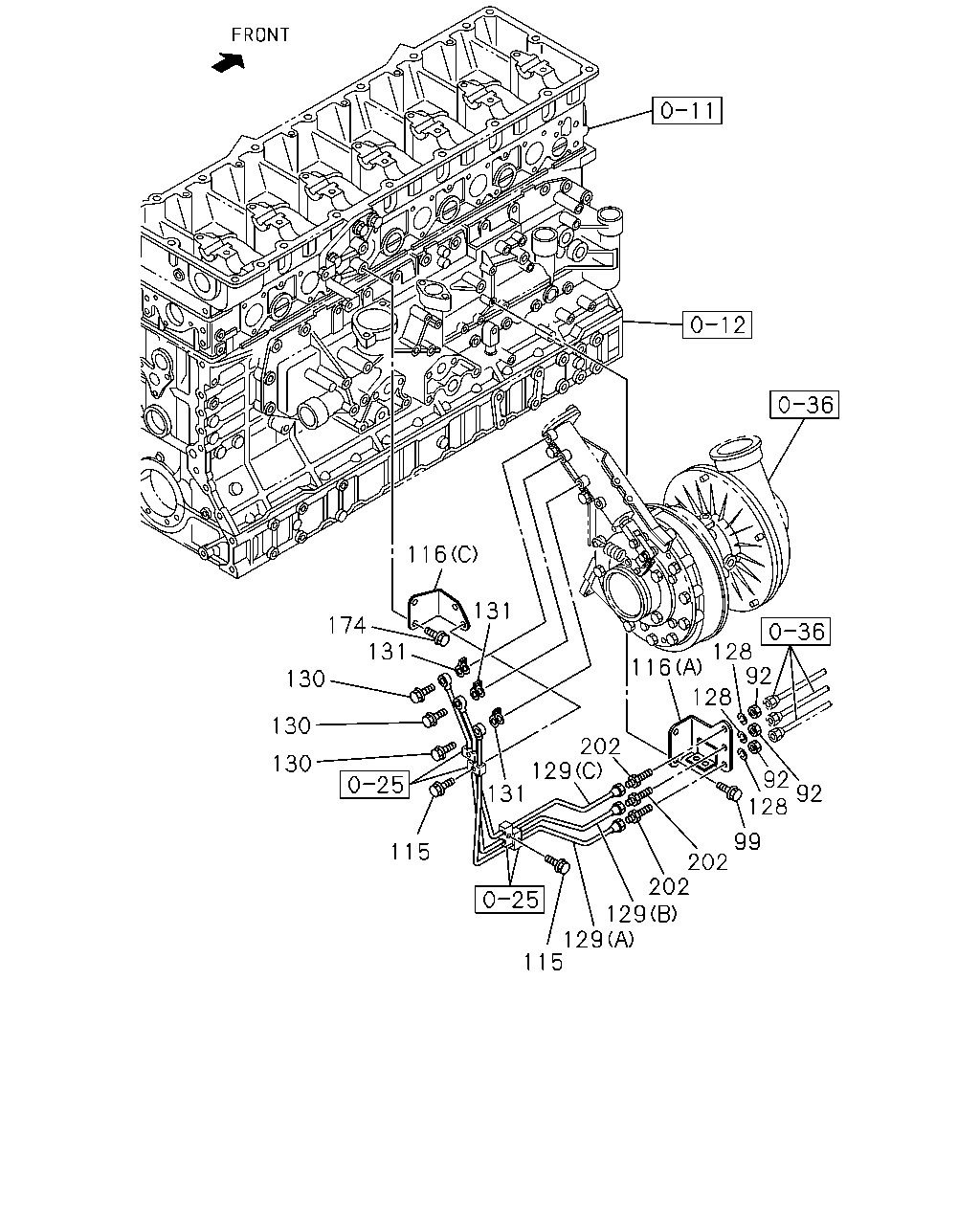

116 131 174 131 128 92 116 130 128 130 202 129 130 92 92 128 131 99 202 202 129 129 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	NUT; UNION M12	9-09840-280-0	04	1	1004-
99	BOLT; BRKT AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	1004-
115	BOLT; AIR PIPE M6X30 FLANGE	0-28050-630-0	04	1	1004-
116	BRACKET; AIR PIPE (A)	8-97603-755-2	01	1	1004-
116	BRACKET; AIR PIPE (B)	8-97605-948-0	01	1	1004-
116	BRACKET; AIR PIPE (C)	8-97605-950-0	01	1	1004-
116	BRACKET; AIR PIPE (D)	8-98052-306-0	01	1	1004-
128	WASHER; LK,UNION ID=12.2 SOU	0-91510-512-0	04	1	1004-
129	PIPE; AIR,VGS (A)	8-97604-865-0	01	1	1004-
129	PIPE; AIR,VGS (B)	8-97604-866-0	01	1	1004-
129	PIPE; AIR,VGS (C)	8-97604-867-0	01	1	1004-
130	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	03	1	1004-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-97365-390-0	03	1	1004-
174	BOLT; BRKT M8X16 FLANGE SOU	0-28050-816-0	04	1	1004-
202	UNION; AIR PIPE M12 L=62.5	0-92113-206-0	04	1	1004-
