Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#19168) — 32 parça
◀

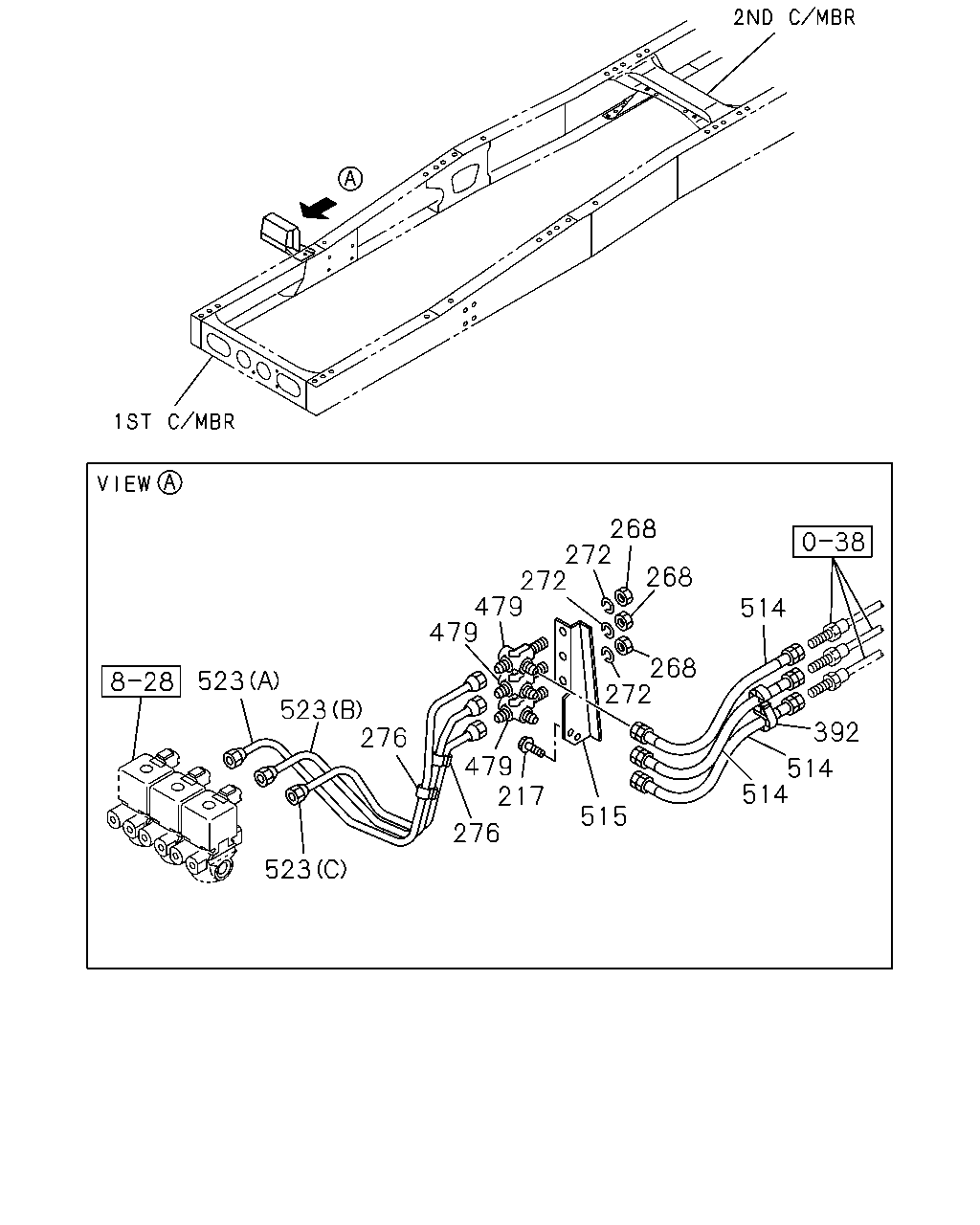

[036A] FLEX HOSE (11 parça)

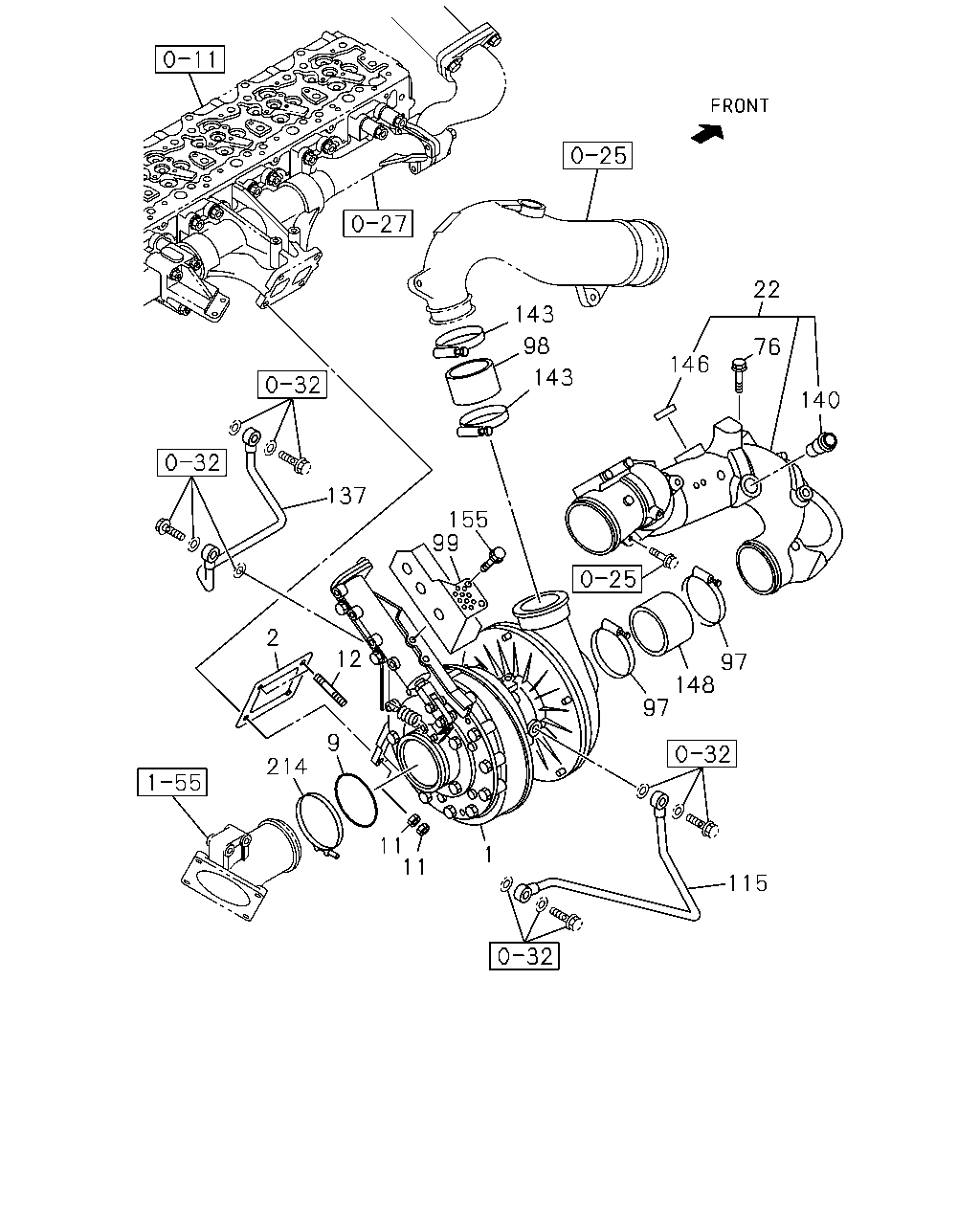

[036A] TURBOCHARGER FIXING (21 parça)
▶
268
272
272
479
479
268
514
268
272
523
523
276
392
479
217
514
514
515
276
523
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
217
BOLT; BRKT
M8X16 FLANGE SOU
0-28050-816-0
02
1
1004-
268
NUT; FLEX TUBE
M12 SOU
0-91110-512-0
03
1
1004-
272
WASHER; LK,FLEX HOSE
ID=12.2 SOU
0-91510-512-0
03
1
1004-
276
CLIP; PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
1004-
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1004-
479
UNION; FLEX TUBE
M12 2WAY SOU
1-09654-059-2
03
1
1004-
514
HOSE; FLEX
L=240
1-09363-671-0
03
1
1004-
515
BRACKET; UNION
8-97608-912-1
01
1
1004-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550
1-47428-808-0
01
1
1004-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439
8-97618-499-0
01
1
1004-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379
8-97618-500-0
01
1
1004-
143
143
98
146
76
22
140
97
148
97
115
1
11
11
9
214
12
2
99
155
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-429-5
01
1
1004-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1004-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1004-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1004-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1004-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
1004-
76
BOLT; AIR DUCT
M10X45 FLANGE
0-28151-045-0
03
1
1004-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-144-0
02
1
1004-1007
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1008-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-97606-779-0
01
1
1004-1007
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=63.6 L=64
8-98169-677-0
01
1
1008-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1004-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1004-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1004-
140
PIPE; AIR PIPE
8-97603-427-1
01
1
1004-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=87-111
8-97375-039-0
02
1
1004-1007
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1008-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1004-
148
HOSE; TURBOCHARGER,INL
ID=101.6 OD=111.6 L=70
1-09360-913-0
01
1
1004-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE SOU
0-28050-610-0
04
1
1004-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1004-
