0-32 — WATER PIPING; ENGINE (#19166) — 165 parça

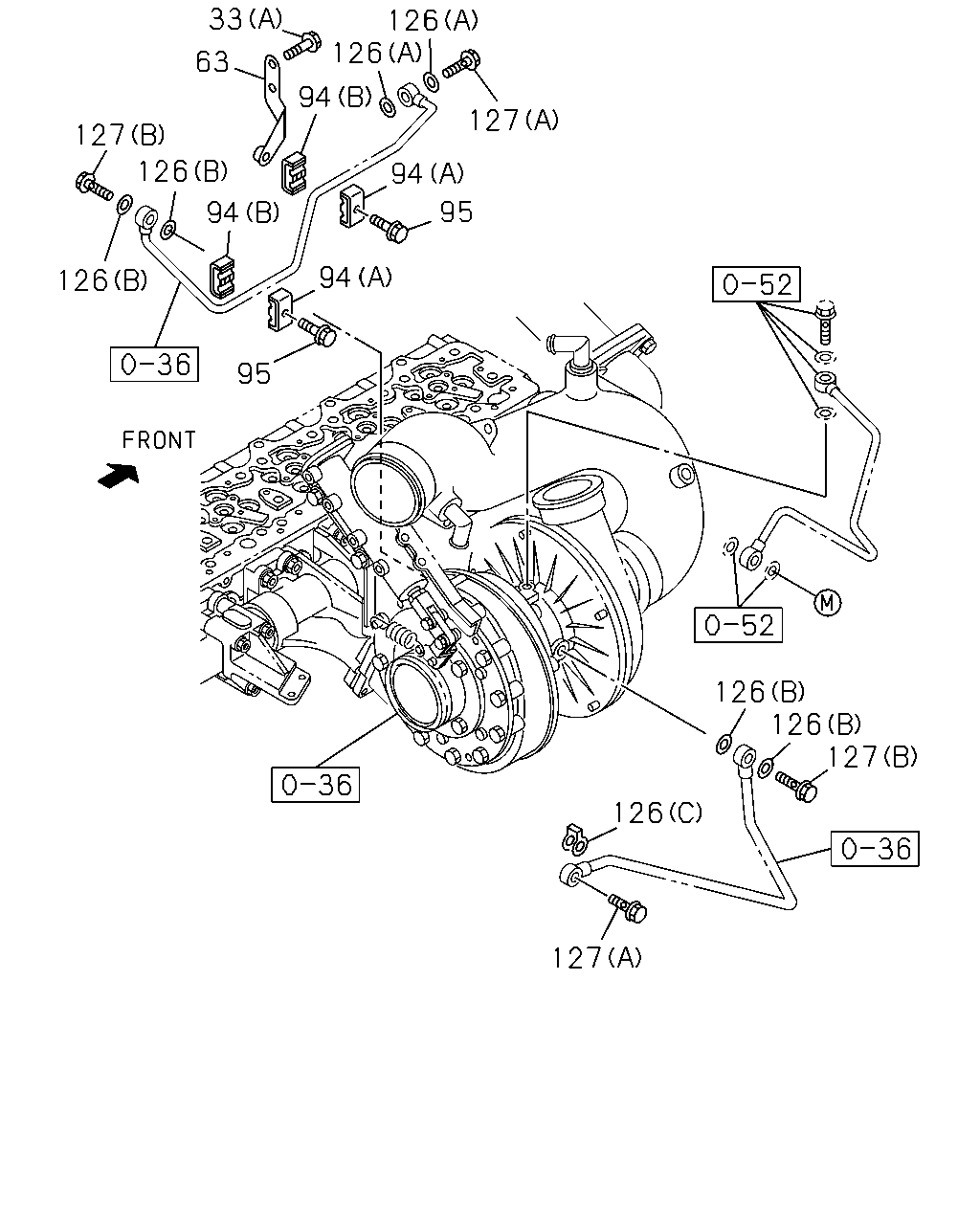

126 126 127 94 94 33 63 127 94 126 126 95 94 95 126 126 127 127 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	1004-
63	BRACKET; WATER PIPE	8-97615-267-0	01	1	1004-
94	CLIP; WATER PIPE VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	02	1	1109-
94	CLIP; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	06	1	1109-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	1004-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	1004-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	1004-1108
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1109-
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	1004-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1004-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1004-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=21	8-97251-047-0	01	1	1004-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	02	1	1004-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1004-

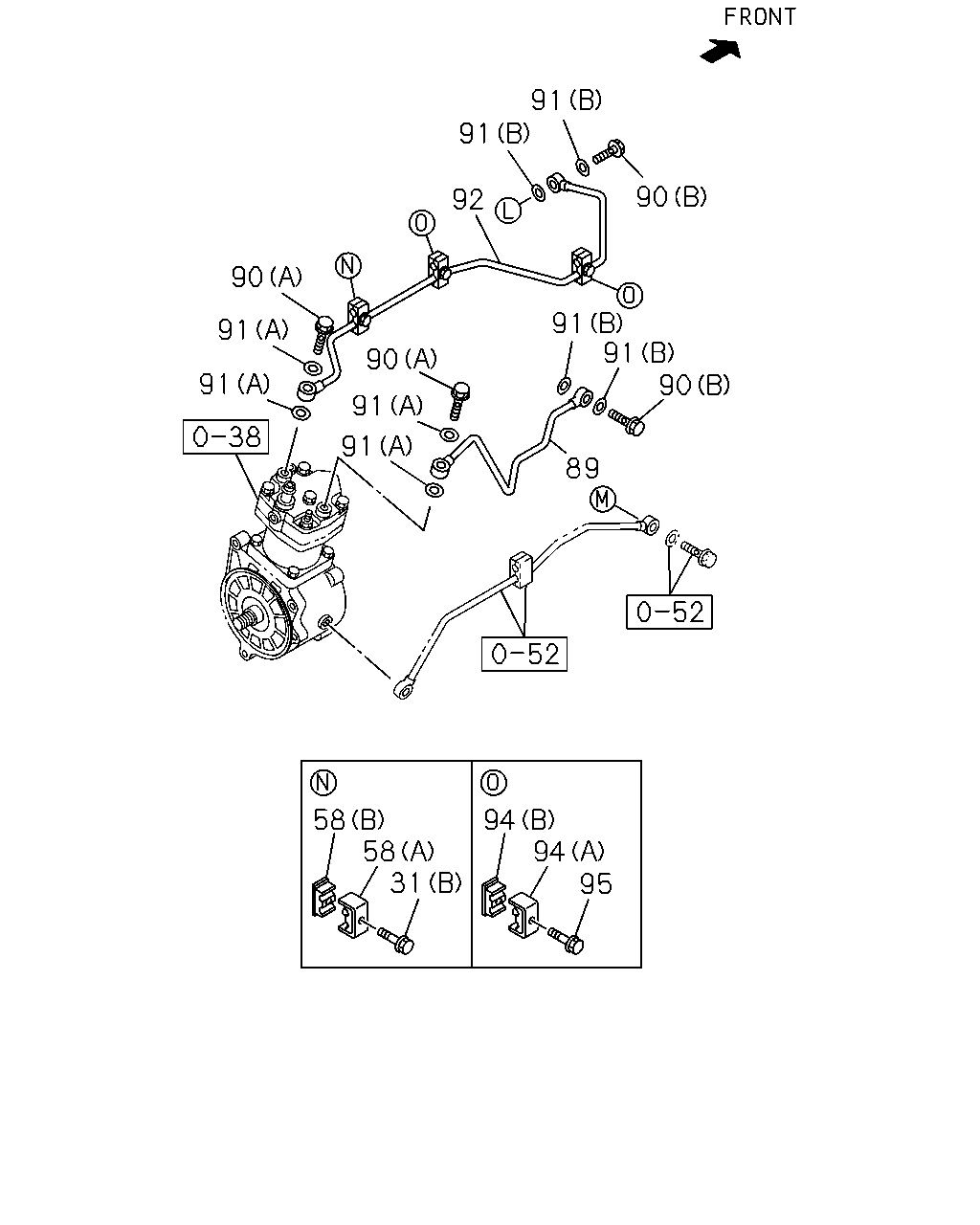

91 91 90 92 90 91 91 90 91 90 91 91 91 89 58 58 31 94 94 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1109-
31	BOLT; CLIP EXC. VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1109-
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	10	1	1004-1108
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	07	1	1109-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	1004-
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	1004-
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	1004-
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	1004-
89	PIPE; WATER,AIR CMPR,IN	8-97611-169-0	01	1	1004-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M16X30 FLANGE	1-09675-095-1	02	1	1004-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1004-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=16.2	1-09630-086-0	04	1	1004-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=25	1-09630-141-0	04	1	1004-
92	PIPE; WATER,AIR CMPR,OUT	8-97611-171-0	01	1	1004-
94	CLIP; WATER PIPE VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	02	1	1109-
94	CLIP; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	06	1	1109-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	1004-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	1004-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	1004-1108
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1109-
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	1004-

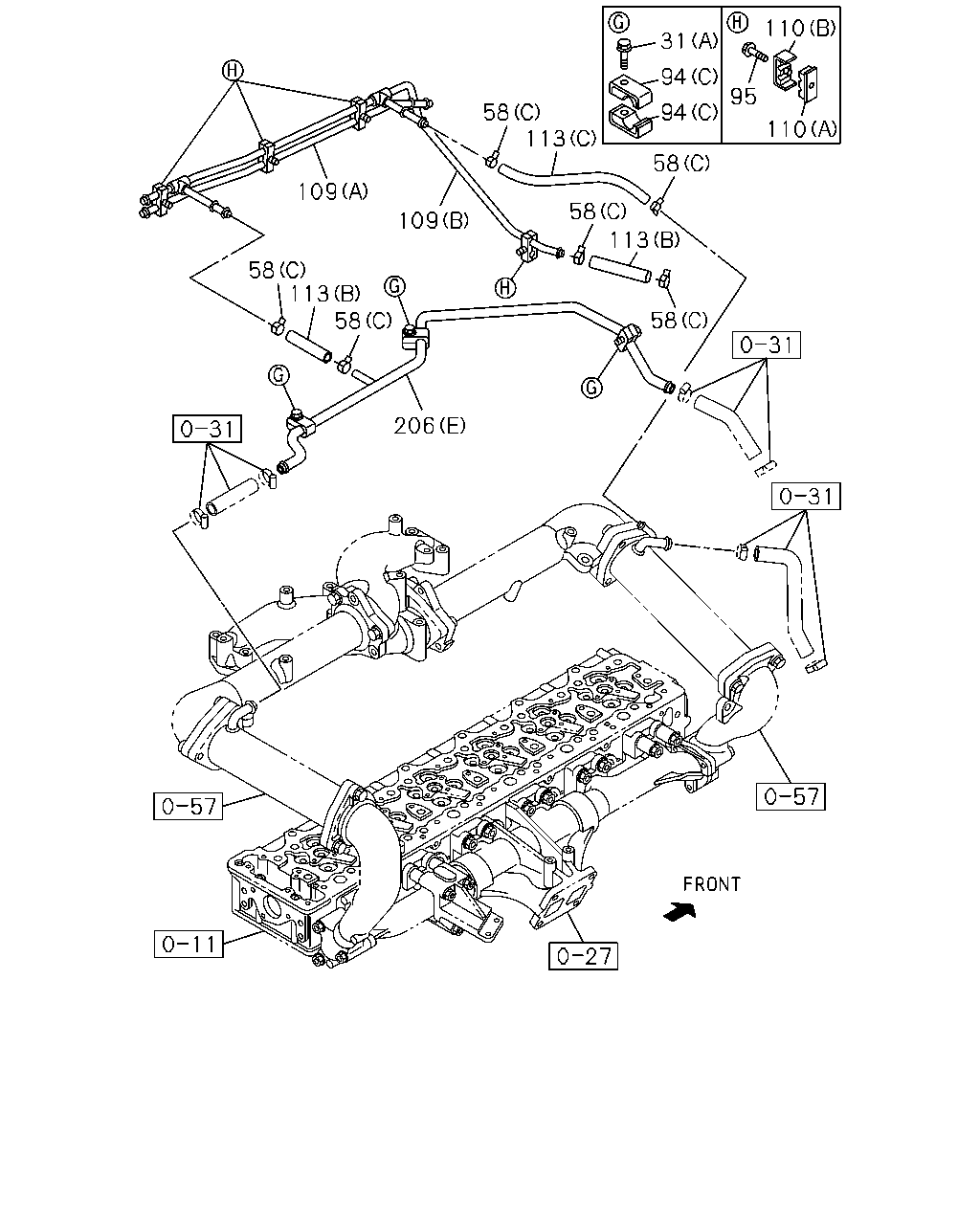

31 94 94 95 110 110 58 113 58 113 58 109 113 58 206 58 109 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1109-
31	BOLT; CLIP EXC. VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1109-
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	10	1	1004-1108
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	07	1	1109-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	1004-
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	1004-
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	1004-
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	1004-
94	CLIP; WATER PIPE VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	02	1	1109-
94	CLIP; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	06	1	1109-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	1004-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	1004-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	1004-1108
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1109-
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	1004-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97603-725-0	01	1	1004-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97603-726-1	01	1	1004-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	1004-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	1004-
113	HOSE; RUBBER,AIR LEAK VIN MODEL YEAR 2011<VZB> (C) L=280 SERVICED BY L=3000	0-03559-300-0	01	1	1109-
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1004-1108
113	HOSE; RUBBER,AIR LEAK EXC. VIN MODEL YEAR 2011<VZB> (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1109-
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1004-1108
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1109-
113	HOSE; RUBBER,AIR LEAK VIN MODEL YEAR 2011<VZB> (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1109-
206	PIPE; WATER,EGR COOLER VIN MODEL YEAR 2011<VZB> (E)	8-98172-218-0	01	1	1109-
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	1004-
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97603-722-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (C)	8-97603-723-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	1004-

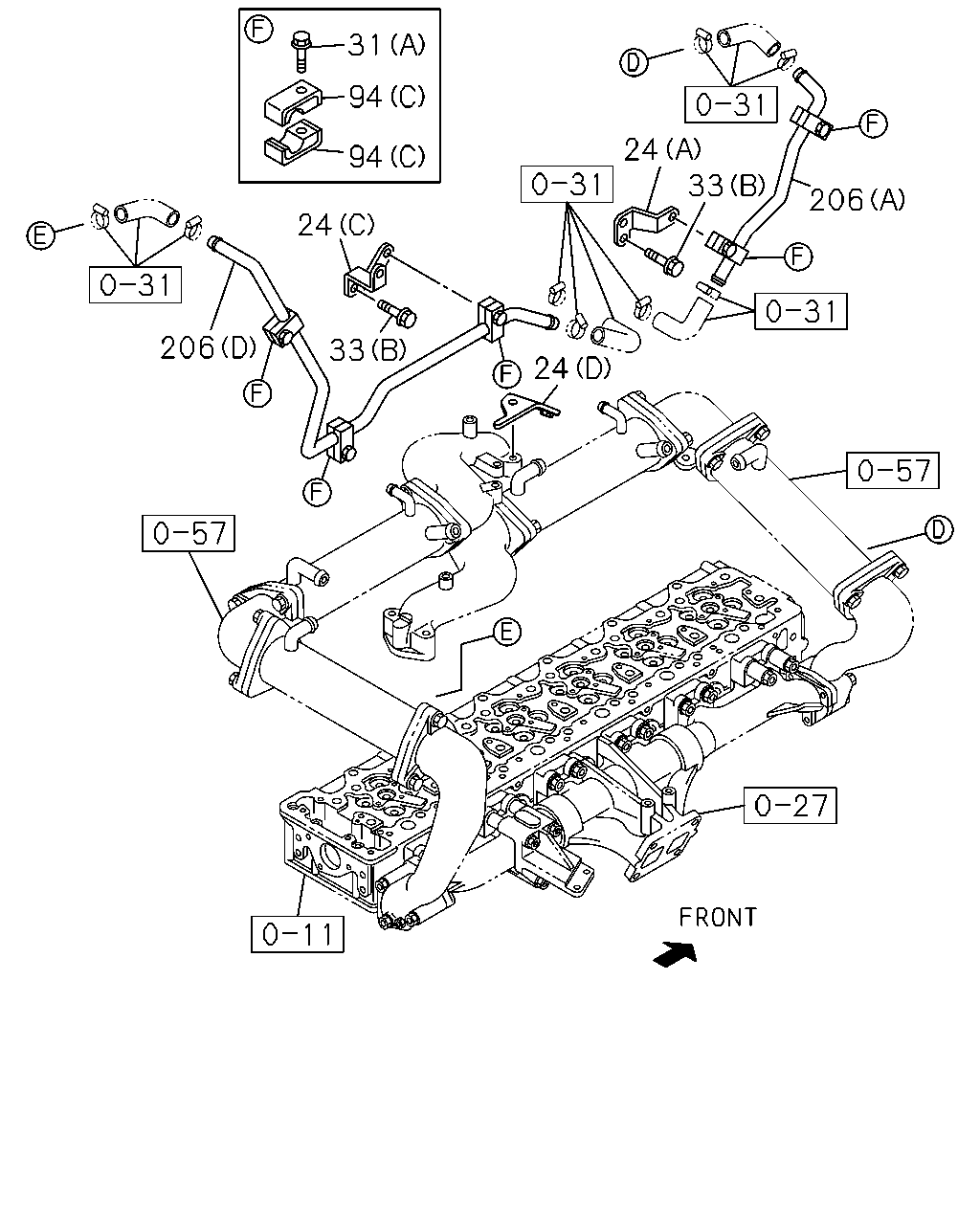

31 94 94 24 33 206 24 33 24 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (D)	8-98147-674-2	01	1	1202-
24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	1004-
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	1004-
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	1004-
31	BOLT; CLIP VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1109-
31	BOLT; CLIP EXC. VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1109-
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	10	1	1004-1108
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	07	1	1109-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	1004-
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	1004-
94	CLIP; WATER PIPE VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	02	1	1109-
94	CLIP; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	06	1	1109-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	1004-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	1004-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	1004-1108
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1109-
206	PIPE; WATER,EGR COOLER VIN MODEL YEAR 2011<VZB> (E)	8-98172-218-0	01	1	1109-
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	1004-
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97603-722-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (C)	8-97603-723-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	1004-

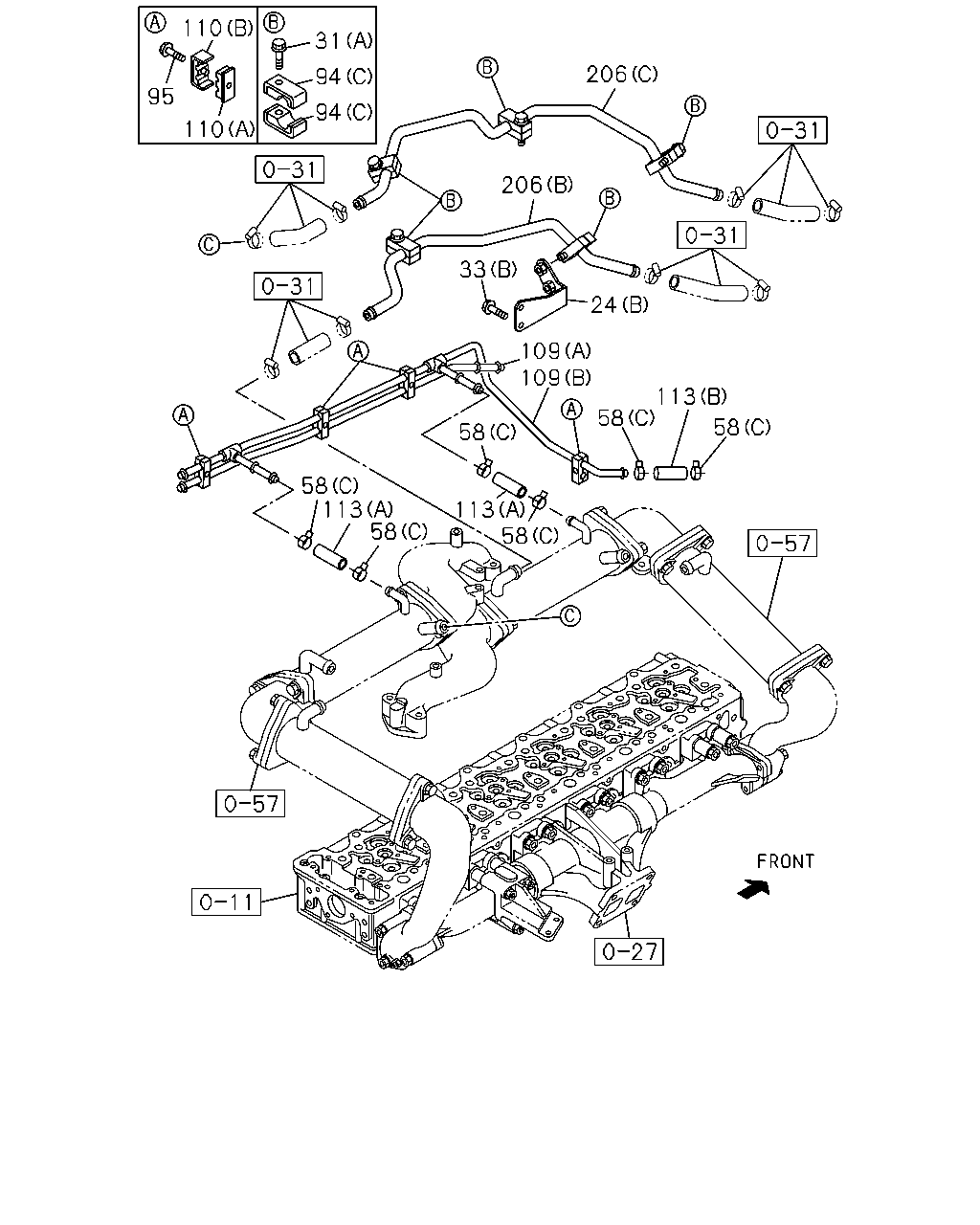

110 95 31 94 94 110 206 206 33 24 109 109 58 58 113 58 113 58 58 113 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (D)	8-98147-674-2	01	1	1202-
24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	1004-
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	1004-
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	1004-
31	BOLT; CLIP VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1109-
31	BOLT; CLIP EXC. VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1109-
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	10	1	1004-1108
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	07	1	1109-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	1004-
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	1004-
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	1004-
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	1004-
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	1004-
94	CLIP; WATER PIPE VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	02	1	1109-
94	CLIP; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	06	1	1109-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	1004-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	1004-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	1004-1108
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1109-
95	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	07	1	1004-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97603-725-0	01	1	1004-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97603-726-1	01	1	1004-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	1004-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	1004-
113	HOSE; RUBBER,AIR LEAK VIN MODEL YEAR 2011<VZB> (C) L=280 SERVICED BY L=3000	0-03559-300-0	01	1	1109-
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1004-1108
113	HOSE; RUBBER,AIR LEAK EXC. VIN MODEL YEAR 2011<VZB> (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1109-
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1004-1108
113	HOSE; RUBBER,AIR LEAK (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1109-
113	HOSE; RUBBER,AIR LEAK VIN MODEL YEAR 2011<VZB> (B) L=100 SERVICED BY L=3000	0-03559-300-0	01	1	1109-
206	PIPE; WATER,EGR COOLER VIN MODEL YEAR 2011<VZB> (E)	8-98172-218-0	01	1	1109-
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	1004-
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97603-722-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (C)	8-97603-723-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	1004-

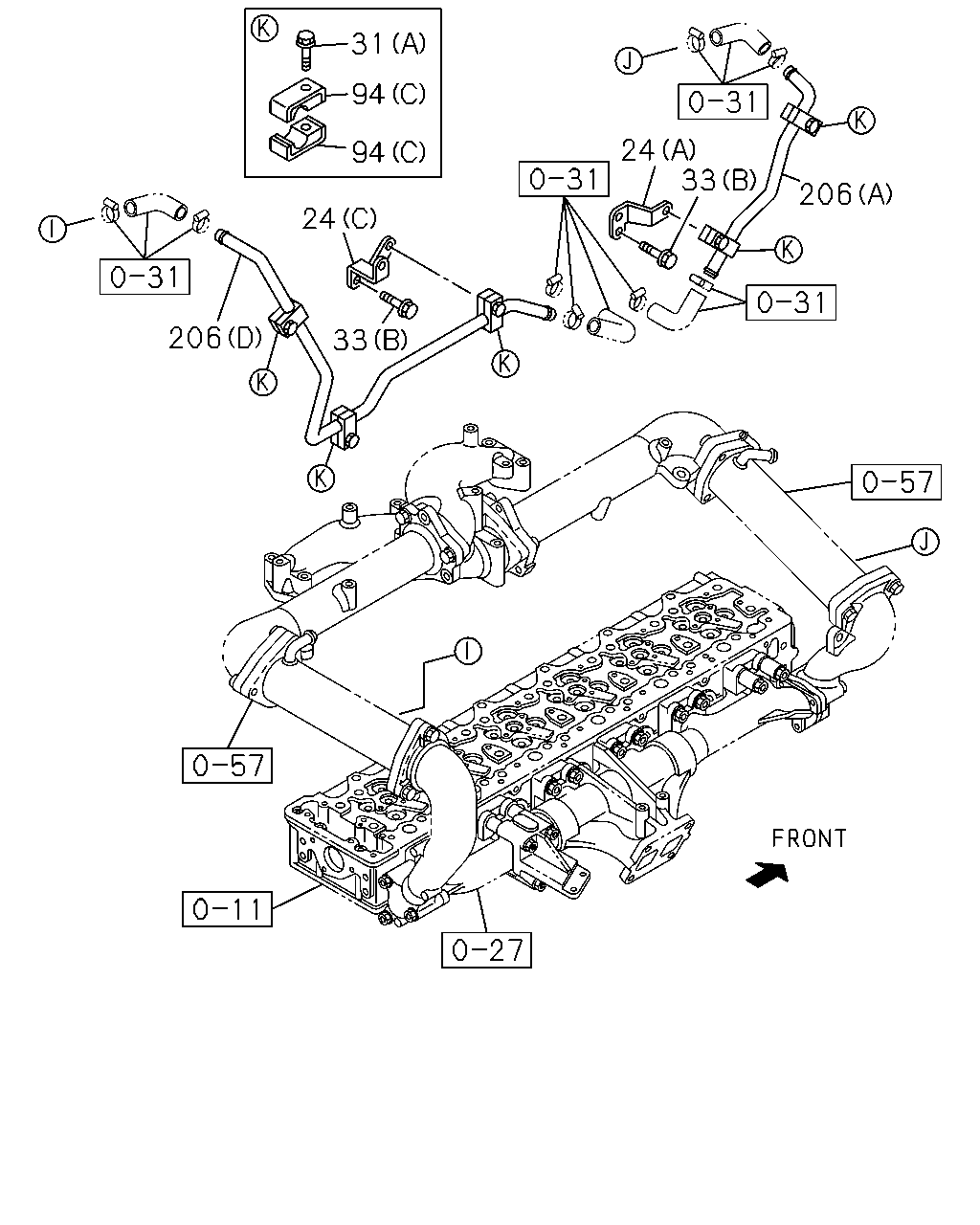

31 94 94 24 206 33 24 206 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (D)	8-98147-674-2	01	1	1202-
24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	1004-
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	1004-
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	1004-
31	BOLT; CLIP VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1109-
31	BOLT; CLIP EXC. VIN MODEL YEAR 2011<VZB> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1109-
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	10	1	1004-1108
31	BOLT; CLIP (A) M8X45 FLANGE SOU	0-28050-845-0	07	1	1109-
31	BOLT; CLIP (B) M6X35 FLANGE	0-28650-635-0	01	1	1004-
33	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-
33	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	06	1	1004-
94	CLIP; WATER PIPE VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	02	1	1109-
94	CLIP; WATER PIPE EXC. VIN MODEL YEAR 2011<VZB> (C) ID=17 L=17	1-09701-284-0	06	1	1109-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	1004-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	1004-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	1004-1108
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	14	1	1109-
206	PIPE; WATER,EGR COOLER VIN MODEL YEAR 2011<VZB> (E)	8-98172-218-0	01	1	1109-
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	1004-
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97603-722-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	1004-1108
206	PIPE; WATER,EGR COOLER EXC. VIN MODEL YEAR 2011<VZB> (C)	8-97603-723-1	01	1	1109-
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	1004-

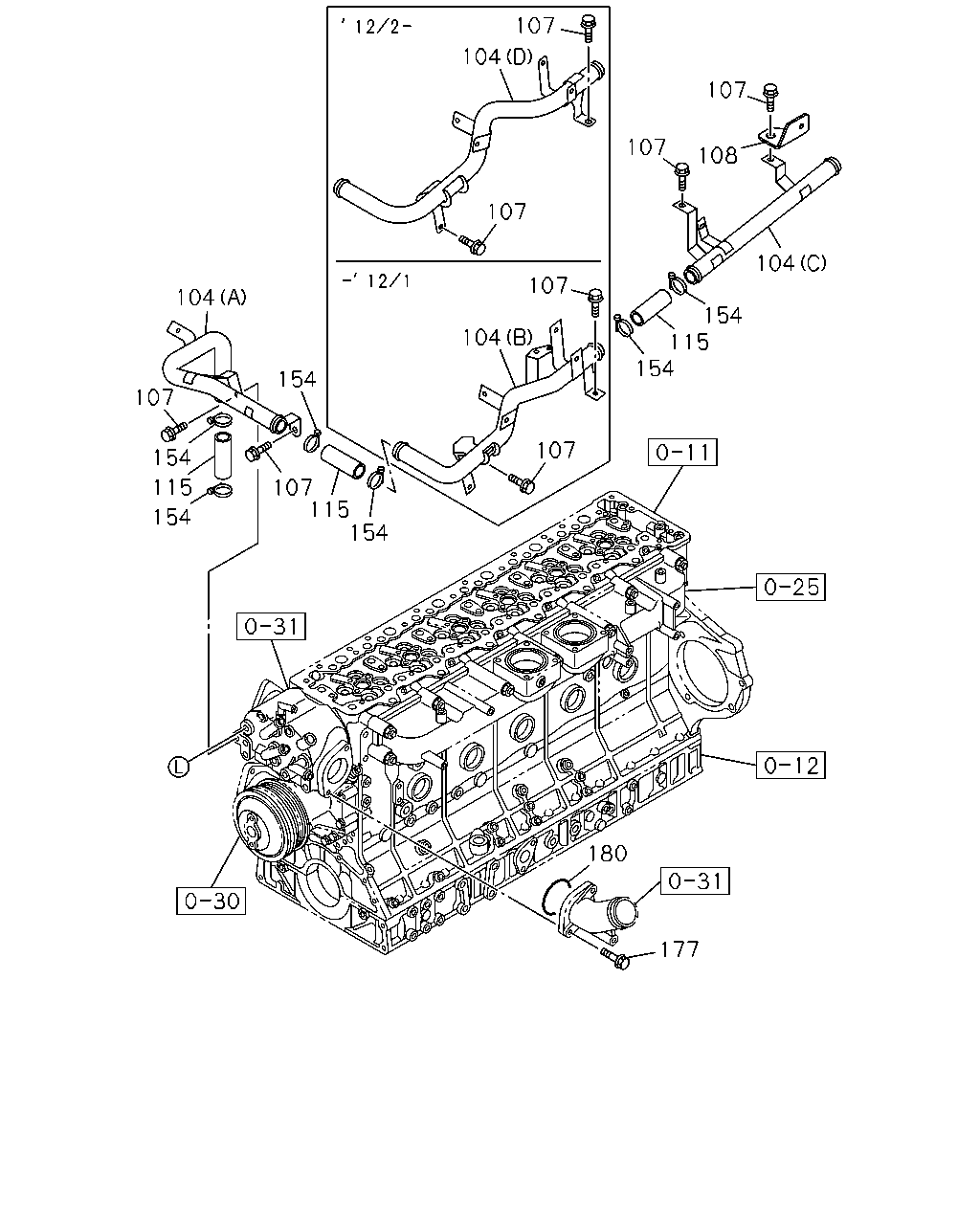

107 104 107 107 108 107 104 107 104 154 115 154 104 154 107 107 154 115 107 115 154 154 180 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	PIPE; WATER CHARGE (A)	8-97604-530-0	01	1	1004-
104	PIPE; WATER CHARGE (B)	8-97610-821-0	01	1	1004-1201
104	PIPE; WATER CHARGE (D)	8-98210-201-0	01	1	1202-
104	PIPE; WATER CHARGE (C)	8-97610-822-0	01	1	1004-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	06	1	1004-
108	BRACKET; WATER CHARGE	8-97610-823-0	01	1	1004-
115	HOSE; RUBBER L=100 SERVICED BY L=3000	0-03580-300-0	03	1	1004-
154	CLIP; WATER HOSE ID=44	1-09704-077-0	06	1	1004-
177	BOLT; WATER DUCT M8X30 FLANGE	0-28650-830-0	02	1	1004-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6	9-09565-271-0	01	1	1004-
