Isuzu WW
▶
TRUCKS
▶
FSS
▶
10635 - FSS/FTS-LHD
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶

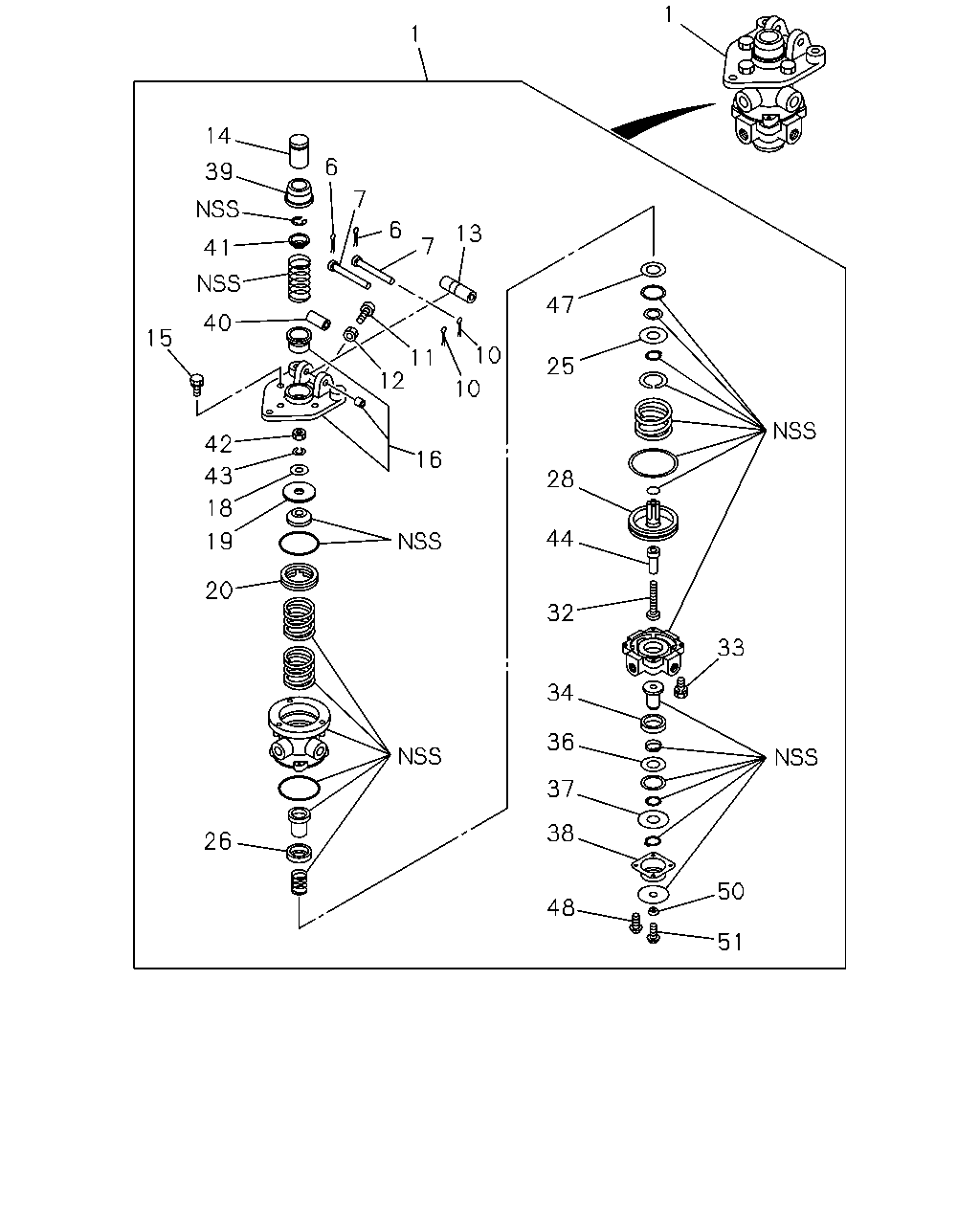

3-34 — BRAKE VALVE; AIR
(#1916) — 35 parça
Tümü
A - FSS6MC
B - FSS6MF
C - FTS6MC
D - FTS6MF
◀
[334A] COMPONENT (33 parça)
[334A] REPAIR KIT (2 parça)
▶
1
1
14
6
39
7
6
13
7
41
47
40
15
10
11
12
25
10
42
16
43
28
18
44
19
20
32
33
34
36
37
38
26
50
48
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
VALVE; BRK
1-48100-625-4
01
1
9207-
●
●
●
●
6
PIN; PEDAL,SIDE,BRK VLV
1-48119-083-0
02
1
9207-
●
●
●
●
7
PIN; PEDAL,BRK VLV
1-48119-082-0
02
1
9207-
●
●
●
●
10
PIN; SPLIT,BRK VLV
1-48119-087-0
02
1
9207-
●
●
●
●
11
SCREW; SET,BRK VLV
1-48119-088-0
01
1
9207-
●
●
●
●
12
NUT; SCREW,PEDAL,BRK VLV
1-48119-089-0
01
1
9207-
●
●
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-257-0
01
1
9207-
●
●
●
●
14
PLUNGER; BRK VLV
1-48119-220-0
01
1
9207-9207
●
●
●
●
14
PLUNGER; BRK VLV
1-48119-316-0
01
1
9208-
●
●
●
●
15
BOLT; PLATE,BRK VLV
1-48119-232-0
03
1
9207-
●
●
●
●
16
PLATE; MTG,BRKT VLV
1-48119-261-2
01
1
9207-
●
●
●
●
18
WASHER; LK,SEAT,BRK VLV
1-48129-156-0
01
1
9207-
●
●
●
●
19
SEAT; SPRING,BRK VLV
1-48129-172-0
01
1
9207-
●
●
●
●
20
PISTON; UPR,BRK VLV
1-48119-263-0
01
1
9207-
●
●
●
●
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
9207-
●
●
●
●
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
9207-
●
●
●
●
28
PISTON; LWR,BRK VLV
1-48123-050-0
01
1
9207-
●
●
●
●
32
SCREW; BRK VLV
1-48121-039-0
01
1
9207-
●
●
●
●
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
9207-
●
●
●
●
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
9207-
●
●
●
●
36
RETAINER; GASKET,BRK VLV
1-48129-169-0
01
1
9207-
●
●
●
●
37
WASHER; VLV LWR,BRK VLV
1-48129-166-0
01
1
9207-
●
●
●
●
38
COVER; EXH,BRK VLV
1-48119-217-0
01
1
9207-
●
●
●
●
39
BOOT; PLUNGER,BRK VLV
1-48119-079-0
01
1
9207-
●
●
●
●
40
PIPE; PLATE,BRK VLV
1-48119-086-0
01
1
9207-
●
●
●
●
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
9207-
●
●
●
●
42
NUT; SPR SEAT,BRK VLV
1-48129-157-0
01
1
9207-
●
●
●
●
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
9207-
●
●
●
●
44
SLEEVE; PISTON,BRK VLV
1-48129-171-0
01
1
9207-
●
●
●
●
47
RETAINER; GASKET,BRK VLV
1-48129-147-0
01
1
9207-
●
●
●
●
48
BOLT; COVER,BRK VLV
1-48119-216-0
04
1
9207-
●
●
●
●
50
WASHER; RET,BRK VLV
1-48129-112-0
01
1
9207-
●
●
●
●
51
SCREW; FORMING,BRK VLV
1-48129-111-0
01
1
9207-
●
●
●
●
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-049-0
01
1
9207-
●
●
●
●
4
REPAIR KIT; SPRING,BRK VLV
1-85576-050-0
01
1
9207-
●
●
●
●
