◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#19157) — 22 parça

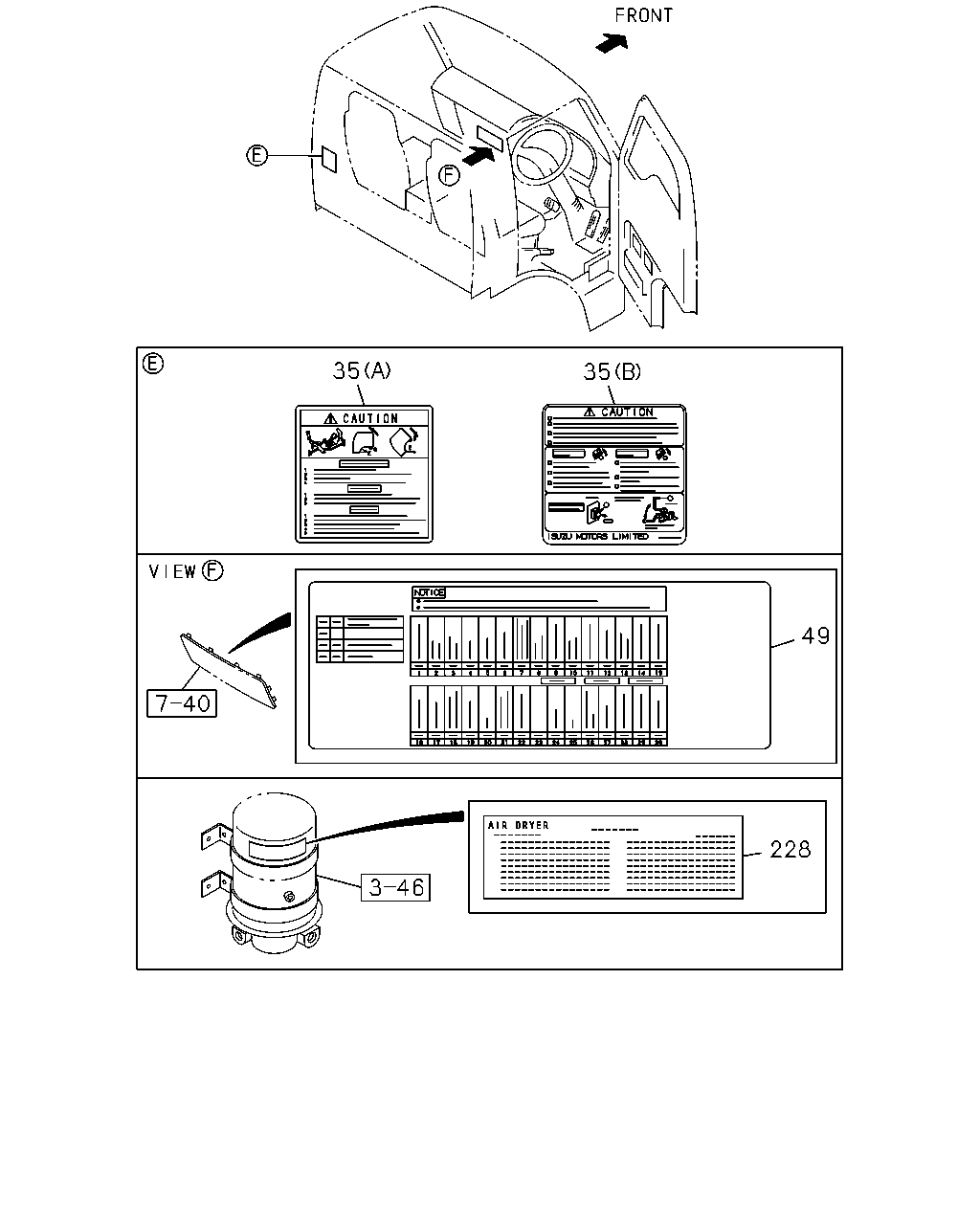

çizim 108917
35 35 49 228
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 0710- ●
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 0712- ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0710-0711 ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0712-0805 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806- ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0710-0711 ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0712-0808 ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0809-1001 ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-48199-325-0 01 1 0809-1001 ●

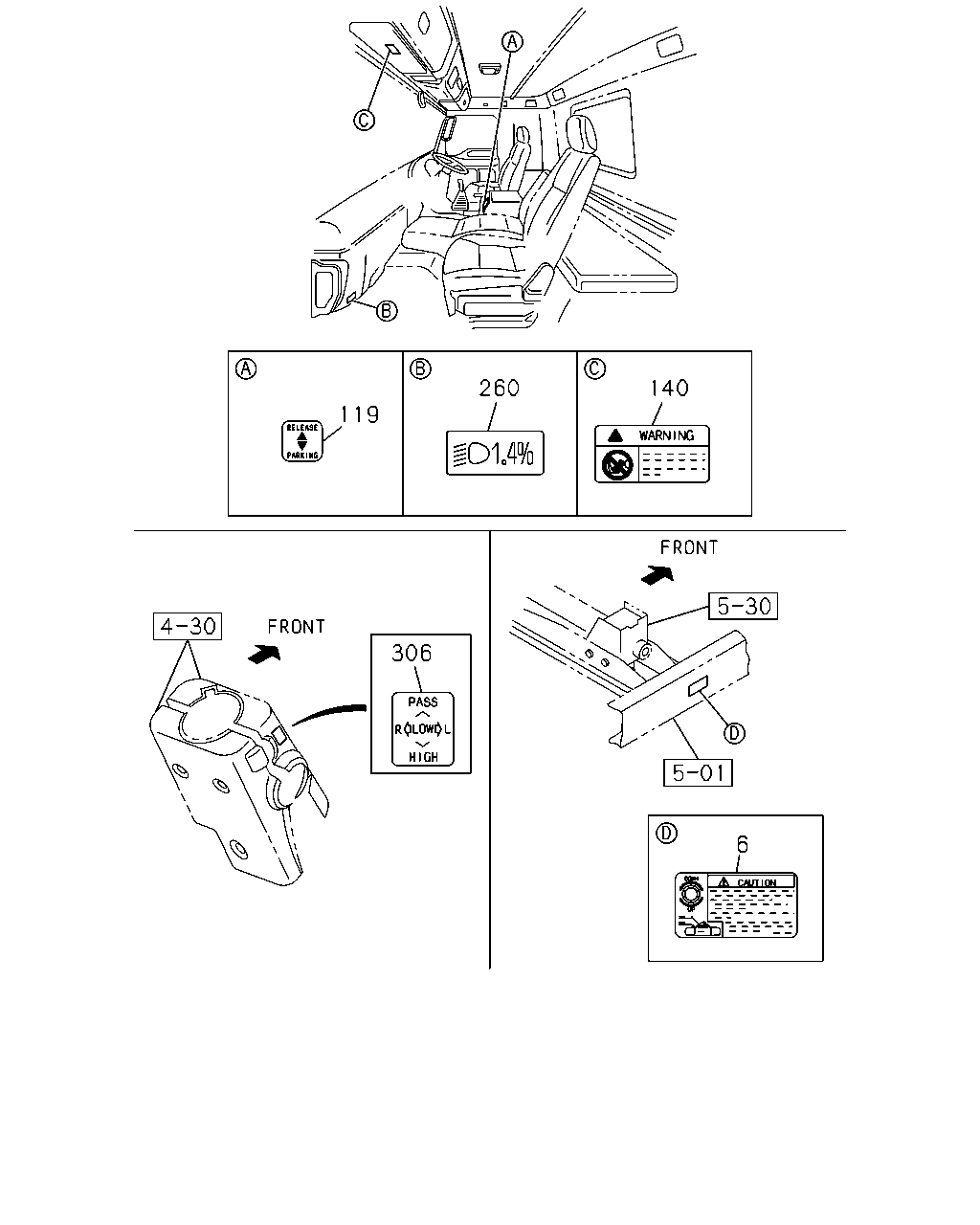

çizim 108919
260 140 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710-0711 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0712- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710-0711 ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0712- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 01 1 0710-0711 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 01 1 0712-0712 ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0801- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 0710-0711 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 0712- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
6HK1-TCN ENG(82L) 		1-85878-501-1 01 1 0712- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
4HK1-TCS ENG(RJS) 		8-98008-779-0 01 1 0712- ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0710-0711 ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0712- ● ●
