Isuzu WW
▶
TRUCKS
▶
FRR
▶
11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#19152) — 18 parça
Tümü
A - FCR5MS
B - FCR5WS
◀

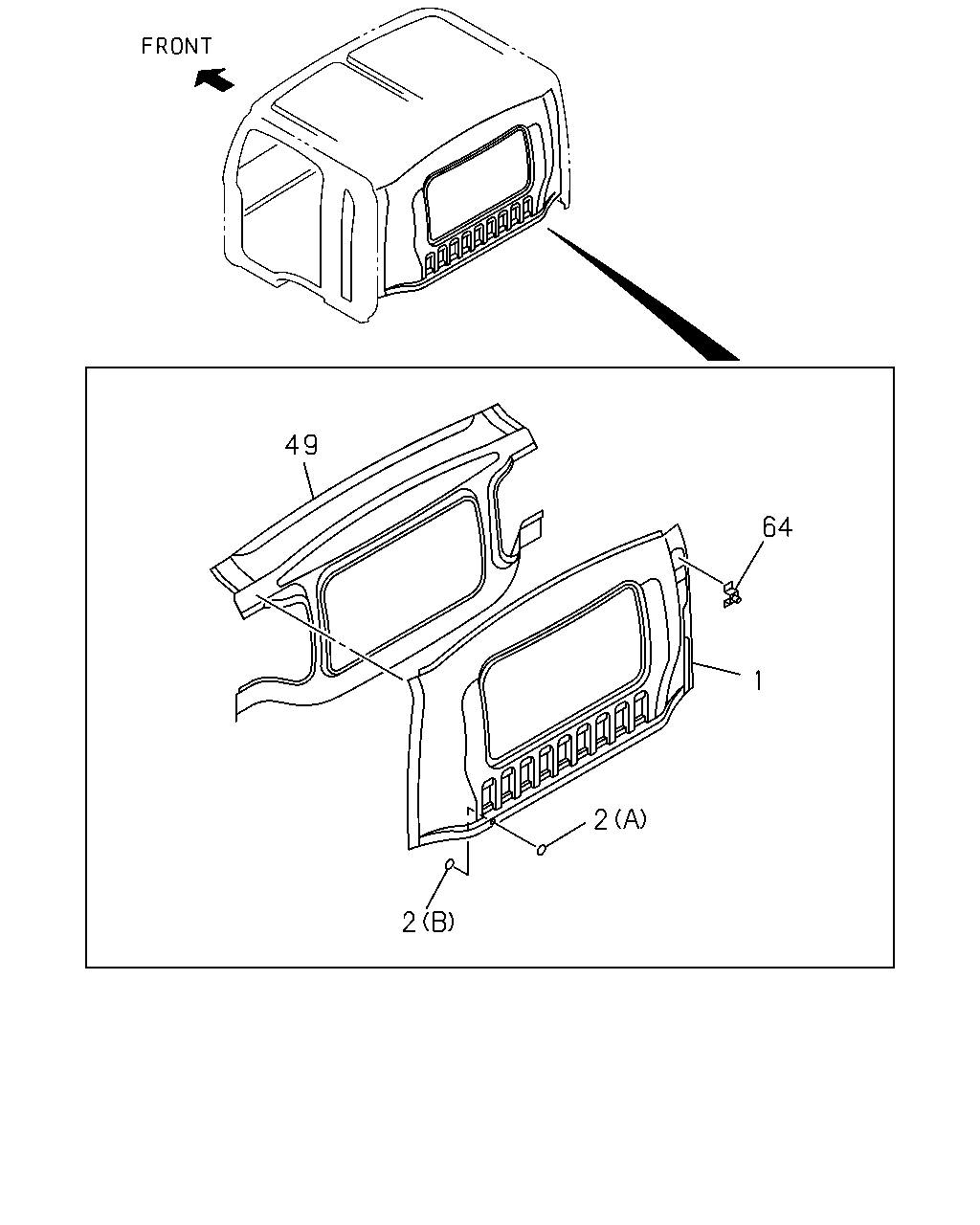

[680A] SGL CAB (8 parça)

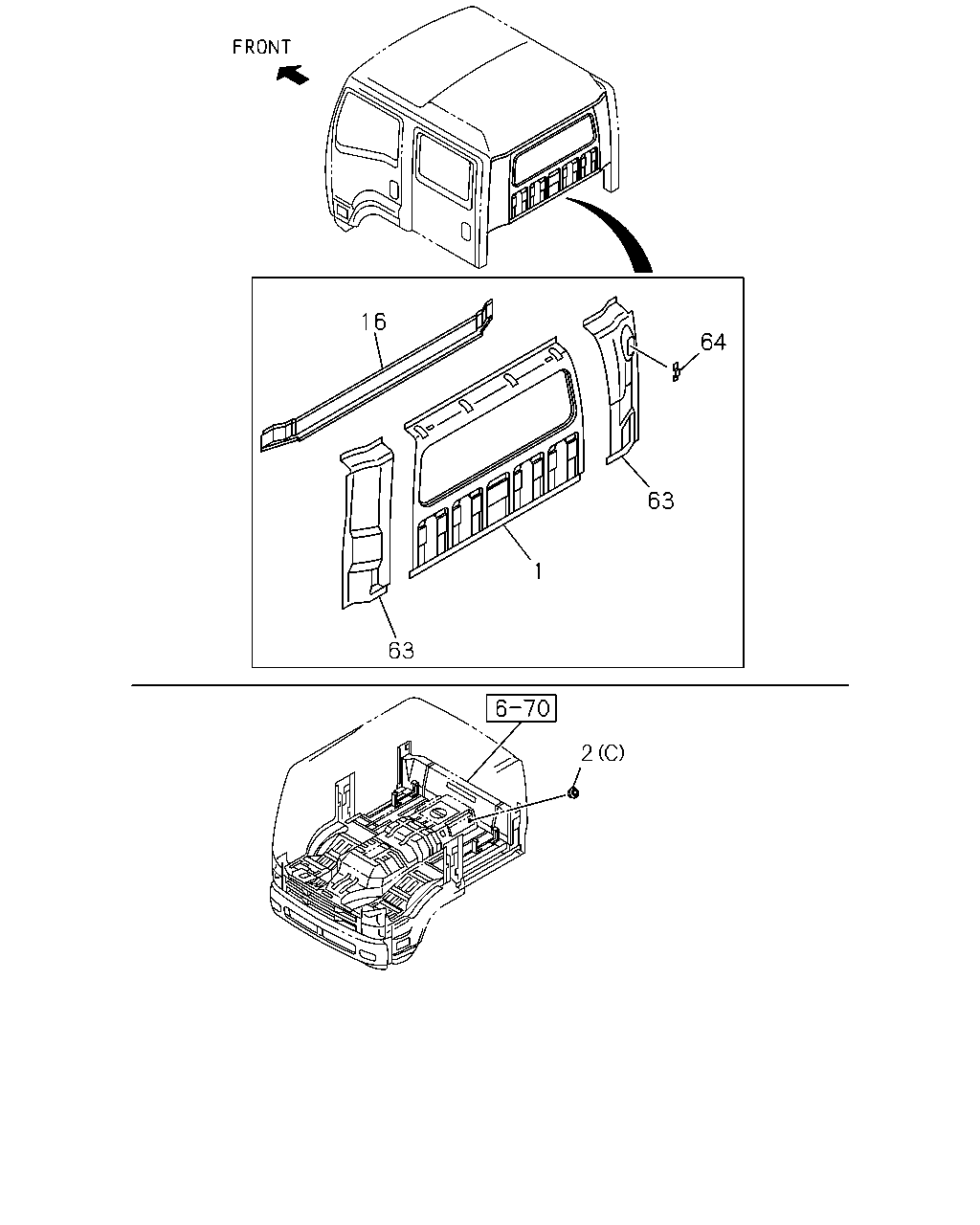

[680A] DBL CAB (10 parça)
▶
49
64
1
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; BACK OUTER
8-97584-312-3
01
1
0710-
●
1
PANEL; BACK OUTER
8-97410-669-3
01
1
0712-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK
1-76798-019-0
02
1
0710-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0710-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=35
8-94122-971-0
04
1
0712-0802
●
49
PANEL; BACK INNER
8-97584-609-3
01
1
0710-
●
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
0710-0711
●
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
0712-
●
●
16
64
63
1
63
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; BACK OUTER
8-97584-312-3
01
1
0710-
●
1
PANEL; BACK OUTER
8-97410-669-3
01
1
0712-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK
1-76798-019-0
02
1
0710-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0710-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=35
8-94122-971-0
04
1
0712-0802
●
16
REINFORCEMENT; BACK OUTER PNL
8-98018-926-0
01
1
0712-
●
63
PANEL; BACK,SIDE
8-97411-024-1
01
1
0712-
●
63
PANEL; BACK,SIDE
8-97411-025-1
01
1
0712-
●
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
0710-0711
●
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
0712-
●
●
