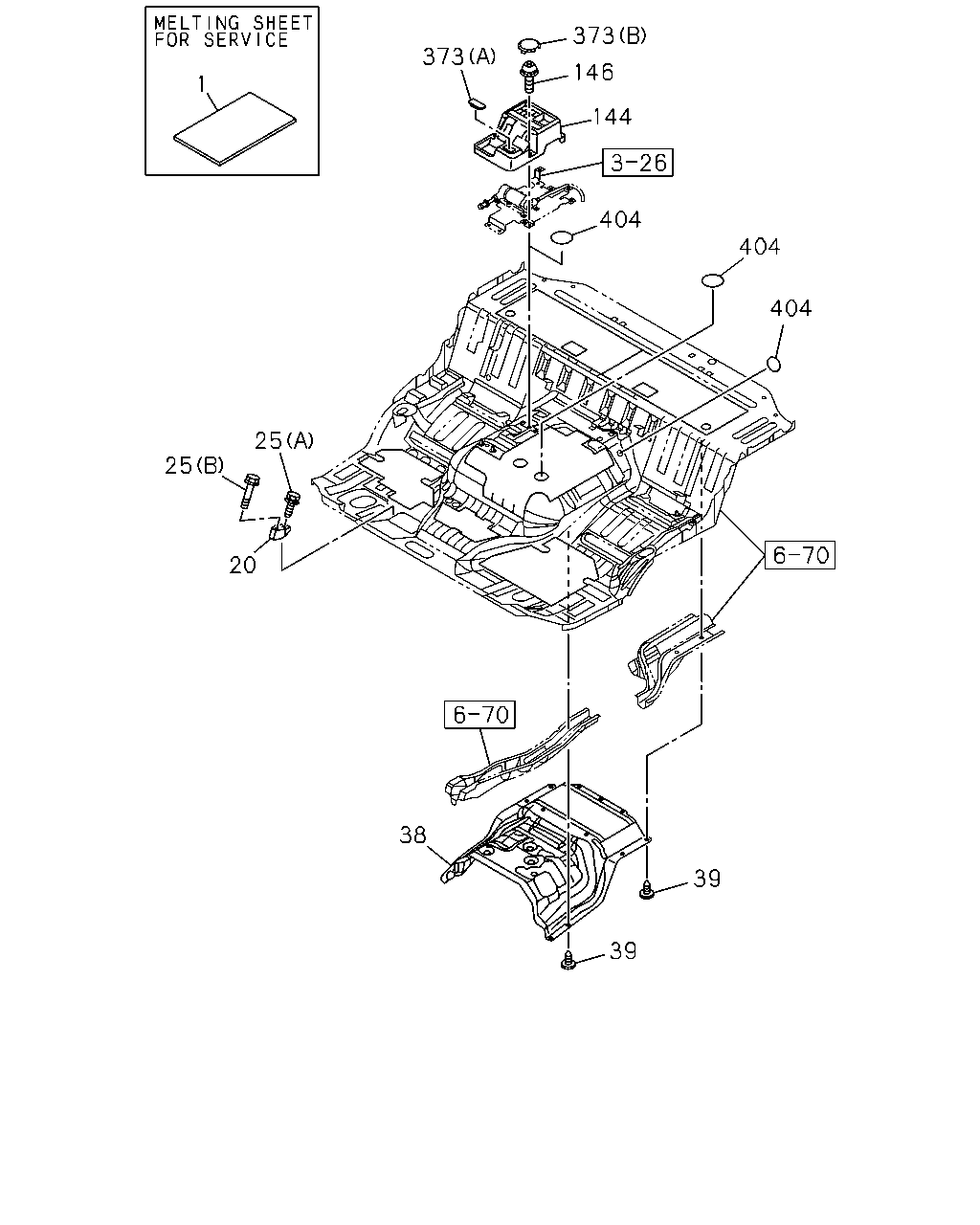

6-76 — FLOOR EQUIPMENT AND SEALING (#19150) — 72 parça

373 373 146 1 144 404 404 404 25 25 20 38 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0710-0711	●
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0712-	●	●
20	REST; FOOT	1-73907-176-1	01	1	0710-0711	●
20	REST; FOOT	1-73907-176-1	01	1	0712-	●	●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-0711	●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0712-	●	●
25	SCREW; FOOT REST (B) M6X47	8-94407-876-1	01	1	0710-0711	●
25	SCREW; FOOT REST (B) M6X47	8-94407-876-1	01	1	0712-	●	●
38	INSULATOR; ENG COVER	8-98240-138-1	01	1	0712-		●
38	INSULATOR; ENG COVER	8-97586-180-6	01	1	0710-1310	●
38	INSULATOR; ENG COVER	8-98240-137-1	01	1	1311-	●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	24	1	0710-	●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	18	1	0712-		●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97409-812-0	01	1	0710-0710	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0711-0711	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0712-	●	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97407-974-0	01	1	0710-0710	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0711-0711	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0712-	●	●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0710-0711	●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0712-	●	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0710-0711	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0712-	●	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0711-0711	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0712-	●	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	11	1	0710-0711	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	12	1	0712-	●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK	1-76798-019-0	02	1	0710-0711	●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK	1-76798-019-0	02	1	0712-	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	02	1	0712-		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	39	1	0712-		●

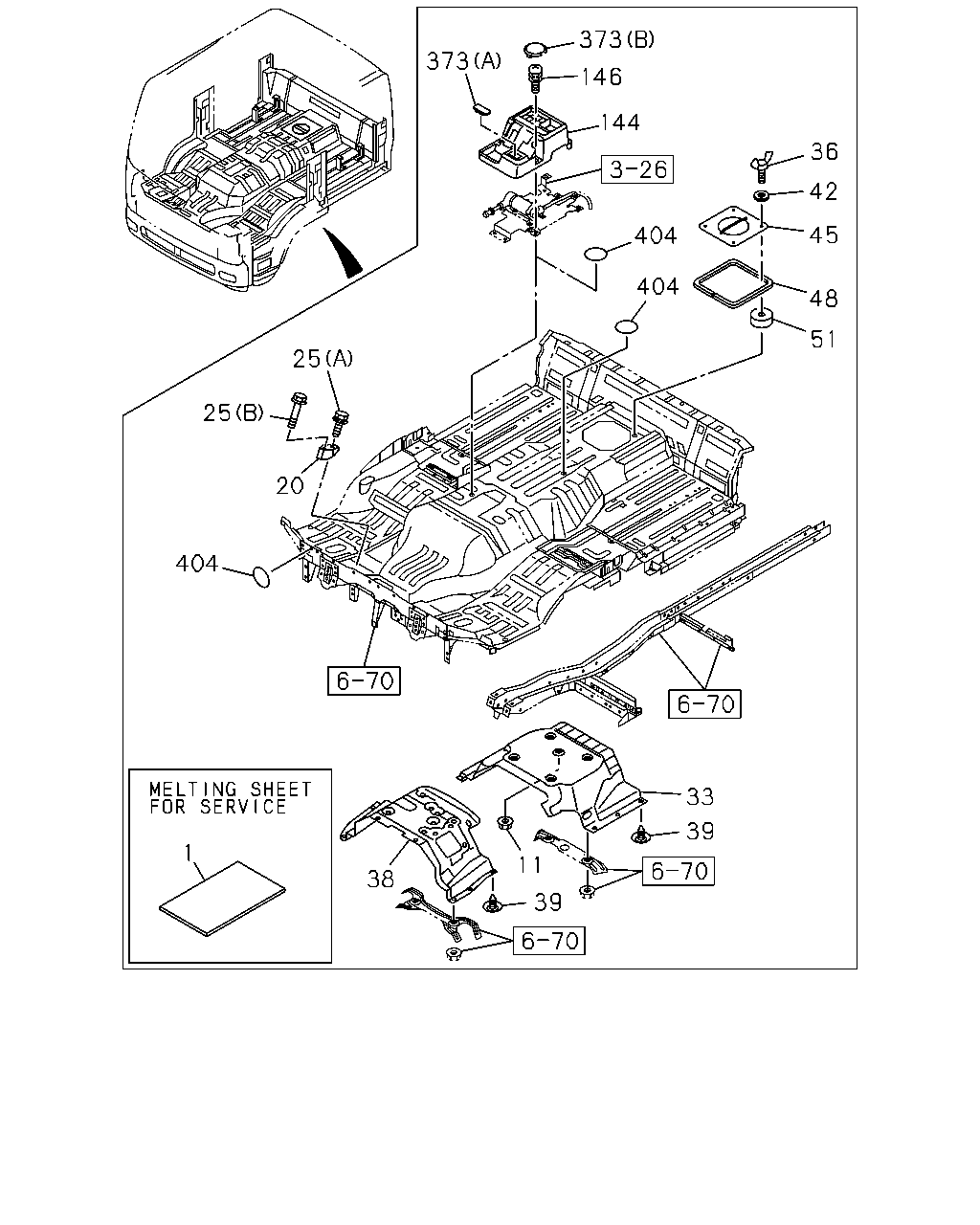

33 39 11 39 38 1 404 25 25 20 404 404 51 48 45 42 36 144 146 373 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0710-0711	●
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0712-	●	●
11	NUT; HEAT INSULATOR ID=6 OD=25	8-94468-316-0	01	1	0712-		●
20	REST; FOOT	1-73907-176-1	01	1	0710-0711	●
20	REST; FOOT	1-73907-176-1	01	1	0712-	●	●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-0711	●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0712-	●	●
25	SCREW; FOOT REST (B) M6X47	8-94407-876-1	01	1	0710-0711	●
25	SCREW; FOOT REST (B) M6X47	8-94407-876-1	01	1	0712-	●	●
33	INSULATOR; HEAT,RR	8-98248-307-0	01	1	0712-		●
36	BOLT; WING,COVER	9-61405-010-0	04	1	0712-		●
38	INSULATOR; ENG COVER	8-98240-138-1	01	1	0712-		●
38	INSULATOR; ENG COVER	8-97586-180-6	01	1	0710-1310	●
38	INSULATOR; ENG COVER	8-98240-137-1	01	1	1311-	●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	24	1	0710-	●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	18	1	0712-		●
42	WASHER; PL,COVER ID=10.5	0-91610-510-0	04	1	0712-		●
45	COVER; CENTER,CHECK HOLE	1-65380-056-0	01	1	0712-		●
48	SEAL; CHECK HOLE LID,CENTER	1-65380-091-0	01	1	0712-		●
51	SEAL; LID,CHECK HOLE	1-65380-121-0	04	1	0712-		●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97409-812-0	01	1	0710-0710	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0711-0711	●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-753-0	01	1	0712-	●	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97407-974-0	01	1	0710-0710	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0711-0711	●
144	COVER; HAND BRK VLV EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97414-752-0	01	1	0712-	●	●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0710-0711	●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	0712-	●	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0710-0711	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	0712-	●	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0711-0711	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	0712-	●	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	11	1	0710-0711	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	12	1	0712-	●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK	1-76798-019-0	02	1	0710-0711	●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK	1-76798-019-0	02	1	0712-	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	02	1	0712-		●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	39	1	0712-		●

370 370 370

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
370	SEAL; LOCATION HOLE OD=30 T=1.0	8-98051-161-0	08	1	0710-0711	●
370	SEAL; LOCATION HOLE OD=30 T=1.0	8-98051-161-0	08	1	0712-1211	●	●
370	SEAL; LOCATION HOLE OD=30 T=0.8	8-98230-420-0	08	1	1212-	●	●
