6-60 — ROOF PANEL (#19146) — 48 parça

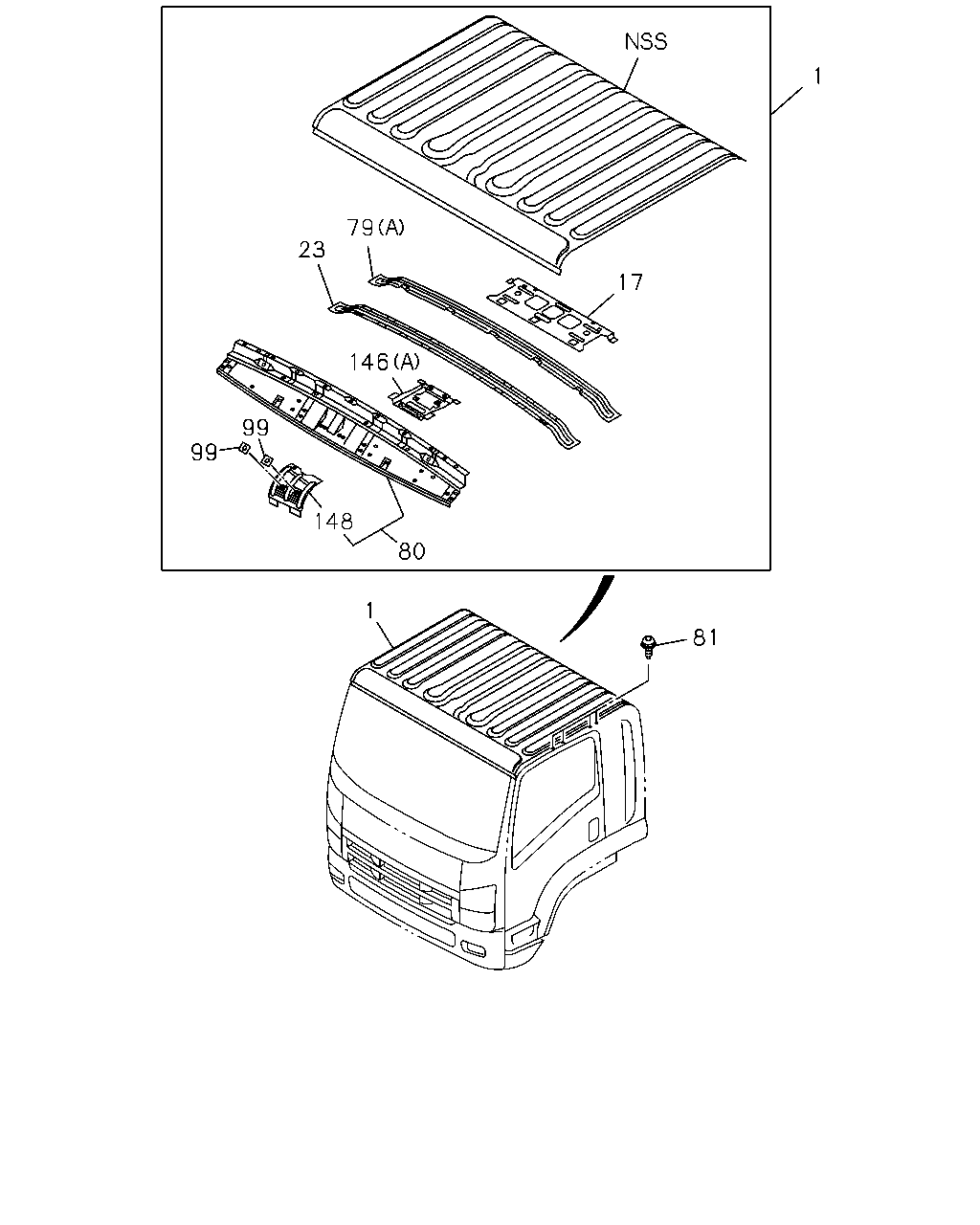

1 79 23 17 146 99 99 148 80 1 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97584-170-7	01	1	0710-	●
1	PANEL; ROOF EXC. O/SIDE MIRROR UNDER VIEW<RR9>	8-98017-276-6	01	1	0710-	●
1	PANEL; ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97587-641-7	01	1	0712-		●
1	PANEL; ROOF EXC. O/SIDE MIRROR UNDER VIEW<RR9>	8-98065-284-6	01	1	0712-		●
17	REINFORCEMENT; ROOF PNL CENTER	8-97584-203-5	01	1	0710-0711	●
17	REINFORCEMENT; ROOF PNL CENTER	8-97584-203-5	01	1	0712-	●	●
23	REINFORCEMENT; ROOF PANEL,FRT	8-98019-310-0	01	1	0710-0711	●
23	REINFORCEMENT; ROOF PANEL,FRT	8-98019-310-0	01	1	0712-	●	●
79	REINFORCEMENT; ROOF PANEL,RR (A)	8-97584-199-1	01	1	0710-0711	●
79	REINFORCEMENT; ROOF PANEL,RR (A)	8-97584-199-1	01	1	0712-	●	●
79	REINFORCEMENT; ROOF PANEL,RR (B)	8-98008-023-0	04	1	0712-		●
80	PANEL; HEADER,ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97584-191-3	01	1	0710-0711	●
80	PANEL; HEADER,ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97584-191-4	01	1	0712-	●	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98028-744-0	08	1	0710-0711	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98028-744-0	08	1	0712-0910	●	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98141-874-0	08	1	0911-	●	●
99	SEAL; BODY,METAL O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7	1-61281-380-1	02	1	0710-0711	●
99	SEAL; BODY,METAL O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7	1-61281-380-2	02	1	0712-	●	●
146	REINFORCEMENT; ROOM LAMP (A)	8-98075-827-0	01	1	0710-	●
146	REINFORCEMENT; ROOM LAMP (B)	8-98010-736-1	02	1	0712-		●
146	REINFORCEMENT; ROOM LAMP (A)	8-98075-827-0	02	1	0712-		●
148	REINFORCEMENT; MIRROR O/SIDE MIRROR UNDER VIEW<RR9>	8-97411-015-1	01	1	0710-0711	●
148	REINFORCEMENT; MIRROR O/SIDE MIRROR UNDER VIEW<RR9>	8-97411-015-1	01	1	0712-	●	●

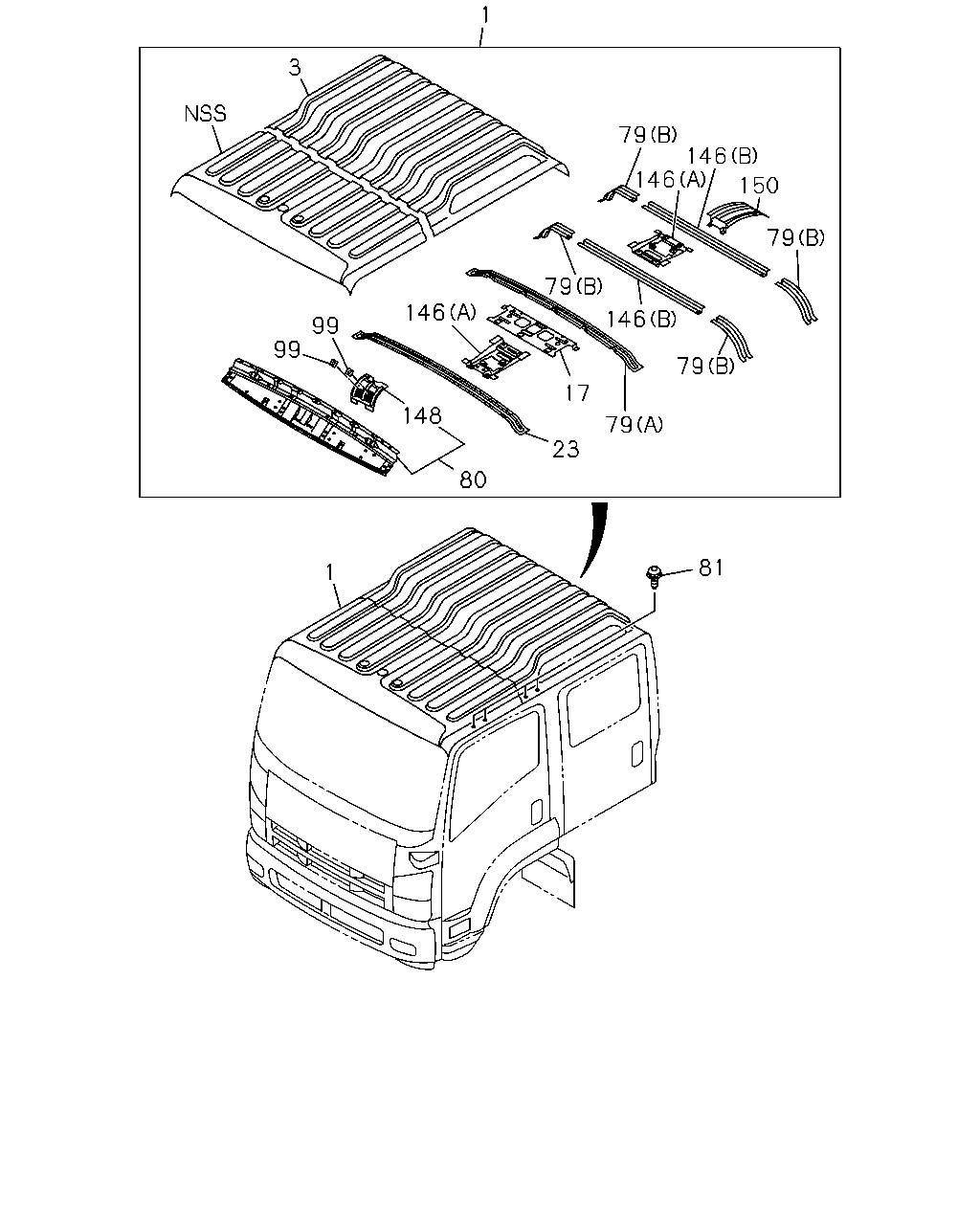

1 3 79 146 146 150 79 79 146 146 99 99 79 17 148 79 23 80 81 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97584-170-7	01	1	0710-	●
1	PANEL; ROOF EXC. O/SIDE MIRROR UNDER VIEW<RR9>	8-98017-276-6	01	1	0710-	●
1	PANEL; ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97587-641-7	01	1	0712-		●
1	PANEL; ROOF EXC. O/SIDE MIRROR UNDER VIEW<RR9>	8-98065-284-6	01	1	0712-		●
3	PANEL; ROOF,RR	8-97411-040-1	01	1	0712-		●
17	REINFORCEMENT; ROOF PNL CENTER	8-97584-203-5	01	1	0710-0711	●
17	REINFORCEMENT; ROOF PNL CENTER	8-97584-203-5	01	1	0712-	●	●
23	REINFORCEMENT; ROOF PANEL,FRT	8-98019-310-0	01	1	0710-0711	●
23	REINFORCEMENT; ROOF PANEL,FRT	8-98019-310-0	01	1	0712-	●	●
79	REINFORCEMENT; ROOF PANEL,RR (A)	8-97584-199-1	01	1	0710-0711	●
79	REINFORCEMENT; ROOF PANEL,RR (A)	8-97584-199-1	01	1	0712-	●	●
79	REINFORCEMENT; ROOF PANEL,RR (B)	8-98008-023-0	04	1	0712-		●
80	PANEL; HEADER,ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97584-191-3	01	1	0710-0711	●
80	PANEL; HEADER,ROOF O/SIDE MIRROR UNDER VIEW<RR9>	8-97584-191-4	01	1	0712-	●	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98028-744-0	08	1	0710-0711	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98028-744-0	08	1	0712-0910	●	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98141-874-0	08	1	0911-	●	●
99	SEAL; BODY,METAL O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7	1-61281-380-1	02	1	0710-0711	●
99	SEAL; BODY,METAL O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7	1-61281-380-2	02	1	0712-	●	●
146	REINFORCEMENT; ROOM LAMP (A)	8-98075-827-0	01	1	0710-	●
146	REINFORCEMENT; ROOM LAMP (B)	8-98010-736-1	02	1	0712-		●
146	REINFORCEMENT; ROOM LAMP (A)	8-98075-827-0	02	1	0712-		●
148	REINFORCEMENT; MIRROR O/SIDE MIRROR UNDER VIEW<RR9>	8-97411-015-1	01	1	0710-0711	●
148	REINFORCEMENT; MIRROR O/SIDE MIRROR UNDER VIEW<RR9>	8-97411-015-1	01	1	0712-	●	●
150	REINFORCEMENT; ROOF BACK	8-98085-374-0	01	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
