6-47 — MUD GUARD AND INSULATOR (#19141) — 152 parça

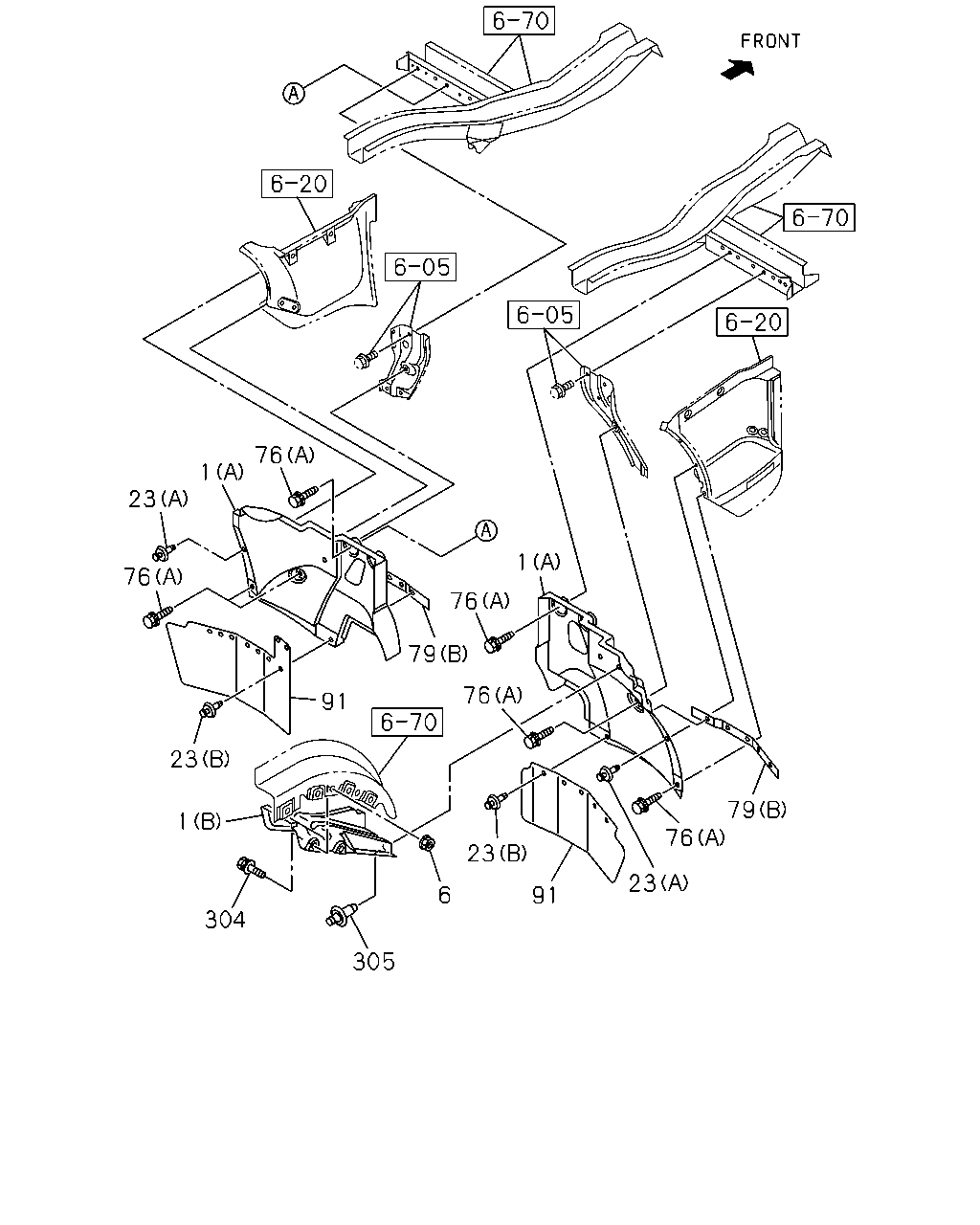

76 1 23 1 76 76 79 91 23 79 1 76 23 23 6 91 304 305 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT (A)	8-98039-843-2	01	1	0710-0711	●
1	GUARD; MUD,FRT (A)	8-98039-843-2	01	1	0712-0908	●	●
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	0909-	●	●
1	GUARD; MUD,FRT (A)	8-98039-842-2	01	1	0710-0711	●
1	GUARD; MUD,FRT (A)	8-98039-842-2	01	1	0712-0908	●	●
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	0909-	●	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-188-0	01	1	0710-0711	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-188-0	01	1	0712-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0710-0711	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0712-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	0710-0711	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	0712-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0710-0711	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0712-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-0711	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0711	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0712-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0710-0711	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0712-0809	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0810-	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0710-0711	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0712-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	01	1	0810-		●
79	RETAINER; MUD COVER (C)	8-98105-000-0	01	1	0810-		●
91	COVER; MUD,FRT	8-98092-836-0	01	1	0710-0711	●
91	COVER; MUD,FRT	8-98092-836-0	01	1	0712-	●
91	COVER; MUD,FRT 6HK1-TCN ENG(82L)	8-98092-836-0	01	1	0712-		●
91	COVER; MUD,FRT	8-98092-834-0	01	1	0710-0711	●
91	COVER; MUD,FRT	8-98092-834-0	01	1	0712-	●
91	COVER; MUD,FRT 6HK1-TCN ENG(82L)	8-98092-834-0	01	1	0712-		●
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS)	8-98093-464-0	01	1	0712-		●
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS)	8-98093-463-0	01	1	0712-		●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0710-0711	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0712-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0710-0711	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0712-	●	●

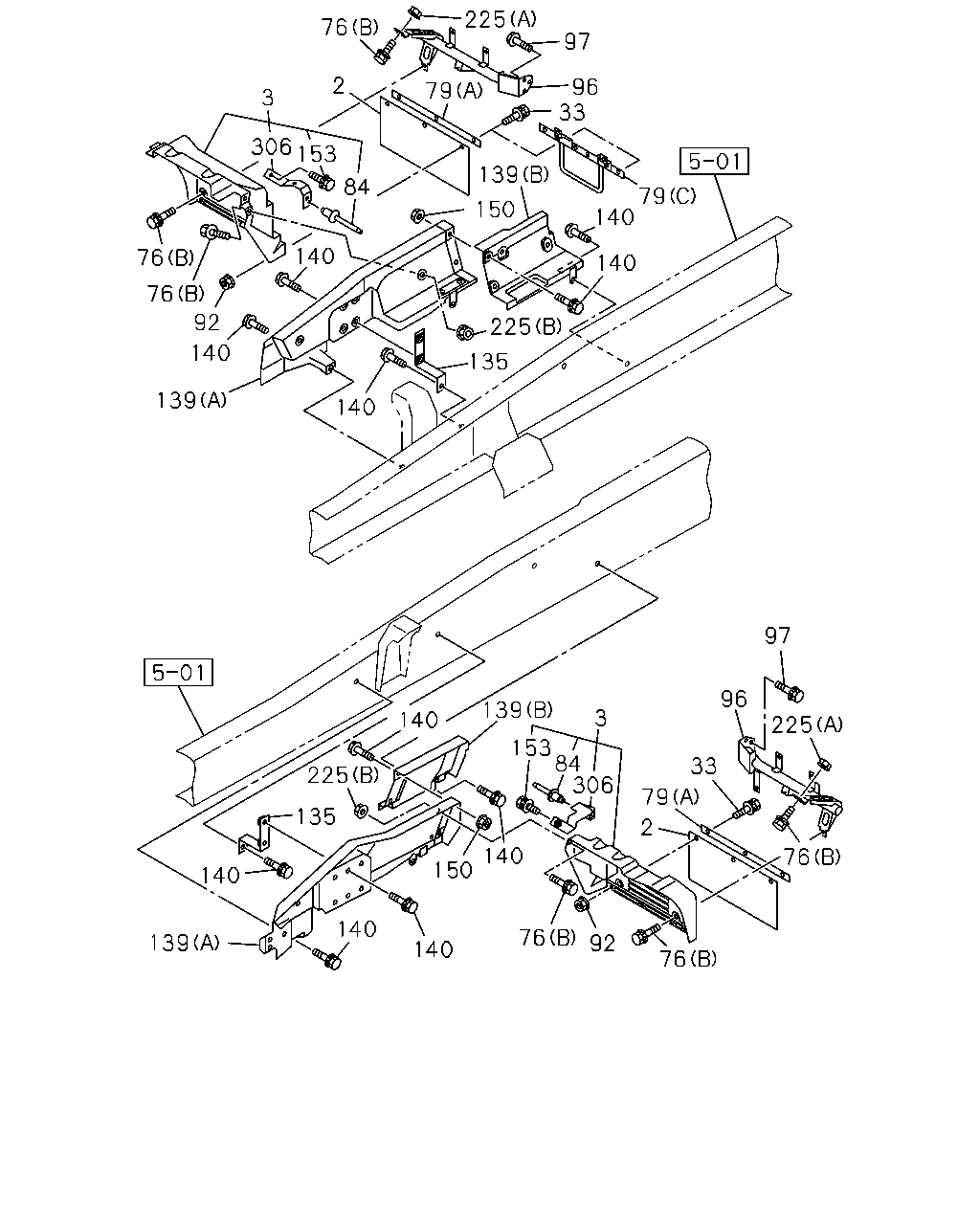

76 76 225 97 96 33 79 2 92 76 140 140 150 140 139 140 135 225 140 139 153 84 306 3 139 140 135 225 140 140 79 140 92 76 76 3 306 153 84 140 2 76 225 79 97 96 33 139 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	1-79931-482-0	02	1	0710-0711	●
2	COVER; MUD,TIRE RR	1-79931-482-0	02	1	0712-	●	●
3	GUARD; MUD,RR	1-79931-471-0	01	1	0710-1212	●
3	GUARD; MUD,RR	8-98196-103-0	01	1	1301-	●
3	GUARD; MUD,RR 6HK1-TCN ENG(82L)	8-98196-103-0	01	1	1301-		●
3	GUARD; MUD,RR	1-79931-475-0	01	1	0710-0711	●
3	GUARD; MUD,RR	1-79931-475-0	01	1	0712-1212	●
3	GUARD; MUD,RR 6HK1-TCN ENG(82L)	1-79931-475-0	01	1	0712-1212		●
3	GUARD; MUD,RR	8-98196-111-0	01	1	1301-	●
3	GUARD; MUD,RR 6HK1-TCN ENG(82L)	8-98196-111-0	01	1	1301-		●
3	GUARD; MUD,RR	1-79931-545-0	01	1	0712-1212		●
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS)	8-98196-105-0	01	1	1301-		●
3	GUARD; MUD,RR	1-79931-547-0	01	1	0712-0805		●
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS)	1-79931-472-2	01	1	0712-0805		●
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS)	1-79931-547-0	01	1	0806-1212		●
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS)	8-98196-113-0	01	1	1301-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0710-0711	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0712-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-0711	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0711	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0712-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0710-0711	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0712-0809	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0810-	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0710-0711	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0712-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	01	1	0810-		●
79	RETAINER; MUD COVER (C)	8-98105-000-0	01	1	0810-		●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-	●
84	RIVET; MUD GUARD 6HK1-TCN ENG(82L)	5-09734-006-1	02	1	1301-		●
84	RIVET; MUD GUARD 6HK1-TCN ENG(82L)	5-09734-006-1	02	1	1301-		●
84	RIVET; MUD GUARD 4HK1-TCS ENG(RJS)	5-09734-006-1	04	1	1301-		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	0710-0711	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	0712-	●	●
96	STAY; MUD GUARD	8-98066-745-2	01	1	0710-	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	0710-0711	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	0712-	●	●
96	STAY; MUD GUARD	1-79931-480-3	01	1	0712-		●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	0710-0711	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	0712-	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0710-0711	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0712-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0710-0711	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0712-	●	●
139	PANEL; SIDE (A)	8-98090-078-0	01	1	0710-0711	●
139	PANEL; SIDE (A)	8-98090-078-0	01	1	0712-	●	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0710-0711	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0712-	●	●
139	PANEL; SIDE (A)	8-98090-077-0	01	1	0710-0711	●
139	PANEL; SIDE (A)	8-98090-077-0	01	1	0712-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0710-0711	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0712-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0710-0711	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0712-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0710-0711	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0712-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-	●
153	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-		●
153	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-		●
153	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1301-		●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-0711	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0712-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1301-	●	●
306	BRACKET; MUD GUARD	8-98196-126-0	01	1	1301-	●	●

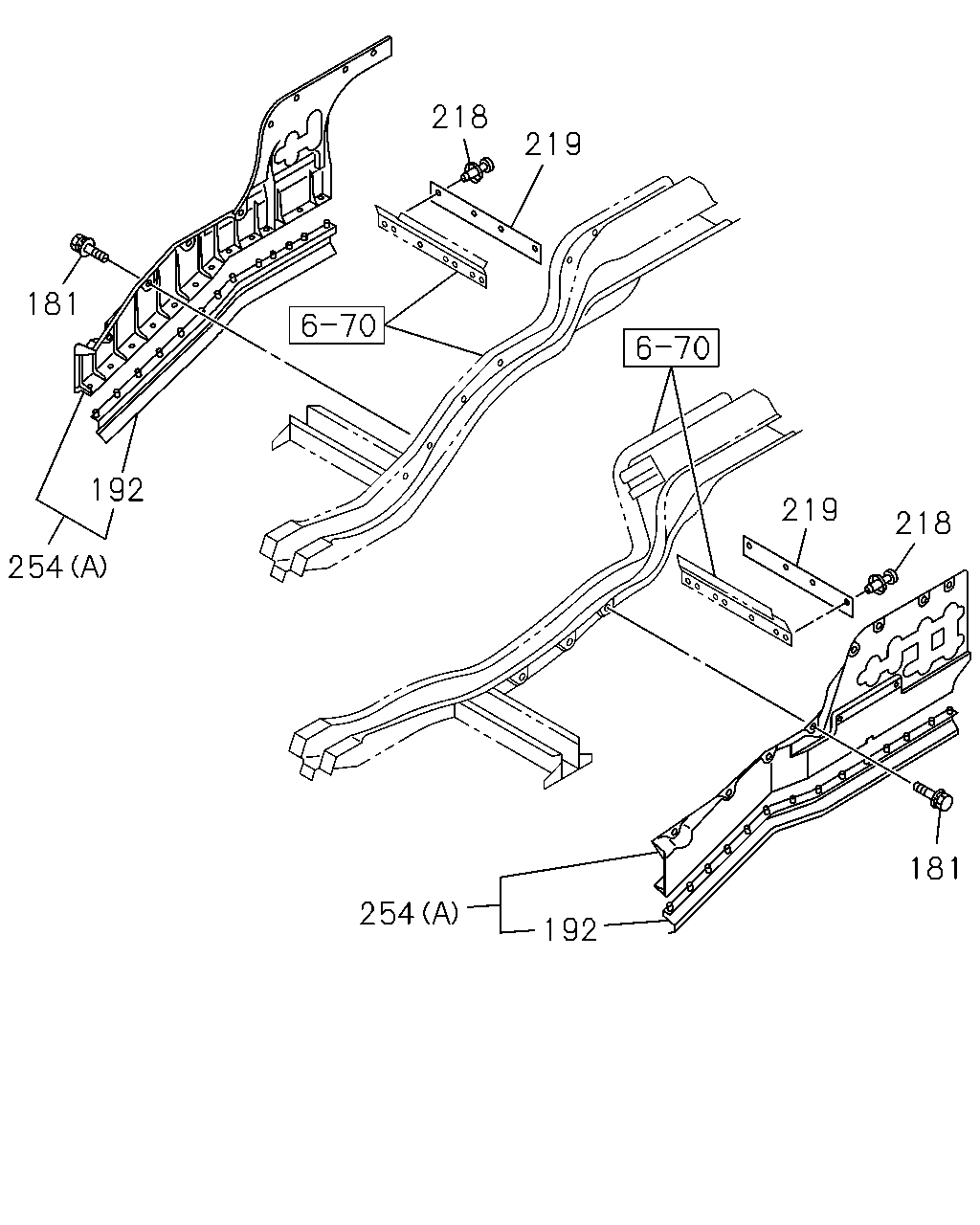

218 219 181 192 219 218 254 181 254 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0710-	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0712-0904		●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	0905-		●
192	SEAL; MUD COVER	8-98041-159-2	01	1	0710-	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	0710-	●
192	SEAL; MUD COVER	8-98061-555-1	01	1	0712-		●
192	SEAL; MUD COVER	8-98061-554-1	01	1	0712-		●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0710-0711	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0712-	●	●
219	FLAP; MUD GUARD	8-98041-150-1	02	1	0710-	●
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS)	8-98065-773-0	02	1	0712-		●
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98063-654-0	02	1	0712-		●
254	COVER; MUD,VALANCE (A)	8-98039-926-1	01	1	0710-	●
254	COVER; MUD,VALANCE (A)	8-98039-925-2	01	1	0710-	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) (B)	8-98058-182-1	01	1	0712-		●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) (B)	8-98058-181-1	01	1	0712-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L) (B)	8-98058-186-1	01	1	0712-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L) (B)	8-98058-185-1	01	1	0712-		●

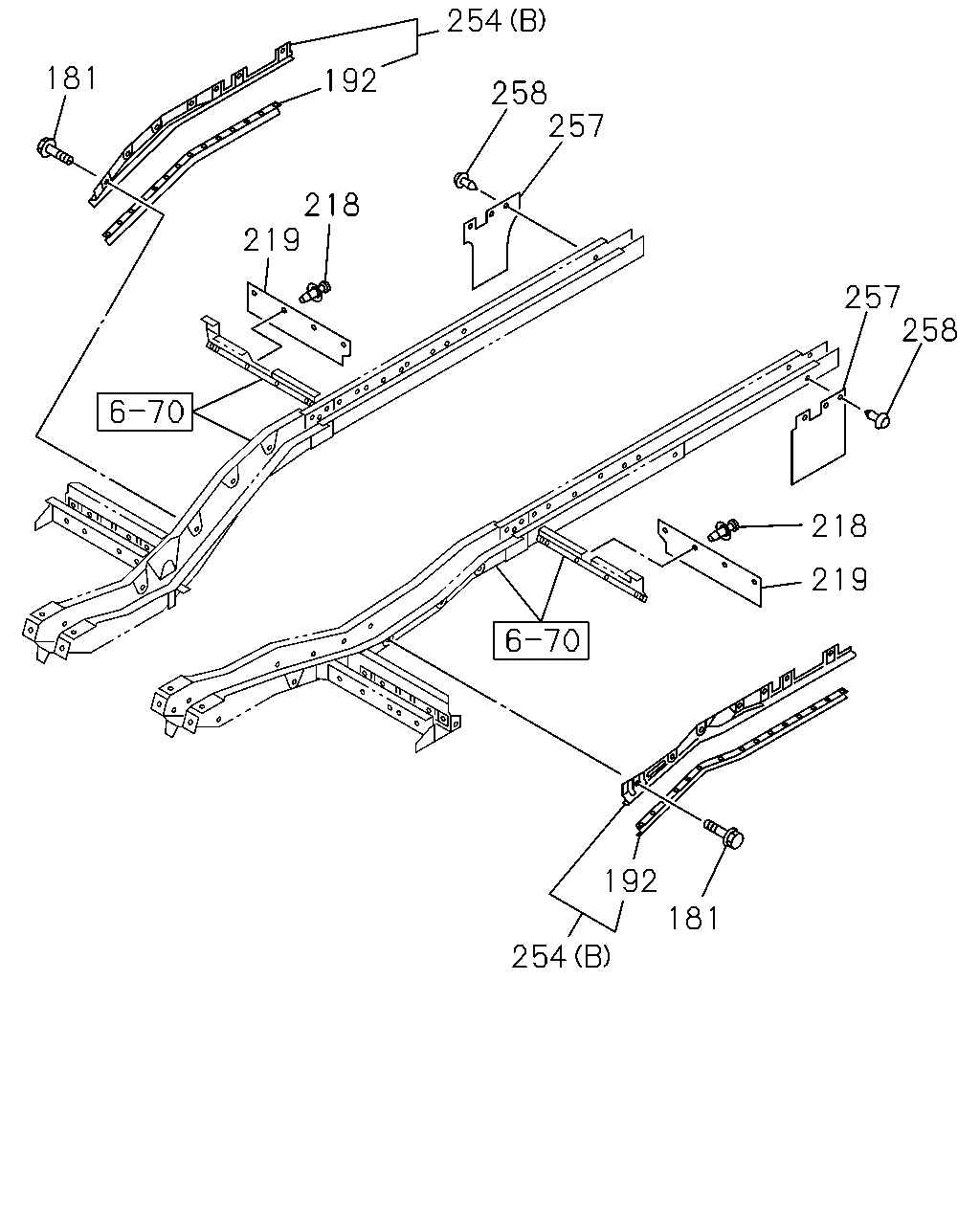

254 181 192 258 257 218 219 257 258 218 219 192 181 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0710-	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0712-0904		●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	0905-		●
192	SEAL; MUD COVER	8-98041-159-2	01	1	0710-	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	0710-	●
192	SEAL; MUD COVER	8-98061-555-1	01	1	0712-		●
192	SEAL; MUD COVER	8-98061-554-1	01	1	0712-		●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0710-0711	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0712-	●	●
219	FLAP; MUD GUARD	8-98041-150-1	02	1	0710-	●
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS)	8-98065-773-0	02	1	0712-		●
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98063-654-0	02	1	0712-		●
254	COVER; MUD,VALANCE (A)	8-98039-926-1	01	1	0710-	●
254	COVER; MUD,VALANCE (A)	8-98039-925-2	01	1	0710-	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) (B)	8-98058-182-1	01	1	0712-		●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) (B)	8-98058-181-1	01	1	0712-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L) (B)	8-98058-186-1	01	1	0712-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L) (B)	8-98058-185-1	01	1	0712-		●
257	SHUTTER; RUBBER,SIDE COVER REAR 4HK1-TCS ENG(RJS)	8-98064-284-1	01	1	0712-		●
257	SHUTTER; RUBBER,SIDE COVER REAR 4HK1-TCS ENG(RJS)	8-98064-283-2	01	1	0712-		●
257	SHUTTER; RUBBER,SIDE COVER REAR 6HK1-TCN ENG(82L)	8-98064-286-1	01	1	0712-		●
257	SHUTTER; RUBBER,SIDE COVER REAR 6HK1-TCN ENG(82L)	8-98064-285-2	01	1	0712-		●
258	RIVET; SCREW,SHUTTER 4HK1-TCS ENG(RJS) D6X16 PUSH RIVET	1-09983-105-0	06	1	0712-		●
258	RIVET; SCREW,SHUTTER 6HK1-TCN ENG(82L) D6X16 PUSH RIVET	1-09983-105-0	04	1	0712-		●
