6-32 — FRONT DOOR LOCK AND HANDLE (#19138) — 82 parça

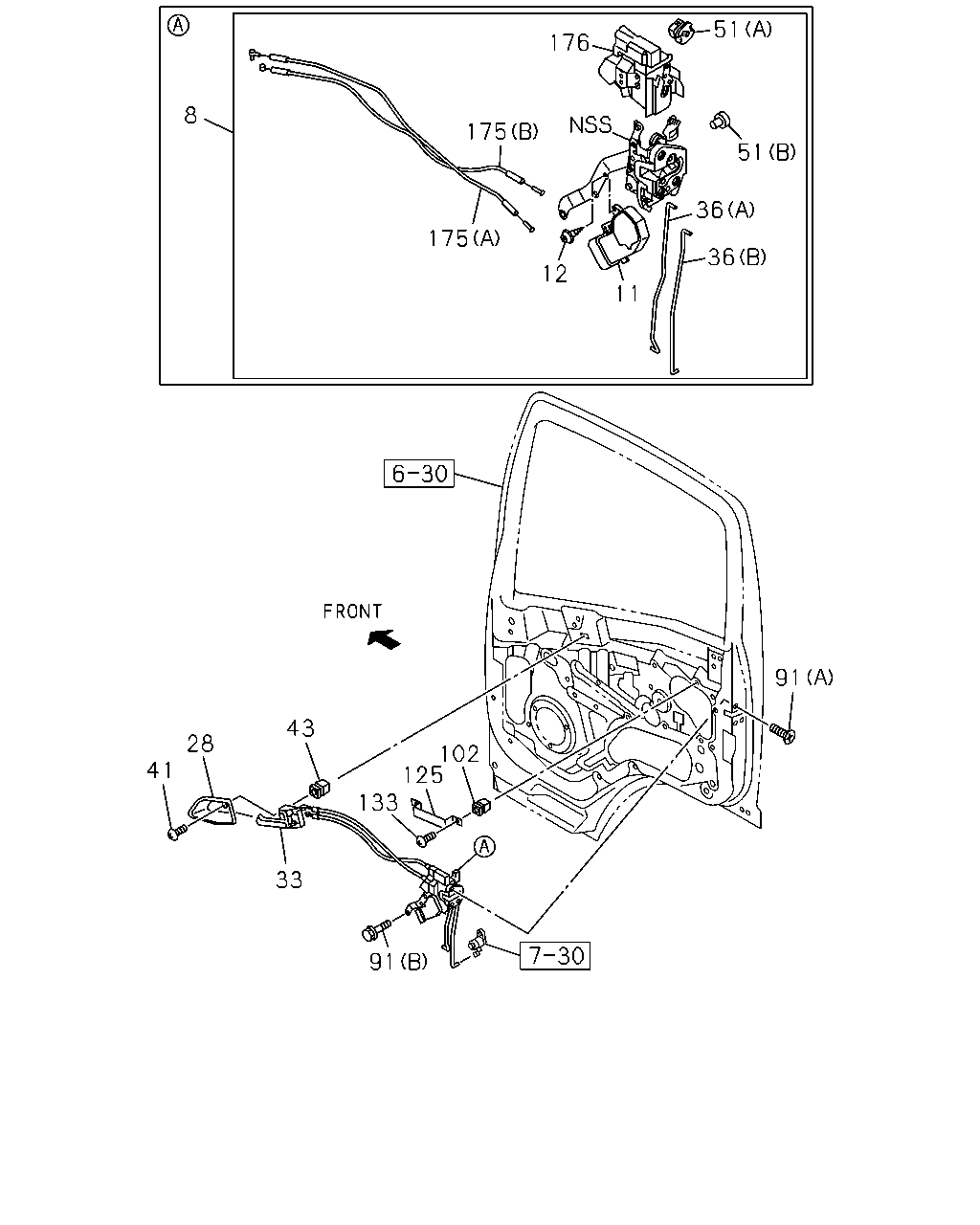

çizim 108885
51 176 8 175 51 36 175 36 12 11 91 43 28 102 125 133 41 33 91
BalonParca AdiParca NoAdetTipApplied Date A B
8 LOCK; DOOR,FRT DOOR 8-98029-055-2 01 1 0710-0711 ●
8 LOCK; DOOR,FRT DOOR 8-98029-055-2 01 1 0712- ● ●
8 LOCK; DOOR,FRT DOOR 8-98029-056-2 01 1 0710-0711 ●
8 LOCK; DOOR,FRT DOOR 8-98029-056-2 01 1 0712- ● ●
11 ACTUATOR; DOOR LK,FRT 8-98058-231-0 01 1 0710-0711 ●
11 ACTUATOR; DOOR LK,FRT 8-98058-231-0 01 1 0712- ● ●
11 ACTUATOR; DOOR LK,FRT 8-98058-233-0 01 1 0710-0711 ●
11 ACTUATOR; DOOR LK,FRT 8-98058-233-0 01 1 0712- ● ●
12 SCREW; DOOR LK 8-97310-549-0 02 1 0710-0711 ●
12 SCREW; DOOR LK 8-97310-549-0 02 1 0710-0711 ●
12 SCREW; DOOR LK 8-97310-549-0 02 1 0712- ● ●
12 SCREW; DOOR LK 8-97310-549-0 02 1 0712- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 0710-0711 ●
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 0712- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 0710-0711 ●
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 0712- ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 0710-0711 ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 0712- ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 0710-0711 ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 0712- ● ●
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 0710-0711 ●
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 0712- ● ●
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 0710-0711 ●
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 0712- ● ●
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 0710-0711 ●
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 0712- ● ●
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 0710-0711 ●
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 0712- ● ●
41 SCREW; INSIDE HANDLE
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710-0711 ●
41 SCREW; INSIDE HANDLE
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0712- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0710-0711 ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0712- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-98058-227-0 01 1 0710-0711 ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-98058-227-0 01 1 0712- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-98058-229-0 01 1 0710-0711 ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-98058-229-0 01 1 0712- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-98058-226-0 01 1 0710-0711 ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-98058-226-0 01 1 0712- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-98058-228-0 01 1 0710-0711 ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-98058-228-0 01 1 0712- ● ●
91 BOLT; DOOR LOCK
(B) M6X10 FLANGE 		0-28050-610-0 02 1 0710-0711 ●
91 BOLT; DOOR LOCK
(B) M6X10 FLANGE 		0-28050-610-0 02 1 0712- ● ●
91 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 0710-0711 ●
91 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 0712- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0710-0711 ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0712- ● ●
125 BRACKET; DOOR PULL 8-97585-927-0 02 1 0710-0711 ●
125 BRACKET; DOOR PULL 8-97585-927-0 02 1 0712- ● ●
133 SCREW; DOOR PULL STAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0710-0711 ●
133 SCREW; DOOR PULL STAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0712- ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 0710-0711 ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 0710-0711 ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 0712- ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 0712- ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 0710-0711 ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 0712- ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 0710-0711 ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 0712- ● ●
176 COVER; DOOR LOCK 8-98058-239-0 01 1 0710-0711 ●
176 COVER; DOOR LOCK 8-98058-239-0 01 1 0712- ● ●
176 COVER; DOOR LOCK 8-98058-238-0 01 1 0710-0711 ●
176 COVER; DOOR LOCK 8-98058-238-0 01 1 0712- ● ●

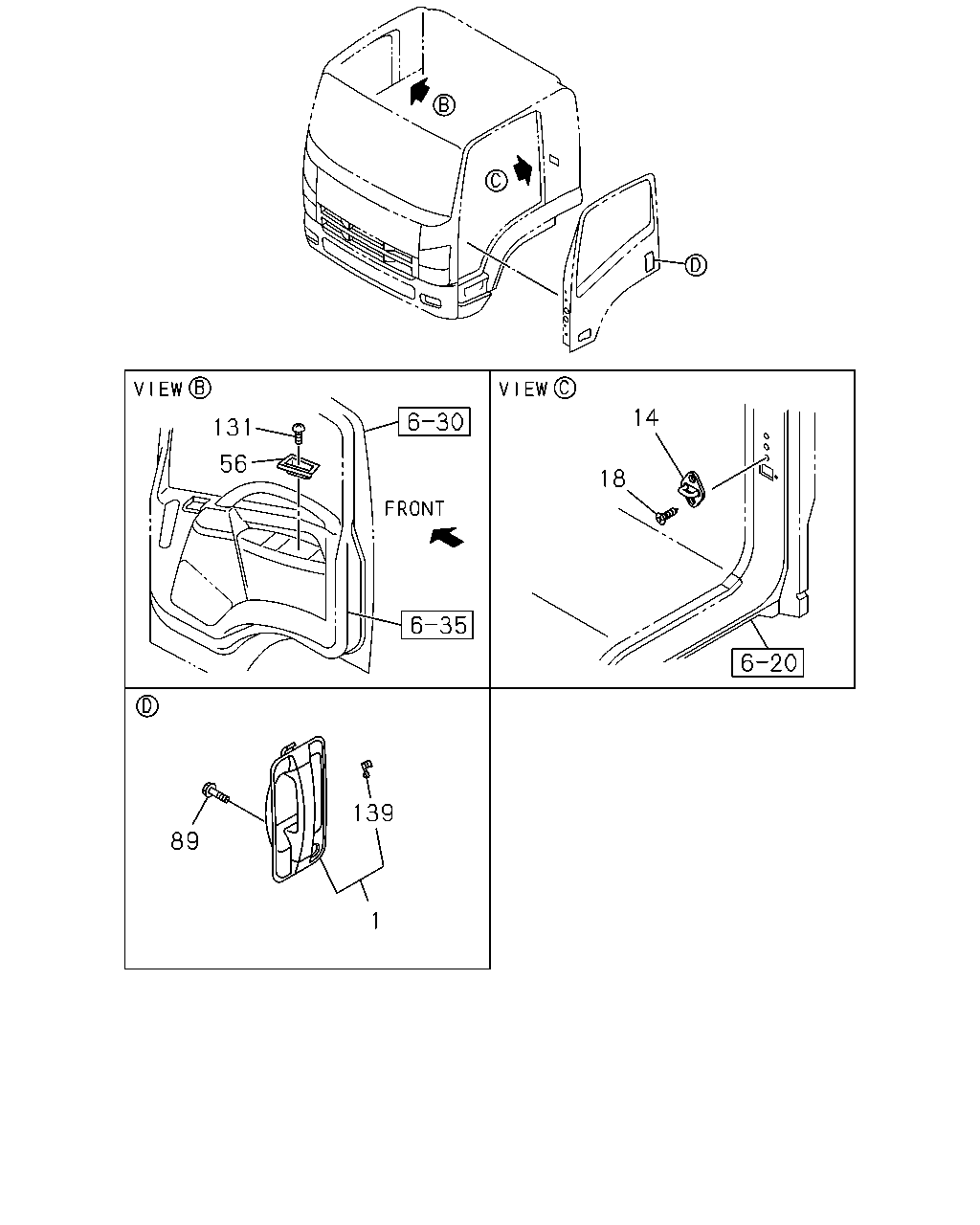

çizim 108887
14 131 56 18 139 89 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 0710-0711 ●
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 0712- ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 0710-0711 ●
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 0712- ● ●
14 STRIKER; FRT DOOR 8-98029-173-2 02 1 0710-0711 ●
14 STRIKER; FRT DOOR 8-98029-173-2 02 1 0712- ● ●
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0710-0711 ●
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0712- ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-314-1 01 1 0710-0711 ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-314-1 01 1 0712- ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-315-1 01 1 0710-0711 ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-315-1 01 1 0712- ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE 		0-28050-610-0 04 1 0710-0711 ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE 		0-28050-610-0 04 1 0712- ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710-0711 ●
131 SCREW; ESCUTCHEON,DOOR PULL
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0712- ● ●
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 0710-0711 ●
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 0712- ● ●
139 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 0710-0711 ●
139 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 0712- ● ●
