Sayfa 6-04 - Isuzu EPC

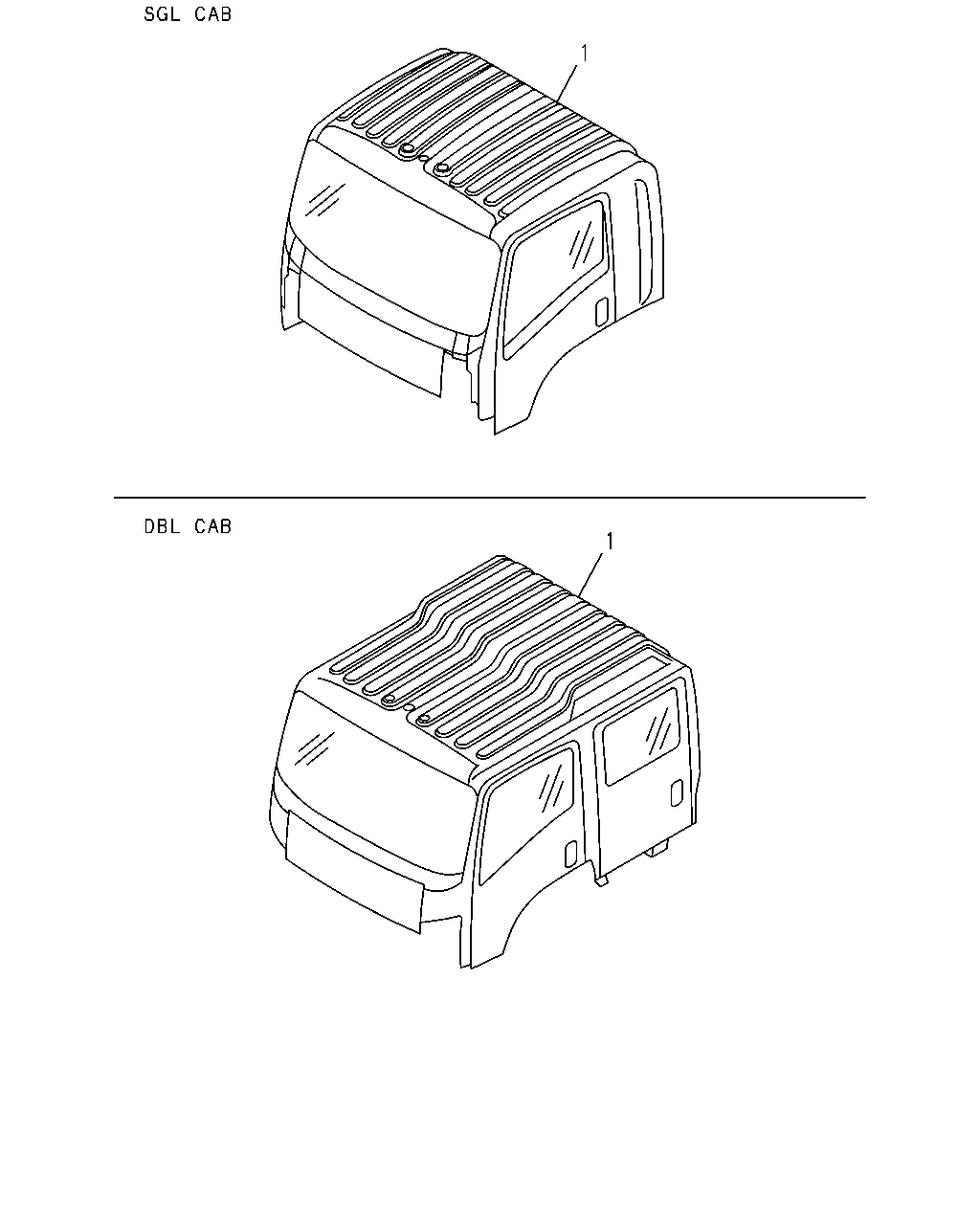

6-04 — CAB ASM (#19132) — 3 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) ASSISTOR SHIFT CONTROL<WX8> POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-343-0	01	1	0710-0711	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> MANUAL TRANSMISSION<X9C> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-343-0	01	1	0712-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> LAMPS TWO ROOF MARKER<TEC> MANUAL TRANSMISSION<X9C> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-61087-345-0	01	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
