6-01 — FRONT BUMPER (#19130) — 60 parça

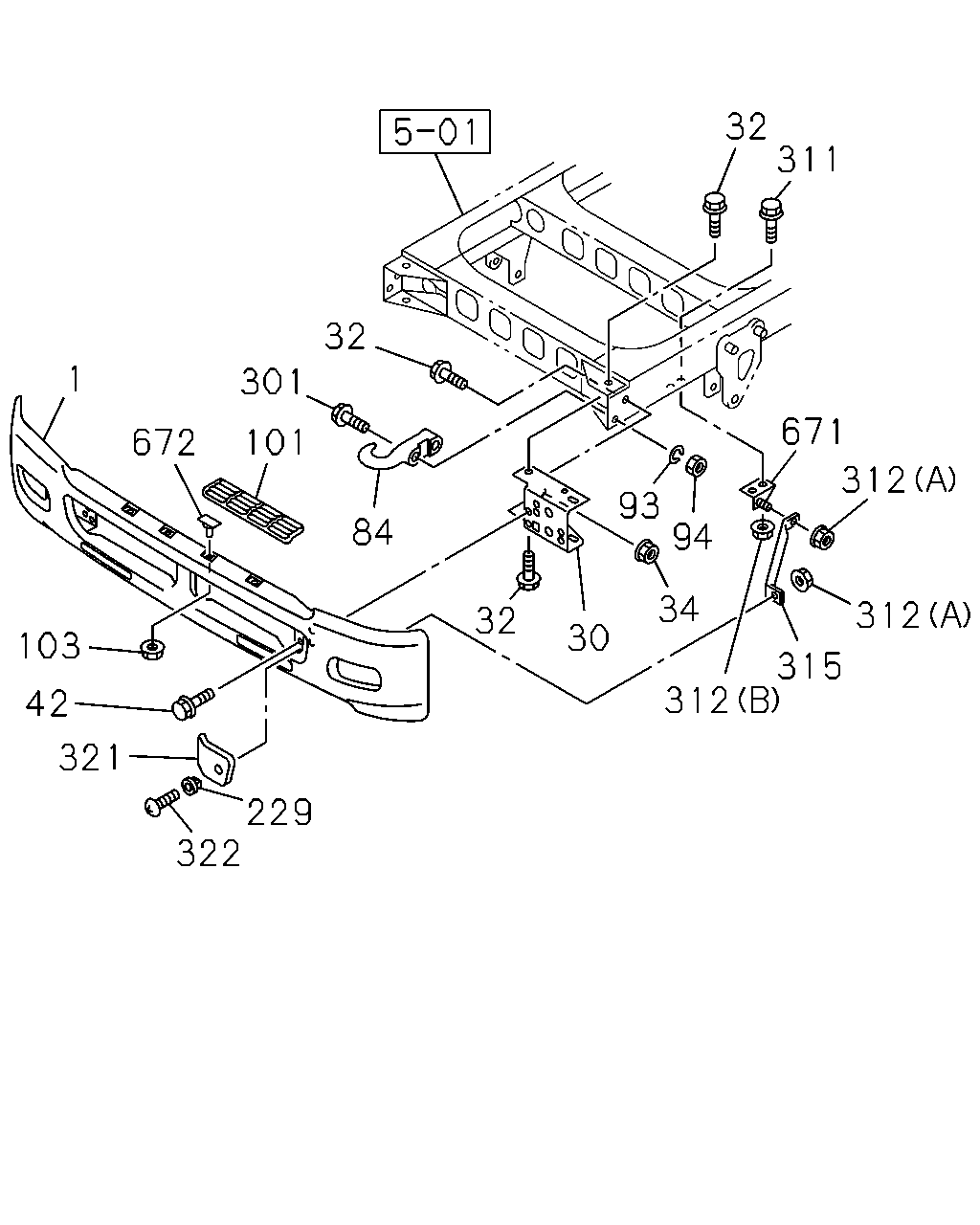

çizim 108869
32 311 32 1 301 671 672 101 312 93 94 84 34 312 32 30 103 315 312 42 321 229 322
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97407-728-3 01 1 0710-0711 ●
1 BUMPER ASM; FRT
WHITE 		8-97407-728-3 01 1 0712-1301 ● ●
1 BUMPER ASM; FRT
WHITE 		8-97425-839-0 01 1 1302- ● ●
30 BRACKET; FRT BUMPER 8-97611-518-4 01 1 0710-0711 ●
30 BRACKET; FRT BUMPER 8-97611-518-4 01 1 0712- ●
30 BRACKET; FRT BUMPER
6HK1-TCN ENG(82L) 		8-97611-518-4 01 1 0712- ●
30 BRACKET; FRT BUMPER 8-97611-517-5 01 1 0710-0711 ●
30 BRACKET; FRT BUMPER 8-97611-517-5 01 1 0712- ●
30 BRACKET; FRT BUMPER
6HK1-TCN ENG(82L) 		8-97611-517-5 01 1 0712- ●
30 BRACKET; FRT BUMPER
4HK1-TCS ENG(RJS) 		8-97611-516-4 01 1 0712- ●
30 BRACKET; FRT BUMPER
4HK1-TCS ENG(RJS) 		8-97611-515-4 01 1 0712- ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28651-035-0 06 1 0710-0711 ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28651-035-0 06 1 0712- ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0710-0711 ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0712- ● ●
84 HOOK 1-57181-003-5 01 1 0710-0711 ●
84 HOOK 1-57181-003-5 01 1 0712- ● ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0710-0711 ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0712- ● ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0710-0711 ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0712- ● ●
101 STEP; BUMPER 8-97611-541-0 01 1 0710-0711 ●
101 STEP; BUMPER 8-97611-541-0 01 1 0712- ● ●
101 STEP; BUMPER 8-97611-540-0 01 1 0710-0711 ●
101 STEP; BUMPER 8-97611-540-0 01 1 0712- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0710-0711 ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0712- ● ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 02 1 0710-0711 ●
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 02 1 0712- ● ●
311 BOLT; BRKT
M14X35 FLANGE 		0-28851-435-0 04 1 0710-0711 ●
311 BOLT; BRKT
M14X35 FLANGE 		0-28851-435-0 04 1 0712-1008 ● ●
311 BOLT; BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1009- ● ●
312 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
312 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0712- ● ●
312 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 04 1 0710-0711 ●
312 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 04 1 0712- ● ●
315 STAY; BUMPER 8-97611-500-2 01 1 0710-0711 ●
315 STAY; BUMPER 8-97611-500-2 01 1 0712- ●
315 STAY; BUMPER
6HK1-TCN ENG(82L) 		8-97611-500-2 01 1 0712- ●
315 STAY; BUMPER 8-97611-499-2 01 1 0710-0711 ●
315 STAY; BUMPER 8-97611-499-2 01 1 0712- ●
315 STAY; BUMPER
6HK1-TCN ENG(82L) 		8-97611-499-2 01 1 0712- ●
315 STAY; BUMPER
4HK1-TCS ENG(RJS) 		8-97611-498-1 01 1 0712- ●
315 STAY; BUMPER
4HK1-TCS ENG(RJS) 		8-97611-497-1 01 1 0712- ●
321 COVER; BUMPER FRT SIDE 8-97616-291-1 01 1 0710-0711 ●
321 COVER; BUMPER FRT SIDE 8-97616-291-1 01 1 0712- ● ●
321 COVER; BUMPER FRT SIDE 8-97616-290-1 01 1 0710-0711 ●
321 COVER; BUMPER FRT SIDE 8-97616-290-1 01 1 0712- ● ●
322 SCREW; COVER FIX
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0710-0711 ●
322 SCREW; COVER FIX
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712- ● ●
671 BRACKET; STAY 8-97614-063-0 01 1 0710-0711 ●
671 BRACKET; STAY 8-97614-063-0 01 1 0712- ● ●
671 BRACKET; STAY 8-97614-062-0 01 1 0710-0711 ●
671 BRACKET; STAY 8-97614-062-0 01 1 0712- ● ●
672 STUD; STEP 8-97611-666-0 04 1 0710-0711 ●
672 STUD; STEP 8-97611-666-0 04 1 0712- ● ●
