3-20 — AIR TANK (#1913) — 283 parça

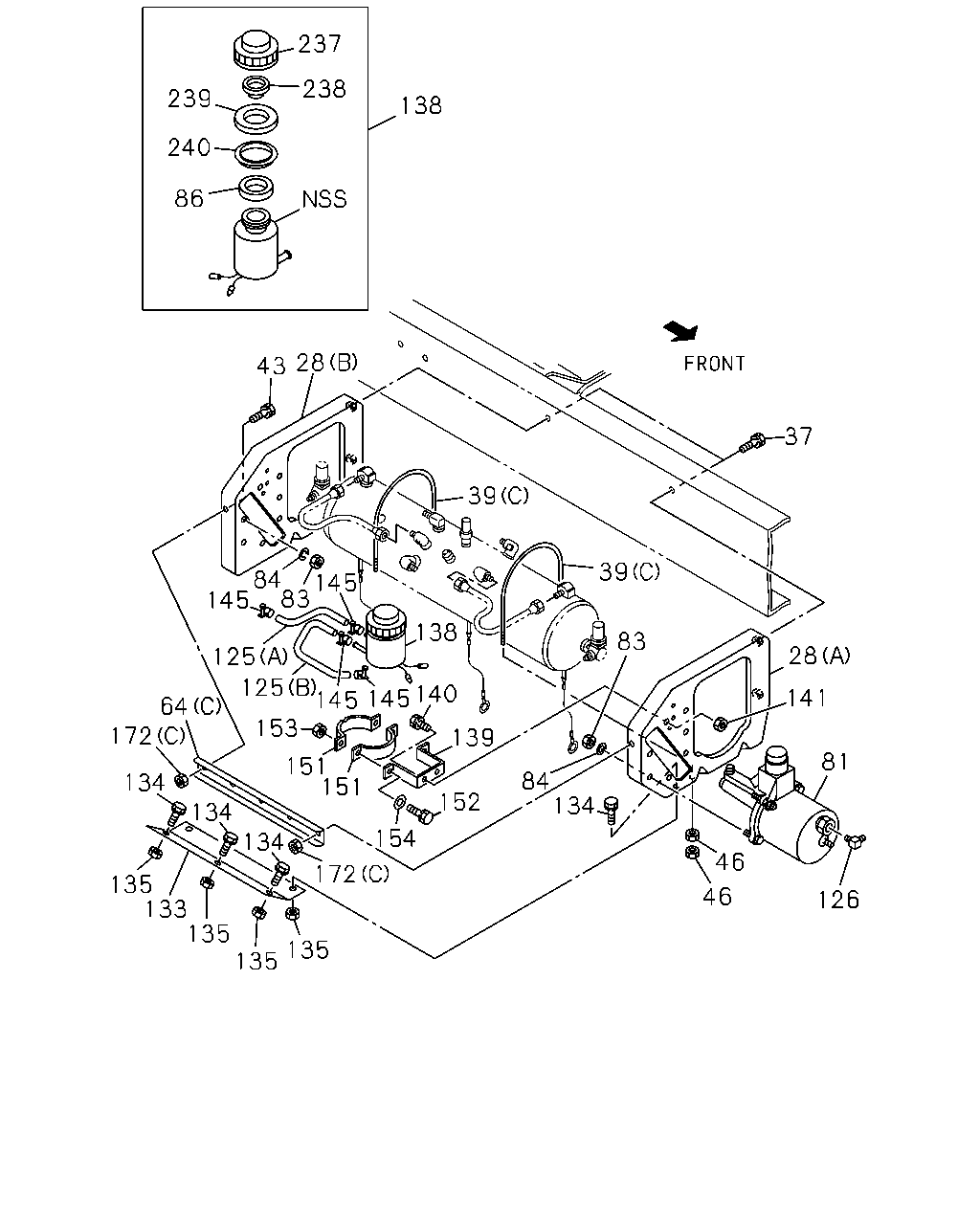

çizim 27889
237 238 239 138 240 86 28 43 37 39 39 84 145 138 83 28 125 125 145 140 145 141 64 172 153 139 81 151 151 134 84 134 152 134 154 134 46 172 135 133 135 135 46 126 135 145 83
BalonParca AdiParca NoAdetTipApplied Date A B C D
28 BRACKET; AIR TANK
(A) 		1-48317-352-6 01 1 9207- ● ●
28 BRACKET; AIR TANK
(B) 		1-48317-389-4 01 1 9207- ● ●
28 BRACKET; AIR TANK
(C) 		1-53318-232-9 02 1 9207- ● ●
37 BOLT; AIR TANK
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9207-9503 ● ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9504- ● ●
37 BOLT; AIR TANK
M12X45 		1-09030-052-1 06 1 9207-9601 ● ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9602- ● ●
39 U-BOLT; AIR TANK
(C) L=250 		1-48317-308-0 02 1 9207- ● ●
39 U-BOLT; AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 9207- ● ●
39 U-BOLT; AIR TANK
(B) L=195 		1-48317-367-2 02 1 9207- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9207- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28080-820-0 04 1 9207- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M10X25 W/LK&PL WASHER 		0-50141-025-0 04 1 9207- ● ●
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 9207- ● ●
64 STAY; AIR TANK,MAIN
(C) 		1-48317-307-2 01 1 9207- ● ●
64 STAY; AIR TANK,MAIN
(A) 		1-48317-349-0 01 1 9207- ● ●
64 STAY; AIR TANK,MAIN
(B) 		1-53318-224-2 01 1 9207-9207 ● ●
64 STAY; AIR TANK,MAIN
(B) 		1-53318-293-1 01 1 9208- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-413-0 02 1 9207- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-382-2 01 1 9207- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-397-2 01 1 9207- ● ●
83 NUT; AIR MASTER
M8 		9-09110-408-0 08 1 9207-9211 ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 08 1 9212- ● ●
83 NUT; AIR MASTER
M10 		9-09110-410-0 10 1 9207-9212 ● ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91150-110-0 10 1 9301- ● ●
84 WASHER; LK,AIR MASTER
ID=8.2 		9-09150-508-0 08 1 9207-9211 ● ●
84 WASHER; LK,AIR MASTER
ID=10.2 		9-09150-510-0 10 1 9207-9212 ● ●
86 SEAL; DUST 1-47529-019-0 01 1 9207- ● ● ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=240 SERVICED BY L=1800 		1-09360-320-0 01 1 9207- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) L=335 		1-47469-045-0 01 1 9207- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(C) L=325 SERVICED BY L=1800 		1-09360-320-0 02 1 9207-9212 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(C) L=295 SERVICED BY L=1800 		1-09360-320-0 02 1 9301- ● ●
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-180-1 02 1 9207-9302 ● ●
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 9303- ● ●
133 COVER; AIR MASTER 1-48317-388-1 01 1 9207- ● ●
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28080-820-0 06 1 9207- ● ●
135 NUT; COVER
M8 		9-09110-408-0 06 1 9207- ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-154-1 01 1 9207- ● ● ● ●
139 BRACKET; OIL TANK 1-47537-069-1 01 1 9207- ● ●
139 BRACKET; OIL TANK 1-47537-112-1 01 1 9207-9212 ● ●
139 BRACKET; OIL TANK 1-47537-081-2 01 1 9301- ● ●
140 BOLT; OIL TANK TO BRKT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9207- ● ● ● ●
141 NUT; OIL TANK TO BRKT
M10 		9-09110-510-0 02 1 9207- ● ● ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 9207- ● ● ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 9207- ● ● ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
153 NUT; OIL TANK TO BAND
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
154 WASHER; PL,OIL TANK TO BAND
ID=8.4 		9-09160-508-0 02 1 9207- ● ● ● ●
172 NUT; STAY,AIR TANK,MAIN
(C) M8 		9-09110-408-0 02 1 9207- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M8 		9-09110-408-0 04 1 9207- ● ●
172 NUT; STAY,AIR TANK,MAIN
(A) M10 		9-09110-510-0 04 1 9207- ● ●
237 CAP; OIL TANK 1-47525-026-1 01 1 9207- ● ● ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 9207- ● ● ● ●
239 FILTER; DUST 1-47529-017-0 01 1 9207- ● ● ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 9207- ● ● ● ●

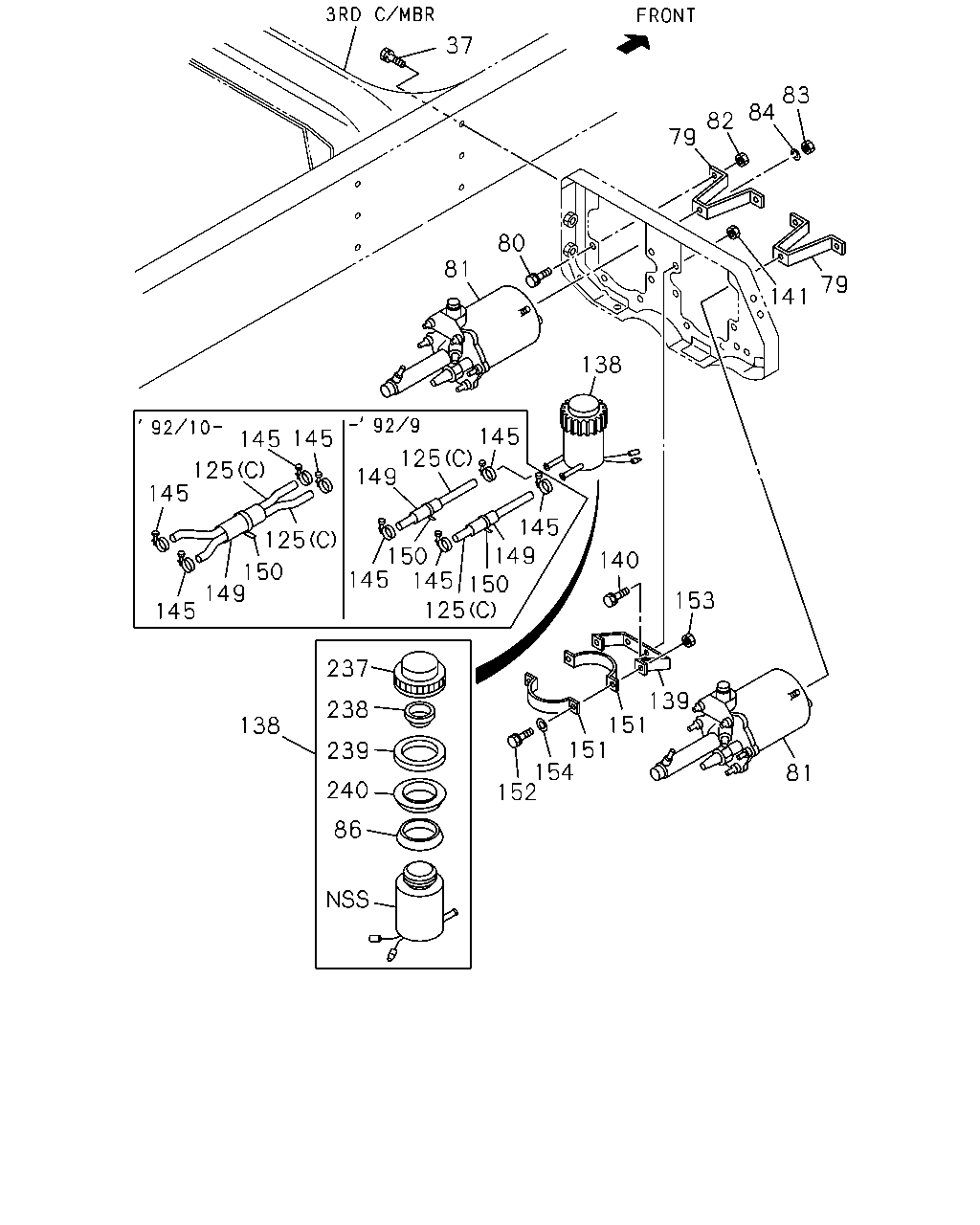

çizim 29229
37 83 84 82 79 80 81 79 141 138 145 125 149 145 145 125 145 145 125 149 150 145 145 140 150 149 150 125 153 145 237 139 151 151 154 152 238 138 239 81 240 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
37 BOLT; AIR TANK
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9207-9503 ● ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9504- ● ●
37 BOLT; AIR TANK
M12X45 		1-09030-052-1 06 1 9207-9601 ● ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9602- ● ●
79 STAY; AIR MASTER TO BRKT
H=203 		1-53318-217-0 02 1 9207- ● ●
80 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9207- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-413-0 02 1 9207- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-382-2 01 1 9207- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-397-2 01 1 9207- ● ●
82 NUT; STAY,AIR MASTER BRKT
M10 		9-09110-510-0 04 1 9207- ● ●
83 NUT; AIR MASTER
M8 		9-09110-408-0 08 1 9207-9211 ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 08 1 9212- ● ●
83 NUT; AIR MASTER
M10 		9-09110-410-0 10 1 9207-9212 ● ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91150-110-0 10 1 9301- ● ●
84 WASHER; LK,AIR MASTER
ID=8.2 		9-09150-508-0 08 1 9207-9211 ● ●
84 WASHER; LK,AIR MASTER
ID=10.2 		9-09150-510-0 10 1 9207-9212 ● ●
86 SEAL; DUST 1-47529-019-0 01 1 9207- ● ● ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=240 SERVICED BY L=1800 		1-09360-320-0 01 1 9207- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) L=335 		1-47469-045-0 01 1 9207- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(C) L=325 SERVICED BY L=1800 		1-09360-320-0 02 1 9207-9212 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(C) L=295 SERVICED BY L=1800 		1-09360-320-0 02 1 9301- ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-154-1 01 1 9207- ● ● ● ●
139 BRACKET; OIL TANK 1-47537-069-1 01 1 9207- ● ●
139 BRACKET; OIL TANK 1-47537-112-1 01 1 9207-9212 ● ●
139 BRACKET; OIL TANK 1-47537-081-2 01 1 9301- ● ●
140 BOLT; OIL TANK TO BRKT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9207- ● ● ● ●
141 NUT; OIL TANK TO BRKT
M10 		9-09110-510-0 02 1 9207- ● ● ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 9207- ● ● ● ●
149 SLEEVE; RUBBER,HOSE
ID=15 OD=19 L=50 		1-09337-014-0 02 1 9207-9209 ● ●
149 SLEEVE; RUBBER,HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9210- ● ●
150 CLIP; BAND,RUBBER SLEEVE
L=100 		5-09707-036-0 02 1 9207-9209 ● ●
150 CLIP; BAND,RUBBER SLEEVE
L=140 		5-09707-031-1 01 1 9210- ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 9207- ● ● ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
153 NUT; OIL TANK TO BAND
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
154 WASHER; PL,OIL TANK TO BAND
ID=8.4 		9-09160-508-0 02 1 9207- ● ● ● ●
237 CAP; OIL TANK 1-47525-026-1 01 1 9207- ● ● ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 9207- ● ● ● ●
239 FILTER; DUST 1-47529-017-0 01 1 9207- ● ● ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 9207- ● ● ● ●

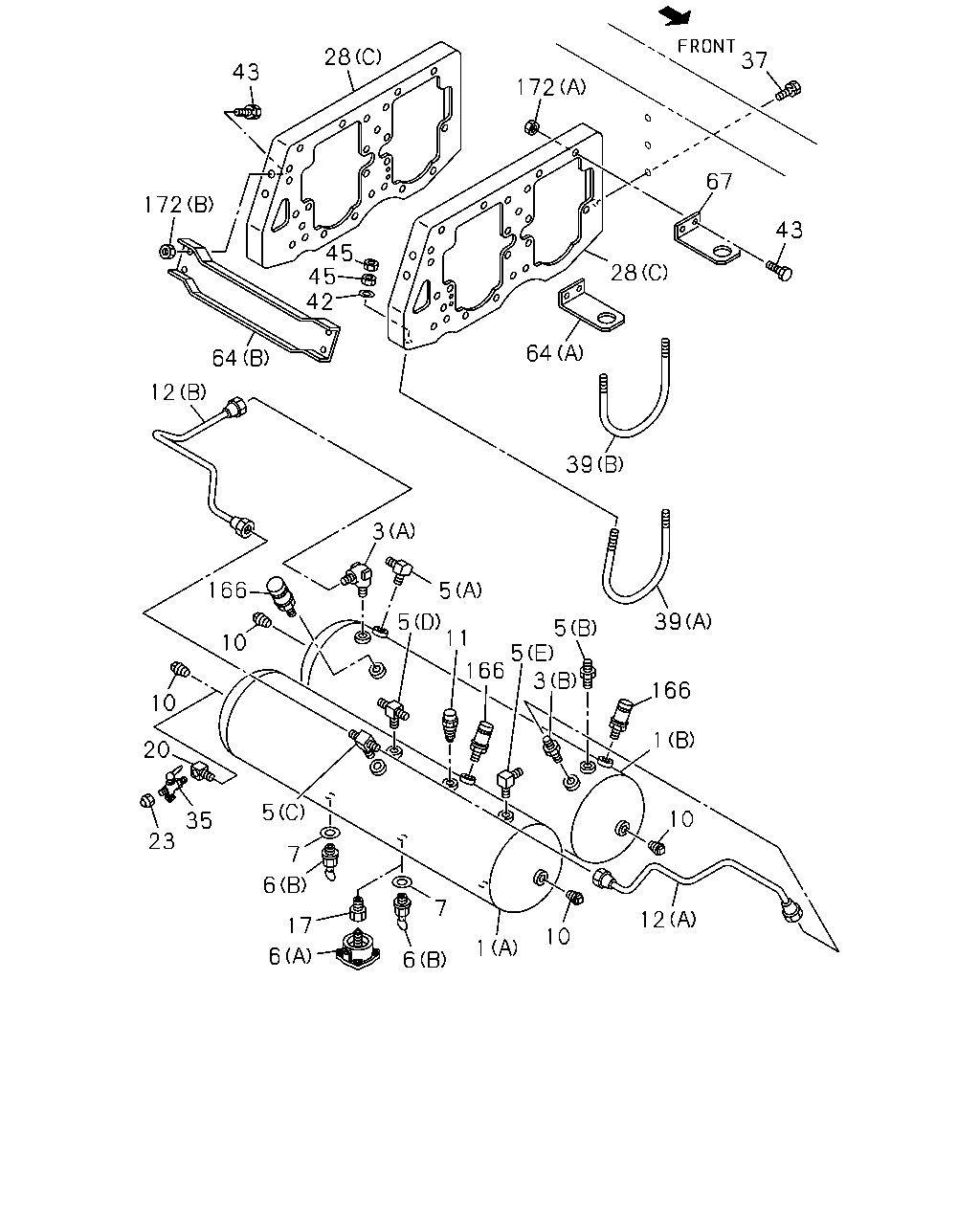

çizim 29230
37 28 43 172 67 172 43 45 45 42 28 64 64 12 39 3 166 5 5 11 39 5 5 166 3 10 166 10 1 20 5 10 35 23 7 6 7 12 17 10 1 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D

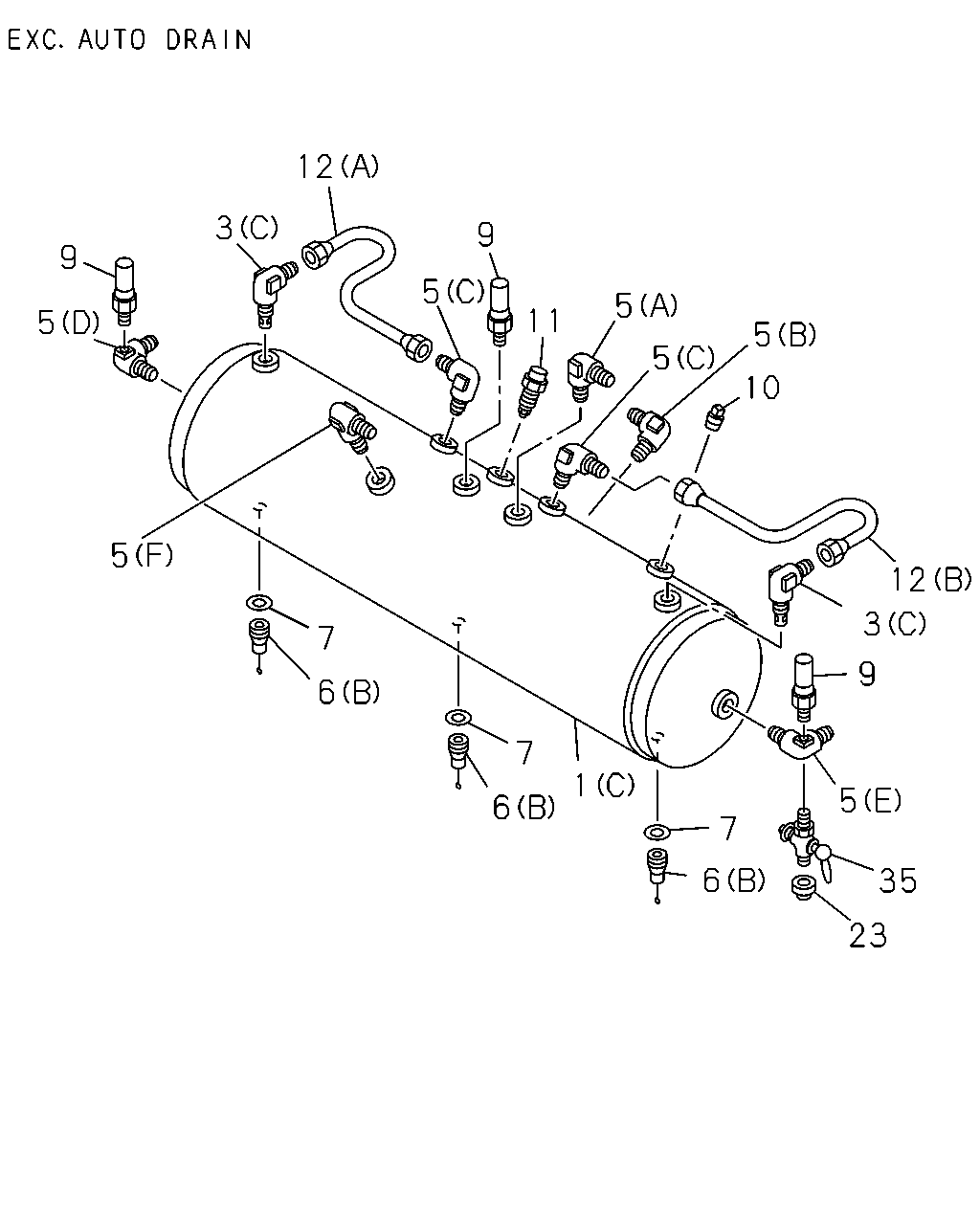

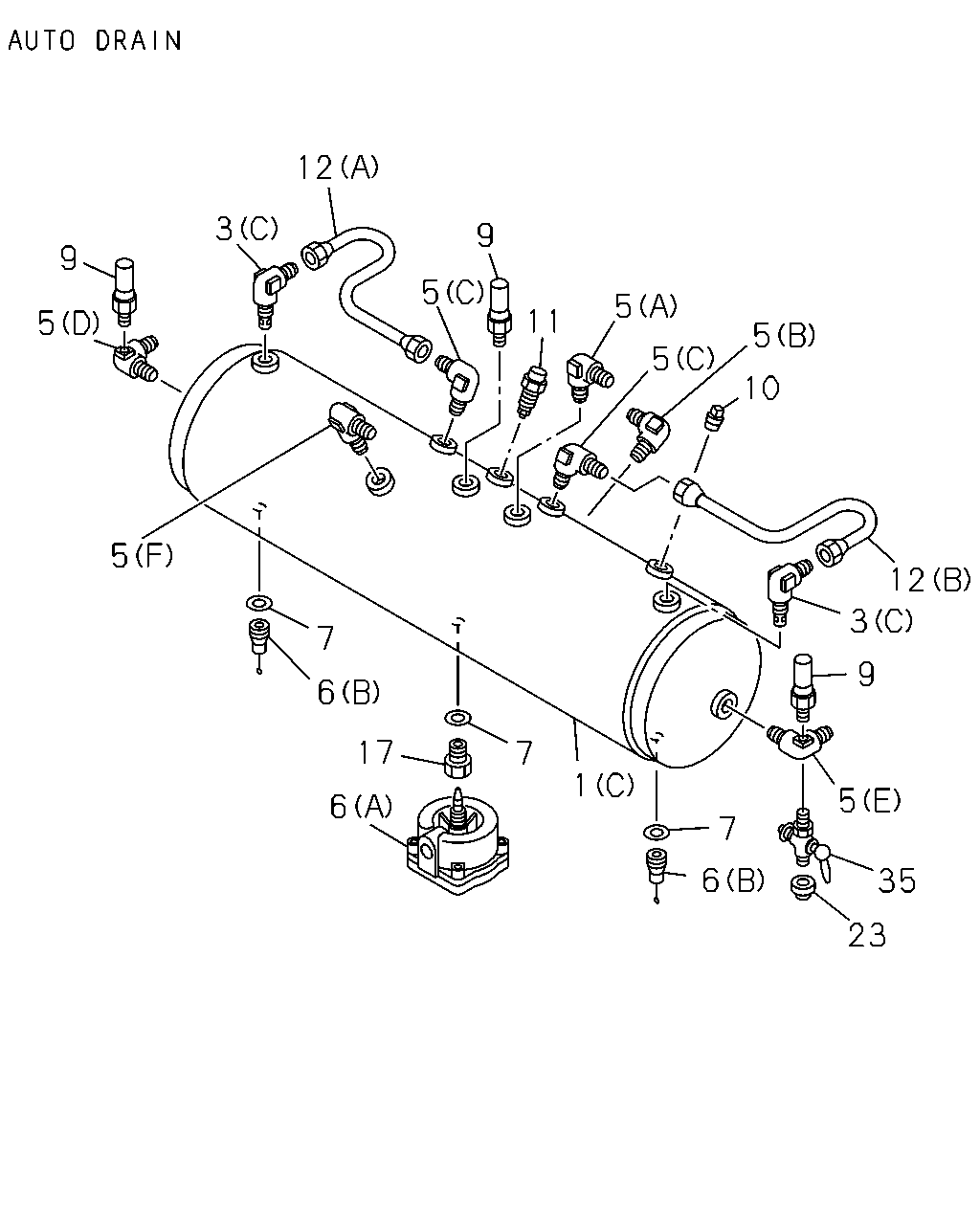

1 TANK ASM; AIR
