5-10 — CAB MOUNTING; FRAME SIDE (#19124) — 191 parça

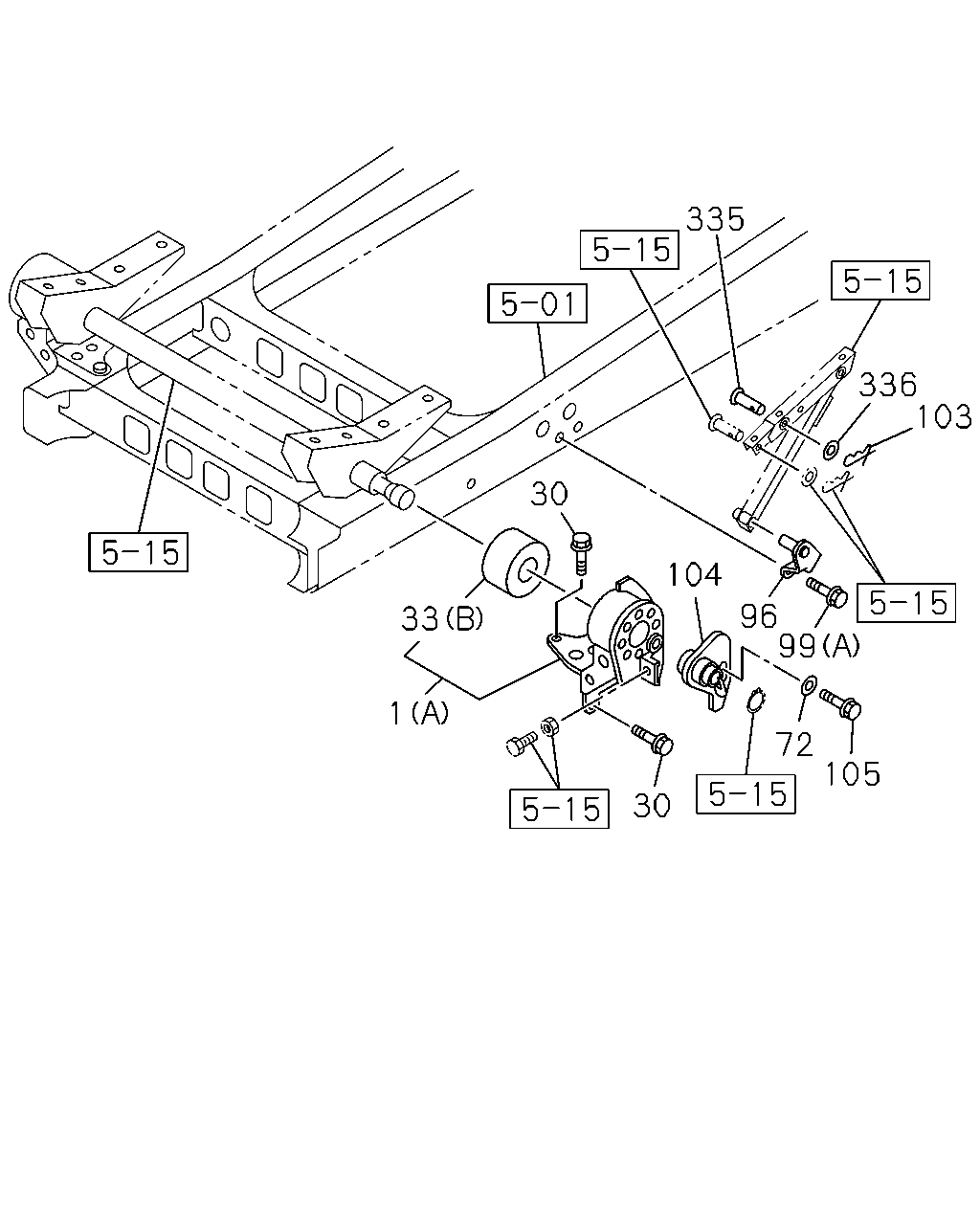

335 336 103 30 104 96 99 33 1 72 105 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A)	8-98010-749-3	01	1	0710-	●
1	BRACKET; CAB MTG (A)	8-98010-748-2	01	1	0710-	●
1	BRACKET; CAB MTG (D)	8-98094-593-0	02	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (C)	8-98043-944-3	02	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (B)	8-98010-751-2	01	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (B)	8-98010-750-2	01	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (C)	8-98065-059-0	02	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (B)	8-98017-666-2	01	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (B)	8-98017-665-2	01	1	0712-		●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0710-0711	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0712-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-932-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) (C)	8-98013-933-1	02	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	0710-	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0710-	●
99	BOLT; BRKT (A) M10X30 FLANGE	0-28661-030-0	02	1	0710-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	0712-		●
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	0710-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98010-753-3	01	1	0710-	●
105	BOLT; BRKT TO CAB FRAME M14X35 FLANGE	0-28661-435-0	01	1	0710-	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0710-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0710-	●

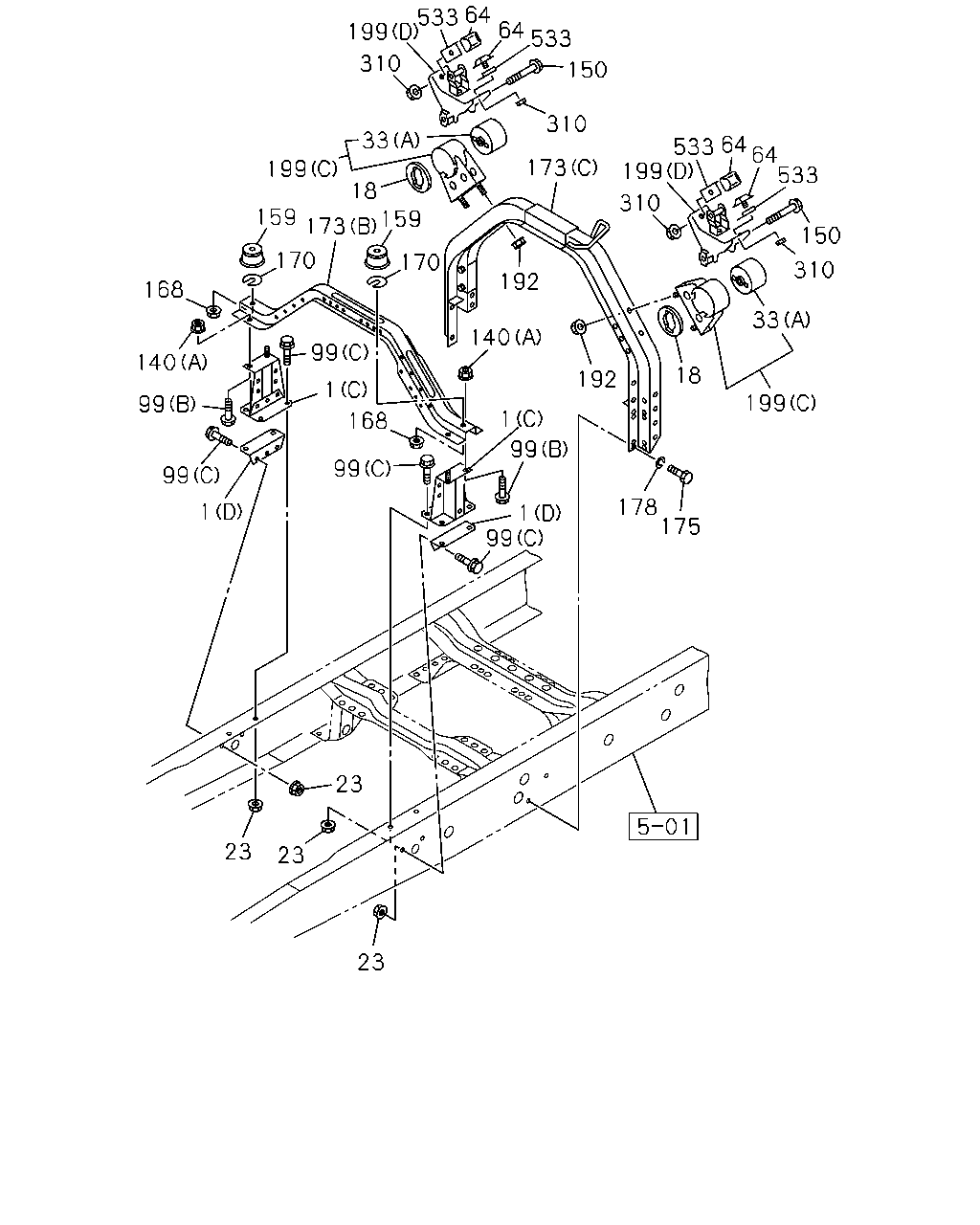

533 64 199 64 533 310 150 310 33 533 64 64 199 533 173 199 18 310 159 159 173 150 170 170 310 192 168 33 99 140 140 18 192 1 199 99 1 168 99 99 99 178 175 1 1 99 23 23 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A)	8-98010-749-3	01	1	0710-	●
1	BRACKET; CAB MTG (A)	8-98010-748-2	01	1	0710-	●
1	BRACKET; CAB MTG (D)	8-98094-593-0	02	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (C)	8-98043-944-3	02	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (B)	8-98010-751-2	01	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (B)	8-98010-750-2	01	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (C)	8-98065-059-0	02	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (B)	8-98017-666-2	01	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (B)	8-98017-665-2	01	1	0712-		●
18	PLATE; MTG BRKT FIX	8-98096-159-0	02	1	0712-		●
23	NUT; MTG BRKT M12 FLANGE	0-91180-212-0	12	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-932-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) (C)	8-98013-933-1	02	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0710-0711	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0712-	●	●
99	BOLT; BRKT (A) M10X30 FLANGE	0-28661-030-0	02	1	0710-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	0712-		●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	08	1	0712-		●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0710-0711	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0712-	●	●
159	RUBBER; CUSHION,CAB MTG	9-54347-160-1	02	1	0712-		●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91180-212-0	06	1	0712-		●
170	SHIM; CUSHION RUBBER T=1.6	9-54347-136-1	AR	1	0712-		●
173	MEMBER; CAB MTG RR (A)	8-98017-669-3	01	1	0710-0910	●
173	MEMBER; CAB MTG RR (A)	8-98150-944-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
173	MEMBER; CAB MTG RR 4HK1-TCS ENG(RJS) (C)	8-98043-923-4	01	1	0712-		●
173	MEMBER; CAB MTG RR 6HK1-TCN ENG(82L) (C)	8-98065-092-4	01	1	0712-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0710-0711	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0712-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0710-0711	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0712-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0710-0711	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0712-	●	●
199	BRACKET; CAB RR MTG (A)	8-98010-769-2	02	1	0710-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0710-	●
199	BRACKET; CAB RR MTG (C)	8-98044-033-1	02	1	0712-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	0712-		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	0712-		●

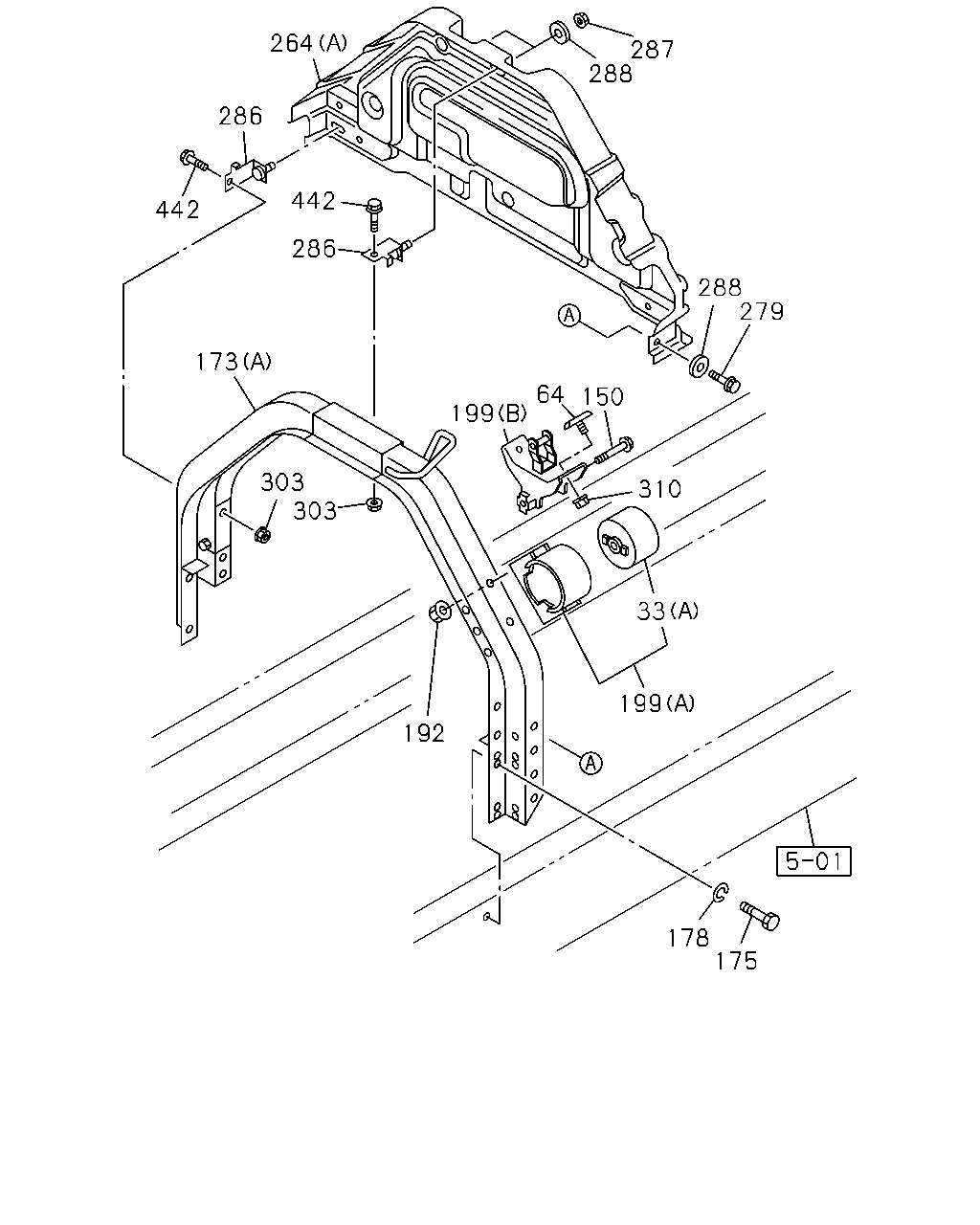

264 287 288 286 442 442 286 288 279 173 64 199 150 303 303 310 33 199 192 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-932-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) (C)	8-98013-933-1	02	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0710-0711	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0712-	●	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0710-0711	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0712-	●	●
173	MEMBER; CAB MTG RR (A)	8-98017-669-3	01	1	0710-0910	●
173	MEMBER; CAB MTG RR (A)	8-98150-944-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
173	MEMBER; CAB MTG RR 4HK1-TCS ENG(RJS) (C)	8-98043-923-4	01	1	0712-		●
173	MEMBER; CAB MTG RR 6HK1-TCN ENG(82L) (C)	8-98065-092-4	01	1	0712-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0710-0711	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0712-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0710-0711	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0712-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0710-0711	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0712-	●	●
199	BRACKET; CAB RR MTG (A)	8-98010-769-2	02	1	0710-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0710-	●
199	BRACKET; CAB RR MTG (C)	8-98044-033-1	02	1	0712-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	0712-		●
264	PANEL; BACK (A)	1-53194-609-2	01	1	0710-	●
264	PANEL; BACK 6HK1-TCN ENG(82L) (B)	8-98055-597-1	01	1	0712-		●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
279	BOLT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
286	BRACKET; LOW	1-53457-187-0	02	1	0710-0711	●
286	BRACKET; LOW	1-53457-187-0	02	1	0712-	●
286	BRACKET; LOW 6HK1-TCN ENG(82L)	1-53457-187-0	02	1	0712-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0712-0809	●
287	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-0809		●
287	NUT M8 FLANGE	0-91180-108-0	03	1	0810-	●
287	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0810-		●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0710-0711	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0712-	●
288	WASHER; PL 6HK1-TCN ENG(82L) ID=8.4 OD=26	0-91614-808-0	03	1	0712-		●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
303	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
442	BOLT; BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●

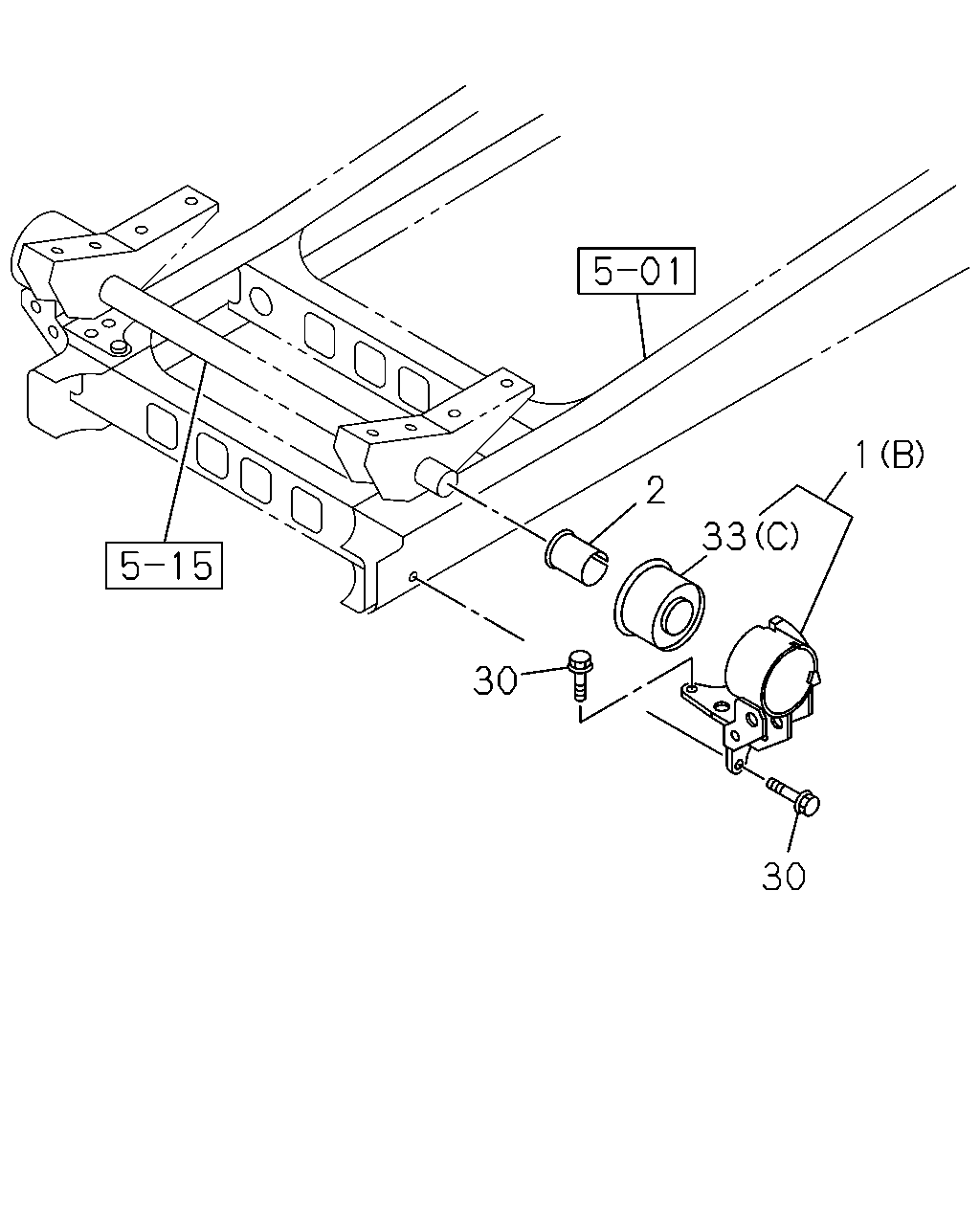

1 2 33 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A)	8-98010-749-3	01	1	0710-	●
1	BRACKET; CAB MTG (A)	8-98010-748-2	01	1	0710-	●
1	BRACKET; CAB MTG (D)	8-98094-593-0	02	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (C)	8-98043-944-3	02	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (B)	8-98010-751-2	01	1	0712-		●
1	BRACKET; CAB MTG 4HK1-TCS ENG(RJS) (B)	8-98010-750-2	01	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (C)	8-98065-059-0	02	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (B)	8-98017-666-2	01	1	0712-		●
1	BRACKET; CAB MTG 6HK1-TCN ENG(82L) (B)	8-98017-665-2	01	1	0712-		●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	0712-		●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0710-0711	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0712-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-932-2	02	1	0710-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 4HK1-TCS ENG(RJS) (C)	8-98013-933-1	02	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	8-98013-933-1	01	1	1007-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1-TCN ENG(82L) (C)	8-98013-933-1	01	1	0712-1006		●

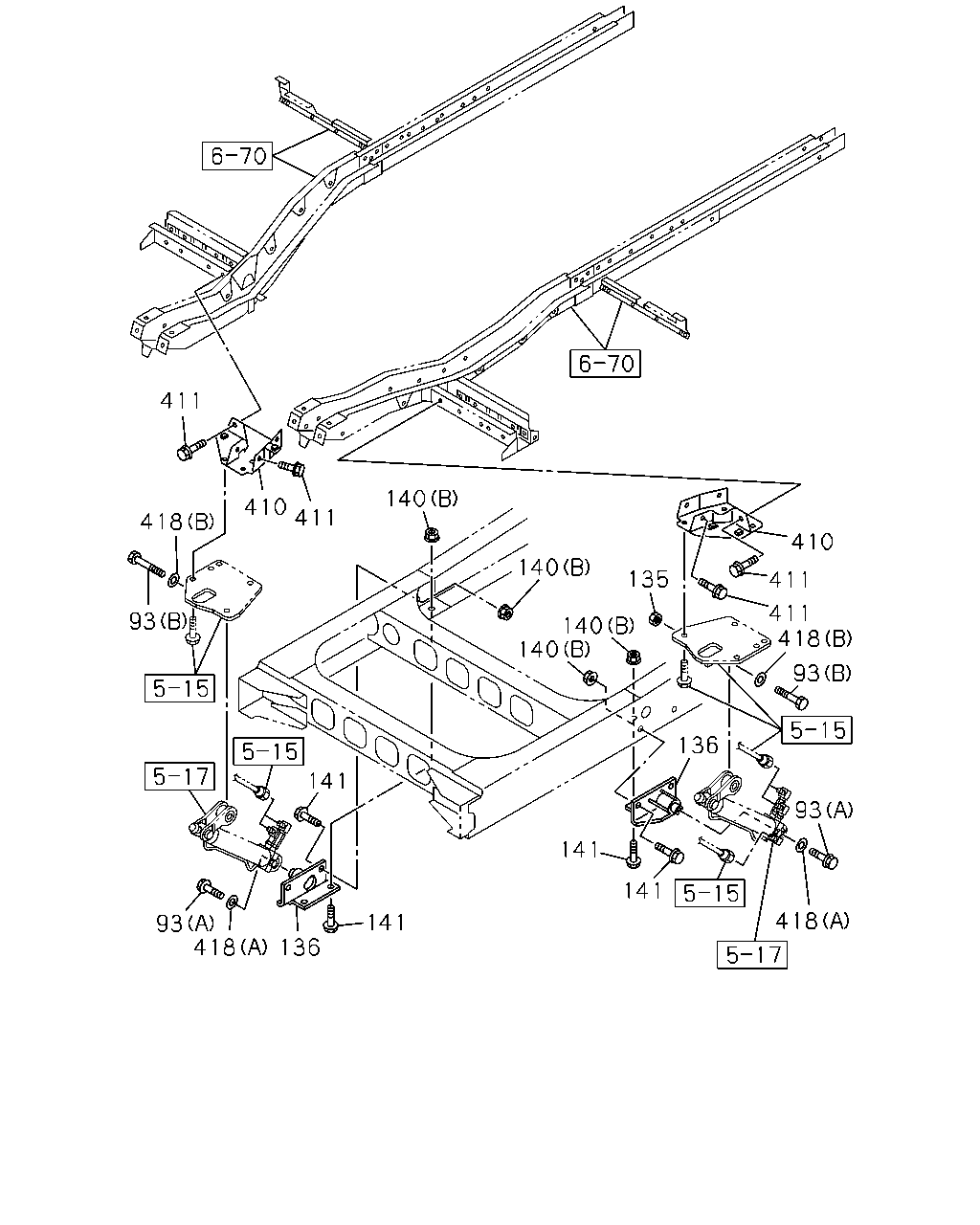

411 140 410 411 418 410 140 135 411 411 418 93 140 140 93 136 141 93 141 141 418 141 93 418 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
93	BOLT; PIN (A) M10X20 FLANGE	0-28651-020-0	02	1	0712-	●
93	BOLT; PIN (B) M14X70 FLANGE	0-29261-470-0	02	1	0712-	●
135	NUT; PIN M14	0-91110-514-0	01	1	0712-	●
136	BRACKET; OIL CYL 4HK1-TCS ENG(RJS)	8-98077-939-2	01	1	0712-	●
136	BRACKET; OIL CYL 4HK1-TCS ENG(RJS)	8-98077-940-2	01	1	0712-	●
136	BRACKET; OIL CYL 6HK1-TCN ENG(82L)	8-98096-333-1	01	1	0712-	●
136	BRACKET; OIL CYL 6HK1-TCN ENG(82L)	8-98096-334-1	01	1	0712-	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	0712-	●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	08	1	0712-	●
141	BOLT; BRKT M14X40 FLANGE	0-28661-440-0	08	1	0712-	●
410	REINFORCEMENT; CAB TILT	8-97588-837-5	01	1	0712-	●
410	REINFORCEMENT; CAB TILT	8-97614-237-4	01	1	0712-	●
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	08	1	0712-	●
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	02	1	0712-	●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	02	1	0712-	●

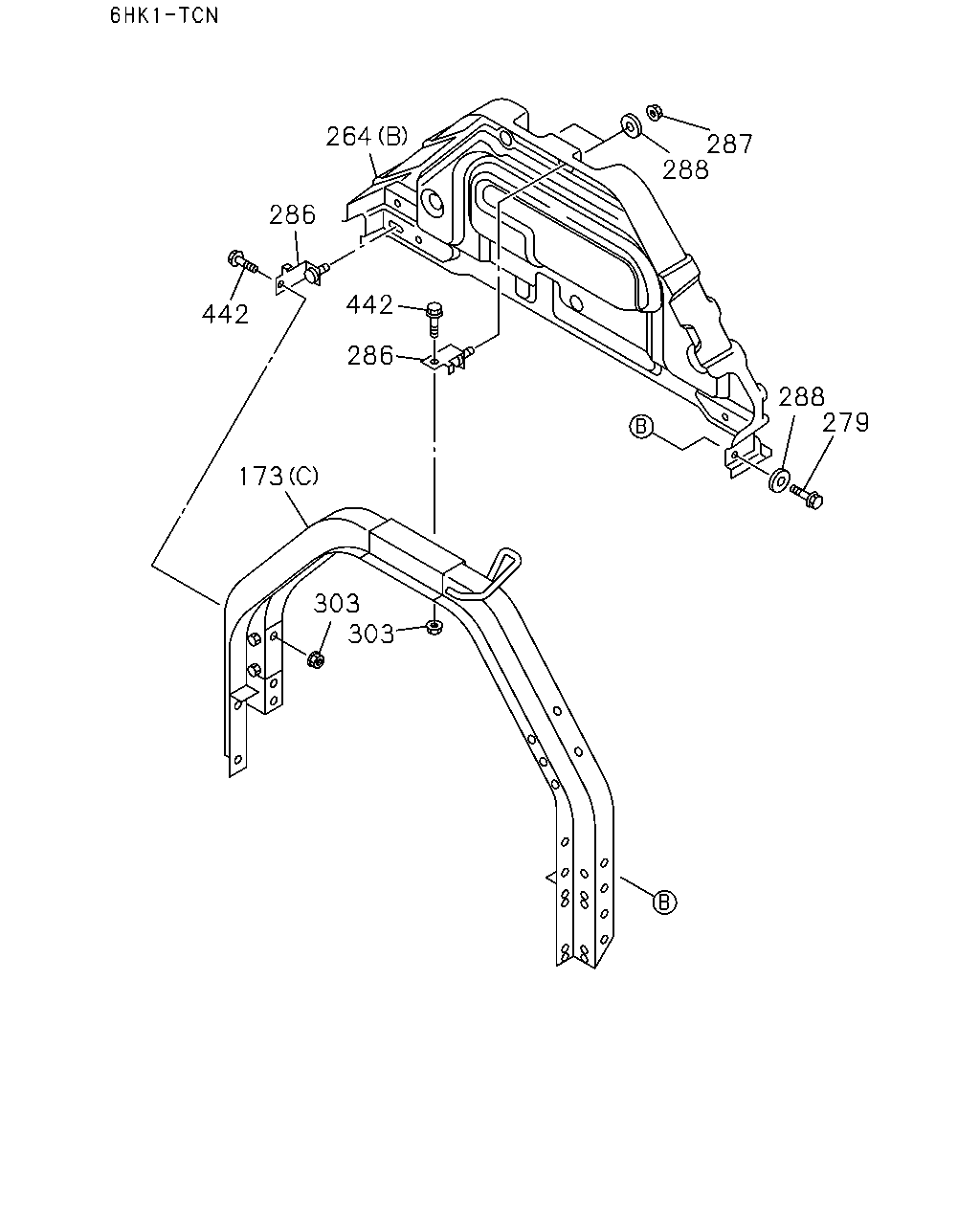

264 287 288 286 442 442 286 288 279 173 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR (A)	8-98017-669-3	01	1	0710-0910	●
173	MEMBER; CAB MTG RR (A)	8-98150-944-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
173	MEMBER; CAB MTG RR 4HK1-TCS ENG(RJS) (C)	8-98043-923-4	01	1	0712-		●
173	MEMBER; CAB MTG RR 6HK1-TCN ENG(82L) (C)	8-98065-092-4	01	1	0712-		●
264	PANEL; BACK (A)	1-53194-609-2	01	1	0710-	●
264	PANEL; BACK 6HK1-TCN ENG(82L) (B)	8-98055-597-1	01	1	0712-		●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
279	BOLT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
286	BRACKET; LOW	1-53457-187-0	02	1	0710-0711	●
286	BRACKET; LOW	1-53457-187-0	02	1	0712-	●
286	BRACKET; LOW 6HK1-TCN ENG(82L)	1-53457-187-0	02	1	0712-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0712-0809	●
287	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-0809		●
287	NUT M8 FLANGE	0-91180-108-0	03	1	0810-	●
287	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0810-		●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0710-0711	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0712-	●
288	WASHER; PL 6HK1-TCN ENG(82L) ID=8.4 OD=26	0-91614-808-0	03	1	0712-		●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
303	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
442	BOLT; BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
