Isuzu WW
▶
TRUCKS
▶
FSS
▶
10635 - FSS/FTS-LHD
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#1912) — 68 parça
Tümü
A - FSS6MC
B - FSS6MF
C - FTS6MC
D - FTS6MF
◀
[311A] NO.3 (9 parça)
[311A] NO.1 (29 parça)
[311A] NO.2 (30 parça)
▶

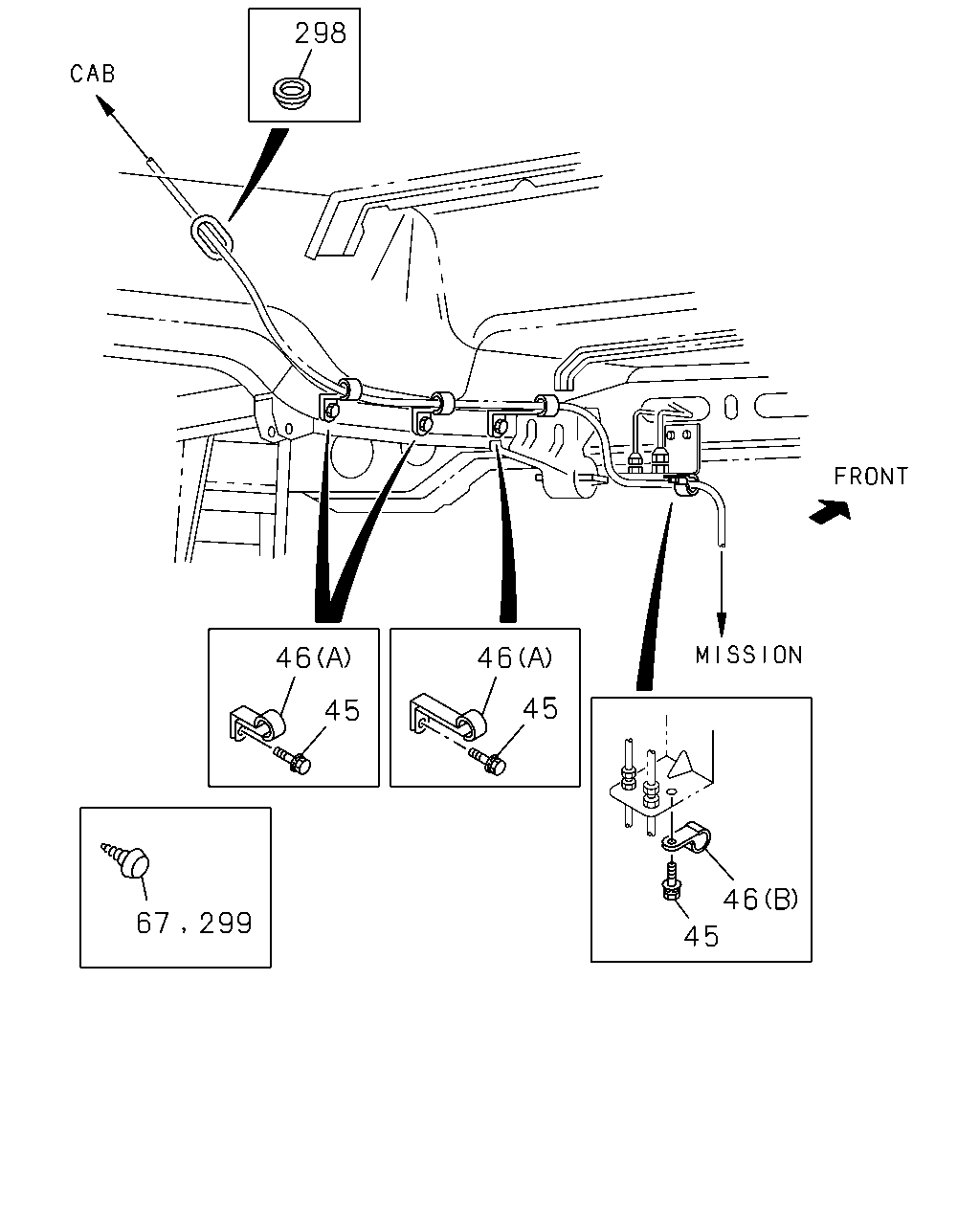

298
46
46
45
45
46
45
67
299
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
45
BOLT; CABLE TO FLOOR
M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9207-
●
●
●
●
46
CLIP; FRT CABLE TO FLOOR
(B) ID=13 L=20
9-09525-236-0
01
1
9207-
●
●
●
●
46
CLIP; FRT CABLE TO FLOOR
(B) ID=16 L=20
9-09525-532-0
01
1
9207-
●
●
●
●
46
CLIP; FRT CABLE TO FLOOR
(A) ID=19 H=50 L=25
9-09916-622-0
01
1
9207-
●
●
●
●
46
CLIP; FRT CABLE TO FLOOR
(A) ID=15.5
9-09916-962-0
01
1
9207-9302
●
●
●
●
46
CLIP; FRT CABLE TO FLOOR
(A) ID=16 H=24 L=20
9-09527-015-0
01
1
9303-
●
●
●
●
67
PLUG; UNDER FRAME
D4.7X11
1-76378-154-0
04
1
9207-
●
●
●
●
298
GROMMET; RR,AIR PIPE
OD=32 T=5
5-09983-018-0
01
1
9207-
●
●
●
●
299
PLUG; RR PARTS
D4.7X11
1-76378-154-0
07
1
9207-
●
●
●
●

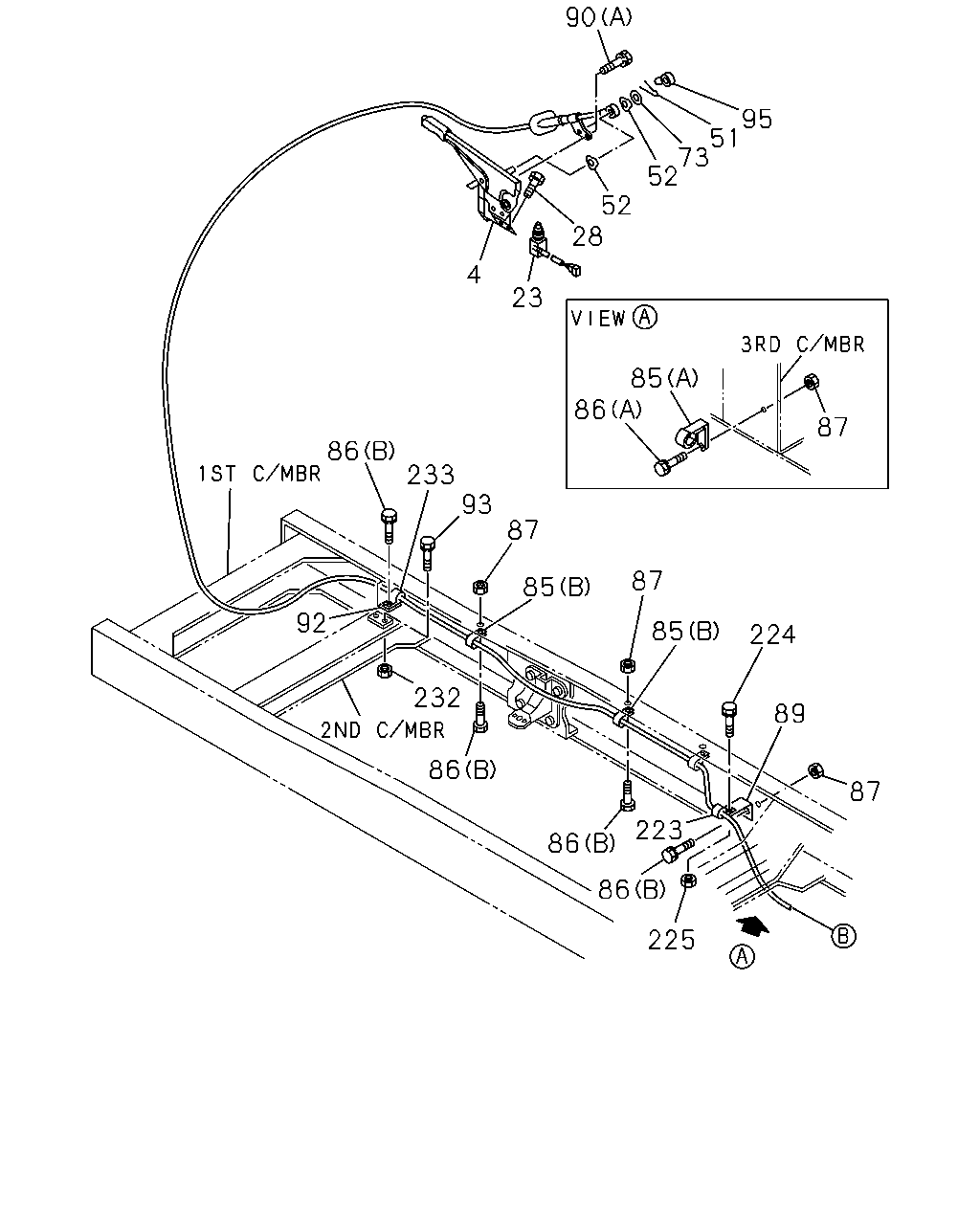

90
95
51
73
52
52
28
4
23
85
86
87
86
233
93
87
87
85
92
85
224
232
89
86
87
223
86
86
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
4
STEM; PARKING BRK
1-79998-644-2
01
1
9207-9305
●
●
●
●
4
STEM; PARKING BRK
1-46120-062-5
01
1
9306-
●
●
●
●
23
SWITCH; PARKING BRK
CONNECTOR 6PIN
1-82440-028-0
02
1
9207-9305
●
●
●
●
23
SWITCH; PARKING BRK
CONNECTOR 6PIN
1-82440-028-0
01
1
9306-
●
●
●
●
28
BOLT; HAND BRK LEVER
M8X25 FLANGE
0-28080-825-0
03
1
9207-
●
●
●
●
51
PIN; JOINT,RELAY LEVER
OD=3.7 L=28
9-08114-028-0
01
1
9207-
●
●
●
●
52
WASHER; CURVED RELAY LEVER
ID=19
8-94206-429-1
02
1
9207-
●
●
●
●
73
WASHER; PL,CABLE
ID=17
9-09160-516-0
01
1
9207-
●
●
●
●
85
CLIP; BRKT
(A) ID=12 H=24 L=20
1-09700-605-0
01
1
9207-
●
●
●
●
85
CLIP; BRKT
(B) ID=14.5 L=20
1-09701-012-0
02
1
9207-9302
●
●
●
●
85
CLIP; BRKT
(B) ID=14.5 L=40
1-09701-014-0
01
1
9207-9302
●
●
●
●
85
CLIP; BRKT
(B) ID=14.5 L=40
1-09701-014-0
03
1
9303-
●
●
●
●
85
CLIP; BRKT
(B) ID=14.5 L=20
1-09701-012-0
01
1
9207-
●
●
86
BOLT
(A) M8X20 FLANGE
0-28080-820-0
01
1
9207-
●
●
●
●
86
BOLT
(B) M8X25 FLANGE
0-28080-825-0
01
1
9207-
●
●
●
●
86
BOLT
(B) M8X25 FLANGE
0-28080-825-0
01
1
9207-
●
●
86
BOLT
(B) M8X30 FLANGE
0-28080-830-0
03
1
9207-
●
●
●
●
87
NUT
M8
9-09110-408-0
04
1
9207-
●
●
●
●
89
BRACKET; CLIP
1-34656-009-0
01
1
9207-
●
●
●
●
90
BOLT; CABLE TO BRKT
(A) M8X25 FLANGE
0-28080-825-0
02
1
9207-
●
●
●
●
90
BOLT; CABLE TO BRKT
(B) M10X30 W/LK WASHER
0-50041-030-0
02
1
9207-
●
●
●
●
92
BRACKET; UPR MEMBER
1-31429-203-4
01
1
9207-
●
●
●
●
93
BOLT; BRKT,UPR MEMBER
M8X20 FLANGE
0-28080-820-0
02
1
9207-
●
●
●
●
95
CAP; CABLE,PARKING BRK
1-79997-140-2
01
1
9207-
●
●
●
●
223
CLIP; PARKING BRK CABLE
ID=14.5 L=28
1-09701-013-0
01
1
9207-
●
●
●
●
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28080-825-0
01
1
9207-
●
●
●
●
225
NUT; CABLE CLIP
M8
9-09110-408-0
01
1
9207-
●
●
●
●
232
NUT; BRKT,UPR MEMBER
M8
9-09110-408-0
02
1
9207-
●
●
●
●
233
CLIP; BRKT UPR MEMBER
ID=14.5 L=20
1-09701-012-0
01
1
9207-
●
●
●
●

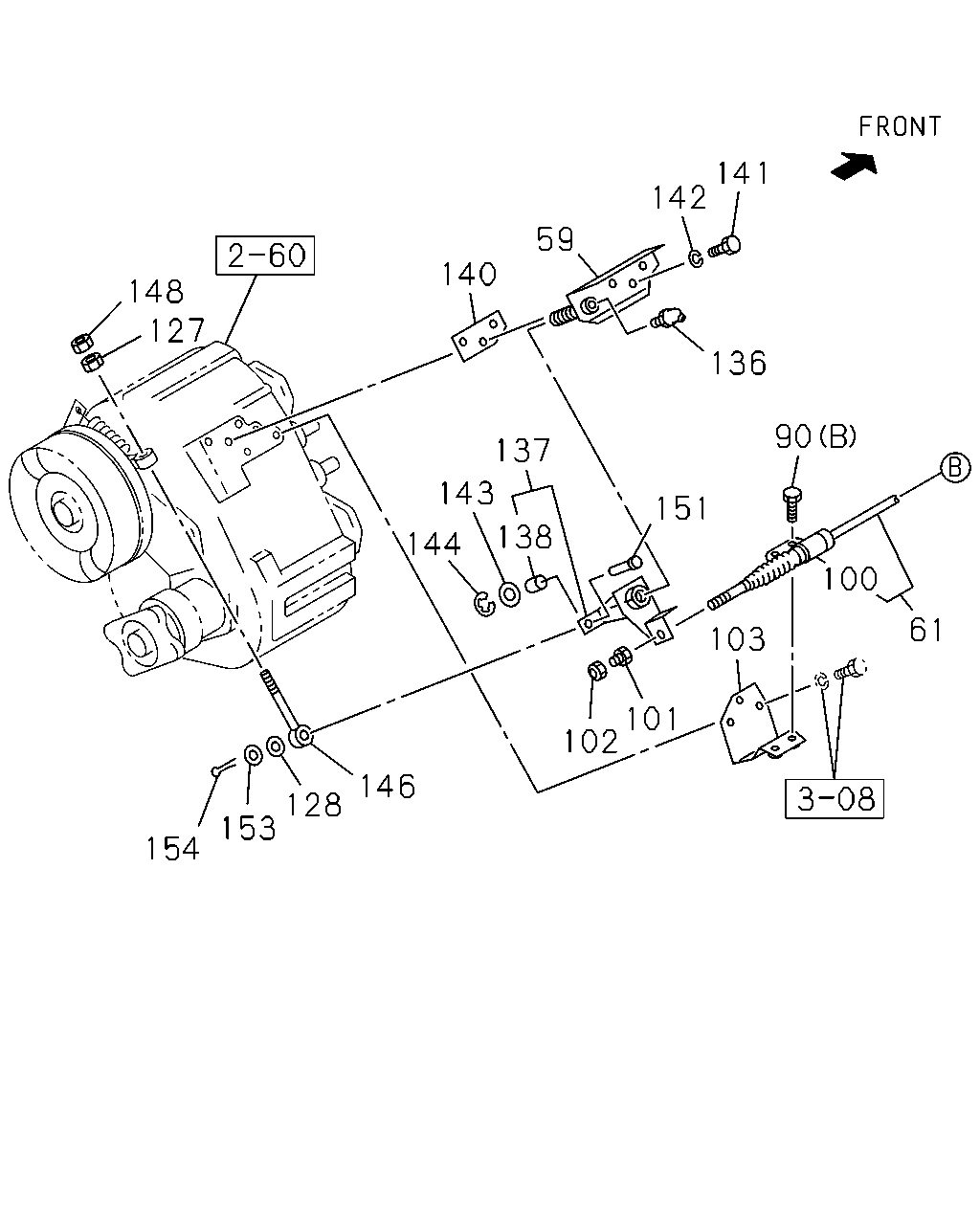

141
142
59
140
148
127
136
90
137
143
151
138
144
100
61
103
101
102
146
128
153
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
59
BRACKET; RELAY LEVER
1-46276-030-1
01
1
9207-
●
●
●
●
61
CABLE; PARKING BRK
L=4675
1-46151-476-2
01
1
9207-9412
●
●
61
CABLE; PARKING BRK
L=5005
1-79907-026-0
01
1
9501-
●
●
61
CABLE; PARKING BRK
L=4725
1-46151-477-2
01
1
9207-9412
●
61
CABLE; PARKING BRK
EXC. FIRE TRUCK(RA9) L=4725
1-46151-477-2
01
1
9207-9412
●
61
CABLE; PARKING BRK
L=5055
1-79907-027-0
01
1
9501-
●
61
CABLE; PARKING BRK
EXC. FIRE TRUCK(RA9) L=5055
1-79907-027-0
01
1
9501-
●
61
CABLE; PARKING BRK
FIRE TRUCK(RA9) L=4775
1-46151-478-2
01
1
9207-9412
●
61
CABLE; PARKING BRK
FIRE TRUCK(RA9) L=5105
1-79907-028-0
01
1
9501-
●
90
BOLT; CABLE TO BRKT
(A) M8X25 FLANGE
0-28080-825-0
02
1
9207-
●
●
●
●
90
BOLT; CABLE TO BRKT
(B) M10X30 W/LK WASHER
0-50041-030-0
02
1
9207-
●
●
●
●
100
BELLOWS; CONT WIRE
1-46159-004-0
01
1
9207-
●
●
●
●
101
NUT; CABLE TO LEVER
M8 FLANGE
9-46259-016-0
01
1
9207-
●
●
●
●
102
NUT; LK,CABLE TO LEVER
M8
9-09110-408-0
01
1
9207-
●
●
●
●
103
BRACKET; PARKING BRK CONT
1-46147-052-1
01
1
9207-
●
●
●
●
127
NUT; LINK
1-09445-001-0
01
1
9207-
●
●
●
●
128
WASHER; PL,LINK
ID=10.5 OD=18
9-09160-510-0
01
1
9207-
●
●
●
●
136
NIPPLE; GREASE
PT1/8 ELBOW 67.5?
9-09031-110-0
01
1
9207-
●
●
●
●
137
LEVER ASM; W/BUSHING
1-46140-098-1
01
1
9207-
●
●
●
●
138
BUSHING; LEVER
1-46149-003-0
01
1
9207-
●
●
●
●
140
PLATE; DIST PARKING BRK
1-46149-016-0
01
1
9207-
●
●
●
●
141
BOLT; BRKT,RELAY LEVER
M12X38
0-23801-238-0
03
1
9207-
●
●
●
●
142
WASHER; LK,BRKT,RELAY LEVER
ID=12.2
9-09150-512-0
03
1
9207-
●
●
●
●
143
WASHER; PL,BRKT,RELAY LEVER
ID=19
9-09160-518-0
01
1
9207-
●
●
●
●
144
RING; SNAP,E TYPE,BRKT
ID=15
9-09185-015-0
01
1
9207-
●
●
●
●
146
ROD; LINK,PARKING BRK
1-46142-048-0
01
1
9207-
●
●
●
●
148
NUT; LK,LINK
M10
9-09110-410-0
01
1
9207-
●
●
●
●
151
PIN; LINK TO LEVER
OD=10 L=31
9-08234-031-0
01
1
9207-
●
●
●
●
153
WASHER; WAVE,LINK
9-09855-192-0
01
1
9207-
●
●
●
●
154
PIN; SPLIT,LINK
OD=2.8 L=18
9-08113-018-0
01
1
9207-
●
●
●
●
