Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#19114) — 566 parça

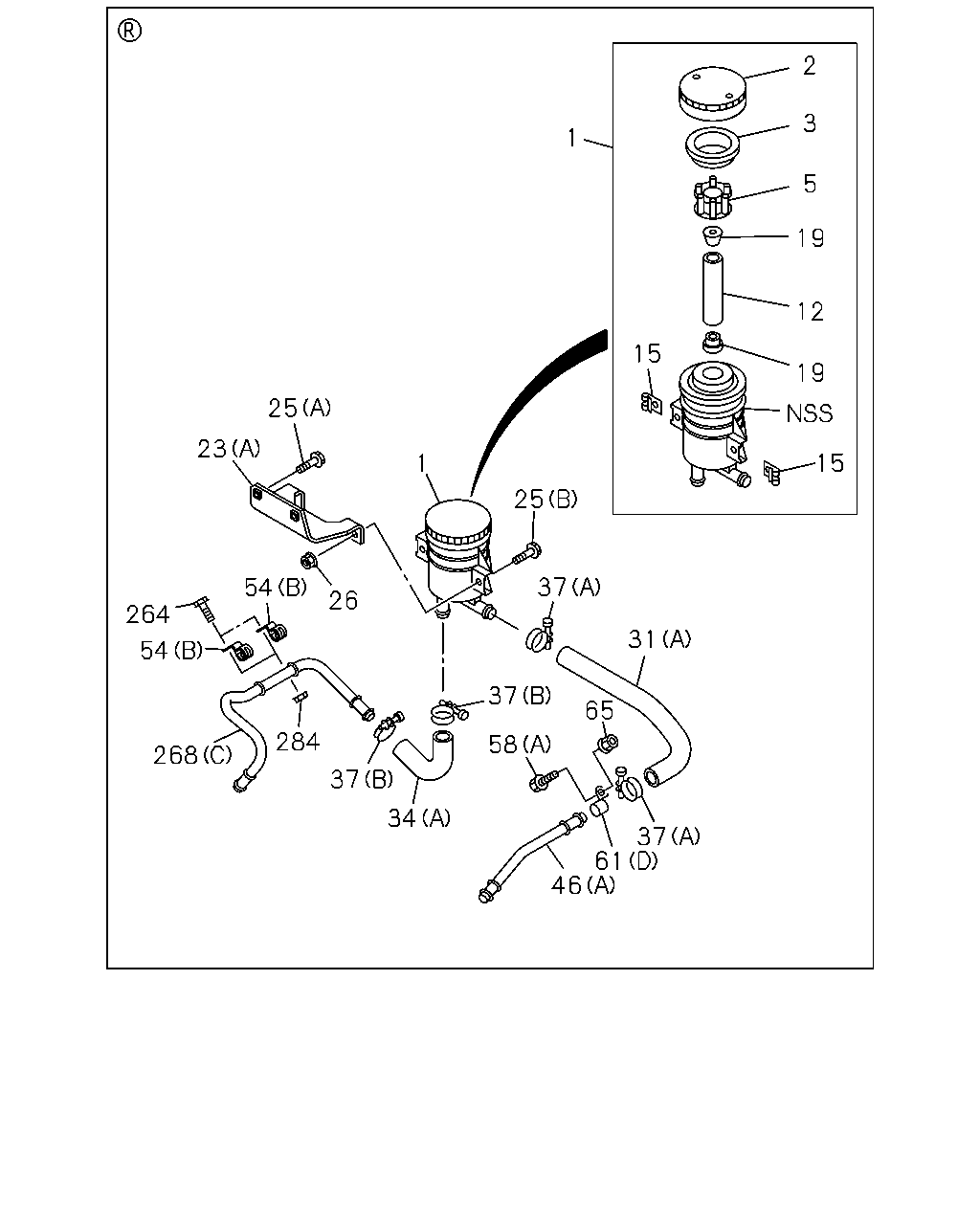

2 3 1 5 19 12 15 19 25 23 15 1 25 54 37 26 264 31 54 37 65 284 58 268 37 34 37 61 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-0711	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-0711	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-0711	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-0711	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-0711	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-0711	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-0711	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
23	BRACKET; OIL TANK,P/S 4HK1-TCS ENG(RJS) (A)	8-98060-024-0	01	1	0712-		●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (B)	8-98101-813-0	01	1	0712-0808		●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (B)	8-98125-268-0	01	1	0809-		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
31	HOSE; P/S OIL TANK,INL (C)	8-98093-500-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A) L=400	0-09864-300-1	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98086-809-0	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (D)	8-98101-814-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-0711	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	0712-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	0712-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2726	8-98099-151-0	01	1	0710-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A)	8-98086-808-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2458	8-98094-107-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2787	8-98101-856-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2786	8-98114-407-0	01	1	0803-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0710-0711	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0712-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	0712-		●
54	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0712-0808		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0809-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0901		●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	0712-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	0902-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	0712-		●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-041-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-0711	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (A)	8-98082-962-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98091-217-0	01	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98101-858-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (E)	8-98154-046-0	01	1	1007-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	0712-		●

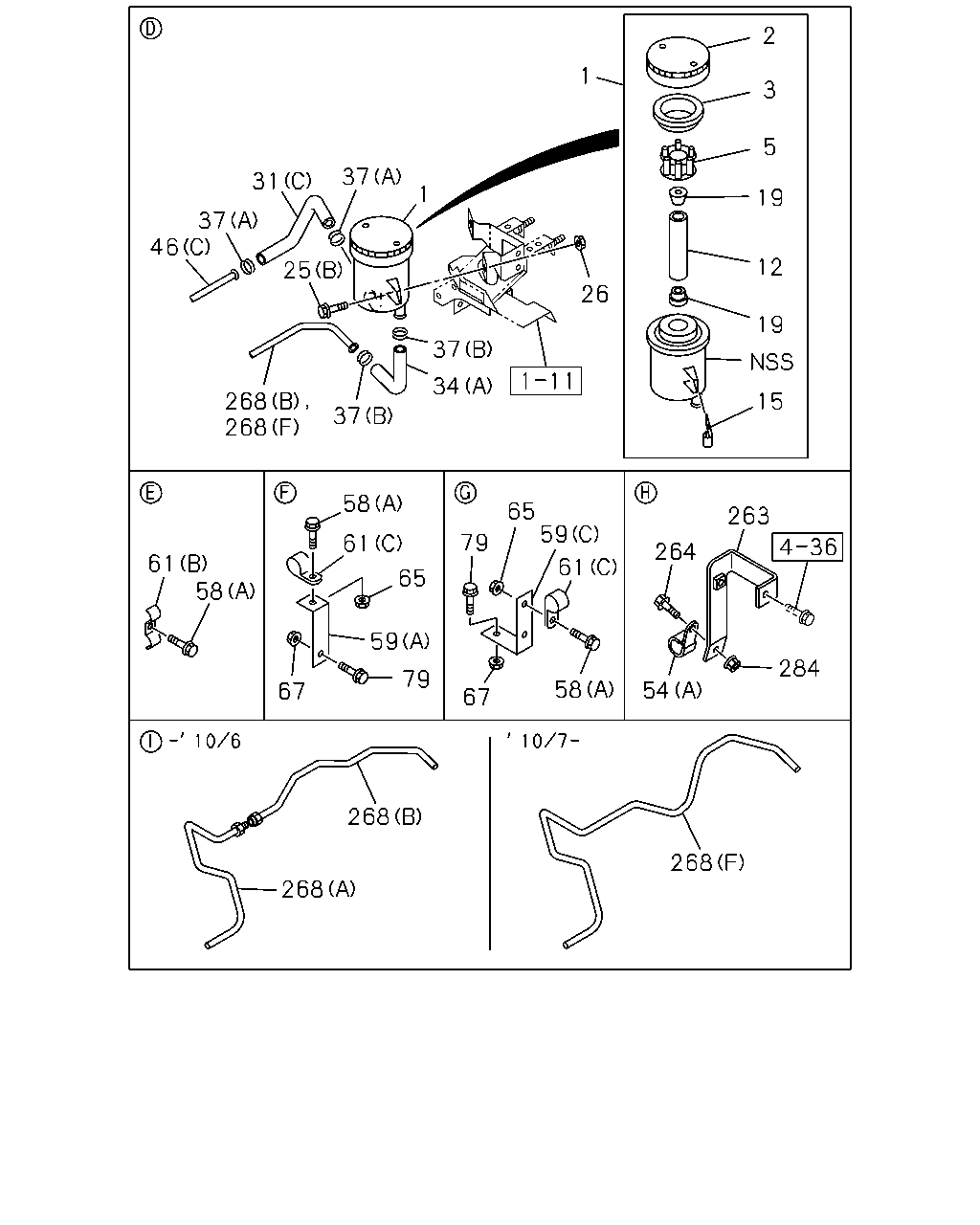

2 1 3 5 37 31 1 19 37 46 25 12 26 19 37 34 268 268 15 37 58 65 59 263 79 61 264 61 58 61 65 59 284 79 58 54 67 67 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-0711	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-0711	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-0711	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-0711	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-0711	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-0711	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-0711	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
31	HOSE; P/S OIL TANK,INL (C)	8-98093-500-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A) L=400	0-09864-300-1	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98086-809-0	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (D)	8-98101-814-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-0711	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	0712-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	0712-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2726	8-98099-151-0	01	1	0710-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A)	8-98086-808-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2458	8-98094-107-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2787	8-98101-856-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2786	8-98114-407-0	01	1	0803-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0710-0711	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0712-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	0712-		●
54	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0712-0808		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0809-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0901		●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0712-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	0712-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	0712-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	0902-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	0712-		●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0906	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-0906		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0907-		●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	0712-0901		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
79	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0710-0710	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0710-0711	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0712-	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	0712-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-041-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-0711	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (A)	8-98082-962-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98091-217-0	01	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98101-858-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (E)	8-98154-046-0	01	1	1007-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	0712-		●

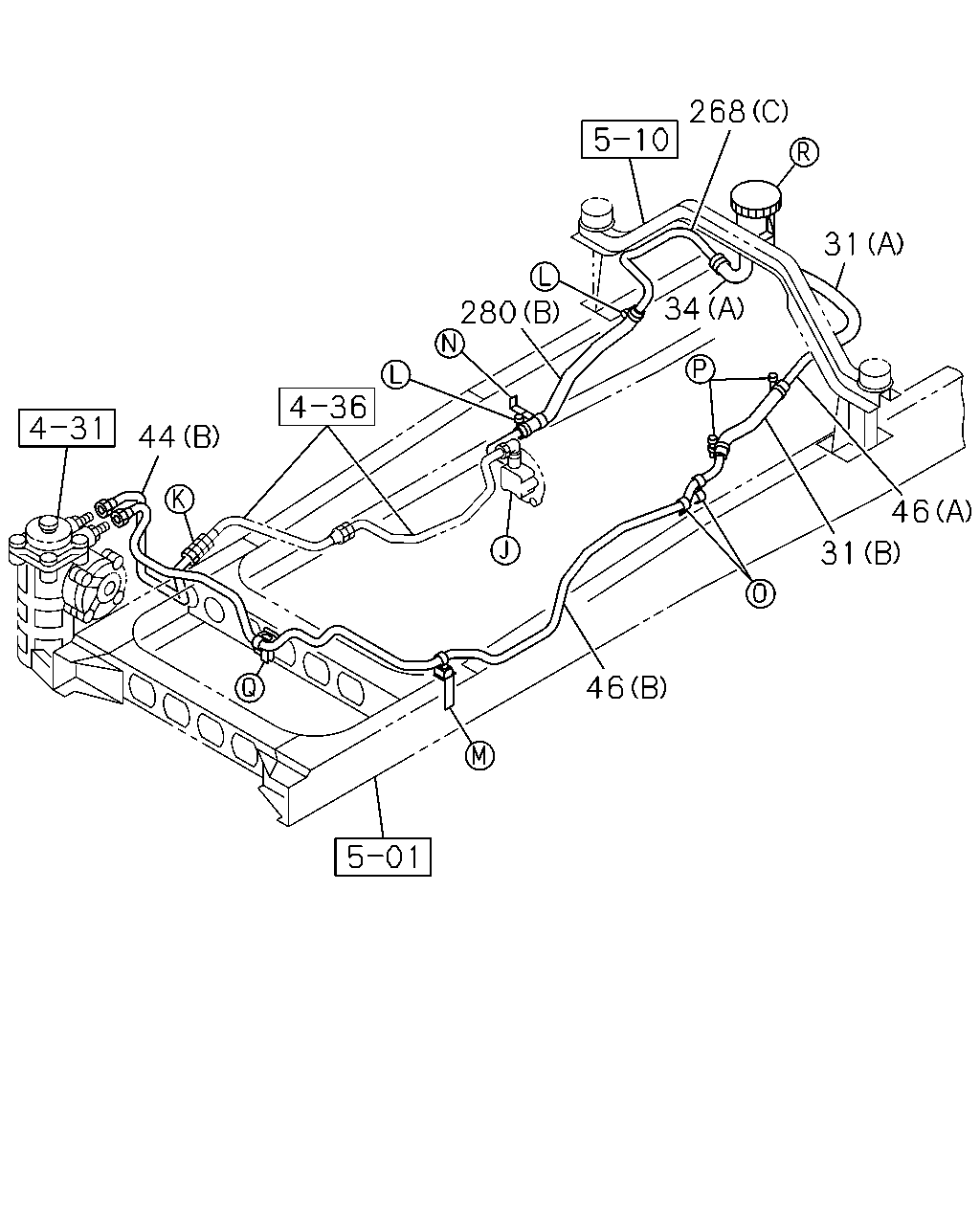

268 31 280 34 44 46 31 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (C)	8-98093-500-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A) L=400	0-09864-300-1	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98086-809-0	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (D)	8-98101-814-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-0711	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	0710-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98079-094-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-98077-661-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98101-854-0	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98114-406-0	01	1	0803-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2726	8-98099-151-0	01	1	0710-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A)	8-98086-808-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2458	8-98094-107-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2787	8-98101-856-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2786	8-98114-407-0	01	1	0803-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-041-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-0711	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (A)	8-98082-962-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98091-217-0	01	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98101-858-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (E)	8-98154-046-0	01	1	1007-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0710-0711	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0712-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	0712-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	0712-		●

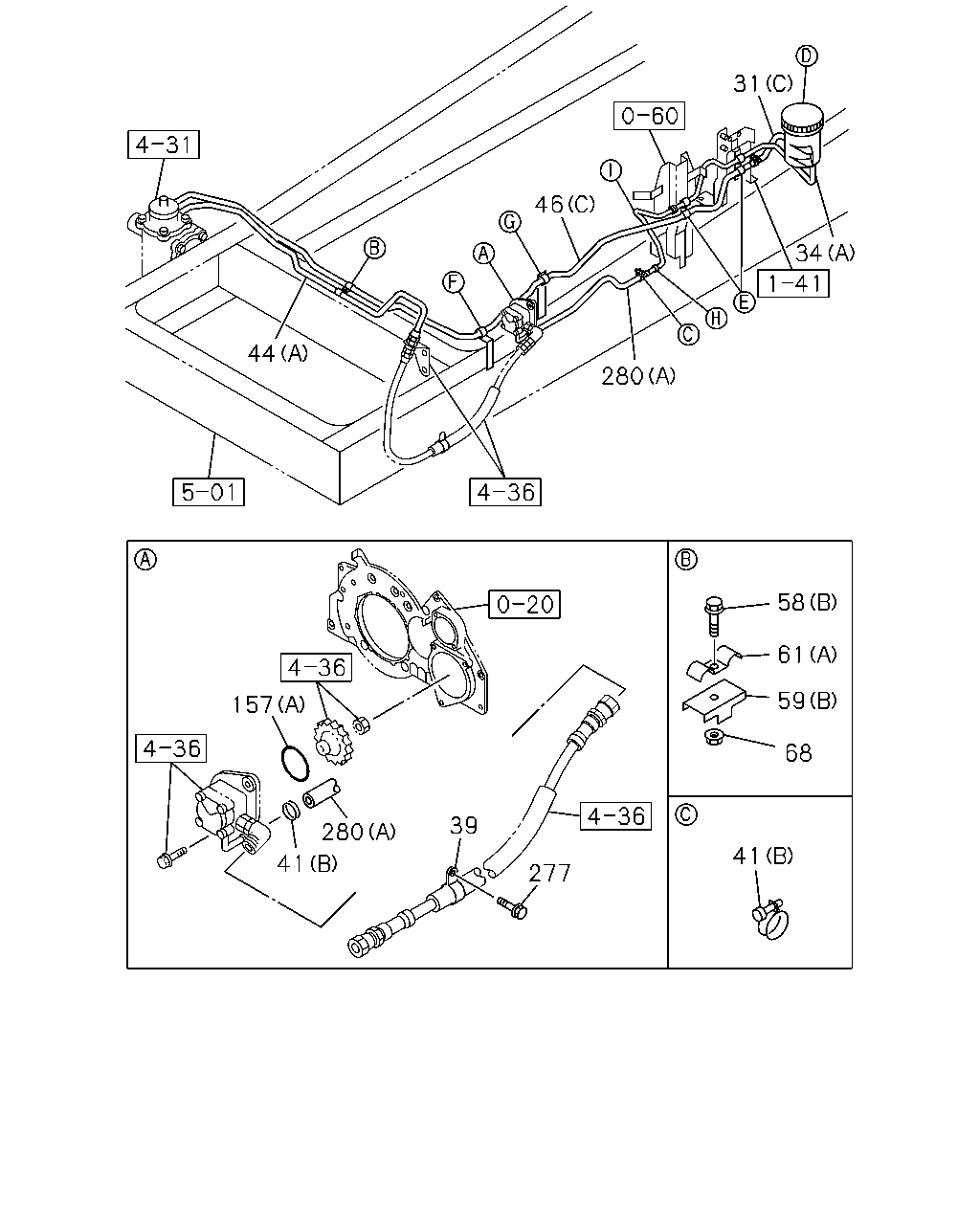

31 46 44 280 58 61 59 157 68 39 280 41 41 277 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (C)	8-98093-500-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A) L=400	0-09864-300-1	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98086-809-0	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (D)	8-98101-814-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-0711	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	0712-		●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0710-0711	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0712-	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	0712-		●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
41	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=32 L=75	1-09700-704-1	01	1	0712-0901		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	0710-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98079-094-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-98077-661-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98101-854-0	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98114-406-0	01	1	0803-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2726	8-98099-151-0	01	1	0710-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A)	8-98086-808-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2458	8-98094-107-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2787	8-98101-856-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2786	8-98114-407-0	01	1	0803-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0901		●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0712-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	0712-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	0712-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	0902-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0710-0711	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	0712-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	0712-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	0712-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0710-0711	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0712-	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0710-0711	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0712-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	0712-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	0712-		●

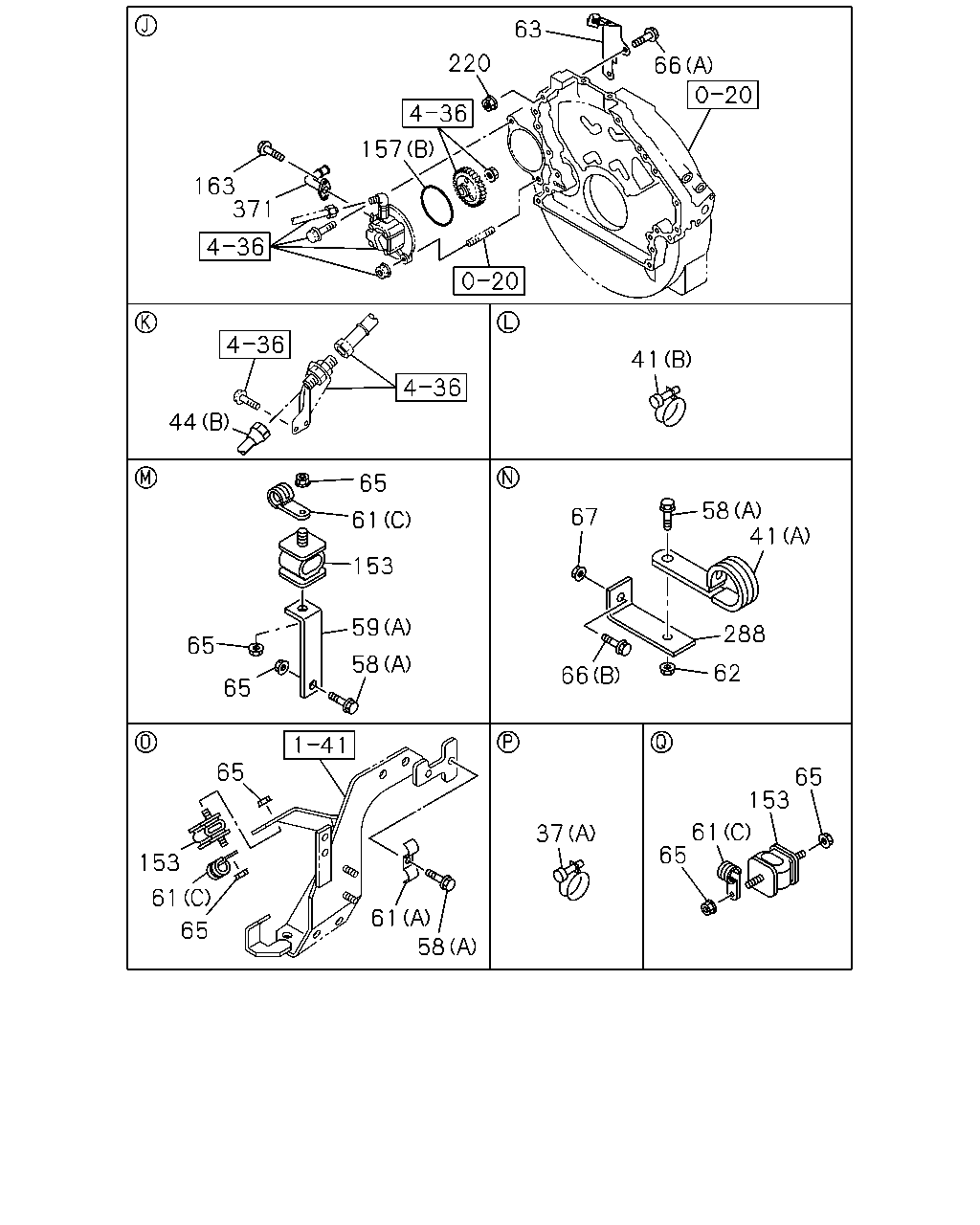

63 220 66 157 163 371 41 44 65 58 41 67 61 153 59 288 65 58 62 66 65 65 65 153 61 65 37 153 61 61 58 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	0712-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-		●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
41	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=32 L=75	1-09700-704-1	01	1	0712-0901		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	0710-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98079-094-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-98077-661-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98101-854-0	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98114-406-0	01	1	0803-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0901		●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0712-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	0712-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	0712-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	0902-		●
62	NUT; CLIP FIX 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	0712-0901		●
62	NUT; CLIP FIX 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-98075-954-0	01	1	0712-0803		●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-98075-954-0	01	1	1005-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	0712-		●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0901		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	02	1	1005-		●
66	BOLT; BRKT,OIL PIPE 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0906	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-0906		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0907-		●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	0712-0901		●
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS)	8-94158-156-1	03	1	0712-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0710-0711	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	0712-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	0712-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	0712-		●
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
220	NUT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-110-0	02	1	0712-0803		●
288	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) L=75	1-47478-323-0	01	1	0712-0901		●
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	0712-		●

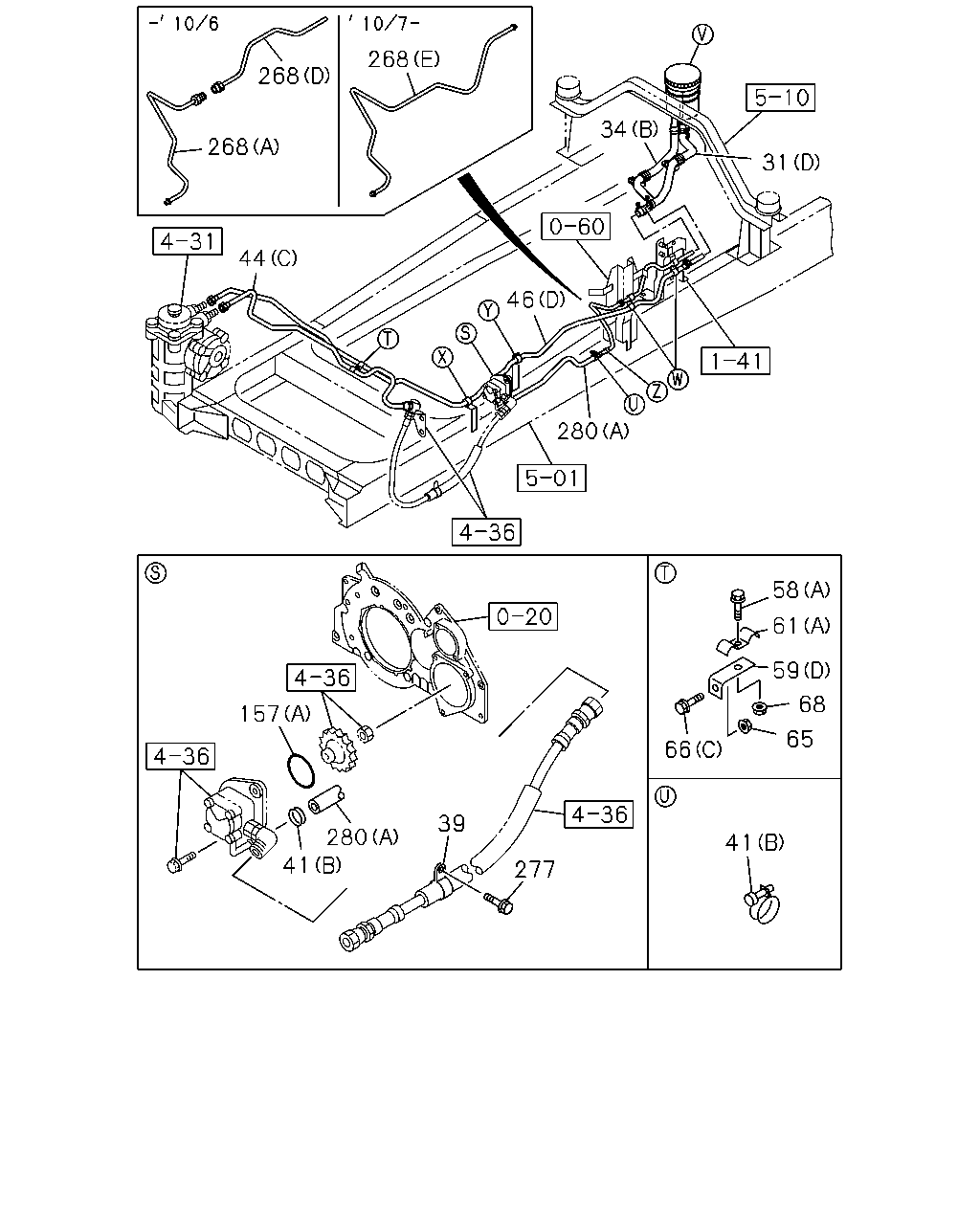

268 268 34 268 31 44 46 280 58 61 59 68 157 65 66 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (C)	8-98093-500-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A) L=400	0-09864-300-1	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98086-809-0	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (D)	8-98101-814-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-0711	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	0712-		●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0710-0711	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0712-	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	0712-		●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
41	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=32 L=75	1-09700-704-1	01	1	0712-0901		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	0710-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98079-094-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-98077-661-0	01	1	0712-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98101-854-0	01	1	0712-0802		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (C)	8-98114-406-0	01	1	0803-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2726	8-98099-151-0	01	1	0710-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A)	8-98086-808-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2458	8-98094-107-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2787	8-98101-856-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2786	8-98114-407-0	01	1	0803-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0901		●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0712-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	0712-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	0712-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	0902-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	0712-		●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0901		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	02	1	1005-		●
66	BOLT; BRKT,OIL PIPE 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0710-0711	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	0712-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	0712-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-041-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-0711	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (A)	8-98082-962-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98091-217-0	01	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98101-858-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (E)	8-98154-046-0	01	1	1007-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0710-0711	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0712-	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0710-0711	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0712-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	0712-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	0712-		●

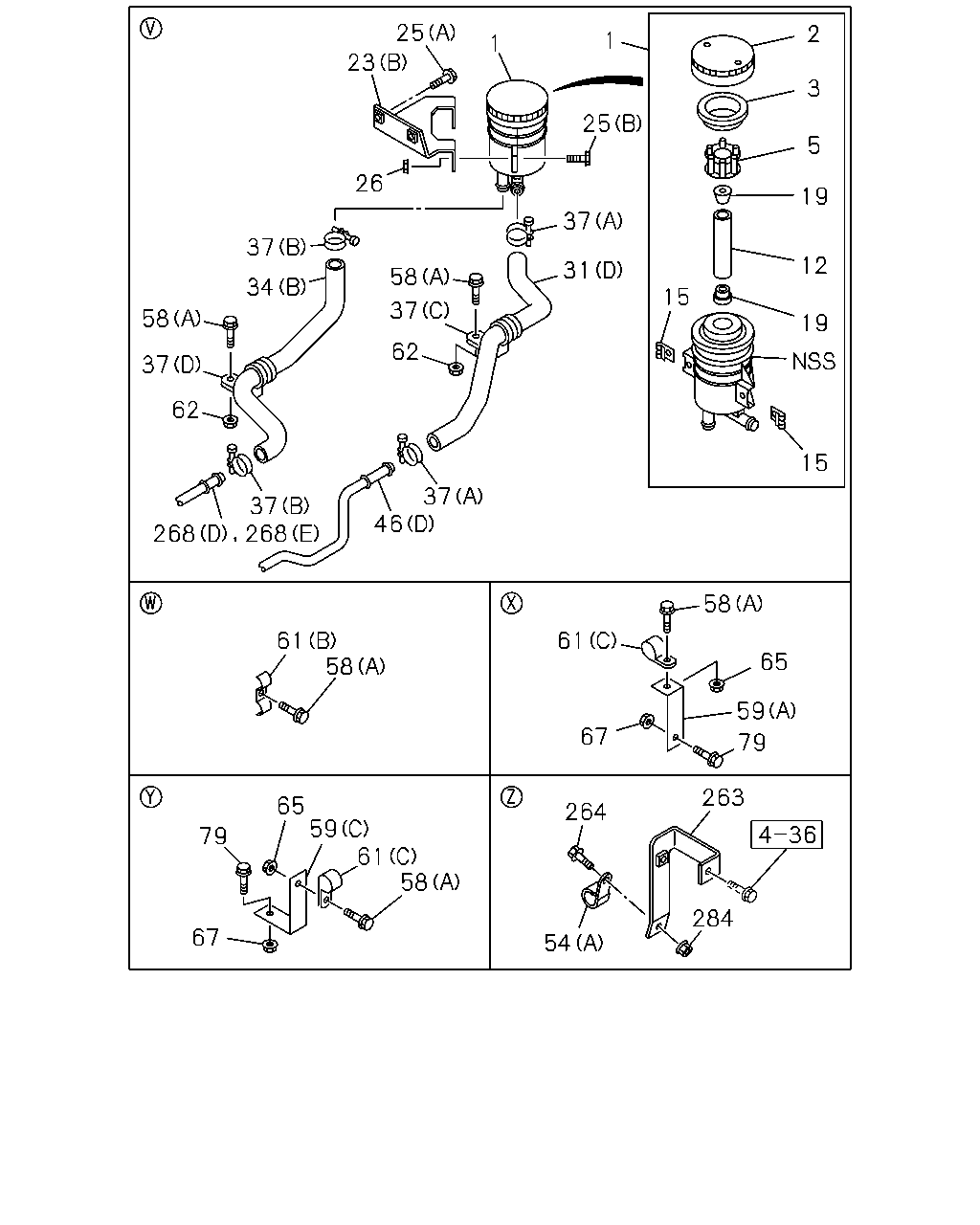

25 2 1 1 23 3 25 5 26 19 37 37 12 31 58 34 15 37 58 19 62 37 62 15 37 46 37 58 61 58 61 65 59 67 79 263 65 59 61 58 264 79 284 67 54 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-0711	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0712-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-0711	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0712-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-0711	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0712-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-0711	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0712-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-0711	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0712-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-0711	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0712-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-0711	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0712-	●	●
23	BRACKET; OIL TANK,P/S 4HK1-TCS ENG(RJS) (A)	8-98060-024-0	01	1	0712-		●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (B)	8-98101-813-0	01	1	0712-0808		●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (B)	8-98125-268-0	01	1	0809-		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
31	HOSE; P/S OIL TANK,INL (C)	8-98093-500-0	01	1	0710-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A) L=400	0-09864-300-1	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98086-809-0	01	1	0712-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (D)	8-98101-814-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0710-0711	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	0712-	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	0712-		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	0712-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0712-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	0712-		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-0711	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0712-	●	●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C) L=2726	8-98099-151-0	01	1	0710-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A)	8-98086-808-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2458	8-98094-107-0	01	1	0712-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2787	8-98101-856-0	01	1	0712-0802		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (D) L=2786	8-98114-407-0	01	1	0803-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0710-0711	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0712-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	0712-		●
54	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0712-0808		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0809-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0901		●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0712-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	0712-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-0711	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0712-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	0712-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	0712-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-0711	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0712-0808		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-0711	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	0712-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	0902-		●
62	NUT; CLIP FIX 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	0712-0901		●
62	NUT; CLIP FIX 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	0712-		●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0906	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	0712-0906		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0907-		●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	0712-0901		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
79	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0710-0710	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0710-0711	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0712-	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	0712-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (F)	8-98154-041-0	01	1	1007-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-0711	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0712-1006	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (A)	8-98082-962-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98091-217-0	01	1	0712-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (D)	8-98101-858-0	01	1	0712-1006		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (E)	8-98154-046-0	01	1	1007-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0712-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	0712-		●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
