3-10 — BRAKE PEDAL AND CONTROL (#1911) — 32 parça

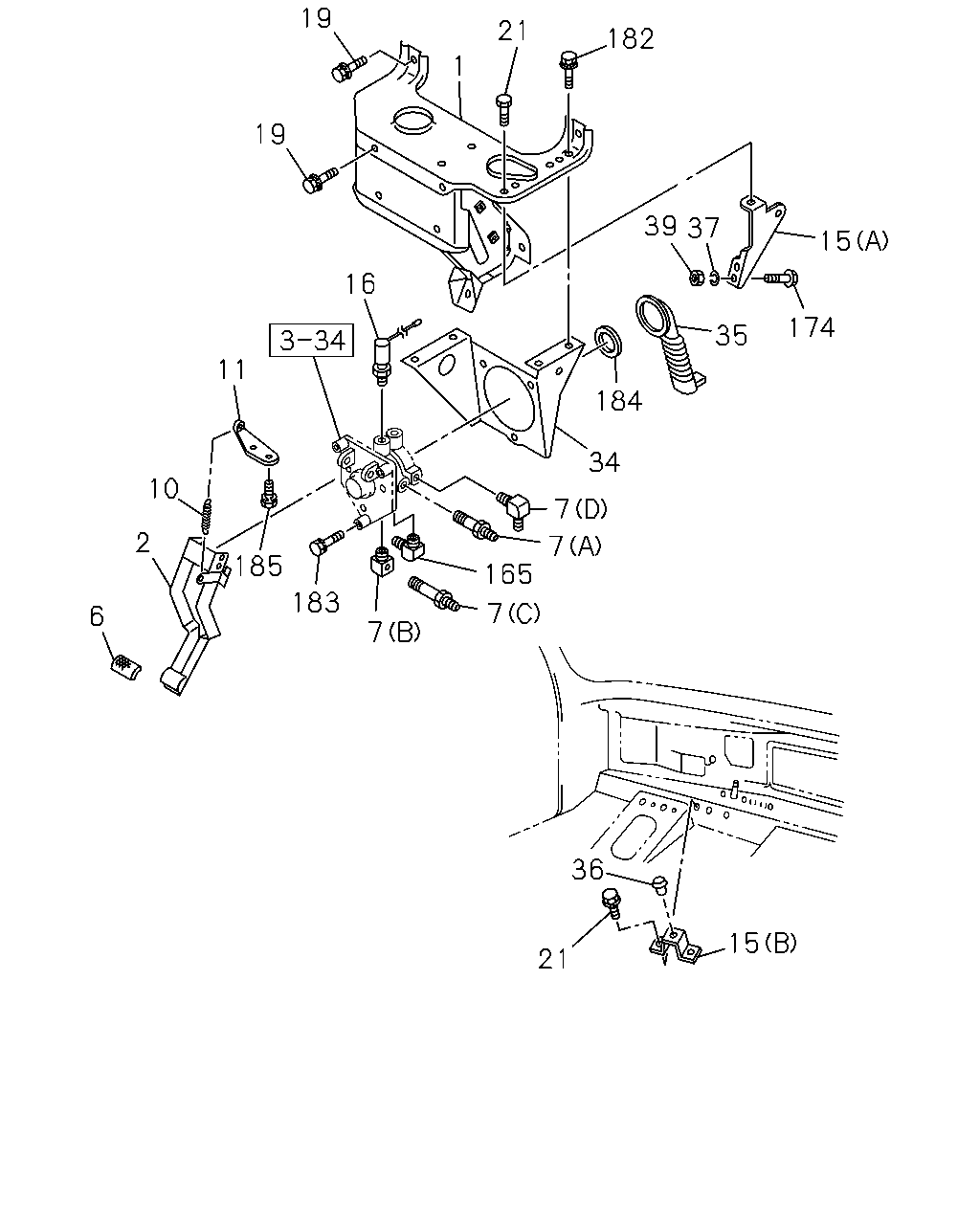

çizim 94230
19 21 182 1 19 15 16 174 35 11 184 34 10 7 2 7 185 165 183 7 6 7 36 15 21 39 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BRACKET ASM; PEDAL 1-73998-563-4 01 1 9207- ● ● ● ●
2 PEDAL; BRK 1-47311-105-0 01 1 9207- ● ● ● ●
6 COVER; BRK PEDAL 8-94204-810-0 01 1 9207- ● ● ● ●
7 CONNECTOR; BRK VALVE
(C) M16 & PT3/8 STRAIGHT 		1-09650-150-2 01 1 9207- ● ● ● ●
7 CONNECTOR; BRK VALVE
(D) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9207-9302 ● ● ● ●
7 CONNECTOR; BRK VALVE
(D) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303- ● ● ● ●
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-233-1 01 1 9207- ● ● ● ●
7 CONNECTOR; BRK VALVE
(B) 		1-09664-049-1 01 1 9207-9302 ● ● ● ●
7 CONNECTOR; BRK VALVE
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 9303- ● ● ● ●
10 SPRING; RETURN,BRK PEDAL 8-94251-601-0 01 1 9207- ● ● ● ●
11 BRACKET; RETURN SPRING 1-73997-820-0 01 1 9207- ● ● ● ●
15 BRACKET ASM; STOPPER,BRK PEDAL
(A) 		1-73997-821-1 01 1 9207- ● ● ● ●
15 BRACKET ASM; STOPPER,BRK PEDAL
(B) 		1-73998-450-0 01 1 9207- ● ● ● ●
16 SWITCH; STOP LAMP 1-82380-036-1 01 1 9207- ● ● ● ●
19 BOLT; BRKT
M8X20 OD=22 		1-09980-435-0 01 1 9207- ● ● ● ●
19 BOLT; BRKT
M8X20 OD=16 		1-09980-529-0 03 1 9207- ● ● ● ●
21 BOLT; STOPPER BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ●
21 BOLT; STOPPER BRKT
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9207- ● ● ● ●
21 BOLT; STOPPER BRKT
M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9207- ● ● ● ●
34 BRACKET ASM; BRK VLV 1-73997-771-1 01 1 9207- ● ● ● ●
35 DUCT ASM; AIR,BRK VLV EXH 1-76377-099-1 01 1 9207- ● ● ● ●
36 STOPPER; BRK PEDAL 1-47319-014-1 01 1 9207- ● ● ● ●
37 WASHER; LK,STOPPER
ID=10.2 		9-09150-510-0 01 1 9207- ● ● ● ●
39 NUT; STOPPER LK
M10 		9-09111-410-0 01 1 9207- ● ● ● ●
165 CONNECTOR; SECONDARY DELIVERY
M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9207-9302 ● ● ● ●
165 CONNECTOR; SECONDARY DELIVERY
M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303- ● ● ● ●
174 STOPPER; REBOUND,BRK PEDAL UPR 9-54359-079-0 01 1 9207- ● ● ● ●
182 BOLT; BRK VLV BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9207- ● ● ● ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9207- ● ● ● ●
183 BOLT; BRK VLV
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9207- ● ● ● ●
184 SEAL; AIR DUCT 1-76377-102-0 01 1 9207- ● ● ● ●
185 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9207- ● ● ● ●
