4-11 — FRONT HUB AND DRUM OR ROTOR (#19108) — 34 parça

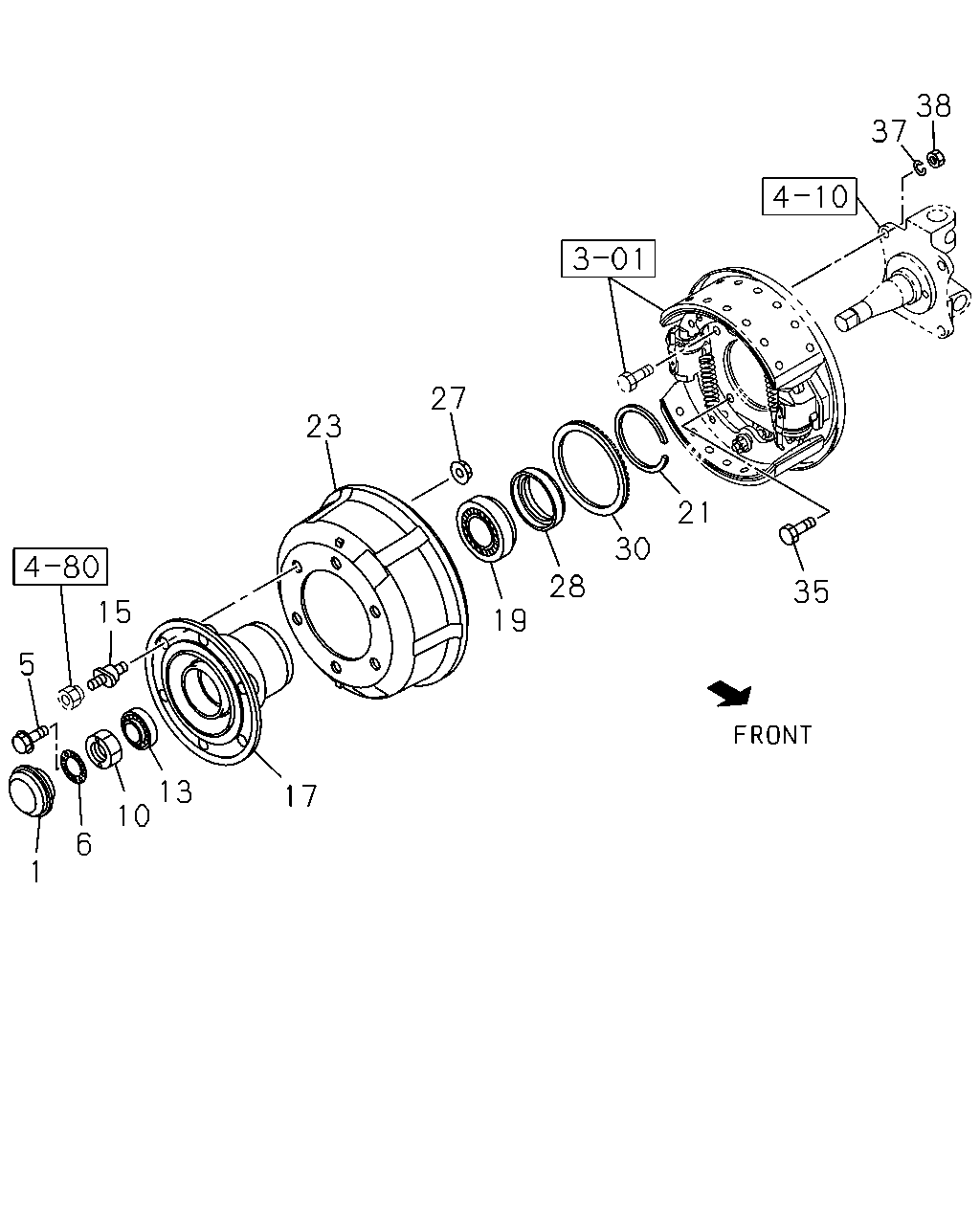

çizim 108813
38 37 27 23 21 30 28 35 15 19 5 13 10 17 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 1-42313-032-0 02 1 0710-0711 ●
1 CAP; HUB,FRT AXLE 1-42313-032-0 02 1 0712- ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
6 WASHER; LK,FRT HUB
ID=39 		1-09841-003-0 02 1 0710-0711 ●
6 WASHER; LK,FRT HUB
ID=39 		1-09841-003-0 02 1 0712- ● ●
10 NUT; FRT HUB BRG
M39 		1-09840-019-1 02 1 0710-0711 ●
10 NUT; FRT HUB BRG
M39 		1-09840-019-1 02 1 0712- ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-207-0 02 1 0710-0711 ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-207-0 02 1 0712- ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X49.5 RH THREAD 		1-42331-148-1 06 1 0710-0711 ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X49.5 RH THREAD 		1-42331-148-1 06 1 0712- ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X49.5 RH THREAD 		1-42332-148-1 06 1 0710-0711 ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X49.5 RH THREAD 		1-42332-148-1 06 1 0712- ● ●
17 HUB; FRT AXLE 8-98039-295-1 02 1 0710-0711 ●
17 HUB; FRT AXLE 8-98039-295-1 02 1 0712- ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-206-0 02 1 0710-0711 ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-206-0 02 1 0712- ● ●
21 RING; SNAP,HUB
OD=117 		1-09587-001-0 02 1 0710-0711 ●
21 RING; SNAP,HUB
OD=117 		1-09587-001-0 02 1 0712- ● ●
23 DRUM; BRK,FRT 1-42315-395-1 02 1 0710-0711 ●
23 DRUM; BRK,FRT 1-42315-395-1 02 1 0712- ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 12 1 0710-0711 ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 12 1 0712- ● ●
28 SEAL; OIL,FRT HUB 1-09625-568-0 02 1 0710-0711 ●
28 SEAL; OIL,FRT HUB 1-09625-568-0 02 1 0712- ● ●
30 RING; EXCITER,FRT HUB 1-42319-208-0 02 1 0710-0711 ●
30 RING; EXCITER,FRT HUB 1-42319-208-0 02 1 0712- ● ●
35 BOLT; DRUM COVER
M14X40 		0-20951-440-0 04 1 0710-0711 ●
35 BOLT; DRUM COVER
M14X40 		0-20951-440-0 04 1 0712- ● ●
37 WASHER; LK,BACK PLATE
ID=14.2 		0-91510-814-0 08 1 0710-0711 ●
37 WASHER; LK,BACK PLATE
ID=14.2 		0-91510-814-0 08 1 0712- ● ●
38 NUT; BACK PLATE
M14 		0-91110-514-0 08 1 0710-0711 ●
38 NUT; BACK PLATE
M14 		0-91110-514-0 08 1 0712- ● ●
