3-78 — FIXING PARTS; AIR PIPING (#19105) — 127 parça

265 63 235 268 4 236 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0808	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0901	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0710-0711	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-	●	●
4	CLIP; AIR PIPE (B) ID=10 & 12	1-09709-278-1	01	1	0712-		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	03	1	0809-0901		●
63	BOLT; CLIP WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●
63	BOLT; CLIP WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	05	1	0710-0710	●
63	BOLT; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	0710-0711	●
63	BOLT; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	0712-	●
63	BOLT; CLIP WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	06	1	0712-		●
63	BOLT; CLIP WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	0710-0710	●
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W) ID=11 H=20 L=20	8-98033-780-0	04	1	0710-	●
235	CLIP; AIR PIPE WHEEL BASE 5100MM(51W) ID=11 H=20 L=20	8-98033-780-0	05	1	0710-0710	●
235	CLIP; AIR PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	0710-0711	●
235	CLIP; AIR PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	0712-	●
235	CLIP; AIR PIPE WHEEL BASE 5100MM(51W) ID=11 H=20 L=20	8-98033-780-0	06	1	0712-		●
235	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	0710-0710	●
236	NUT; CLIP WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	0710-	●
236	NUT; CLIP WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●
236	NUT; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	0710-0711	●
236	NUT; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	0712-	●
236	NUT; CLIP WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	06	1	0712-		●
236	NUT; CLIP WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	0710-0710	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0710-0711	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0712-	●	●
268	NUT; CLIP BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0710	●
268	NUT; CLIP BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	0710-0711	●
268	NUT; CLIP BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	0712-	●
268	NUT; CLIP BRKT WHEEL BASE 5100MM(51W) M10 FLANGE	0-91180-210-0	01	1	0712-		●

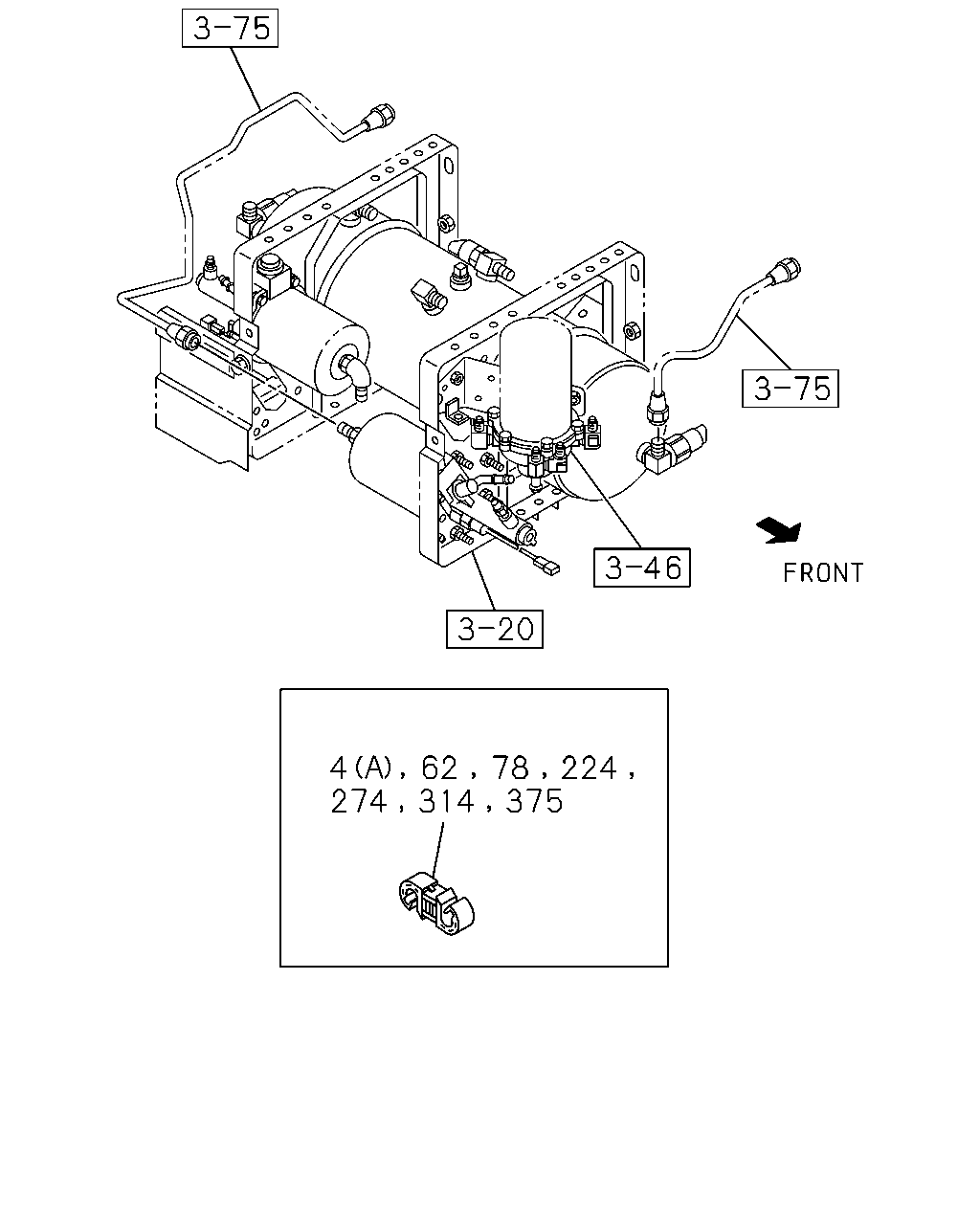

4 62 78 224 274 314 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0808	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0901	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0710-0711	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-	●	●
4	CLIP; AIR PIPE (B) ID=10 & 12	1-09709-278-1	01	1	0712-		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	03	1	0809-0901		●
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-0711	●
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0712-0808	●	●
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0809-0809	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0810-0901	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	02	1	0810-0901		●
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0809-0809		●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0810-0901	●
62	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0810-0901		●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0710-0711	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0712-0901	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0710-0711	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0808	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0809-0901	●	●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0809-0901	●	●
224	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0809-0901	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0902-	●	●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0902-	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0902-		●
224	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	03	1	0710-0711	●
224	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	03	1	0712-0901	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0712-0901		●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0809-		●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0711	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0808	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0808		●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0901	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=6.35 & 10.0	1-09709-274-1	02	1	0902-		●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	0710-	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	04	1	0710-0901	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	0902-	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0710-	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	0710-	●
274	CLIP; AIR PIPE ID=6.35 & 12.2	1-09709-275-1	01	1	0809-		●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=6.35 & 10.0	1-09709-274-1	01	1	0809-0901		●
314	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0901	●
375	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	02	1	0710-0711	●
375	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	02	1	0712-0901	●	●

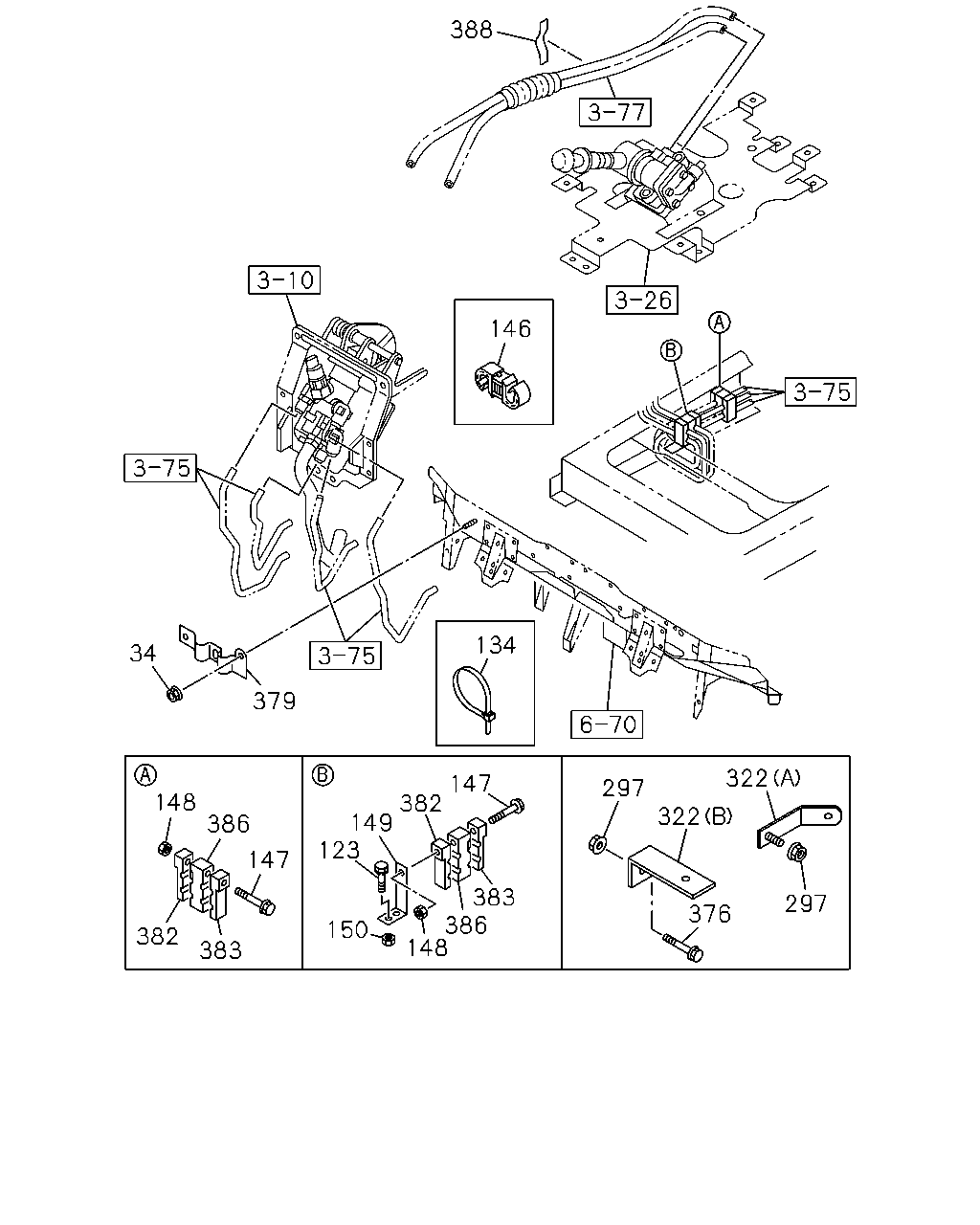

388 146 134 34 379 148 322 147 382 149 123 297 322 386 147 383 386 148 297 376 150 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0710-0711	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0804-	●	●
146	CLIP; AIR PIPE ID=10	1-09709-242-0	02	1	0710-0710	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0711-0711	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0712-0910	●	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0911-	●	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0911-	●
146	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-277-1	04	1	0911-		●
146	CLIP; AIR PIPE 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-277-1	02	1	0911-		●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0710-0711	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0712-	●
147	BOLT; PIPE CLIP 6HK1-TCN ENG(82L) M8X70 FLANGE	0-28050-870-0	04	1	0712-		●
147	BOLT; PIPE CLIP 4HK1-TCS ENG(RJS) M8X70 FLANGE	0-28050-870-0	03	1	0712-		●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0712-	●
148	NUT; PIPE CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	04	1	0712-		●
148	NUT; PIPE CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	0712-		●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	0710-0711	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	0712-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0710	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-	●
297	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	01	1	0712-		●
322	BRACKET; CLIP (B) L=55 B=25	1-47478-439-0	01	1	0710-0710	●
322	BRACKET; CLIP (A)	1-47479-936-1	01	1	0710-0711	●
322	BRACKET; CLIP (A)	1-47479-936-1	01	1	0712-	●
322	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A)	1-47479-936-1	01	1	0712-		●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0710-0710	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0710-0711	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0712-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0710-0711	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0712-	●
382	CLIP; UPR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	0712-		●
382	CLIP; UPR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	03	1	0712-		●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	0710-0711	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	0712-	●
383	CLIP; LWR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	0712-		●
383	CLIP; LWR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	03	1	0712-		●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0710-0711	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0712-	●
386	CLIP; CENTER 6HK1-TCN ENG(82L) ID=10	1-09709-242-0	04	1	0712-		●
386	CLIP; CENTER 4HK1-TCS ENG(RJS) ID=10	1-09709-242-0	03	1	0712-		●
388	SEAL 100X40	1-72498-022-1	03	1	0710-0711	●
388	SEAL 100X40	1-72498-022-1	03	1	0712-	●	●
