3-77 — BRAKE PIPING; AIR,REAR (#19104) — 151 parça

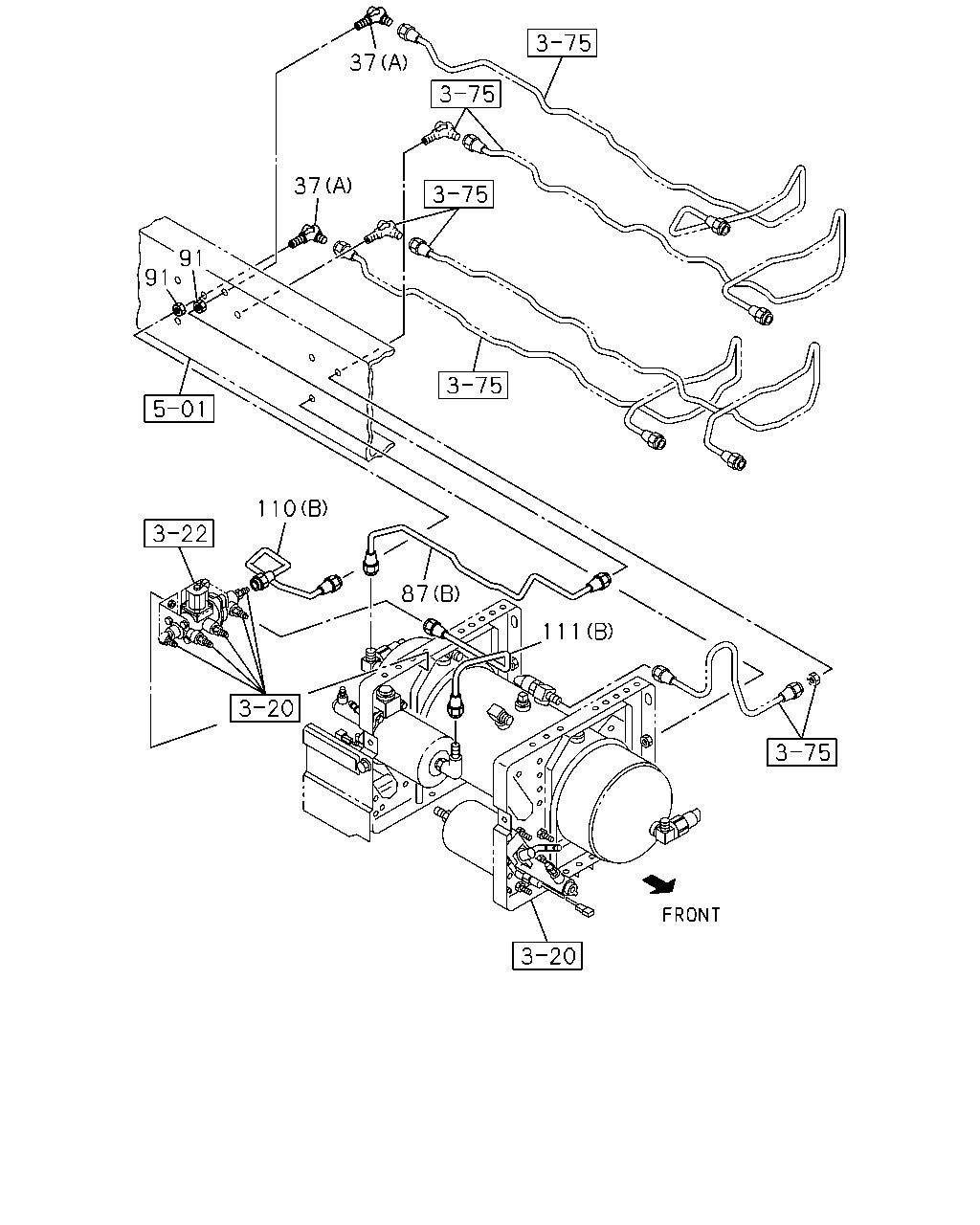

37 37 91 91 110 87 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0710-0711	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0710-0711	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-	●	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=700 SERVICED BY L=700	1-47428-870-0	01	1	0710-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	0712-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0710-0711	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-	●	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (A) L=473	8-98067-756-0	01	1	0710-	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (B) L=474	8-98087-354-0	01	1	0712-		●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=554 SERVICED BY L=600	1-47428-868-0	01	1	0710-	●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> (B) L=374	8-98098-449-0	01	1	0712-		●

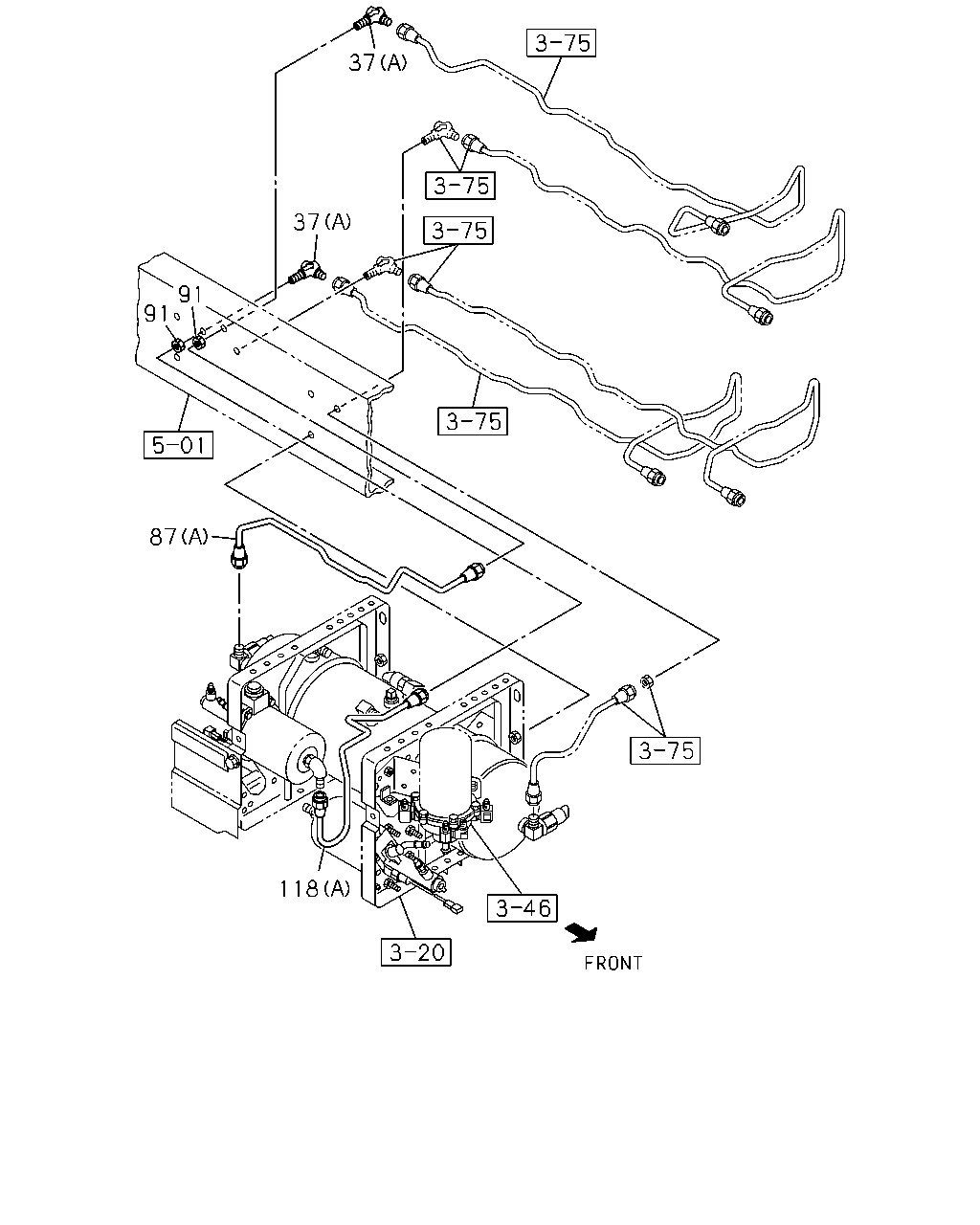

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0710-0711	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0710-0711	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-	●	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=700 SERVICED BY L=700	1-47428-870-0	01	1	0710-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	0712-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0710-0711	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=679 SERVICED BY L=700	1-47428-870-0	01	1	0710-0710	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=692 SERVICED BY L=700	1-47428-870-0	01	1	0710-0811	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=830 SERVICED BY L=900	1-47428-873-0	01	1	0812-	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP> (B) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0712-		●

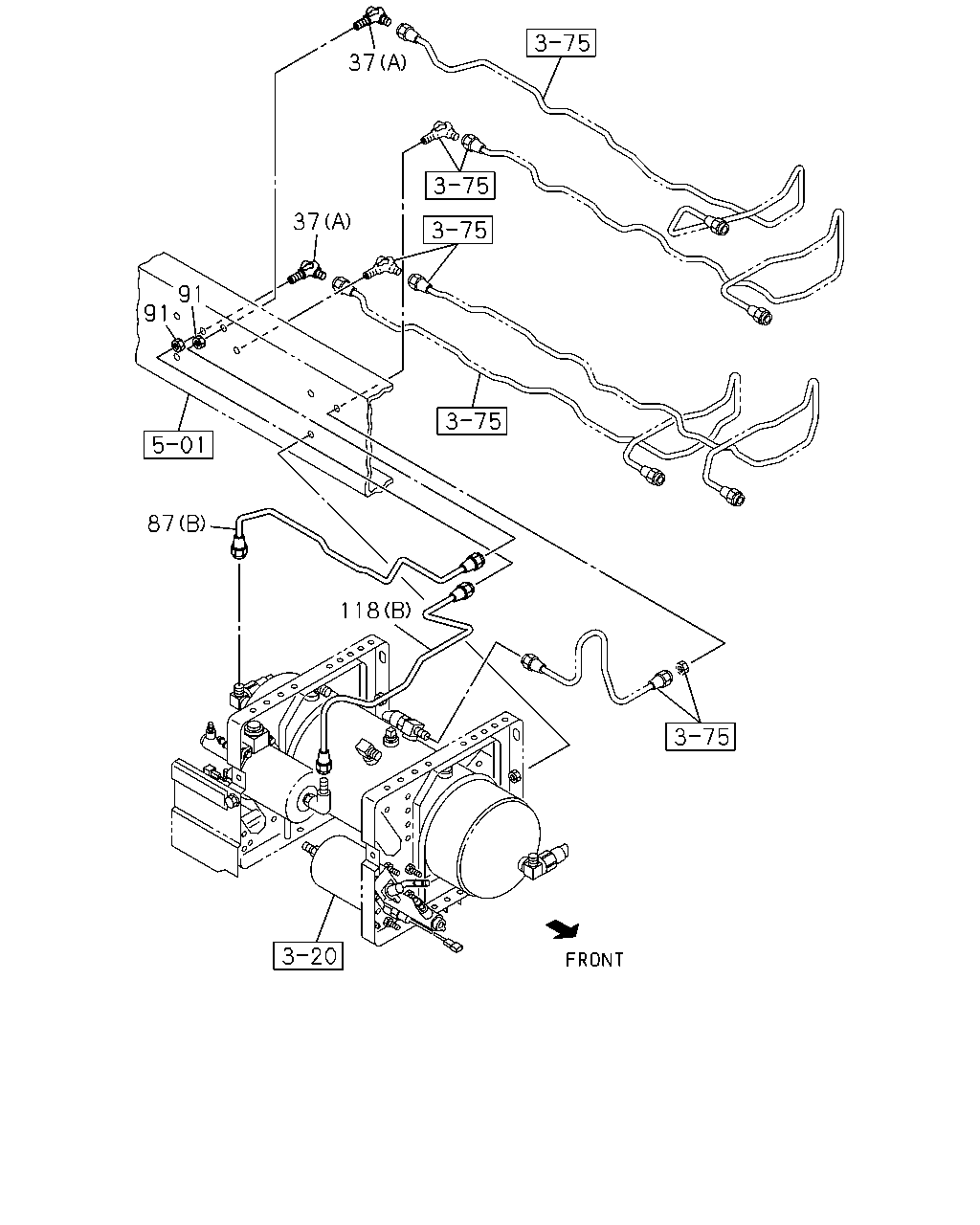

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0710-0711	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0710-0711	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-	●	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=700 SERVICED BY L=700	1-47428-870-0	01	1	0710-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	0712-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0710-0711	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=679 SERVICED BY L=700	1-47428-870-0	01	1	0710-0710	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=692 SERVICED BY L=700	1-47428-870-0	01	1	0710-0811	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=830 SERVICED BY L=900	1-47428-873-0	01	1	0812-	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP> (B) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0712-		●

318 97 144 98 37 223 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0710-0711	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0710-0711	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-	●	●
97	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	0710-0711	●
97	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	0712-	●	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0710-0711	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-	●	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) L=1416 SERVICED BY L=1550	1-47428-879-0	01	1	1207-		●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4300MM(43W) L=909 SERVICED BY L=1000	1-47428-874-0	01	1	0710-	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=1408 SERVICED BY L=1550	1-47428-879-0	01	1	0710-	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 5100MM(51W) L=1419 SERVICED BY L=1550	1-47428-879-0	01	1	0712-1206		●
144	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) L=1419 SERVICED BY L=1550	1-47428-879-0	01	1	1207-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0710-	●	●
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W) L=1081 SERVICED BY L=1100	1-47428-875-0	01	1	0710-0710	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W) L=1158 SERVICED BY L=1250	1-47428-876-0	01	1	0710-	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5100MM(51W) L=1376 SERVICED BY L=1400	1-47428-878-0	01	1	0710-0710	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5100MM(51W) L=1383 SERVICED BY L=1400	1-47428-878-0	01	1	0710-0710	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5100MM(51W) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	0710-0711	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5100MM(51W) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	0712-	●	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5500MM(55W) L=1784 SERVICED BY L=1900	1-47428-881-0	01	1	0710-0710	●
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5500MM(55W) L=1856 SERVICED BY L=1900	1-47428-881-0	01	1	0710-	●

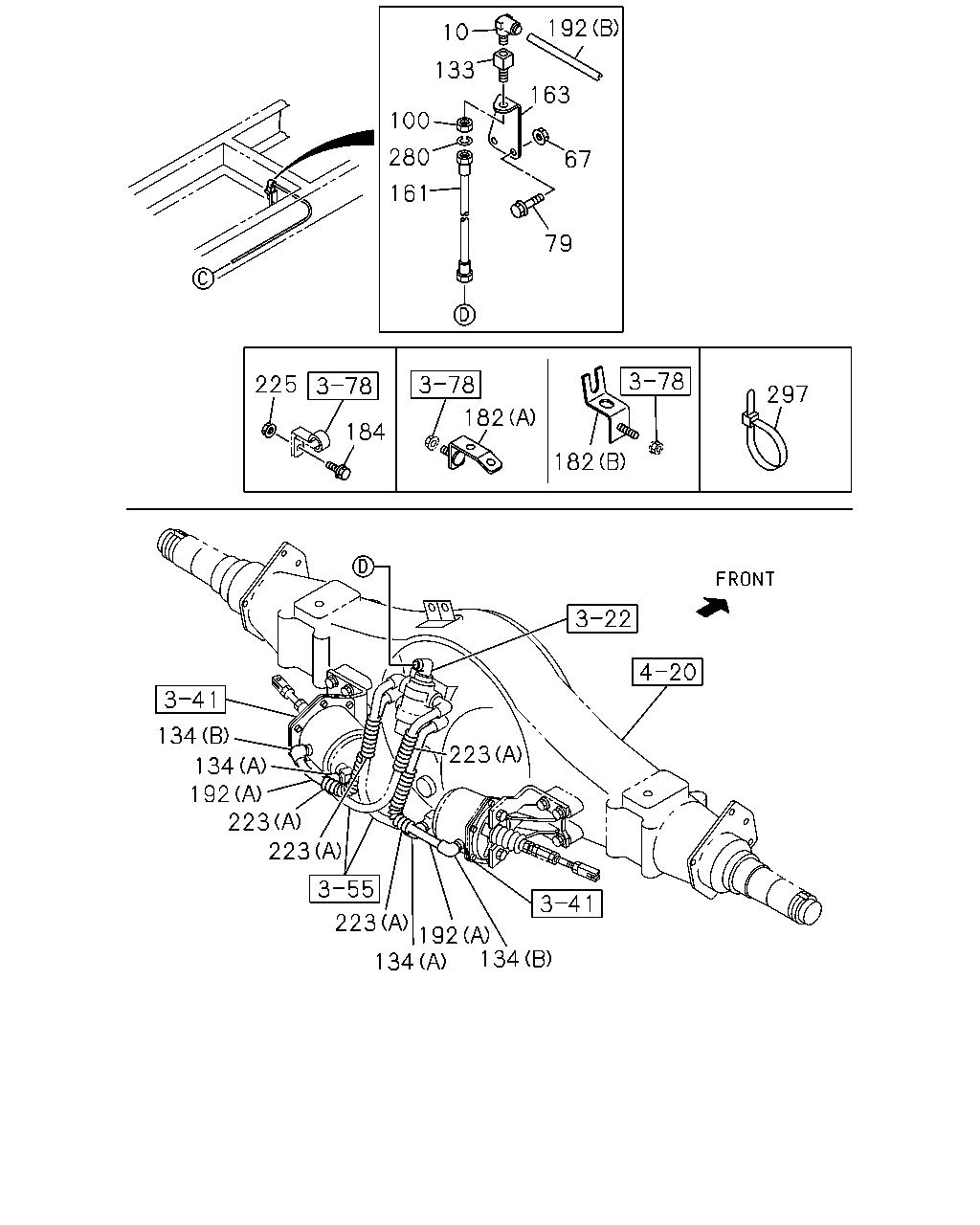

10 133 192 163 100 280 161 67 79 225 184 182 182 297 134 134 192 223 223 223 192 134 134 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0711	●
10	CONNECTOR; FLEX HOSE DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0712-	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
100	NUT; UNION M16	0-91111-516-0	01	1	0710-0711	●
100	NUT; UNION M16	0-91111-516-0	01	1	0712-	●	●
133	UNION; NIPPLE	1-09654-258-2	01	1	0710-0711	●
133	UNION; NIPPLE	1-09654-258-2	01	1	0712-1111	●	●
133	UNION; NIPPLE	8-98202-001-0	01	1	1112-	●	●
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-0711	●
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0712-	●	●
134	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0710-0711	●
134	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0712-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=460	1-09363-963-0	01	1	0710-0711	●
161	HOSE; FLEX,QUICK RELEASE VLV L=460	1-09363-963-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE	8-98044-842-0	01	1	0710-0711	●
163	BRACKET; FLEX HOSE	8-98044-842-0	01	1	0712-	●	●
182	BRACKET; TUBE CLIP (A)	8-98021-994-1	01	1	0710-0710	●
182	BRACKET; TUBE CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B)	8-98096-272-0	01	1	0710-0711	●
182	BRACKET; TUBE CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B)	8-98096-272-0	01	1	0712-	●
182	BRACKET; TUBE CLIP WHEEL BASE 5100MM(51W) (B)	8-98096-272-0	01	1	0712-		●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0710-	●	●
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
280	WASHER; LK ID=16.2	0-91510-816-0	01	1	0710-0711	●
280	WASHER; LK ID=16.2	0-91510-816-0	01	1	0712-0808	●	●
297	CLIP; BAND WHEEL BASE 4300MM(43W) L=250	1-09707-126-0	11	1	0710-0710	●
297	CLIP; BAND WHEEL BASE 4300MM(43W) L=350	1-09707-183-0	09	1	0710-	●
297	CLIP; BAND WHEEL BASE 5100MM(51W) L=250	1-09707-126-0	14	1	0710-0710	●
297	CLIP; BAND WHEEL BASE 5100MM(51W) L=350	1-09707-183-0	11	1	0710-0711	●
297	CLIP; BAND WHEEL BASE 5100MM(51W) L=350	1-09707-183-0	11	1	0712-1005	●	●
297	CLIP; BAND WHEEL BASE 5100MM(51W) L=350	1-09707-183-0	11	1	1006-1109	●
297	CLIP; BAND 6HK1-TCN ENG(82L) L=350	1-09707-183-0	11	1	1006-1109		●
297	CLIP; BAND WHEEL BASE 5100MM(51W) L=350	1-09707-183-0	11	1	1110-	●	●
297	CLIP; BAND WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	15	1	0710-0710	●
297	CLIP; BAND WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	12	1	0710-1005	●
297	CLIP; BAND 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	12	1	1006-1109	●
297	CLIP; BAND WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	12	1	1110-	●

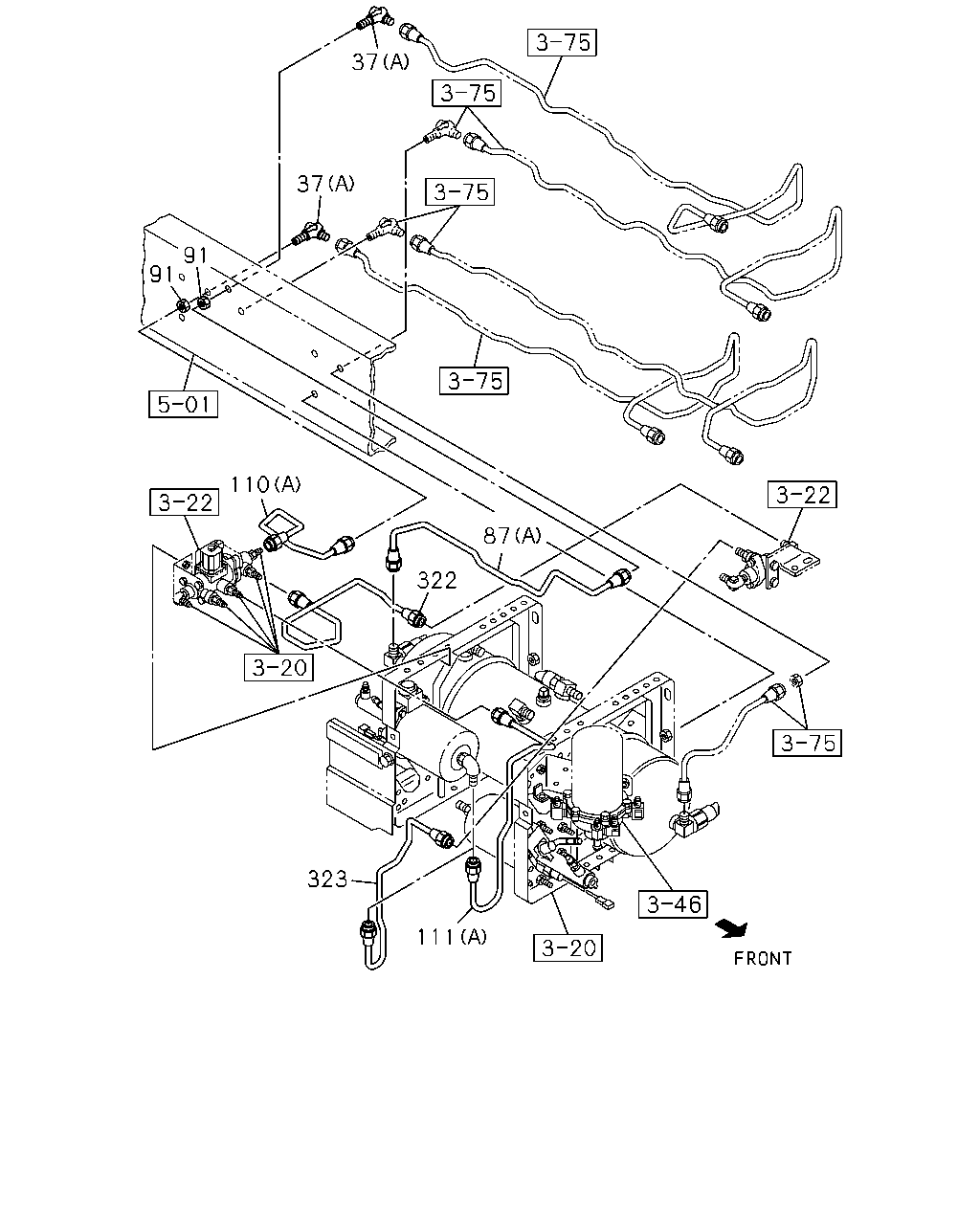

37 37 91 91 110 87 322 323 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0710-0711	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0710-0711	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-	●	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=700 SERVICED BY L=700	1-47428-870-0	01	1	0710-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	0712-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0710-0711	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-	●	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (A) L=473	8-98067-756-0	01	1	0710-	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (B) L=474	8-98087-354-0	01	1	0712-		●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=554 SERVICED BY L=600	1-47428-868-0	01	1	0710-	●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> (B) L=374	8-98098-449-0	01	1	0712-		●
322	PIPE; AIR,HSA VLV TO DBL CHK VLV THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	0710-	●
323	PIPE; AIR,DBL CHK VLV THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600	1-47428-868-0	01	1	0710-	●

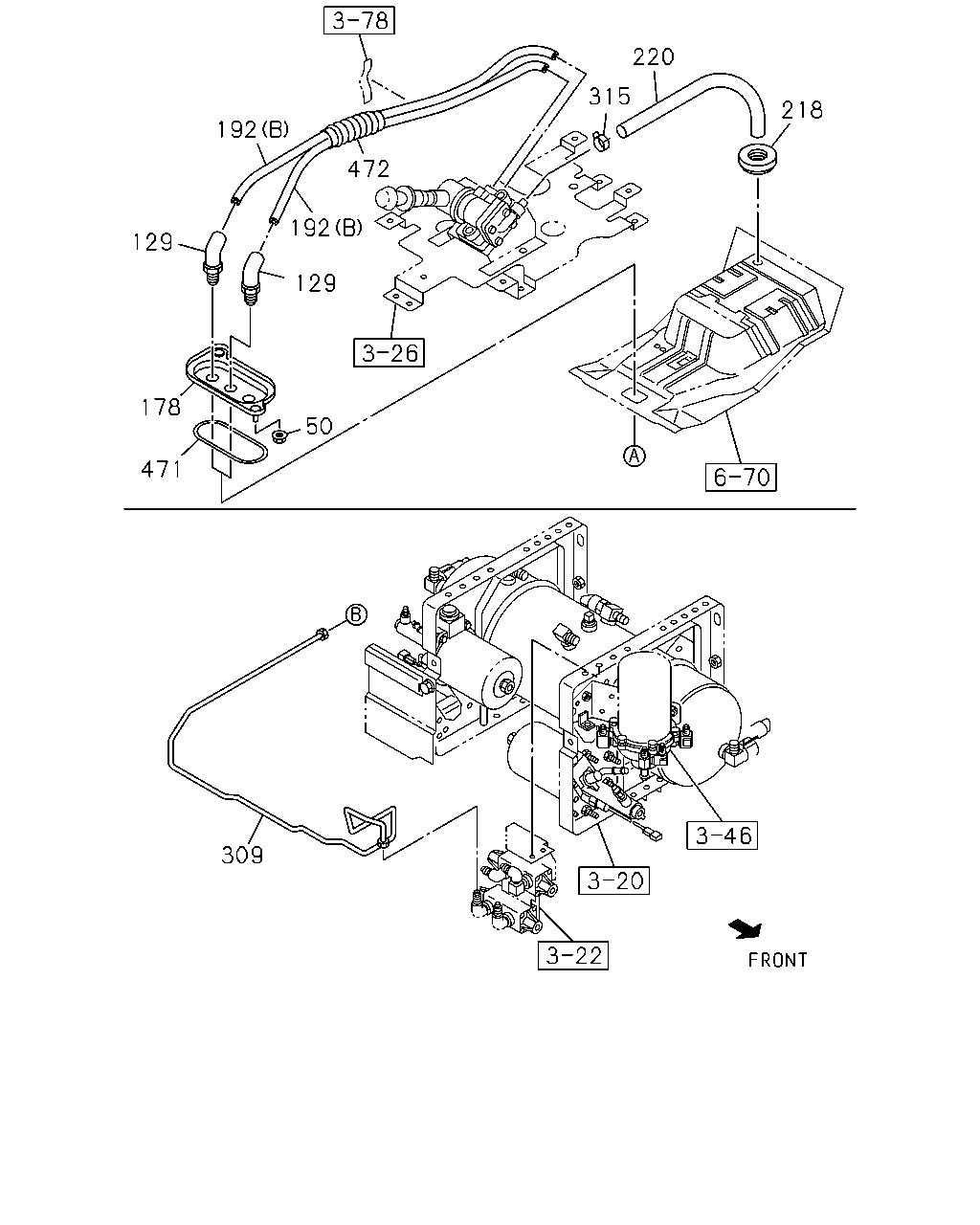

192 472 192 129 50 471 178 129 220 315 218 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE	8-97611-963-1	02	1	0710-0711	●
129	CONNECTOR; NYLON TUBE	8-97611-963-1	02	1	0712-	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	0710-0711	●
178	BRACKET; UNION	8-98017-054-1	01	1	0712-	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0710-	●	●
192	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0710-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0710-0711	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0712-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0710-0711	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-	●	●
309	PIPE; AIR,MPV TO UNION L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	0710-	●
309	PIPE; AIR,MPV TO UNION L=1743 SERVICED BY L=1900	1-47428-881-0	01	1	0712-		●
315	CLIP ID=14	8-94238-572-0	01	1	0710-0711	●
315	CLIP ID=14	8-94238-572-0	01	1	0712-	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	0710-0711	●
471	SEAL; BRKT	1-79738-832-0	01	1	0712-	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0710-0711	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0712-	●	●
