◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#19102) — 349 parça

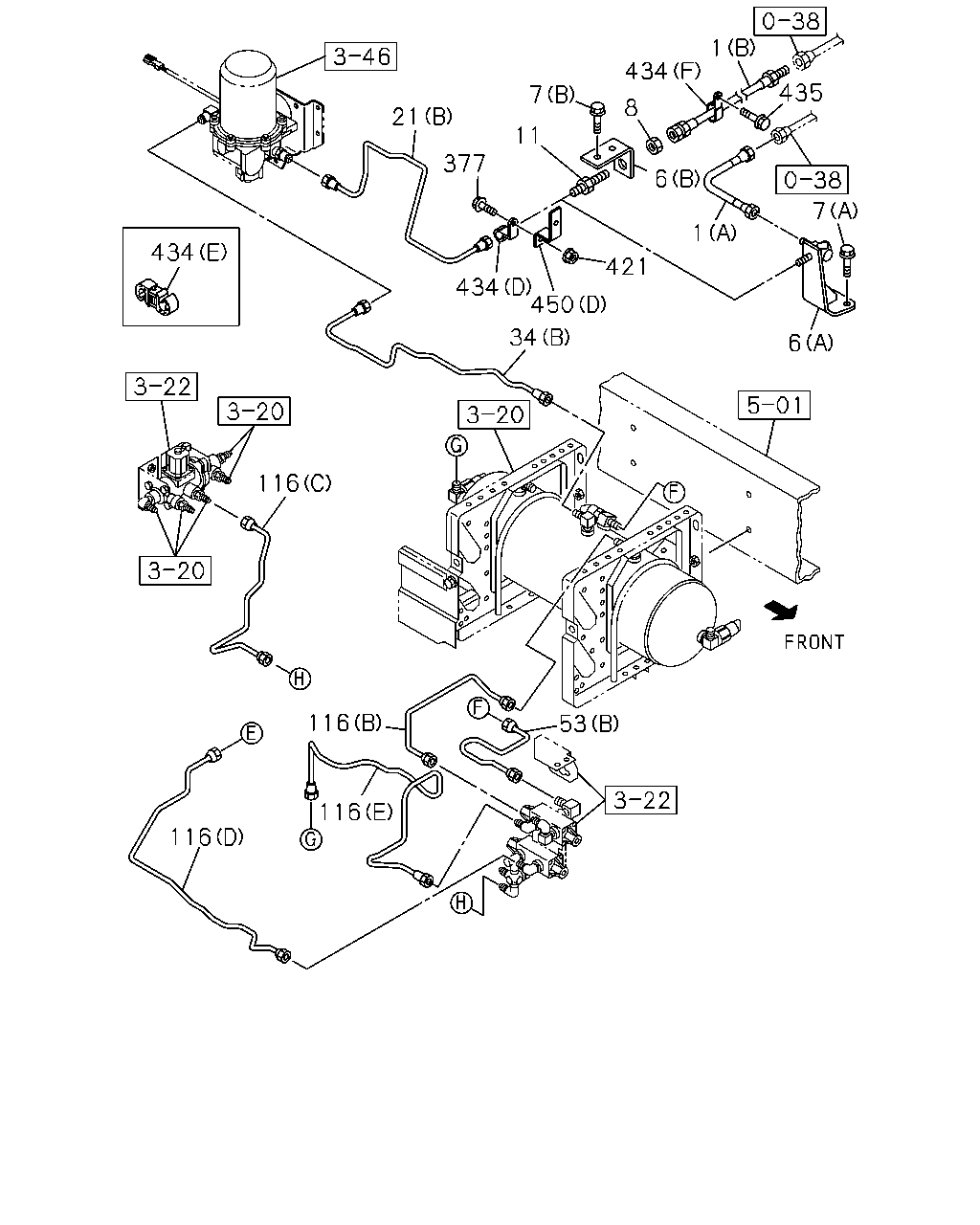

çizim 108792
1 434 435 7 8 21 11 377 6 7 1 434 421 434 450 34 6 116 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0710-0711 ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0712-0904 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-973-0 01 1 0712-0904 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-973-0 01 1 0905- ●
1 HOSE; FLEX,AIR TANK
(A) 		1-09363-958-0 01 1 0905- ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) (B) 		8-98087-669-0 01 1 0712- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0710-0711 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0712- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-987-1 01 1 0712- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (B) 		8-98087-689-0 01 1 0712- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M22 		0-91111-522-0 01 1 0712- ●
11 UNION; AIR PIPE
4HK1-TCS ENG(RJS) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0710- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (B) L=1222 		8-98084-698-0 01 1 0712- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (B) L=1701 		8-98101-764-0 01 1 0712- ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710-1107 ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 0712-0712 ●
34 PIPE; AIR
(B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 0801- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) (B) L=1135 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0712 ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98061-086-0 01 1 0710- ●
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98087-332-0 01 1 0712- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0710- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0710- ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0710-0711 ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0712- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0710- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1291 SERVICED BY L=1370 		1-47428-818-0 01 1 0712- ●
116 PIPE; AIR,PROTECTION VLV
(E) 		8-98087-333-0 01 1 0712- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> (C) L=533 SERVICED BY L=550 		1-47428-808-0 01 1 0712- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 0806- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) M10X30 FLANGE 		0-28651-030-0 03 1 0806- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 03 1 0806- ●
377 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0712- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ●
377 BOLT; BRKT FIX
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 03 1 0710-0710 ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) M10X30 FLANGE 		0-28651-030-0 04 1 0806-0906 ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 04 1 0907- ●
421 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0712- ● ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0711 ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0712- ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0712- ●
434 CLIP
(A) L=250 		1-09707-126-0 04 1 0710-0710 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0712- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0712-1109 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 0712-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0712- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 0712- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0712-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0711-0711 ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0712-1011 ●
434 CLIP
6HK1-TCN ENG(82L) (E) ID=10 & 15 		1-09709-279-1 01 1 0712-1011 ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
4HK1-TCS ENG(RJS) (F) ID=16 L=20 		0-95235-536-0 01 1 0712- ●
434 CLIP
4HK1-TCS ENG(RJS) (D) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0711-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710-0711 ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ● ●
450 BRACKET; CLIP
(A) 		1-47477-694-0 01 1 0807- ● ●
450 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 0710-0710 ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0710-0711 ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0806-0806 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (D) 		8-98021-994-1 03 1 0806-0806 ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98021-994-1 03 1 0806-0806 ●
450 BRACKET; CLIP
(G) 		8-98117-686-0 03 1 0806- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (G) 		8-98117-686-0 03 1 0806- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (G) 		8-98117-686-0 03 1 0806- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0710-0711 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0712- ● ●
450 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (C) 		8-98097-725-0 02 1 0710-0710 ●
450 BRACKET; CLIP
(F) 		8-98100-216-0 01 1 0710-0711 ●
450 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 0712- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98100-216-1 01 1 0712- ●
450 BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (C) 		8-98097-725-0 03 1 0710-0710 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		1-47479-693-0 01 1 0712- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98021-994-1 04 1 0712-0805 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (G) 		8-98117-686-0 04 1 0806-0906 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (G) 		8-98117-686-0 04 1 0907- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98087-848-0 01 1 0712- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (F) 		8-98100-216-1 02 1 0712- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98105-216-1 01 1 0811- ●

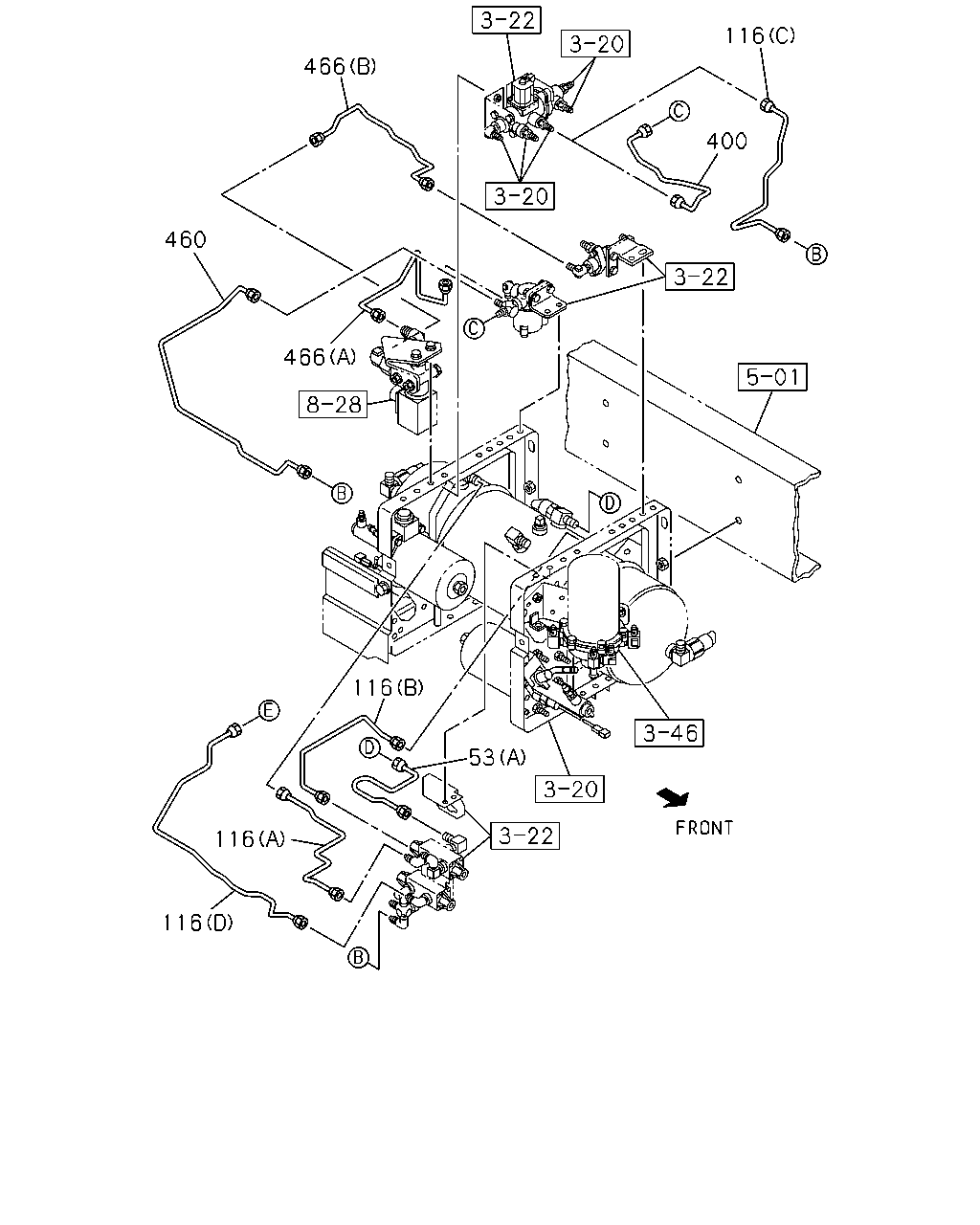

çizim 108793
116 466 400 460 466 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98061-086-0 01 1 0710- ●
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98087-332-0 01 1 0712- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0710- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0710- ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0710-0711 ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0712- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0710- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1291 SERVICED BY L=1370 		1-47428-818-0 01 1 0712- ●
116 PIPE; AIR,PROTECTION VLV
(E) 		8-98087-333-0 01 1 0712- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> (C) L=533 SERVICED BY L=550 		1-47428-808-0 01 1 0712- ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 0710- ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0710- ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 0710- ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 0710- ●

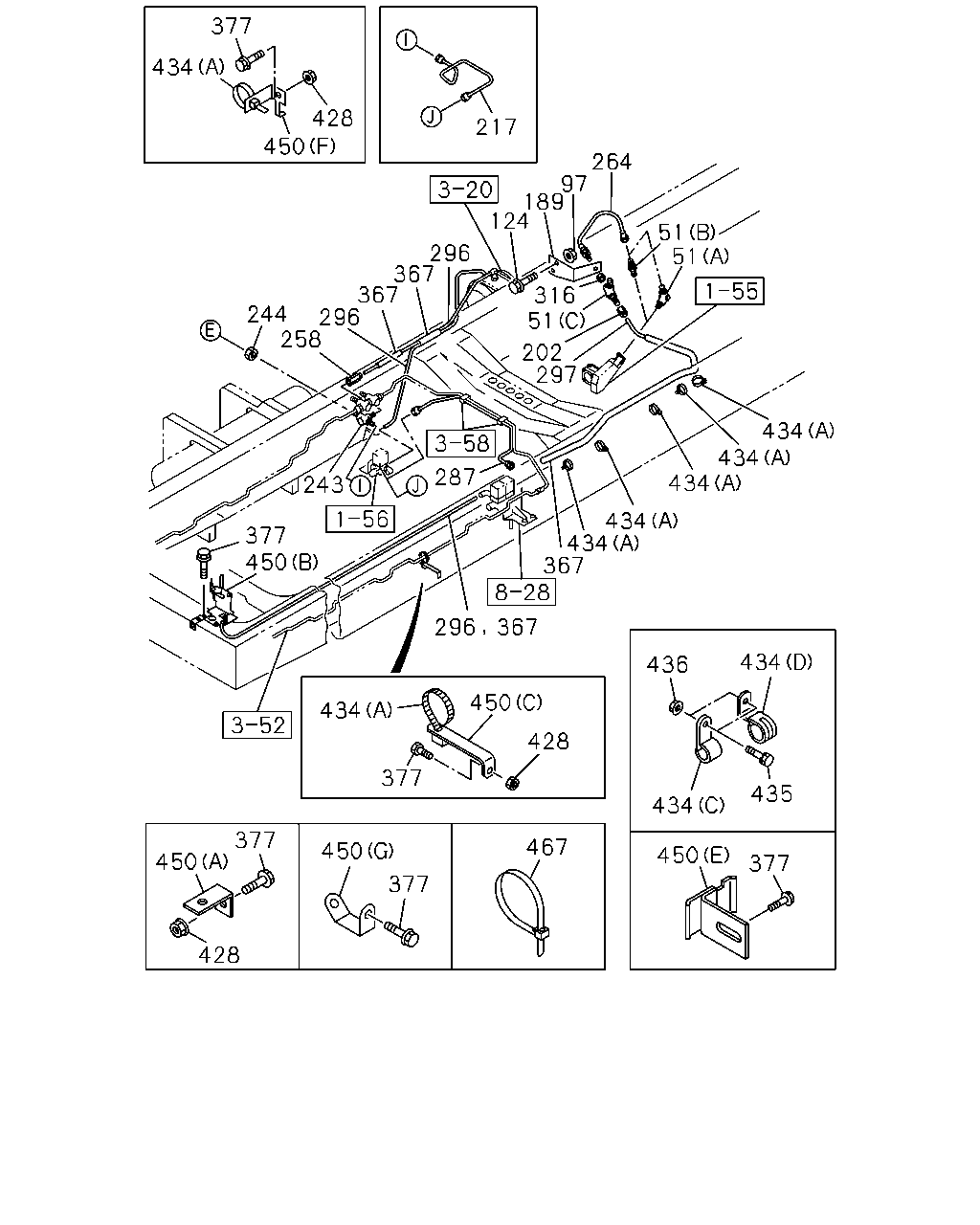

çizim 108798
377 434 428 217 450 264 97 189 124 51 51 296 367 367 244 296 258 316 51 202 297 434 434 434 287 243 434 434 367 377 450 296 367 434 436 450 434 428 377 435 434 377 467 450 450 450 377 377 428
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
(C) M12 ELBOW 		0-92125-006-0 01 1 0710-0711 ●
51 UNION
(C) M12 ELBOW 		0-92125-006-0 01 1 0712- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) M12 ELBOW 		0-92125-006-0 01 1 0712- ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0711 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712- ●
51 UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712- ●
51 UNION
4HK1-TCS ENG(RJS) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712- ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
97 NUT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0710-0710 ●
189 BRACKET; FLEX HOSE 1-47479-914-0 01 1 0710-0711 ●
189 BRACKET; FLEX HOSE 1-47479-914-0 01 1 0712- ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) 		1-47479-914-0 01 1 0712- ●
189 BRACKET; FLEX HOSE
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) 		8-98054-640-0 01 1 0712- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=456 		8-98067-434-0 01 1 0710-0710 ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710-0711 ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0712- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710-0711 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0711 ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0712- ● ●
264 HOSE; FLEX
L=340 		1-09363-622-0 01 1 0710-0710 ●
264 HOSE; FLEX
L=240 		1-09363-671-0 01 1 0710-0711 ●
264 HOSE; FLEX
L=240 		1-09363-671-0 01 1 0712- ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) L=240 		1-09363-671-0 01 1 0712- ●
264 HOSE; FLEX
WHEEL BASE 4300MM(43W) L=370 		1-09363-621-0 01 1 0710-0710 ●
264 HOSE; FLEX
4HK1-TCS ENG(RJS) L=220 		1-09363-627-0 01 1 0712- ●
287 PIPE; AIR,MAG VLV
L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0710-0711 ●
287 PIPE; AIR,MAG VLV
L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0712- ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0712- ●
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) L=912 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0803 ●
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) L=912 SERVICED BY L=1000 		1-47428-814-0 01 1 0804-0906 ●
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) L=912 SERVICED BY L=1000 		1-47428-814-0 01 1 0907- ●
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) L=870 SERVICED BY L=900 		1-47428-813-0 01 1 0806- ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-0802 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0710-0711 ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0712- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 0806- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) M10X30 FLANGE 		0-28651-030-0 03 1 0806- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 03 1 0806- ●
377 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0712- ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ●
377 BOLT; BRKT FIX
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 03 1 0710-0710 ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) M10X30 FLANGE 		0-28651-030-0 04 1 0806-0906 ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 04 1 0907- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
428 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0710-0711 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
428 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 03 1 0712-0805 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0806-0806 ●
428 NUT; BRKT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) M10 FLANGE 		0-91180-210-0 03 1 0806-0806 ●
428 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 03 1 0806-0806 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 0811- ●
428 NUT; BRKT
WHEEL BASE 4300MM(43W) M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0710-0710 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0711-0711 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0712- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 01 1 0712- ●
428 NUT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-110-0 03 1 0710-0710 ●
428 NUT; BRKT
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 04 1 0712-0805 ●
428 NUT; BRKT
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 0712- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0712- ● ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0711 ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0712- ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0712- ●
434 CLIP
(A) L=250 		1-09707-126-0 04 1 0710-0710 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0712- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0712-1109 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 0712-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0712- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 0712- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0712-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0711-0711 ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0712-1011 ●
434 CLIP
6HK1-TCN ENG(82L) (E) ID=10 & 15 		1-09709-279-1 01 1 0712-1011 ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
4HK1-TCS ENG(RJS) (F) ID=16 L=20 		0-95235-536-0 01 1 0712- ●
434 CLIP
4HK1-TCS ENG(RJS) (D) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0711-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0711-0711 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 0712- ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710-0711 ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0712-0806 ● ●
450 BRACKET; CLIP
(A) 		1-47477-694-0 01 1 0807- ● ●
450 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 0710-0710 ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0710-0711 ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98021-994-1 03 1 0712-0805 ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0806-0806 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (D) 		8-98021-994-1 03 1 0806-0806 ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98021-994-1 03 1 0806-0806 ●
450 BRACKET; CLIP
(G) 		8-98117-686-0 03 1 0806- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (G) 		8-98117-686-0 03 1 0806- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (G) 		8-98117-686-0 03 1 0806- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0710-0711 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0712- ● ●
450 BRACKET; CLIP
WHEEL BASE 4300MM(43W) (C) 		8-98097-725-0 02 1 0710-0710 ●
450 BRACKET; CLIP
(F) 		8-98100-216-0 01 1 0710-0711 ●
450 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 0712- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98100-216-1 01 1 0712- ●
450 BRACKET; CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (C) 		8-98097-725-0 03 1 0710-0710 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		1-47479-693-0 01 1 0712- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98021-994-1 04 1 0712-0805 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (G) 		8-98117-686-0 04 1 0806-0906 ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (G) 		8-98117-686-0 04 1 0907- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98087-848-0 01 1 0712- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (F) 		8-98100-216-1 02 1 0712- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98105-216-1 01 1 0811- ●
467 CLIP; NYLON TUBE
WHEEL BASE 4300MM(43W) L=250 		1-09707-126-0 04 1 0710-0906 ●
467 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) L=250 		1-09707-126-0 05 1 0710-0711 ●
467 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) L=250 		1-09707-126-0 05 1 0712-0906 ●
467 CLIP; NYLON TUBE
6HK1-TCN ENG(82L) L=250 		1-09707-126-0 05 1 0712-0906 ●
467 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) L=250 		1-09707-126-0 06 1 0712-0906 ●

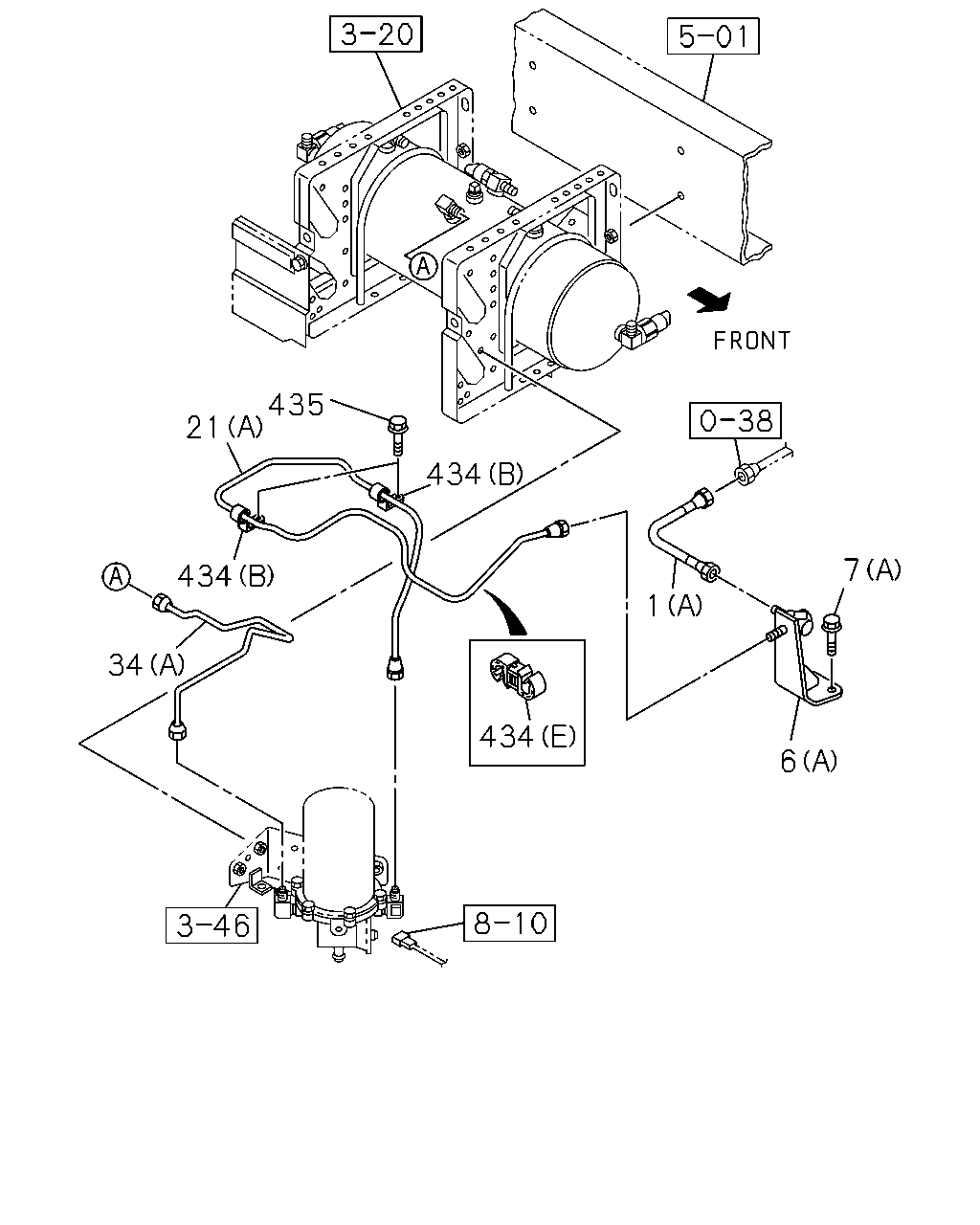

çizim 109179
435 21 434 7 434 1 34 434 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0710-0711 ●
1 HOSE; FLEX,AIR TANK
(A) 		8-98079-973-0 01 1 0712-0904 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-973-0 01 1 0712-0904 ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-973-0 01 1 0905- ●
1 HOSE; FLEX,AIR TANK
(A) 		1-09363-958-0 01 1 0905- ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) (B) 		8-98087-669-0 01 1 0712- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0710-0711 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98079-987-1 01 1 0712- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-987-1 01 1 0712- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (B) 		8-98087-689-0 01 1 0712- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 0710- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (B) L=1222 		8-98084-698-0 01 1 0712- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (B) L=1701 		8-98101-764-0 01 1 0712- ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710-1107 ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ●
34 PIPE; AIR
4HK1-TCS ENG(RJS) (B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 0712-0712 ●
34 PIPE; AIR
(B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 0801- ●
34 PIPE; AIR
6HK1-TCN ENG(82L) (B) L=1135 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0712 ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1110- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710-0711 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0712- ● ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0711 ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0712- ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0712- ●
434 CLIP
(A) L=250 		1-09707-126-0 04 1 0710-0710 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0712- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0712-1109 ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 0712-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0712- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 0712- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-0711 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0712-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1110- ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0711-0711 ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0712-1011 ●
434 CLIP
6HK1-TCN ENG(82L) (E) ID=10 & 15 		1-09709-279-1 01 1 0712-1011 ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 1012- ● ●
434 CLIP
4HK1-TCS ENG(RJS) (F) ID=16 L=20 		0-95235-536-0 01 1 0712- ●
434 CLIP
4HK1-TCS ENG(RJS) (D) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0711-0711 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
