3-58 — FIXING PARTS; OIL PIPING (#19101) — 54 parça

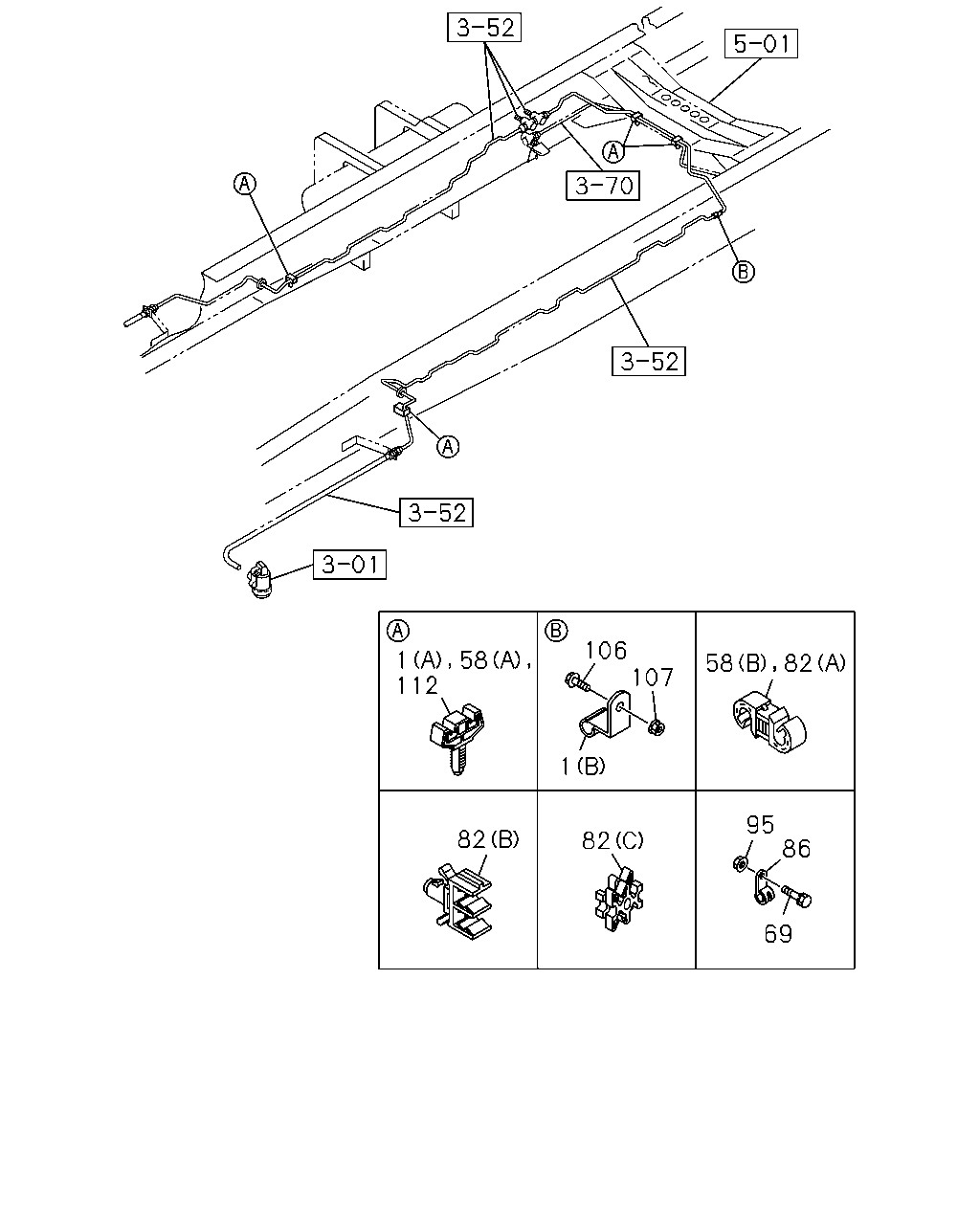

106 107 1 95 86 82 82 69 58 82 1 58 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	07	1	0710-0711	●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	07	1	0712-0802	●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (A)	8-98012-254-1	07	1	0712-0802		●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	07	1	0803-	●
1	CLIP; OIL PIPE TO BODY (B)	8-98040-714-0	05	1	0710-0711	●
1	CLIP; OIL PIPE TO BODY (B)	8-98040-714-0	05	1	0712-0909	●	●
1	CLIP; OIL PIPE TO BODY (B)	8-98040-714-0	05	1	0910-	●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (B)	8-98040-714-0	05	1	0910-		●
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) (A)	8-98012-254-1	08	1	0712-0802		●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	08	1	0803-		●
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) (B)	8-98040-714-0	04	1	0910-		●
58	CLIP; OIL PIPE (A)	8-98012-254-1	05	1	0710-0711	●
58	CLIP; OIL PIPE (A)	8-98012-254-1	05	1	0712-	●	●
58	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=4.76 & 4.76	1-09709-303-0	01	1	0712-0808		●
69	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
69	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0710-0711	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0712-0910	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0911-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0911-	●
82	CLIP; OIL PIPE (C) ID=4.76X4	1-09701-304-0	03	1	0710-0711	●
82	CLIP; OIL PIPE (C) ID=4.76X4	1-09701-304-0	03	1	0712-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	0710-0711	●
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	0712-	●	●
82	CLIP; OIL PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0710-0711	●
82	CLIP; OIL PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0712-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 4.76	1-09709-303-0	01	1	0712-0808		●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	02	1	0809-0901		●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	03	1	0902-		●
86	CLIP; OIL PIPE	8-98085-372-0	02	1	0710-0711	●
86	CLIP; OIL PIPE	8-98085-372-0	02	1	0712-	●	●
95	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
95	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0909	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0710-0711	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0712-0909	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0910-	●
106	BOLT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	05	1	0910-		●
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	04	1	0910-		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0710-0711	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0712-0909	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0910-	●
107	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	0910-		●
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	0910-		●
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W)	8-98012-254-1	04	1	0710-	●
112	CLIP; OIL PIPE WHEEL BASE 5100MM(51W)	8-98012-254-1	06	1	0710-	●
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W)	8-98012-254-1	07	1	0710-0711	●
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W)	8-98012-254-1	07	1	0712-	●
112	CLIP; OIL PIPE WHEEL BASE 5100MM(51W)	8-98012-254-1	07	1	0712-		●

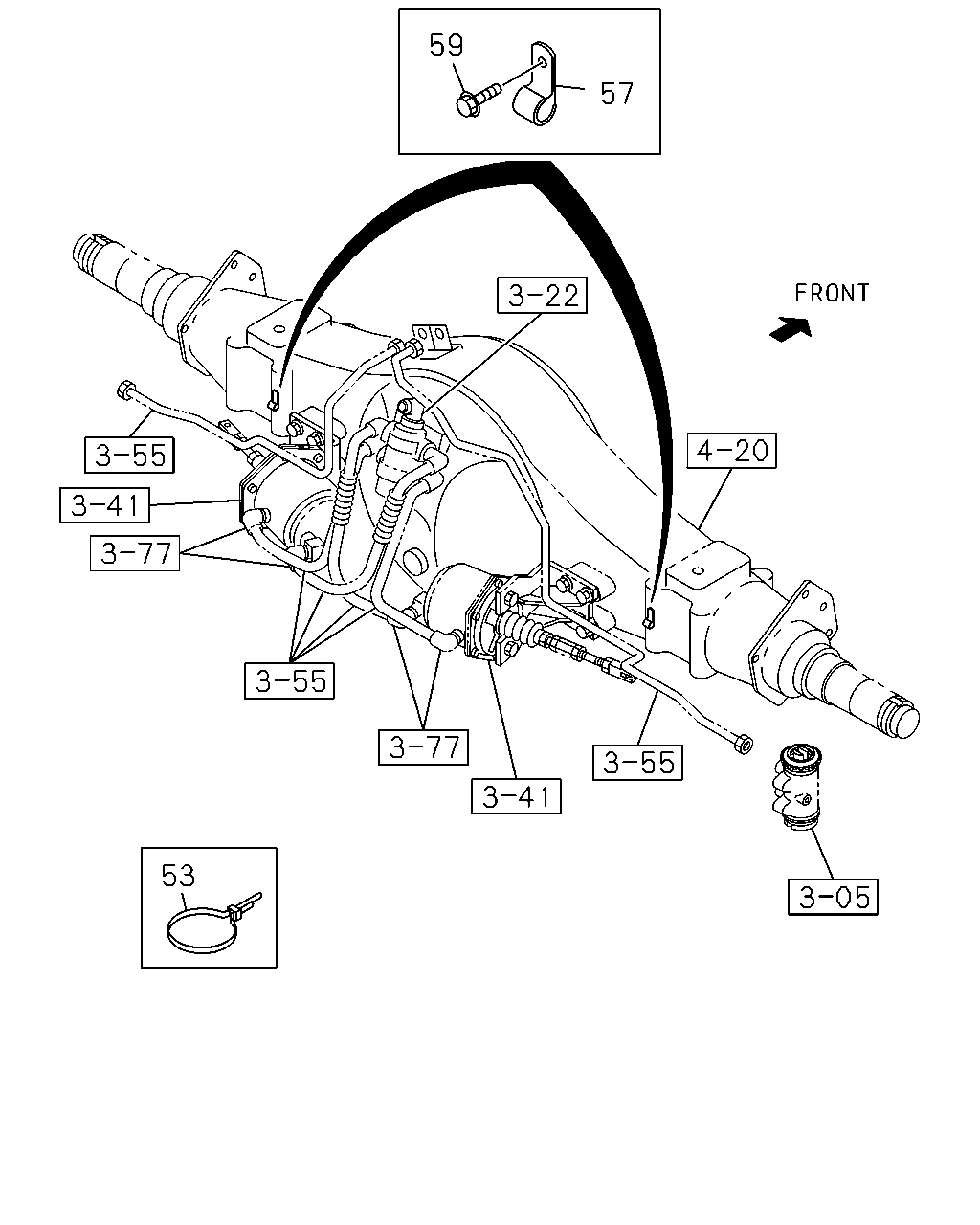

59 57 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	CLIP; UNION L=250	1-09707-126-0	05	1	0710-0711	●
53	CLIP; UNION L=250	1-09707-126-0	05	1	0712-	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	0710-0711	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	0712-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	0710-0711	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
