3-55 — BRAKE PIPING; OIL,REAR (#19100) — 86 parça

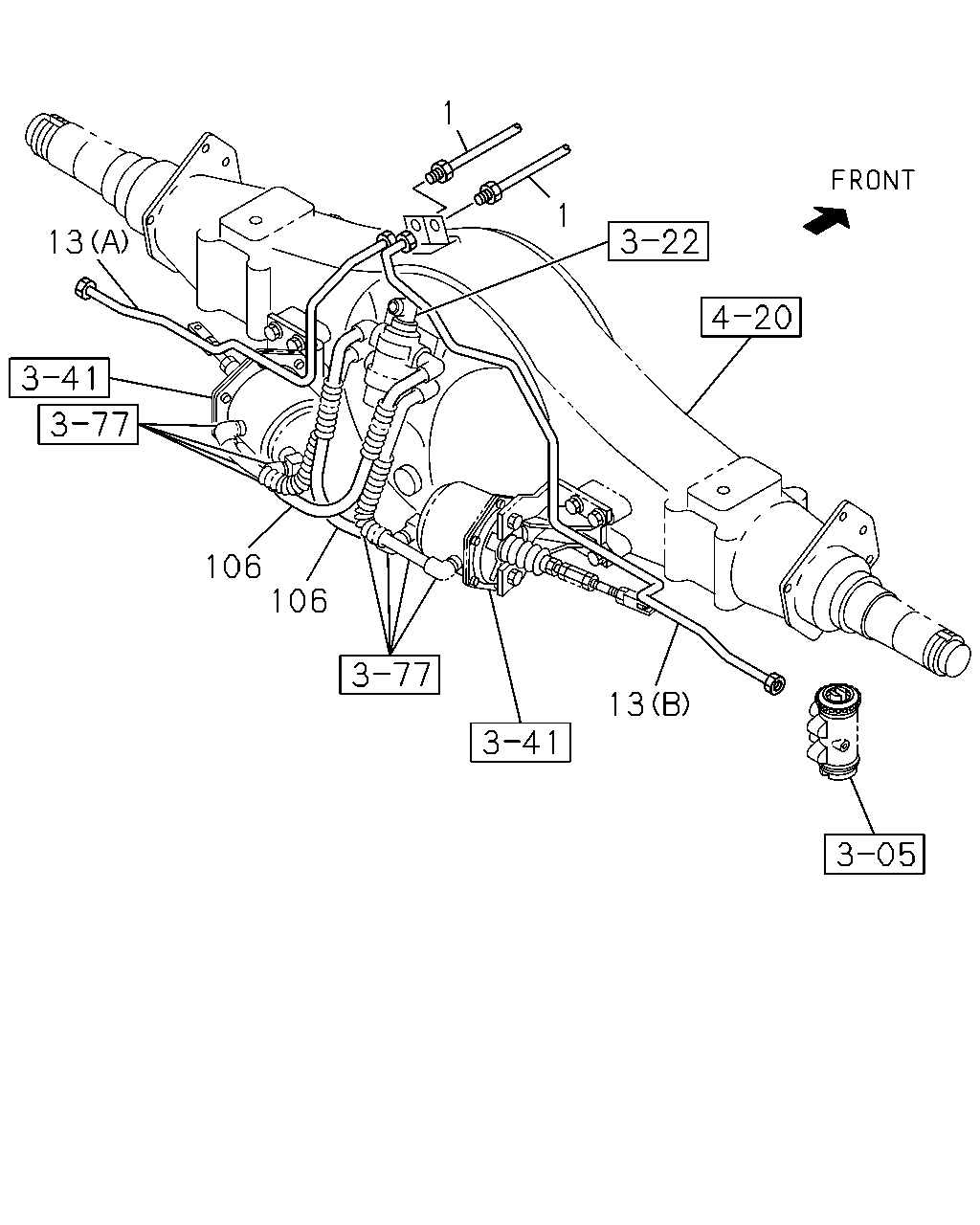

çizim 108790
13 1 1 106 106 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 0712- ● ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98073-530-0 01 1 0712-0803 ● ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 0804-1409 ● ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0710-0711 ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98073-531-0 01 1 0712-0803 ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 0804-1409 ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ● ●
106 TUBE; NYLON 8-98061-971-0 02 1 0710-0711 ●
106 TUBE; NYLON 8-98061-971-0 02 1 0712- ● ●

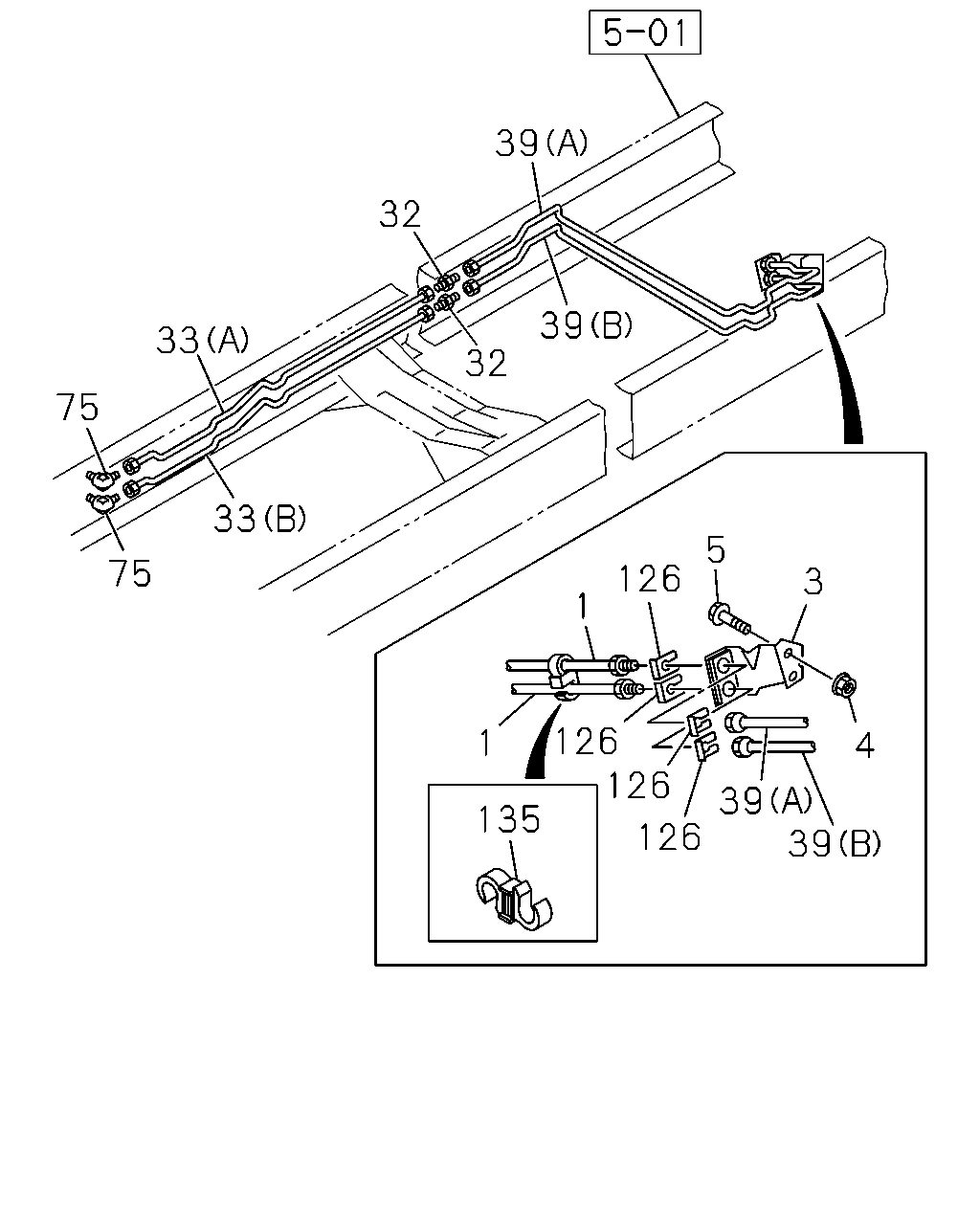

çizim 108791
39 32 39 33 32 75 33 5 75 126 3 1 126 126 1 4 39 39 135 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 0710-0711 ●
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 0712- ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 0710-0711 ●
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 0712- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0711 ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0712- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1694 		8-98090-727-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1622 		8-98069-807-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1622 		8-98069-807-0 01 1 0907- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1624 		8-98090-728-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1578 		8-98069-808-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH LINE L=2494 		8-98090-730-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH LINE L=2422 		8-98069-813-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH LINE L=2423 		8-98090-731-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH LINE L=2377 		8-98069-814-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2824 		8-98091-639-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2894 		8-98091-640-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH LINE L=2906 		8-98099-899-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH LINE L=2906 		8-98099-899-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH LINE L=2828 		8-98099-898-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH LINE L=2828 		8-98099-898-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2804 		8-98106-936-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE 		8-98113-348-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2919 		8-98106-938-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE 		8-98113-349-0 01 1 0803- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1690 		8-98090-826-0 01 1 0712-0712 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0801- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0710-0711 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1756 		8-98090-827-0 01 1 0712-0712 ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772 		8-98106-486-0 01 1 0801- ● ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0710-0711 ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0712- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0710-0711 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0712- ● ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0710-0711 ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0712- ● ●
çizim 109173
33 75 33 46 75 46 138 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1694 		8-98090-727-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1622 		8-98069-807-0 01 1 0710-0906 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1622 		8-98069-807-0 01 1 0907- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1624 		8-98090-728-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1578 		8-98069-808-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH LINE L=2494 		8-98090-730-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH LINE L=2422 		8-98069-813-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH LINE L=2423 		8-98090-731-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH LINE L=2377 		8-98069-814-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2824 		8-98091-639-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2822 		8-98069-815-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2894 		8-98091-640-0 01 1 0710-0710 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2778 		8-98069-816-0 01 1 0710- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (A) LH LINE L=2906 		8-98099-899-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) LH LINE L=2906 		8-98099-899-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5100MM(51W) (B) RH LINE L=2828 		8-98099-898-0 01 1 0712-0712 ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) RH LINE L=2828 		8-98099-898-0 01 1 0712- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2804 		8-98106-936-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE 		8-98113-348-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2919 		8-98106-938-0 01 1 0712-0802 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE 		8-98113-349-0 01 1 0803- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0710-0711 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0712- ● ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0710-0711 ●
75 UNION; OIL PIPE 8-98018-438-0 02 1 0712- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0710-0711 ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0712- ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0710- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0710- ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=615 		8-98086-405-0 01 1 0712- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=679 		8-98086-406-0 01 1 0712- ●
