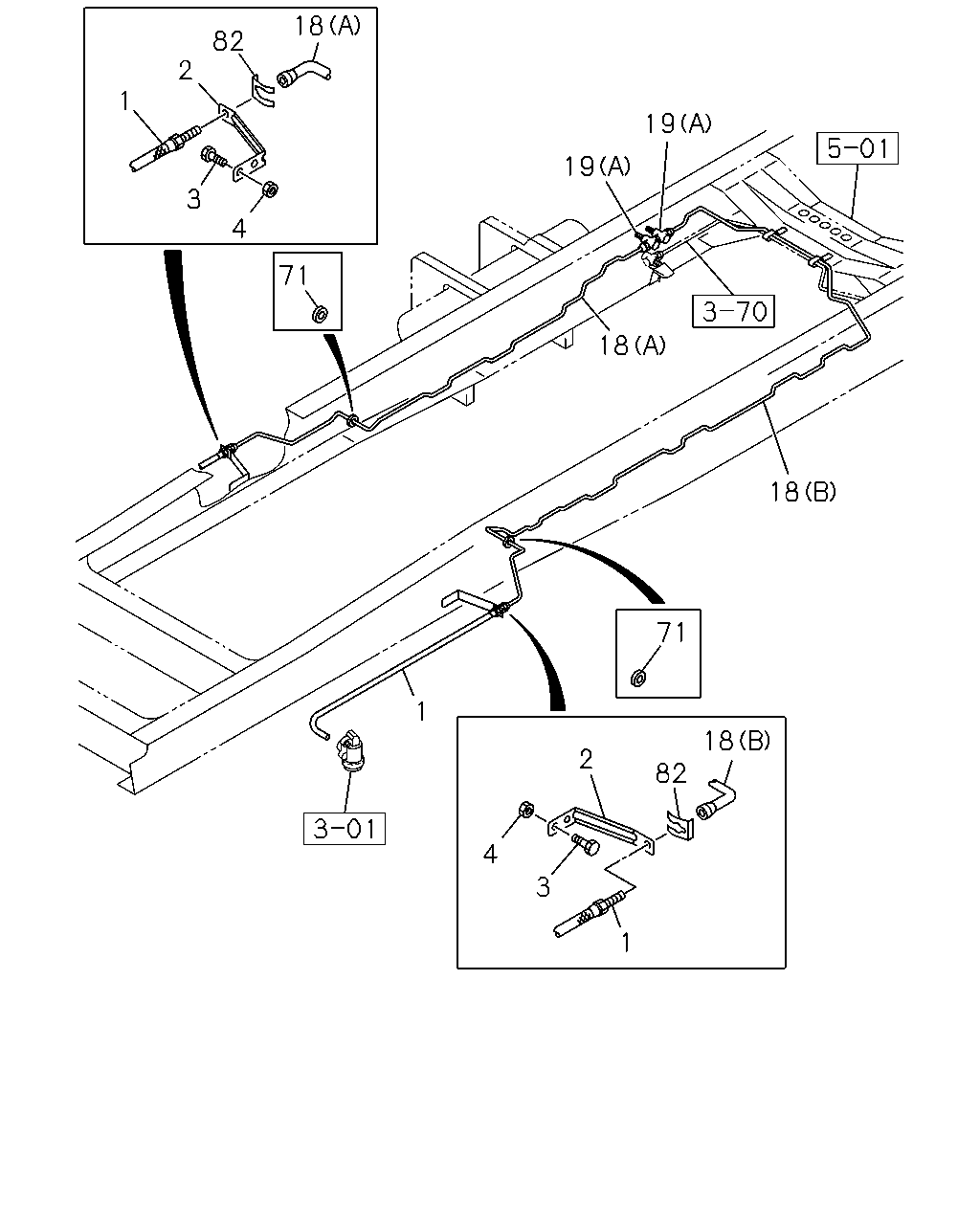

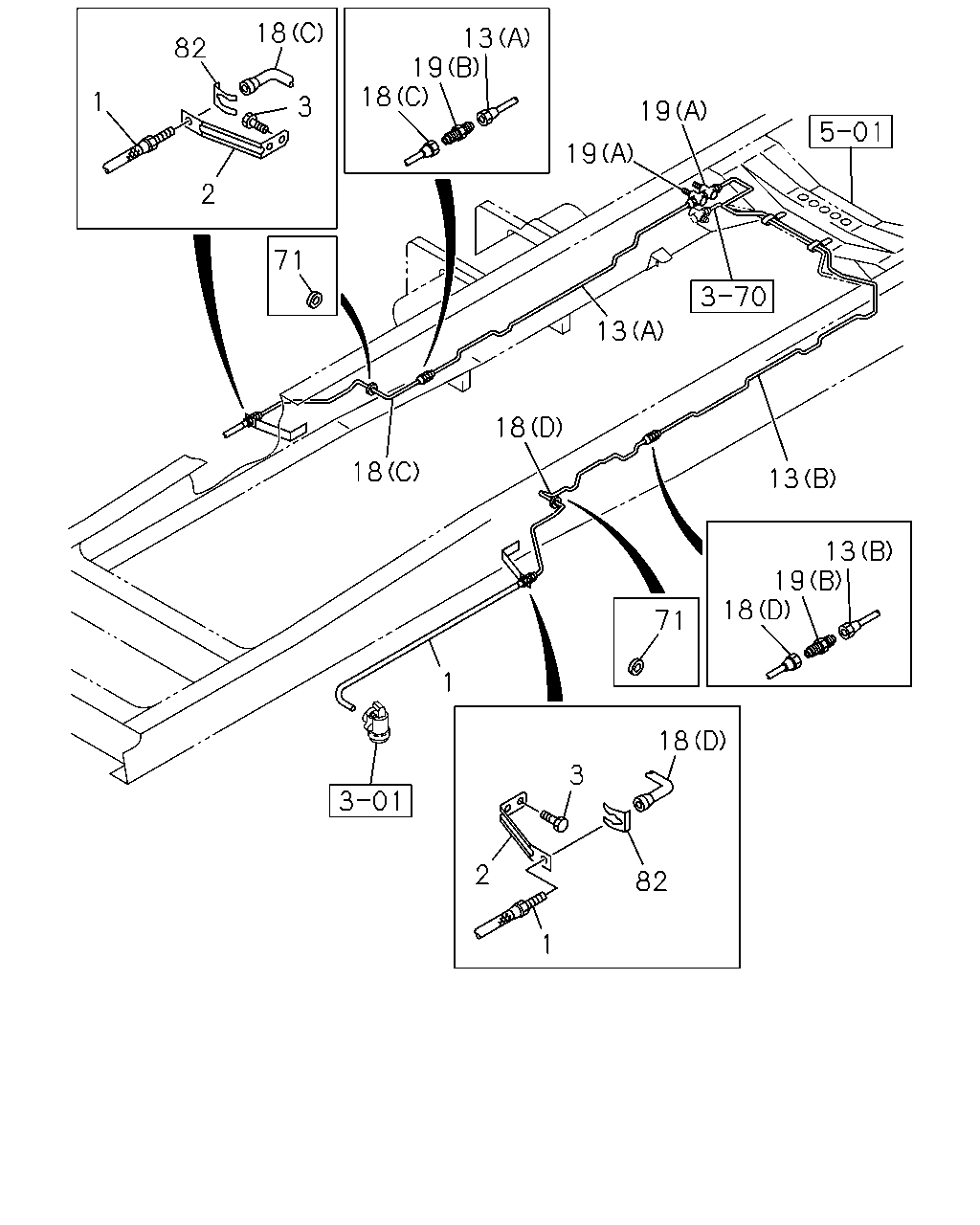

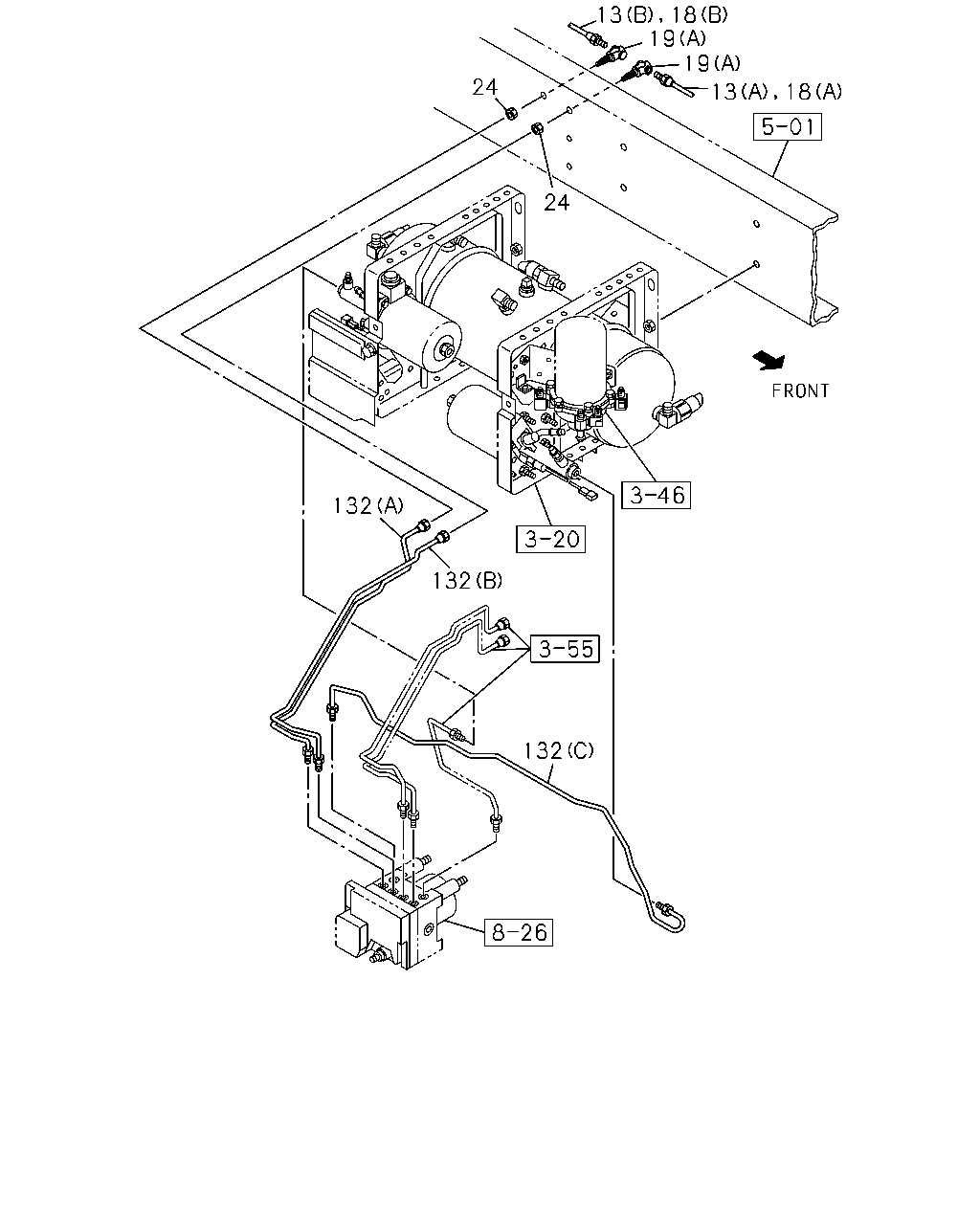

3-52 — BRAKE PIPING; OIL,FRONT (#19099) — 88 parça

13 18 19 19 24 18 13 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (B) LH LINE L=1963	8-98089-654-0	01	1	0712-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (A) RH LINE L=994	8-98095-531-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3122	8-98078-160-0	01	1	0710-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	0710-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (D) LH LINE L=1016	8-98065-376-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (C) RH LINE L=532	8-98084-177-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3690	8-98103-117-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3566	8-98113-049-0	01	1	0803-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3573	8-98135-447-0	01	1	0907-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (A) RH LINE L=1559	8-98102-918-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (A) RH LINE	8-98112-848-0	01	1	0803-	●
19	UNION; OIL PIPE (A)	8-98018-438-0	02	1	0710-0711		●
19	UNION; OIL PIPE (A)	8-98018-438-0	02	1	0712-	●	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M10 STRAIGHT	0-92107-005-0	02	1	0712-	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0710-0711		●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0712-	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0710-		●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0710-0803		●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=625	8-98116-095-0	01	1	0804-		●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0710-		●
132	PIPE; OIL,BRK,HYD UNIT (C) L=1039	8-98086-402-0	01	1	0712-	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=619	8-98086-403-0	01	1	0712-	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=648	8-98086-404-0	01	1	0712-	●

18 82 2 1 19 19 3 4 71 18 18 71 1 18 2 82 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=640	8-98085-202-0	02	1	0710-0711		●
1	HOSE; FLEX,FRT BRK L=640	8-98085-202-0	02	1	0712-1109	●	●
1	HOSE; FLEX,FRT BRK L=660	8-98202-875-0	02	1	1110-1211	●	●
1	HOSE; FLEX,FRT BRK L=660	8-98232-626-0	02	1	1212-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-947-1	02	1	0710-0711		●
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-947-1	02	1	0712-		●
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L)	8-98011-947-1	02	1	0712-	●
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS)	8-98011-946-1	02	1	0712-1011	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0710-0711		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-0801	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0710-0711		●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0712-0803		●
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	04	1	0712-0803	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0907-		●
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	04	1	0907-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3122	8-98078-160-0	01	1	0710-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	0710-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (D) LH LINE L=1016	8-98065-376-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (C) RH LINE L=532	8-98084-177-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3690	8-98103-117-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3566	8-98113-049-0	01	1	0803-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3573	8-98135-447-0	01	1	0907-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (A) RH LINE L=1559	8-98102-918-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (A) RH LINE	8-98112-848-0	01	1	0803-	●
19	UNION; OIL PIPE (A)	8-98018-438-0	02	1	0710-0711		●
19	UNION; OIL PIPE (A)	8-98018-438-0	02	1	0712-	●	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M10 STRAIGHT	0-92107-005-0	02	1	0712-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0710-0711		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0710-0711		●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0712-	●	●

18 13 19 18 82 1 3 19 19 2 71 13 18 18 13 13 19 18 71 1 18 3 2 82 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=640	8-98085-202-0	02	1	0710-0711		●
1	HOSE; FLEX,FRT BRK L=640	8-98085-202-0	02	1	0712-1109	●	●
1	HOSE; FLEX,FRT BRK L=660	8-98202-875-0	02	1	1110-1211	●	●
1	HOSE; FLEX,FRT BRK L=660	8-98232-626-0	02	1	1212-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-947-1	02	1	0710-0711		●
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-947-1	02	1	0712-		●
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L)	8-98011-947-1	02	1	0712-	●
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS)	8-98011-946-1	02	1	0712-1011	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0710-0711		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-0801	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (B) LH LINE L=1963	8-98089-654-0	01	1	0712-	●
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (A) RH LINE L=994	8-98095-531-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3122	8-98078-160-0	01	1	0710-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1821	8-98067-419-0	01	1	0710-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (D) LH LINE L=1016	8-98065-376-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (C) RH LINE L=532	8-98084-177-0	01	1	0712-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3690	8-98103-117-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3566	8-98113-049-0	01	1	0803-0906	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (B) LH LINE L=3573	8-98135-447-0	01	1	0907-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (A) RH LINE L=1559	8-98102-918-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) (A) RH LINE	8-98112-848-0	01	1	0803-	●
19	UNION; OIL PIPE (A)	8-98018-438-0	02	1	0710-0711		●
19	UNION; OIL PIPE (A)	8-98018-438-0	02	1	0712-	●	●
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M10 STRAIGHT	0-92107-005-0	02	1	0712-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0710-0711		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0710-0711		●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0712-	●	●
