◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#19097) — 42 parça

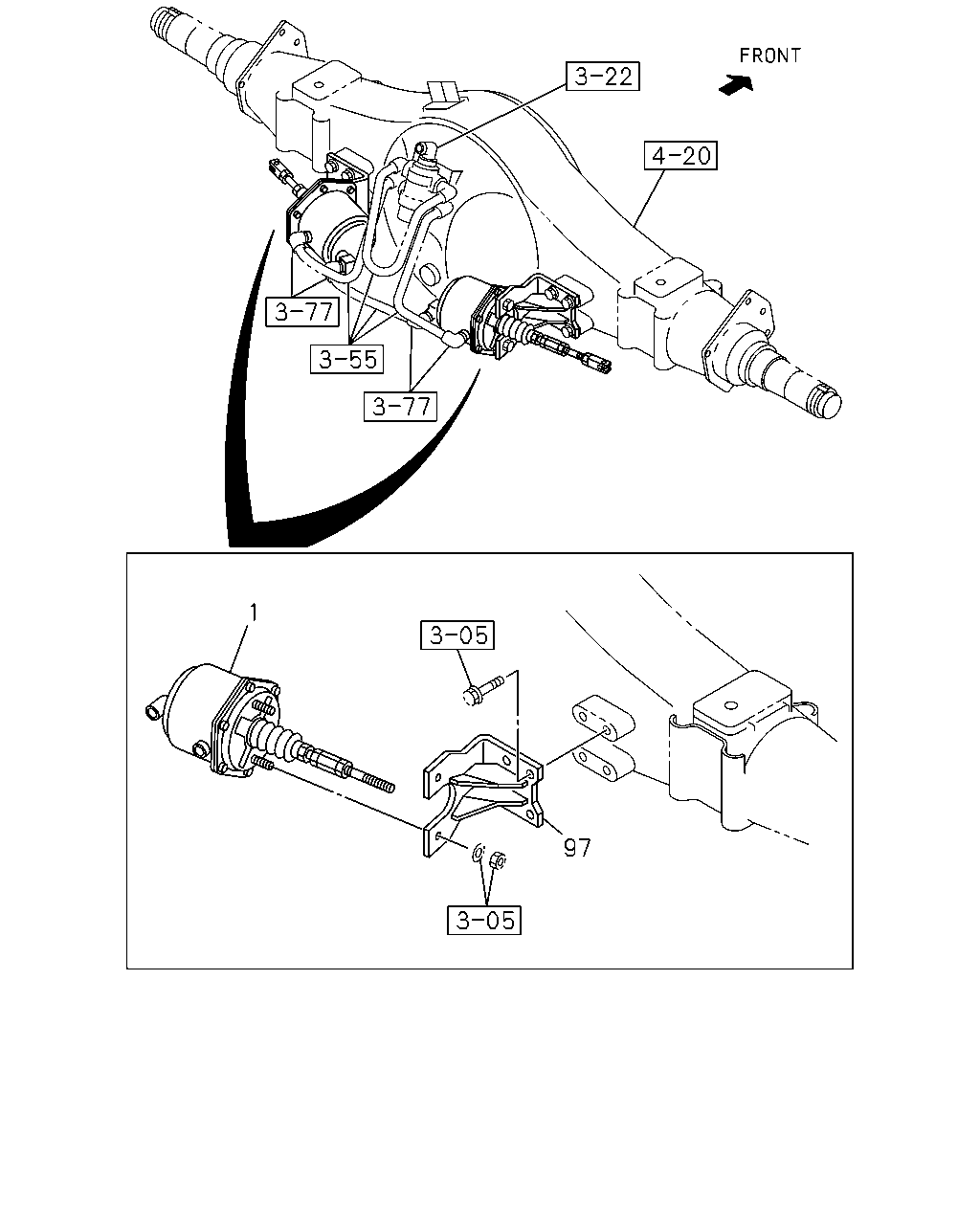

çizim 109168
1 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-920-0 01 1 0710-0711 ●
1 CHAMBER ASM; SPRING 1-48250-920-1 01 1 0712- ● ●
1 CHAMBER ASM; SPRING 1-48250-921-0 01 1 0710-0711 ●
1 CHAMBER ASM; SPRING 1-48250-921-1 01 1 0712- ● ●
97 BRACKET; CHAMBER 1-48258-242-0 02 1 0710-0711 ●
97 BRACKET; CHAMBER 1-48258-242-0 02 1 0712- ● ●

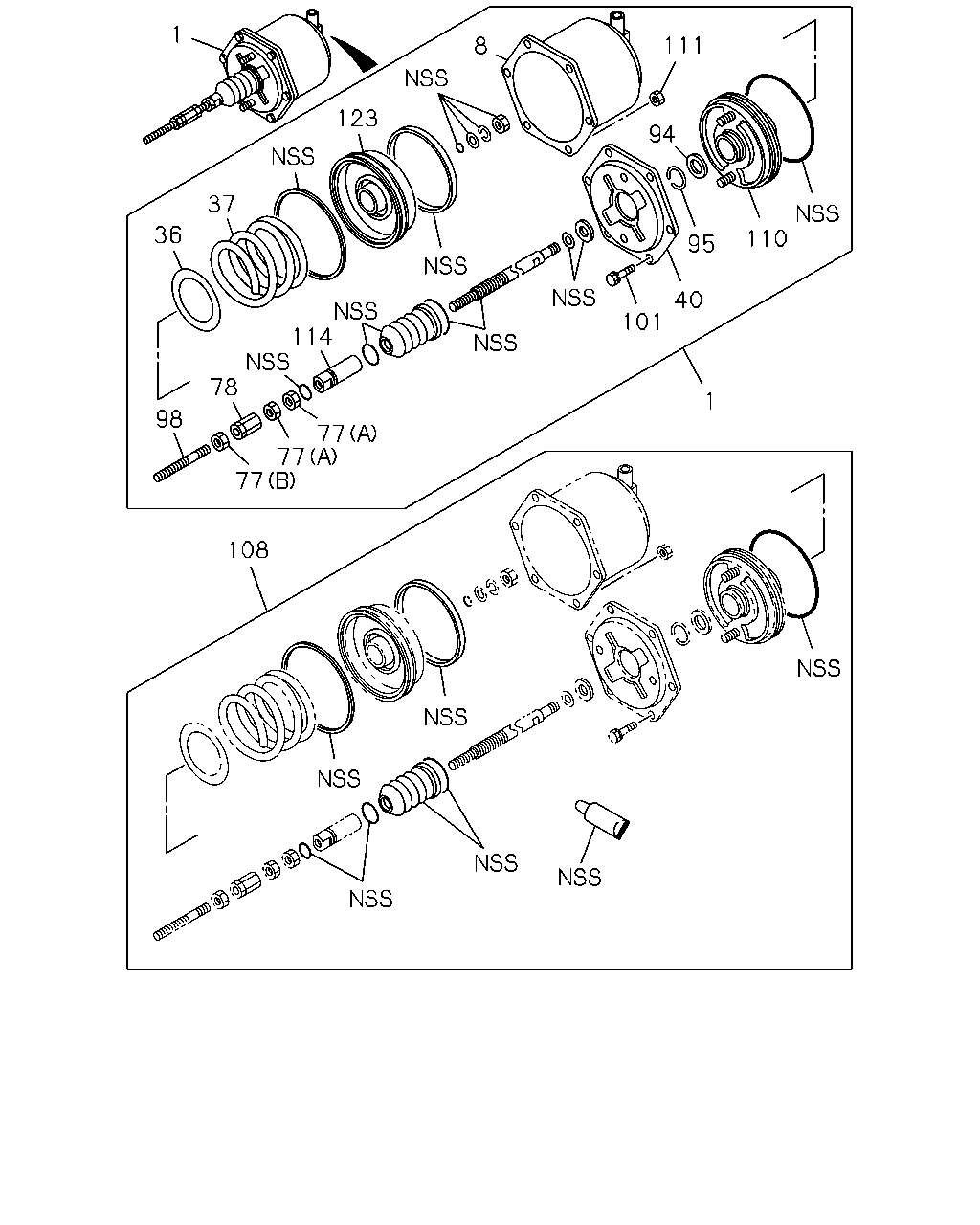

çizim 109170
1 111 8 123 94 37 110 36 95 40 114 78 101 1 98 77 77 77 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-920-0 01 1 0710-0711 ●
1 CHAMBER ASM; SPRING 1-48250-920-1 01 1 0712- ● ●
1 CHAMBER ASM; SPRING 1-48250-921-0 01 1 0710-0711 ●
1 CHAMBER ASM; SPRING 1-48250-921-1 01 1 0712- ● ●
8 SHELL; CYL,SPR CHAMBER 1-48251-190-0 02 1 0710-0711 ●
8 SHELL; CYL,SPR CHAMBER 1-48251-190-1 02 1 0712- ● ●
36 RETAINER; SPR CHAMBER 1-48269-099-0 02 1 0710-0711 ●
36 RETAINER; SPR CHAMBER 1-48269-099-0 02 1 0712- ● ●
37 SPRING; LWR,SPR CHAMBER 1-48265-009-0 02 1 0710-0711 ●
37 SPRING; LWR,SPR CHAMBER 1-48265-009-0 02 1 0712- ● ●
40 COVER ASM; LWR,SPR CHAMBER 1-48266-013-0 02 1 0710-0711 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48266-013-1 02 1 0712- ● ●
77 NUT; SPR CHAMBER BRK
(A) 		1-48269-105-0 04 1 0710-0711 ●
77 NUT; SPR CHAMBER BRK
(A) 		1-48269-105-0 04 1 0712- ● ●
77 NUT; SPR CHAMBER BRK
(B) 		1-48269-114-0 02 1 0710-0711 ●
77 NUT; SPR CHAMBER BRK
(B) 		1-48269-114-0 02 1 0712- ● ●
78 TURNBACKLE; SPR CHAMBER BRK 1-48269-113-0 02 1 0710-0711 ●
78 TURNBACKLE; SPR CHAMBER BRK 1-48269-113-0 02 1 0712- ● ●
94 PLATE; RELEASE,SPR CHAMBER 1-48269-097-1 02 1 0710-0711 ●
94 PLATE; RELEASE,SPR CHAMBER 1-48269-097-1 02 1 0712- ● ●
95 RING; RELEASE,SPR CHAMBER 1-48269-098-0 02 1 0710-0711 ●
95 RING; RELEASE,SPR CHAMBER 1-48269-098-0 02 1 0712- ● ●
98 ROD; CHAMBER 1-48263-038-0 02 1 0710-0711 ●
98 ROD; CHAMBER 1-48263-038-0 02 1 0712- ● ●
101 BOLT; SPR CHAMBER 1-48269-102-0 12 1 0710-0711 ●
101 BOLT; SPR CHAMBER 1-48269-102-0 12 1 0712- ● ●
108 REPAIR KIT; SPR CHAMBER 1-85576-442-0 02 1 0710-0711 ●
108 REPAIR KIT; SPR CHAMBER 1-85576-442-0 02 1 0712- ● ●
110 PLATE; MOUNTING,SPR CHAMBER 1-48251-189-0 02 1 0710-0711 ●
110 PLATE; MOUNTING,SPR CHAMBER 1-48251-189-0 02 1 0712- ● ●
111 NUT; SPR CHAMBER 1-48269-101-0 12 1 0710-0711 ●
111 NUT; SPR CHAMBER 1-48269-101-0 12 1 0712- ● ●
114 HOLDER; ROD,SPR CHAMBER 1-48269-250-0 02 1 0710-0711 ●
114 HOLDER; ROD,SPR CHAMBER 1-48269-250-0 02 1 0712- ● ●
123 PISTON ASM; SPR CHAMBER 1-48262-024-2 02 1 0710-0711 ●
123 PISTON ASM; SPR CHAMBER 1-48262-024-2 02 1 0712- ● ●
